WyreStorm CAB-HAOC-FRL-10 48Gbps 8K/60 HDR 4:4:4 Active Optical HDMI Cable User Guide
IMPORTANT! Installation Requirements
Cable is unidirectional. Follow the connector labelling and colour coding to ensure proper operation of the cable.
In The Box
1x CAB-HAOC-FRL-10 or CAB-HAOC-FRL-15 Active Optical HDMI Cable
2x Reusable Cable Ties
1x Quick start Guide (This Document)

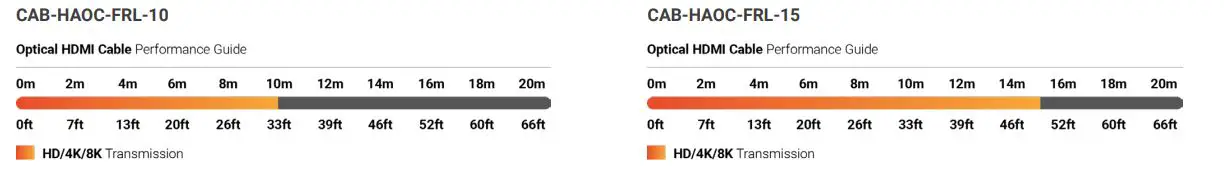

Cable Distances
Wiring and Connections
IMPORTANT! Installation Requirements
The WyreStorm Active Optical cables are designed to transmit HDMI signals from the source to a display.
- Follow the labelling and the diagrams for connection to ensure proper operation.

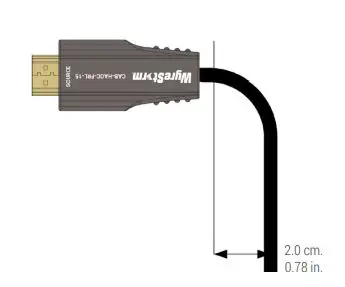

- Due to the core of the HAOC being fibber optic the cable cannot have a bend radius greater than 2cm/0.78in. Keep this mind when routing cables around objects and inside of walls.
- The cables have a max pull tension of 15kg/33lbs. Keep this in mind when routing the cable within cabinets or walls to avoid damaging the cable.

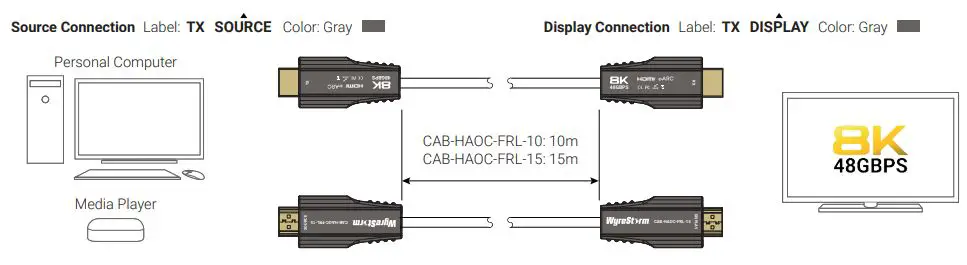

Basic Wiring Diagram
Warranty Information
WyreStorm Technologies LLC warrants that its products to be free from defects in material and workmanship under normal use for a period of five (5) years from the date of purchase. Refer to the Product Warranty page on wyrestorm.com for more details on our limited product warranty.

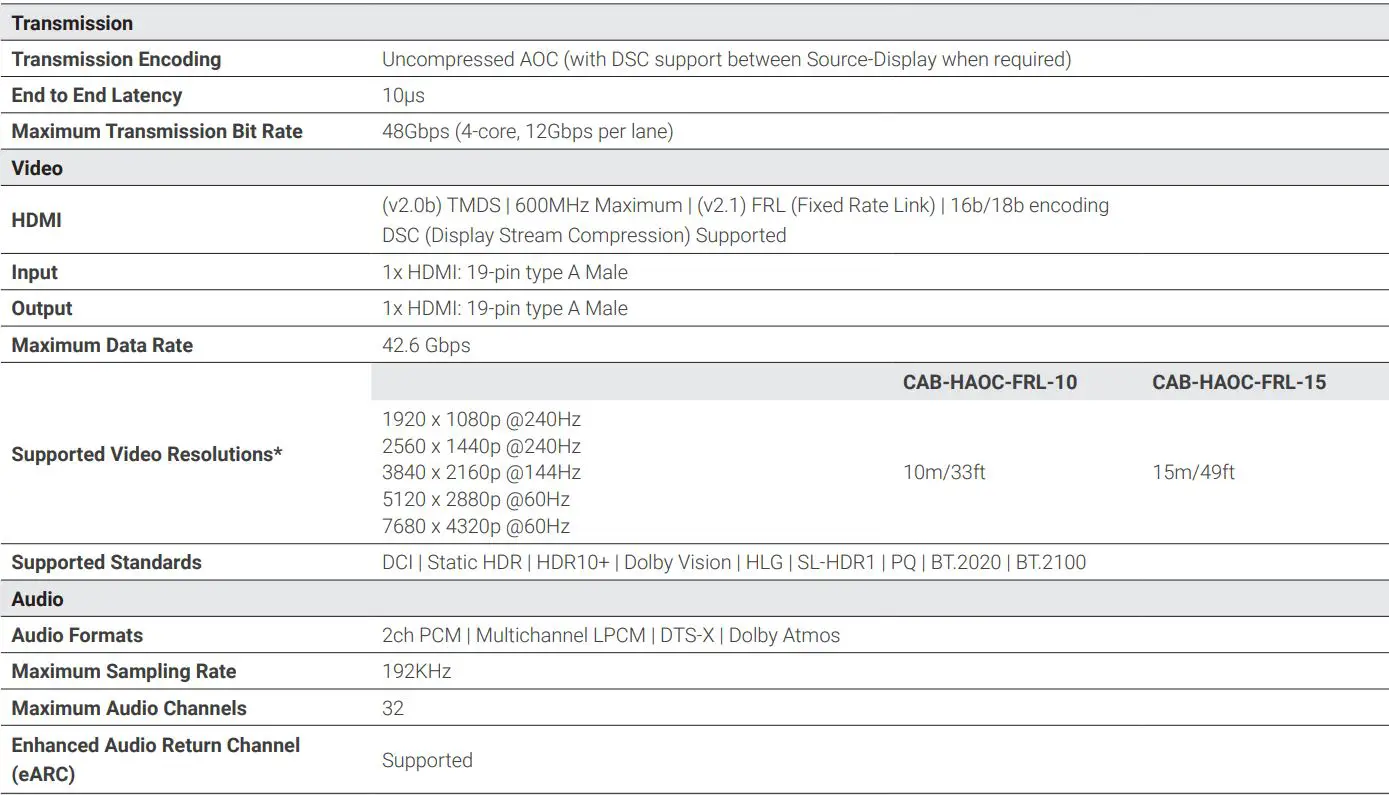

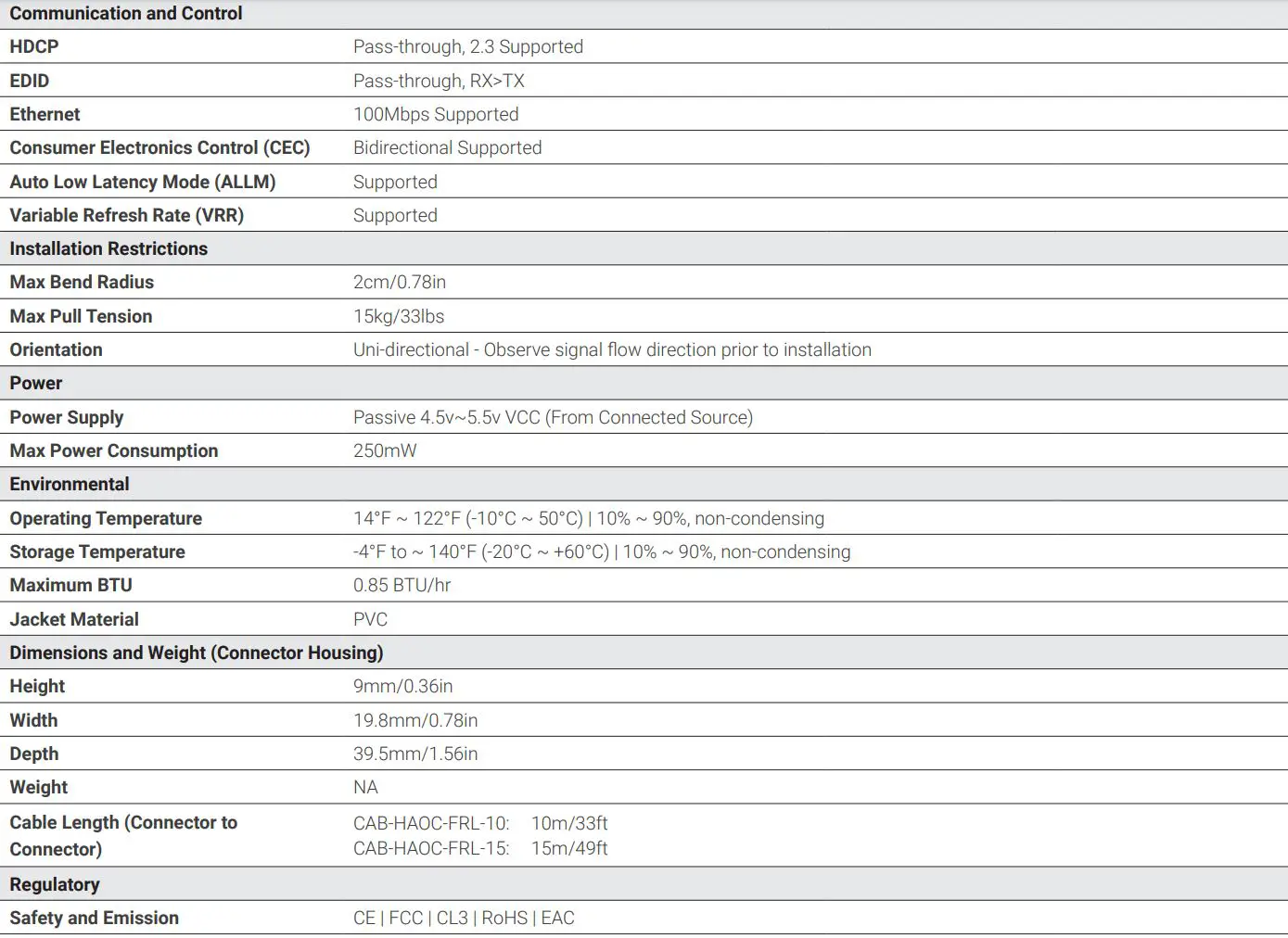

Specifications
*only maximum frame rates of supported resolutions are listed (8-bit colour)
Note: WyreStorm reserves the right to change product specification, appearance or dimensions of this product at any time without prior notice.
Copyright © 2020 WyreStorm Technologies | wyrestorm.com CAB-HAOC-FRL-xx Quick start Guide | 200330
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973) [email protected]
