Quickstart Guide
WyreStorm Essentials 4K HDR 4×1 HDMI Switcher with
Auto-Switching, HDCP 2.2 & Remote
EXP-SW-0401-H2
WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the installation process.
IMPORTANT! Installation Requirements
- Visit the product page to download the latest firmware, document version, additional documentation, and configuration tools.
- Read through the Wiring and Connections section for important guidelines before creating or choosing premade cables.
In The Box
1x EXP-SW-0401-H2 Switcher
1x 12V DC Power Supply (US/UK/EU/AU)
2x Mounting Brackets
1x IR Remote Control
1 x IR Receiver Cable

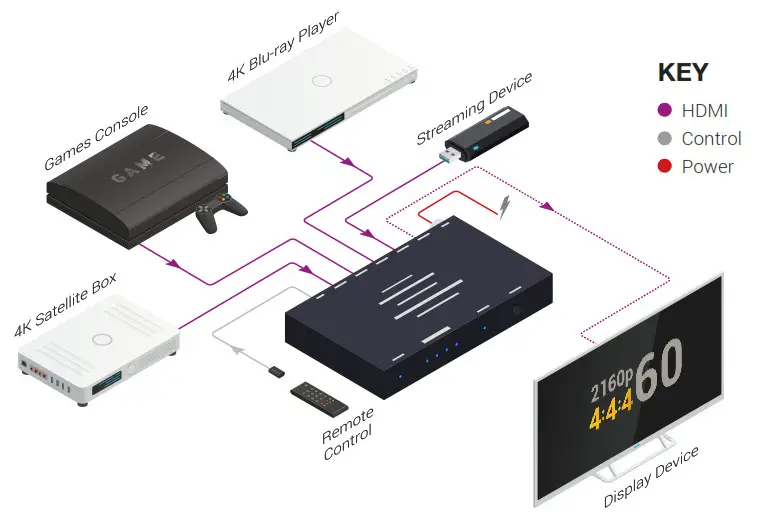

Basic Wiring Diagram
Wiring and Connections
WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in its entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.
IMPORTANT! HDMI Wiring Guidelines
- The use of patch panels, wall plates, cable extenders, kinks in cables, and electrical or environmental interference will have an adverse effect on HDMI transmission limiting performance. Steps should be taken to minimize or remove these factors completely during installation for best results.
- WyreStorm recommends using high-quality HDMI cables such as WyreStorm Essentials to ensure the highest content performance available.
Installation and Operation
- Connect HDMI sources to the HDMI IN ports using a good quality HDMI cable.
- Connect an HDMI display device to the HDMI OUT port of the switcher.
Note: The switcher is powered via mains power supply to the unit. WyreStorm recommends using only the power adapter supplied. - Turn the power on ensuring LED power indicators are fully lit on the front of the switcher. If not, check power cable is firmly connected.
Troubleshooting
No or Poor Quality Picture (snow or noisy image)
- Verify that power is being supplied to all devices in the system and that they are powered on.
- Verify that all HDMI connections are not loose and are functioning properly.
- If transmitting 3D or 4K, verify that the HDMI cables used are 4K rated.
Troubleshooting Tips:
- WyreStorm recommends using a cable tester or connecting the cable to other devices to verify functionality.
Specifications
| Audio and Video | ||
| Inputs | 4x HDMI In: 19-pin type A | |
| Outputs | 1x HDMI Out: 19-pin type A | |
| Video Encoding | HDMI | TMDS | |
| Encoding Data Rate | NA | |
| End to End Latency | NA | |
| Audio Formats | 2ch PCM | Multichannel: LPCM and up to DTS-X and Dolby Atmos | |
| Video Resolutions (Max) | Resolution | HDMI |
| 1920x1080p @60Hz 16bit 3840x2160p @60Hz 8bit 4:4:4 HDR 4096x2160p @60Hz 12bit 4:2:2 Dolby Vision/HDR10 | 7m/23ft 3m/12ft 3m/12ft | |
| Supported Standards | DCI | RGB | HDR | HDR10 | Dolby Vision | HLG | ALLM | VRR | BT.2020 | BT.2100 | |
| Maximum Pixel Clock | 600MHz | |
| Color Depth | 12bit | |
| Communication and Control | ||
| HDMI | HDCP 2.2 | EDID | DVI-D supported with adapter (not included) | |
| IR | 1x IR Ext. Port | |
| Push Button | Front Panel Push Button | |
| Power | ||
| Power Supply | 12V DC 1A | |
| Max Power Consumption | 3.2W | |
| Environmental | ||
| Operating Temperature | 0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing | |
| Storage Temperature | -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing | |
| Maximum BTU | 10.92 BTU/hr | |
| Dimensions and Weight | ||
| Rack Units/Wall Box | <1U | |
| Height | 16mm/0.62in | |
| Width | 175mm/6.9in | |
| Depth | 66.2mm/2.6in | |
| Weight | 0.25kg/0.55lbs | |
| Regulatory | ||
| Safety and Emission | CE | FCC | RoHS | EAC | RCM | |
Note: WyreStorm reserves the right to change product specification, appearance or dimensions of this product at any time without prior notice.
