Precision48

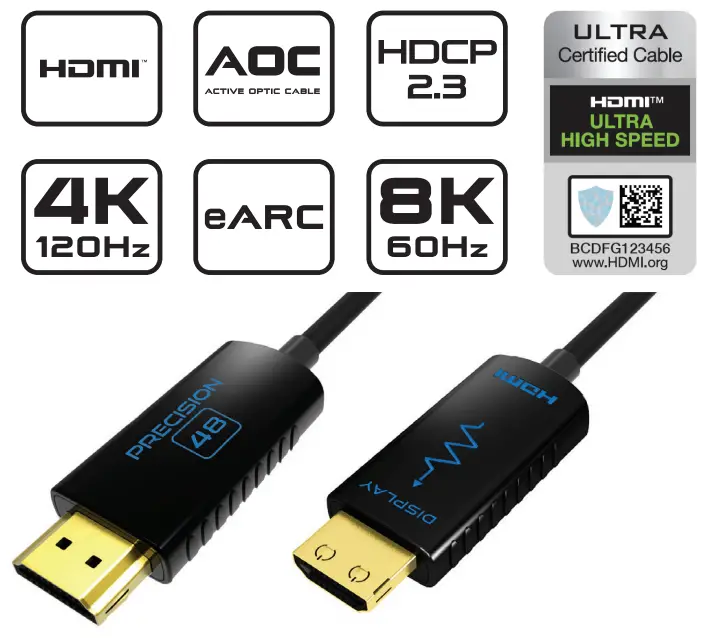

48Gbps 8K AOC HDMI Cable
Description
Our active Precision48 HDMI cables utilize integrated circuits that measure, analyze and adjust the video signal to ensure 48Gbps pass-through for support of all the latest HDMI 2.1 resolutions including 8K video up to 60Hz, 4K video up to 120Hz and 8/10/12 bit color (up to 16-bit color at 1080p).
Key Features
- 48Gbps Bandwidth (Ultra High-Speed Certified)
- Supports 8K video up to 60Hz and 4K UHD video up to 120Hz
- Supports full HDR 10-bit, 12-bit, and 16-bit color depths
- Supports eARC for enhanced high-definition audio return
- Optimized for the toughest installation environments
- Active Optic Copper cable provides enhanced EMI and RFI resistance
- LSZH (Low Smoke Zero Halogen) rated cabling
- Available in lengths of 10m, 15m, and 30m
- Gold-plated locking tabs for secure connection
- Active integrated circuits analyze the video signal to ensure signal integrity at long cable distances
- Supports CEC
Max 4K Capabilities
| Resolution and FPS | 8 – b i t | 10-bit | 12-bit | 16-bit |
| 4K – 24-60fps | RGB 1 4:4:4 4:2:2 14:2:0 | RGB I 4:4:4 4:2:2 14:2:0 | RGB I 4:4:4 4:2:2 14:2:0 | RGB 14:4:4 4:2:0 |
| 4K – 1001120fps | RGB I 4:4:4 4:2:2 14:2:0 | RGB I 4:4:4 4:2:2 14:2:0 | RGB I 4:4:4 4:2:2 14:2:0 | RGB 14:4:4 4:2:0 |
| 5K – 24-60fps | RGB 1 4:4:4 4:2:2 14:2:0 | RGB I 4:4:4 4:2:2 14:2:0 | RGB 14:4:4 4:2:2 1 4:2:0 | RGB 14:4:4 4:2:0 |
| 5K – 1001120fps | RGB 1 4:4:4 4:2:2 1 4:2:0 | RGB 1 4:4:4 4:2:2 1 4:2:0 | RGB 14:4:4 4:2:2 1 4:2:0 | RGB 14:4:4 4:2:0 |
| 8K – 24-30fps | RGB I 4:4:4 4:2:2 14:2:0 | RGB I 4:4:4 4:2:2 14:2:0 | RGB I 4:4:4 4:2:2 1 4:2:0 | RGB 14:4:4 4:2:0 |
| 8K -48-60fps | RGB I 4:4:4 4:2:2 1 4:2:0 | RGB I 4:4:4 4:2:2 14:2:0 | RGB I 4:4:4 4:2:2 14:2:0 | RGB 14:4:4 4:2:0 |
Regulatory Compliance
Blustream cannot be held responsible for errors in typography or photography. Specifications are subject to change without notice.
Specifications
| Frame Rate | 24, 25, 30, 50, 60, 100, 120 fps |
| Chroma Sampling | RGB, 4:4:4, 4:2:2, 4:2:0 |
| Colour Bit Depth | 8, 10, 12, 16-bit |
| Signal Type | HDMI, HDCP 2.3, HDR |
| Max. Video Data Rate | 48Gbps (4 x 12Gbps FRL Channels) |

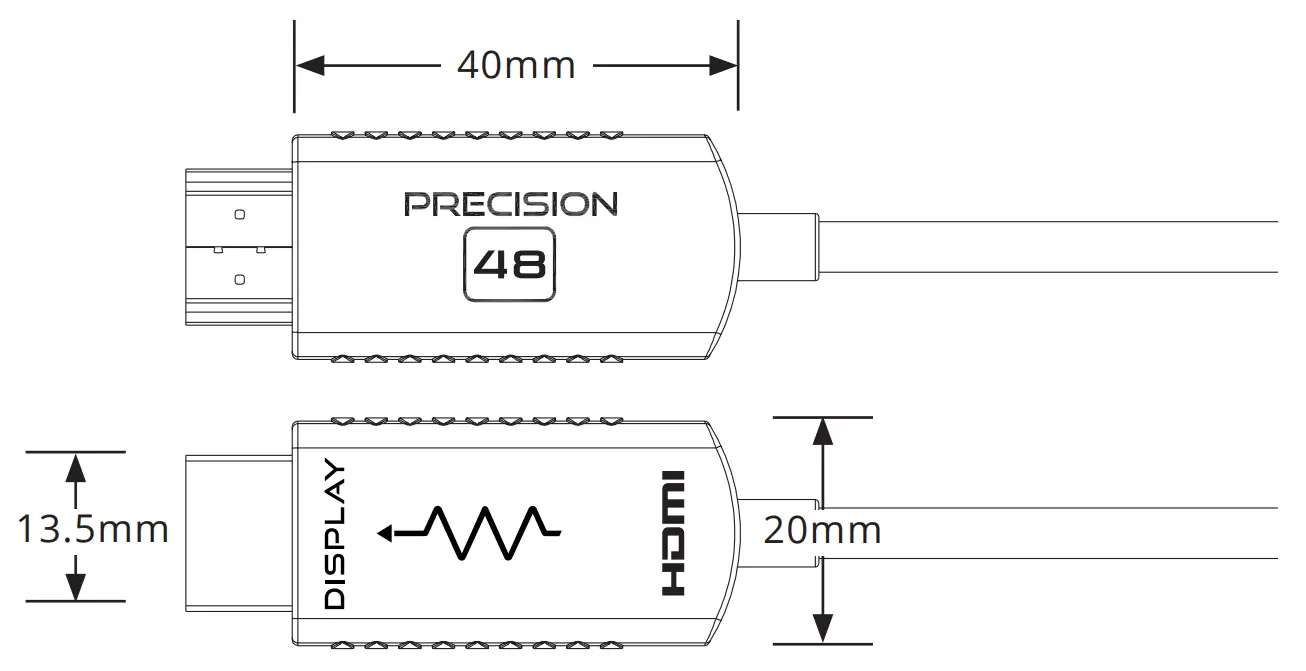

| Outer Diameter | 4.5mm +/- 0.2mm |
| Cable Bend Radius | 20mm |
| Fibre Pulling/Tensile Strength | 25Kg |
| Fiber Type | OM3 |
