C-DPU
8K DisplayPort Cable

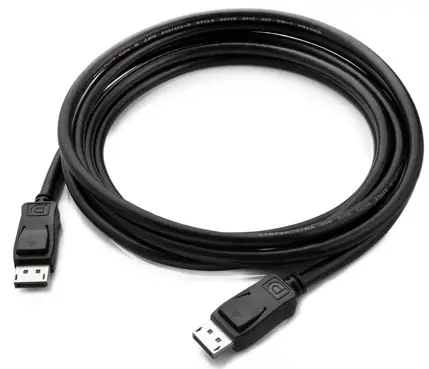

C-DPU-6 DisplayPort Cable, 1.8m, black, 8K Cheap Huss Light & Sound
C-DPU is a high-resolution DisplayPort cable for video signals up to 8K@60Hz resolution (7680 × 4320) supporting the DisplayPort 1.4 standard. C-DPU supports an HBR3 (High Bit Rate 3) bandwidth of up to 32.4 Gbps (8.1 Gbps per channel). The cable is triple shielded for superior noise immunity
FEATURES
High–Performance Professional Cable – supports resolutions up to 8K@60Hz and an HBR3 (High Bit Rate 3) bandwidth of up to 32.4 Gbps
Content Protection Support – DPCP (DisplayPort Content Protection) and HDCP 2.2
Daisy Chain Multiple Monitors – With MST (Multi–Stream) support
Display Stream Compression 1.2-DSC
Secure Connections – Includes molded DisplayPort connectors with latches
Quality Construction – Triple shielded for superior noise immunity
Backward Compatibility – Compatible with DisplayPort 1.2 and 1.1
Varied Selection of Lengths – Available in versions of 0.9 to 3.0m (3 to 10ft)
TECHNICAL SPECIFICATIONS
| Video | Resolutions: Supports all VESA resolutions up to 8K@60Hz Max. Data Rate: 32.4Gbps (8.1 Gbps per channel) |
| PHYSICAL | Male DisplayPort Connectors: Gold plated pins–15u, nickel plated shell |
| SCREENING | Type: Triple Shielding (eliminates RF and EM interference) |
| CONDUCTORS | Size 28AWG |
| JACKET | Material: PVC Diameter 7.3 ± 0.19mm Average Thickness 0.77mm Color: Black |
| ELECTRICAL | Voltage Rating: 30V Temperature Rating: 80°C Dielectric Strength: AC — 750V/1sec MIN Insulation Resistance: FOAM−SKIN−PE,PE:DC−500V 100 MΩ/KM MIN. at 20℃ Conductor Resistance: 237.3Ω/KM MAX. at 20℃ Differential Impedance: 100±5Ω Intra Pair Skew: 50ps/4m Inter Pair Skew: 2ns/4m |
| Regulatory Compliance (Standards Compliance) | Rating: VW–1 RoHS: 2 |
CONFIGURATIONS
| C–DPU–3 | 8K DisplayPort Cable |
| C–DPU–6 | 8K DisplayPort Cable |
| C–DPU–10 | 8K DisplayPort Cable |
