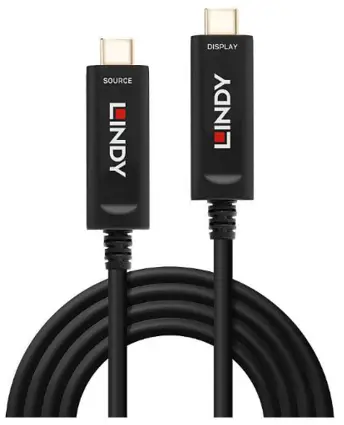

38501 Hybrid Video USB C Cable, 5m, 4K, HDR, Copper
User Manual
No. 38501_3_5
lindy.com
Introduction
Thank you for purchasing the Fibre Optic Hybrid USB Type C Cable. This product has been designed to provide trouble free, reliable operation. It benefits from both a LINDY 2-year warranty and free lifetime technical support. To ensure correct use, please read this manual carefully and retain it for future reference.
Lindy’s Fibre Optic Hybrid USB Type C Cables are the professional solution for the transmission of video signals over longer distances. Combining the flexibility and high EMI & RFI resistance of fibre optic cable with standard copper cabling, these hybrid cables are ideal for use in critical AV setups or commercial installations. Supplied as a thin cable with a premium metal, narrow USB Type C connector, this can be installed easily through conduit and other narrow spaces with no damage caused to the internal cable structure.
Package Contents
- Fibre Optic Hybrid USB Type C Cable
- This manual
Features
- USB Type C cable for video data only
- Supports resolutions up to 3840×2160@60Hz 4:4:4 10bit, 3840×2160@60Hz RGB 8bit
- Reduced EMI and RFI
- Supports HDCP 2.2
Specification
- Supported Bandwidth: 21.6Gbps
- Cable Type: Fibre Optic Hybrid (4 x 850nm OM3-150μm MMF & 7 x Copper Wire)
- Minimum Bend Radius: 45mm (1.77in)
- Nominal Attenuation: -1dB~-2dB
- Jacket Diameter: 4.5mm (0.177in)
- Jacket Material: PVC
- Colour: Black
- Power Consumption: <250mW at each side of the installation
- Operating Temperature: 0°C – 50°C (32°F – 122°F)
- Storage Temperature: -20°C – 85°C (-4°F – 185°F)
Recycling Information
WEEE (Waste of Electrical and Electronic Equipment), Recycling of Electronic Products
Europe, United Kingdom
In 2006 the European Union introduced regulations (WEEE) for the collection and recycling of all waste electrical and electronic equipment. It is no longer allowable to simply throw away electrical and electronic equipment. Instead, these products must enter the recycling process. Each individual EU member state, as well as the UK, has implemented the WEEE regulations into national law in slightly different ways. Please follow your national law when you want to dispose of any electrical or electronic
products. More details can be obtained from your national WEEE recycling agency.
CE/FCC Statement
CE Certification
LINDY declares that this equipment complies with relevant European CE requirements.
Manufacturer (UK):
LINDY Electronics Ltd
Sadler Forster Way
Stockton-on-Tees, TS17 9JY
England
[email protected] ,
T: +44 (0)1642 754000
Tested to comply with
FCC standards.
For home and office use.
No. 38501_3_5
Edition, November 2022
