USB-C to C Superspeed Active Optical Cable
CAB-USBC-15
Quickstart Guide
CAB-USBC-15 USB-C to C Superspeed Active Optical Cable
WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the installation process.
In the Box
- 1x CAB-USBC-15 Cable
- 1x Quickstart Guide
Wiring and Connections
IMPORTANT! Installation Requirements
- Follow the labeling and the diagrams for connection to ensure proper operation.

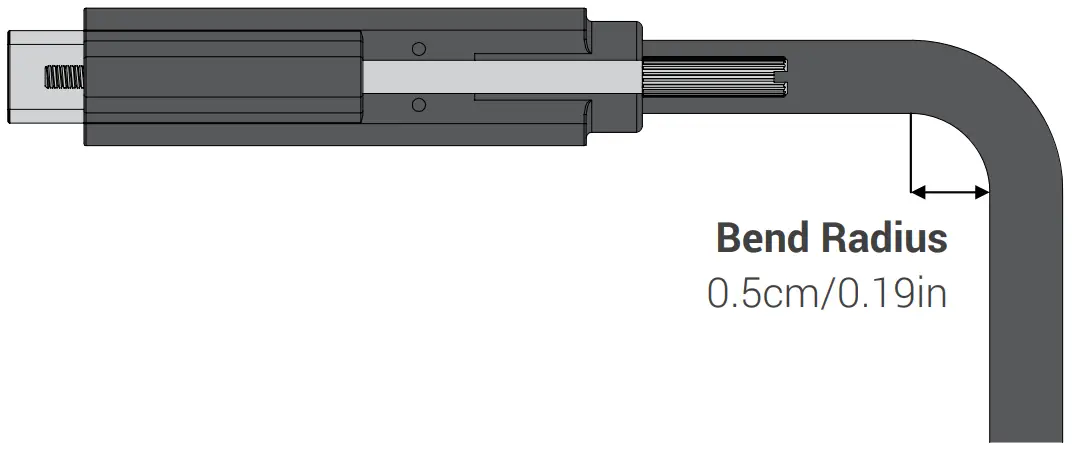

- Due to the cables diameter, the cable cannot have a bend radius greater than 0.5cm/0.19in. Keep this mind when routing cables around objects and inside of walls.
- The cables have a max pull tension of 20kg/44lbs. Keep this in mind when routing the cable within cabinets or walls to avoid damaging the cable.
| Audio and Video | ||
| Video Resolution (Max) | 1920x1080p @60Hz 3840x2160p @30Hz 8bit 4:4:4 | 15m/49ft |
| Maximum Pixel Clock | 300Mhz | |
| Supported Standards | RGB | USB | USB Alt-Mode | |
| Communicattion and Control | ||
| USB | USB 3.2 Gen 1 | Superspeed 5Gbps | |
| Power | ||
| Power Consumption | 1100mW (5v input) | |
| Power Delivery | 20V 3A (60w) | |
| Environmental | ||
| Operating Temperature | 14°F ~ 158°F (-10°C ~ 70°C) | 0% ~ 85%, non-condensing | |
| Storage Temperature | -40°F ~ 185°F (-40°C ~ 85°C) | 0% ~ 85%, non-condensing | |
| Max Cable Bend Radius | 0.5cm/0.19in | |
| Max Pull Tension/Tensile Strength | 20kg/44lbs (200n) | |
| Dimensions and Weight | ||
| Length x Width x Height | Connector W/O Screw Lock: 56mm x 13.3mm x 8.6mm Connector with Screw Lock: 56mm x 13.3mm x 13.9mm | |
| Cable Diameter | 6.5mm | |
| Regulatory | ||
| Safety and Emission | CE | FCC | RoHS | EAC | RCM | |
Note: WyreStorm reserves the right to change product specification, appearance or dimensions of this product at any time without prior notice.
Warranty Information
WyreStorm Technologies ProAV Corporation warrants that its products to be free from defects in material and workmanship under normal use for a period of five (5) years from the date of purchase. Refer to the Product Warranty page on wyrestorm.com for more details on our limited product warranty.
Copyright © 2022 WyreStorm Technologies
wyrestorm.com
CAB-USBC-15 Quickstart Guide
220308
INT: +44 (0) 1793 230 343
US: 844.280.WYRE (9973)
[email protected]
WyreStorm - Professional Audio Visual Solution Provider
