Quick Start Guide
OM15080-JN5189 USB DONGLE
JN5189 DONGLE
Quick Start Guide
GET TO KNOW THE OM15080-JN5189

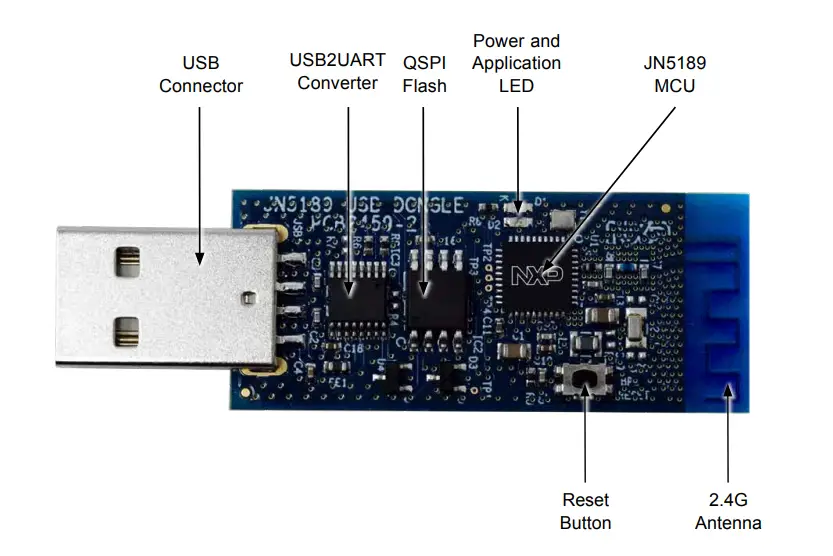

Figure 1: OM15080-JN5189 Board Components
HOW TO GET STARTED
- Plugin the OM15080-JN5189 board into a PC. A green power LED and a red application LED will illuminate.
- The OM15080-JN5189 comes preprogrammed with a Zigbee Smart® sniffer application.
- Explore more out-of-box demos and download software and tools on www.nxp.com/OM15080-JN5189.
- Enjoy your design freedom with the OM15080-JN5189.
Get Started
Download installation software and documentation under “Jump Start Your Design” at www.nxp.com/OM15080-JN5189.
SUPPORT
Visit www.nxp.com/support for a list of phone numbers within your region.
WARRANTY
Visit www.nxp.com/warranty for complete warranty information.
The following information is provided per Article 10.8 of the Radio Equipment Directive 2014/53/EU:
(a) Frequency bands in which the equipment operates.
(b) The maximum RF power transmitted.
| PN | RF Technology | (a) Freq Ranges (EU) | (b) Max Transmitted Power |
| OM15080-JN5189 | Zigbee | 2400 MHz – 2483 MHz | 11 dBm |
EUROPEAN DECLARATION OF CONFORMITY
(Simplified DoC per Article 10.9 of the Radio Equipment Directive 2014/53/EU)
This apparatus, namely OM15080-JN5189 Packet Sniffer/USB Dongle, conforms to the
Radio Equipment Directive 2014/53/EU.
The full EU Declaration of Conformity for this apparatus can be found at this location: www.nxp.com/OM15080-JN5189
www.nxp.com/OM15080-JN5189
NXP and the NXP logo are trademarks of NXP B.V.
All other product or service names are the property of their respective owners.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.
and any use of such marks by NXP Semiconductors is under license.© 2020 NXP B.V.
Document Number: JN5189DONQSG REV 0
Agile Number: 926-45629 Rev A
