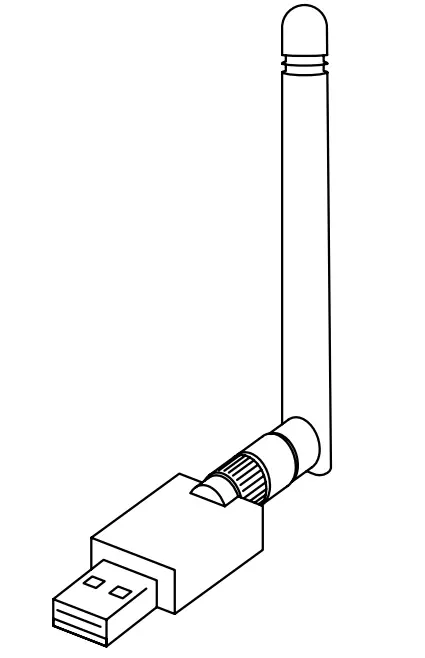

NX Wifi Dongle
User Guide
swiss made power
General Information
Exclusion of liability
Studer disclaims all responsibility and liability for damage, costs or losses resulting from an installation that does not comply with the instructions, a faulty operation or inadequate maintenance. The use of studer equipment is in any case under the responsibility of the customer.
Read carefully the safety and operation instructions/Installation must be entrusted to qualified personnel/Check the user manual online/Need help ?
https://technext3.studer-innotec.com

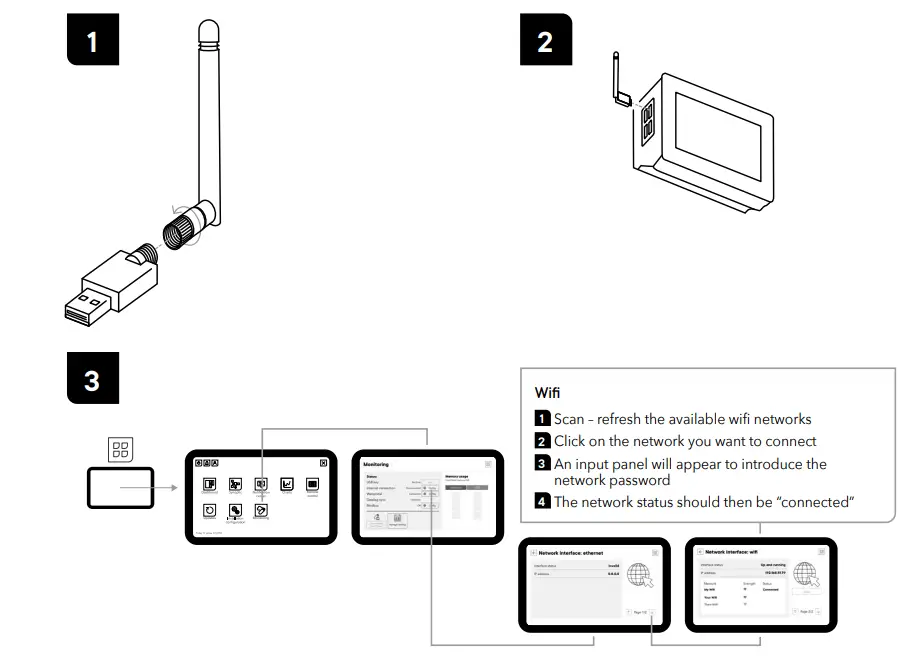

Installation
If a network is not supported, i.e. WEP or WPA-3, the network is grey.
The output power is restricted indoors, not applicable for outdoor application.
| Chipset | RTL8811AU |
| Standard | IEEE 802.11a/b/n/ac |
| Frequency | 2.412 GHz – 2.472 GHz 5.15 GHz – 5.825 GHz |
| Data-Rate | 802.11b: up to 11 Mbps 802.11g: up to 54 Mbps 802.11n: up to 150 Mbps 802.11ac: up to 433 Mbps |
| Antenna | 1x External detachable dual-band 2.4 GHz + 5 GHz 2 dBi antenna |
| Connector | RP-SMA female |
| Channel width | 20 / 40 / 80 MHz |
| LED indicators | Power / WLAN |
| Working channel | 1–14 (2.4 GHz) 36-165 (5 GHz) |
| Output power | 18 dBi |
| Sensitivity | 802.11b: -85 dBm@11 Mbps 802.11g: -69 dBm@54 Mbps 802.11n: -68 dBm@150 Mbps 802.11ac: -59 dBm@433 Mbps |
| Security | 64 / 128 bit WEP WPA (TKIP with IEEE 802.1x)WPA2 (AES with IEEE 802.1x)WPA Mixed |
| Operating temp. | 10°C ~ 60°C |
| Storage humidity | 5% ~ 98% (Non-condensing) |
| Dimension | 5.5 x 1 x 2.5 cm (L x H x W) |
Call our specialists +41 27 205 60 80 or visit studer-innotec.com/support
Studer Innotec SA
rue des Casernes 57
1950 Sion, Switzerland
[email protected]
© All rights reserved
Studer Innnotec SA – V1
