Tektronix 237-alg-2 Keithley Cables User Guide

Tektronix 237-ALG-2 Keithley Cables

Keithley Cables Selector

TYPES OF CABLES

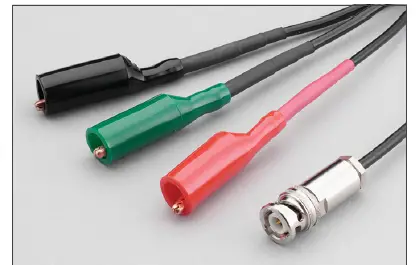

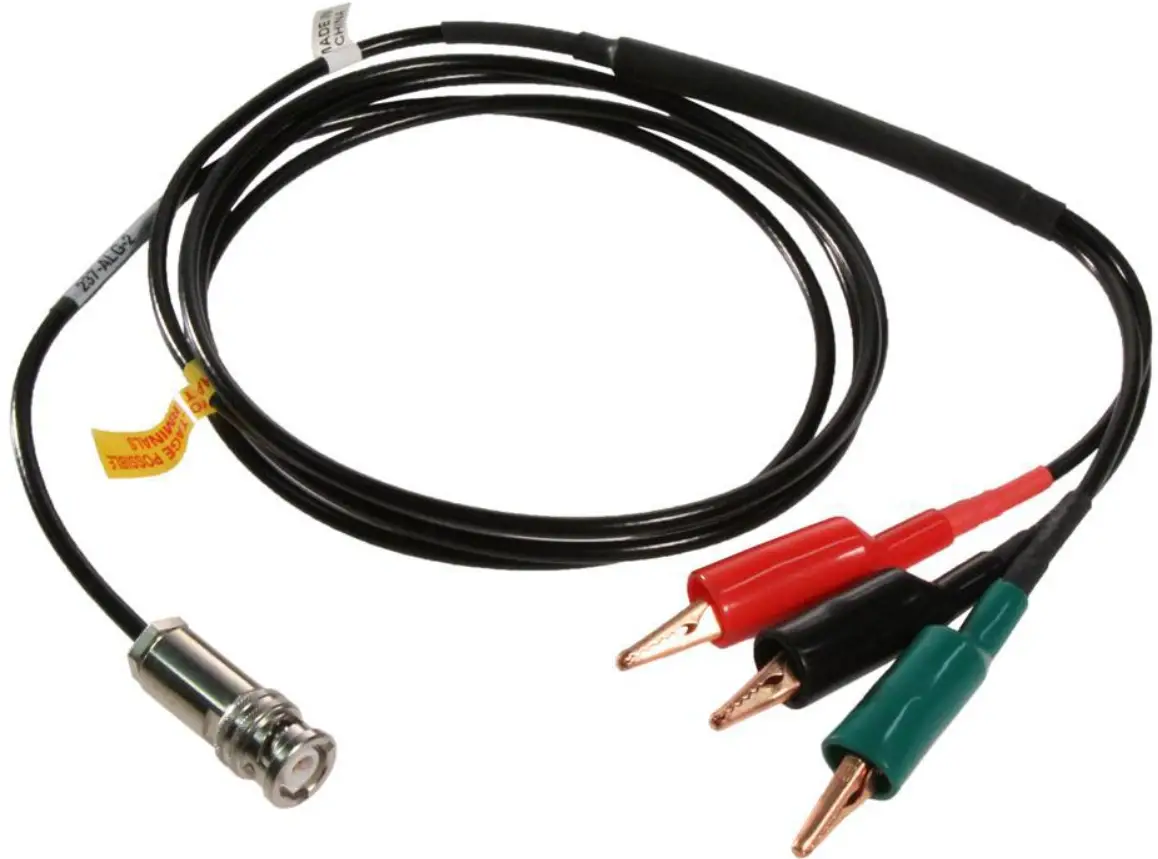

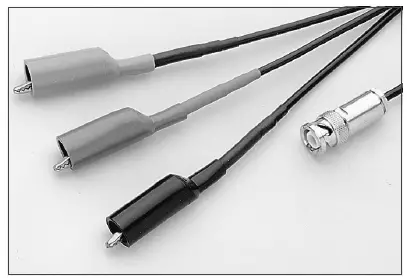

• 237-ALG-2: Low noise triax cable (SC-22) terminated with a 3-slot male triax connector on one end and 3 alligator clips on the other. 2 m (6.6 ft) length.
  For use with: Series 2200, Series 2600B, 4200-PA, 6220, 6221, 6487, 6514, 6482, 6517A, 6517B

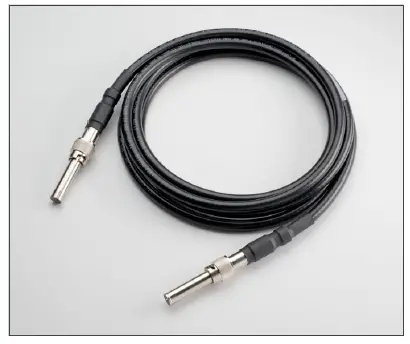

• 2290-10-SHV: 3 m (10 ft) of RG-213/U coaxial cable terminated with a SHV male connector on both ends. Maximum operating voltage is 10,000 Vrms.
  For use with: 2290-10, 2290-10-SHVBH

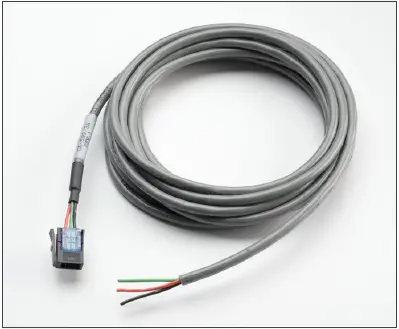

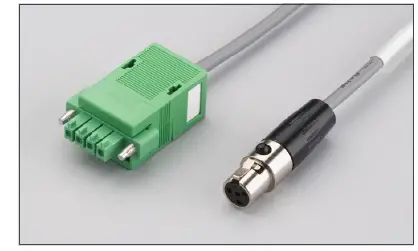

• 2290-INT-CABLE: Safety interlock cable, 3.05 m (10 ft). 3-conductor cable with 3-pin connector on one end and unterminated wires on the other end.
  For use with: 2290-5, 2290-10

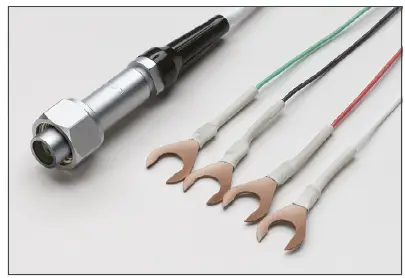

• 2107-4: Low-Thermal Input Cables with Spade Lugs: An input cable terminated with a LEMO connector on one end and four copper spade lugs on the other. 1.2 m (4 ft) length.
  For use with: 2182A, Series 2200
  2290-5-MHV: 3 m (10 ft) of RG-8A/U coaxial cable terminated with a SHV female connector on one end and a MHV male connector on the other end. Maximum operating voltage is 5000 Vrms. Characteristic cable impedance is 50 Ω.
  For use with: 2290-5
  2290-5-SHV: 3 m (10 ft) of RG-8A/U coaxial cable terminated with a SHV female connector on both ends. Maximum operating voltage is 5000 Vrms. Characteristic cable impedance is 50 Ω.
  For use with: 2290-5

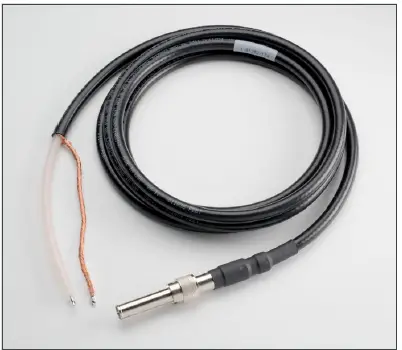

• 2290-10-SHVUC: 3 m (10 ft) of RG-213/U coaxial cable terminated with a SHV male connector on one end and unterminated cable on the other end. Maximum operating voltage is 10,000 Vrms.
  For use with: 2290-10

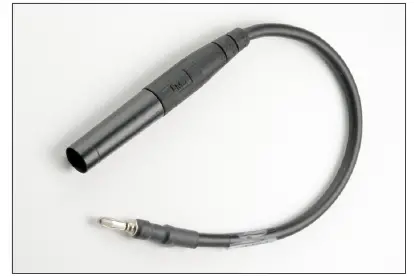

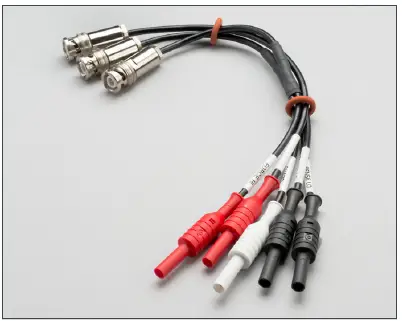

• 2450-TRX-BAN: For adapting the 2450’s rear panel triaxial connectors to banana jack inputs. Length: 0.3 m (1 ft).
  For use with: 24502600-ALG-2: 2 m (6.6 ft) cable terminated with a 3-slot male triax connector on one end and 3 alligator clips on the other.
  For use with: 2635B, 2636B, 4200-PA

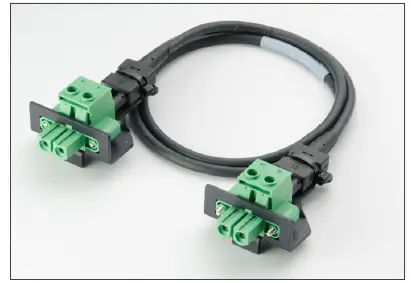

• 2651A-KIT-3: High current, low impedance, coaxial cable assembly. 3 m (10 ft).
  For use with: 2651A, 8011
• 2600-ALG-2: 2 m (6.6 ft) cable terminated with a 3-slot male triax connector on one end and 3 alligator clips on the other.
  For use with: 2635B, 2636B, 4200-PA

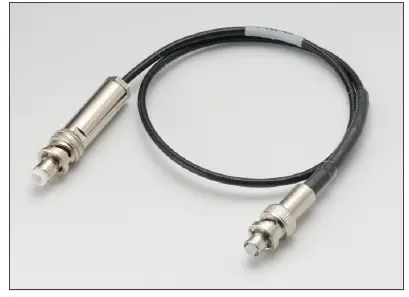

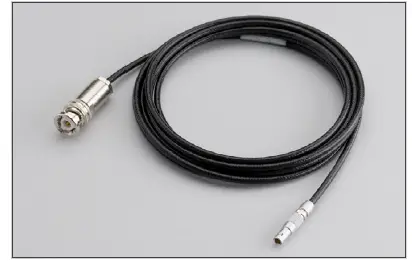

• 4200-MTRX-: Ultra low noise SMU triax cable is terminated with a miniature male triax connector on one end and a standard 3-slot male triax connector on the other end. This cable connects a 4200-SMU or 4210-SMU source measurement unit installed in a 4200A-SCS to a test fixture. (4200-MTRX-* cables are intended only for connection to an SMU that does not have a 4200-PA PreAmp installed.)
  4200-MTRX-1: 1 m (3.2 ft)
  4200-MTRX-2: 2 m (6.5 ft) (two included with each 4200A-SCS SMU not configured with a 4200-PA Remote PreAmp)
  4200-MTRX-3: 3 m (9.8 ft)
  For use with: 4200A-SCS
• 4200-TRX-*: Ultra low noise PreAmp triax cable terminated with a standard 3-slot male triax connector on each end. This cable connects a 4200-PA PreAmp option installed in the 4200A-SCS to the test fixture.
  4200-TRX-0.3: 0.3 m (1 ft) (recommended for remote location of the 4200-PA)
  4200-TRX-1: 1 m (3.2 ft)
  4200-TRX-2: 2 m (6.5 ft) (two included with each 4200-PA)
  4200-TRX-3: 3 m (9.8 ft)
  For use with: 4200-PA

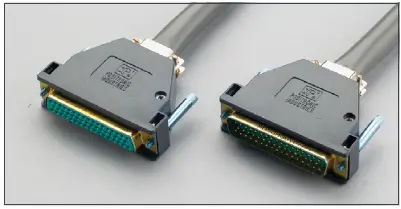

• 3720-MTC-3: 78-pin D-sub female to 78-pin D-sub male cable. 3 m (10 ft) length.
  For use with: 3720, 3723, 3724
• 4200-RPC-2: Remote PreAmp cable terminated at each end with a high density DB15 connector. This cable connects a 4200-SMU or 4210-SMU source measurement unit installed in a 4200A-SCS to a remotely mounted 4200-PA PreAmp. 2 m (6.5 ft) (one included with each 4200-PA).
  For use with: 4200-PA

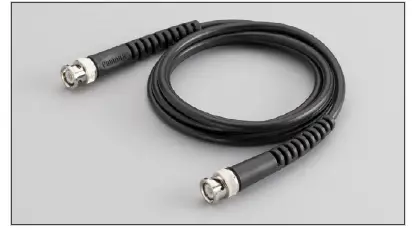

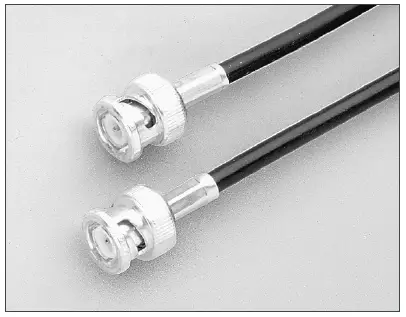

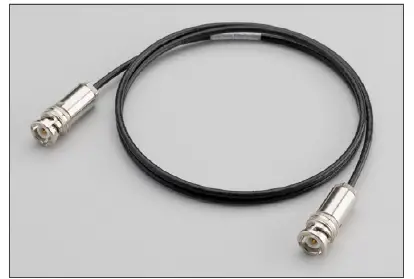

• 4801 Input Cable: Low noise coax cable, 1.2 m (48 in) in length, with male BNC connectors on each end.
  For use with: 6482, 6485
• 4803 Low Noise Cable Kit: Includes 15 m (50 ft) of low noise coax cable, 10 male BNC con nec tors, and 5 female BNC chassis-mount connectors.
  For use with: 6482, 6485

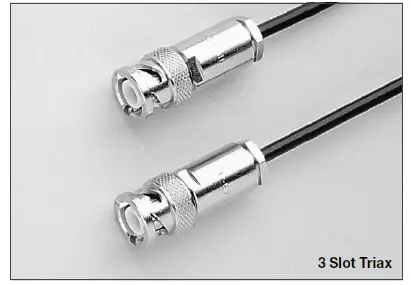

• 7078-TRX-* 3-slot Triax Cables: Low noise triax cables terminated at both ends in 3-slot male triax connectors.
  7078-TRX-1  0.3 m (1 ft)
  7078-TRX-3  0.9 m (3 ft)
  7078-TRX-5  1.5 m (5 ft)
  7078-TRX-10  3.0 m (10 ft)
  7078-TRX-12  3.5 m (12 ft)
  7078-TRX-20  6.0 m (20 ft)
  For use with: 2635B, 2636B, 6220, 6221, 6482, 6487, 6514, 6517A, 6517B, 7072, 7174A

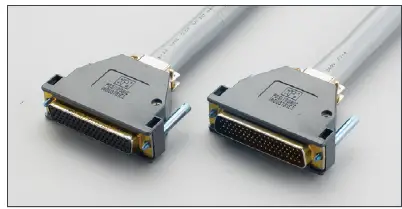

  7705-MTC-2: 2 m (6.6 ft) 50-conductor male to female D-sub cable assembly.
  For use with: 7703, 7705, 7707, 7709, 7701
• CA-19-2: 1.5 m (5 ft) RG58 cable terminated with a BNC male plug on each end.
  For use with: 4200A-SCS
• 6517B-ILC-3 Interlock Cable: De signed to connect the interlock of the 6517B with the 8009 test fixture. Configuring the 6517B with the 8009 test fixture results in all the electrode constants already being programmed into the unit.
  For use with: 6517B Electrometer, 8009

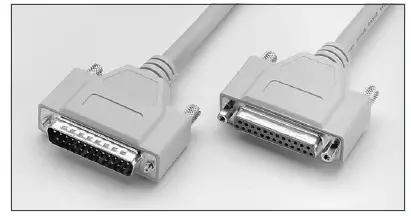

• CA-126-1A Digital I/O Cable: 1.5 m (5 ft) of cable, from DB25 male to DB25 female.
  For use with: Series 2600B, Series 3700A

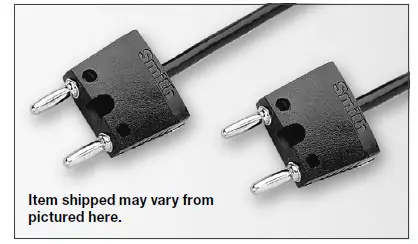

• CA-18-1: 1.2 m (4 ft) shielded cable terminated with a dual banana plug on each end. For use with binding post inputs or dual banana jacks.
  For use with: Binding post inputs

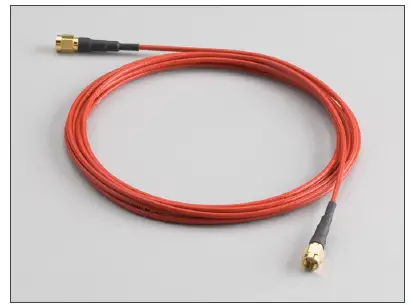

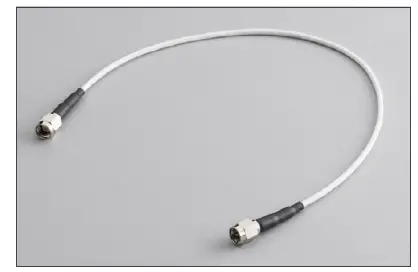

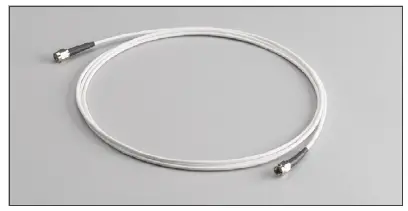

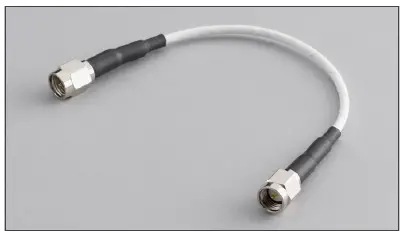

• CA-404B: 2 m (6.5 ft) RG188 coax cable terminated with an SMA male plug on each end, 50 Ω impedance.
  For use with: 4200A-SCS, System 46, System 46T

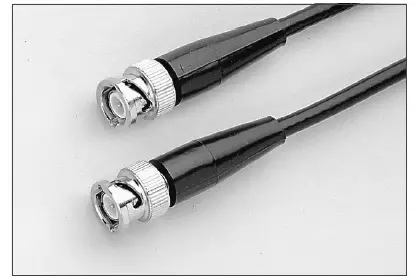

• 7051-10: General purpose BNC to BNC cable (G-58C). 3 m (10 ft).
  For use with: 2015, 2016, 3390, 7711, some instrument external trigger I/O lines

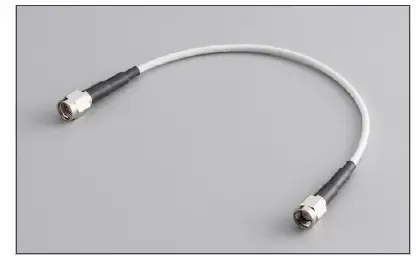

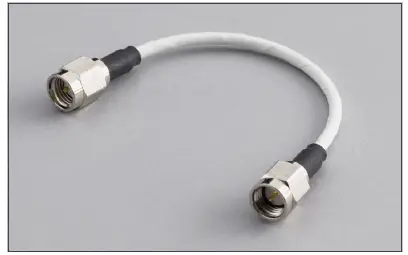

• CA-405B: 15 cm (6 in) RG188 coax cable terminated with an SMA male plug on each end, 50 Ω impedance.
  For use with: 4200A-SCS
• CA-406B: 33 cm (13 in) RG188 coax cable terminated with an SMA male plug on each end, 50 Ω impedance.
  For use with: 4200A-SCS
• CA-446A: 3 m (9.8 ft) coax cable terminated with an SMA male plug on each end, 100 Ω impedance.
  For use with: 4210-CVU
• CA-451A: 10.8 cm (4.25 in) RG188 coax cable terminated with an SMA male plug on each, 50 Ω impedance.
  For use with: 4200A-SCS
• CA-452A: 20.4 cm (8 in) RG188 coax cable terminated with an SMA male plug on each end, 50 Ω impedance.
  For use with: 4200A-SCS
• CA-557-*: 8-pin male to 8-pin male cable assembly with straight through pin configuration.
  CA-557-1: 1 m (3.3 ft)
  CA-557-2: 2 m (6.6 ft)
  CA-557-3: 3 m (10 ft)
  For use with: 2601B, 2602B, 2611B, 2612B, 2651A Source Meter® SMU Instruments, 2600-PCT-x, 4200-PCT-x, 8010
• CA-558-2: 25-pin D-sub to 3-pin interlock cable assembly.
  For use with: Series 2600B, 2600-PCT-x, 2651A, 2657A, 4200A-SCS, 4200-PCT-x, 8010

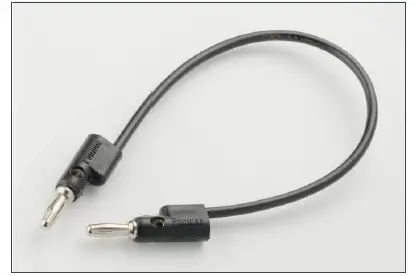

• CA-559-0A and CA-559-2A: Banana to banana jumper (102 mm).
  For use with: 2600-PCT-x, 4200-PCT-x, 8010
  CA-560-0A and CA-560-2A: Banana to banana jumper (203 mm).
  For use with: 2600-PCT-x, 4200-PCT-x, 8010
  CA-561-0A and CA-561-2A: Banana to banana jumper (305 mm).
  For use with: 2600-PCT-x, 4200-PCT-x, 8010
• CA-562-0B and CA-562-2B: Safety banana to banana jumper (254mm).
  For use with: 2600-PCT-x, 4200-PCT-x, 8010

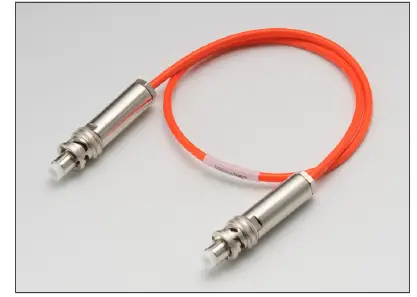

• HV-CA-554-x: High voltage triax to triax cable (3 kV rated) (x = 1, 2, or 3 m).
  For use with: 2657A, 2657-LIM-3, 2657-PIM-200, 8010

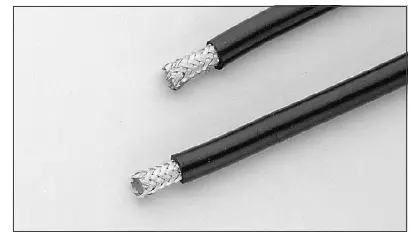

• SC-9: Low noise coax cable without connectors (sold by the foot).

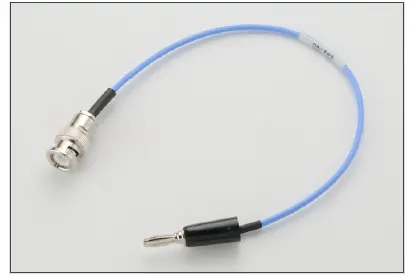

• CA-563C: BNC to banana jumper (240 mm).
  For use with: 2600-PCT-x, 4200-PCT-x, 8010

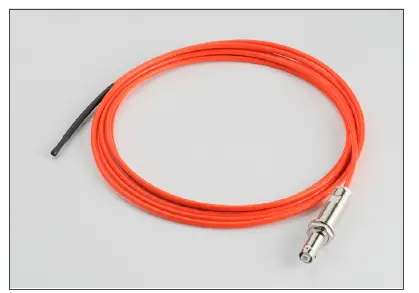

• HV-CA-571-3: High voltage triax to unterminated cable.
  For use with: 2657A, 2600-PCT-x, 4200-PCT-x
• SC-22: Low noise triax cable without connectors (sold by the inch).
  For use with: CS-631

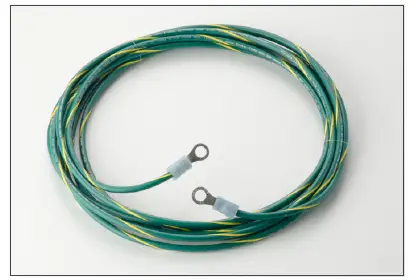

• CA-568-xA: Protective earth safety ground cable with eye lugs (x = 12, 18, or 120 inches).
  For use with: 2657A, 2657-LIM-3, 2657-PIM-200, 8010
• SHV-CA-553-x: High voltage triax to SHV cable (x = 1, 2, or 3 m) (3 kV rated).
  For use with: 2657A

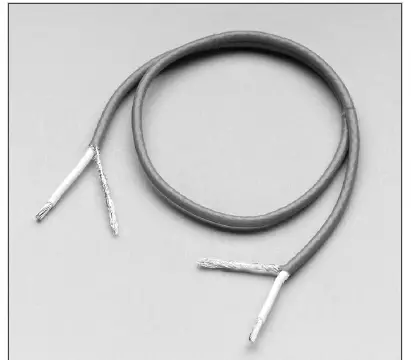

• SC-182: Low inductance (42 nH/ft) coaxial cable for minimizing test lead impedance in circuits using fast transient response power supplies. The cable
  is sold by the foot and comes without connectors.
  For use with: 2302, 2303, 2303-PJ, 2304A, 2306, 2306-PJ, 2306-VS
