237-ban-3a Keithley Connectors Adapters User Guide

237-BAN-3A Keithley Connectors Adapters

Keithley Connectors, Adapters, and Tools Selector Guide

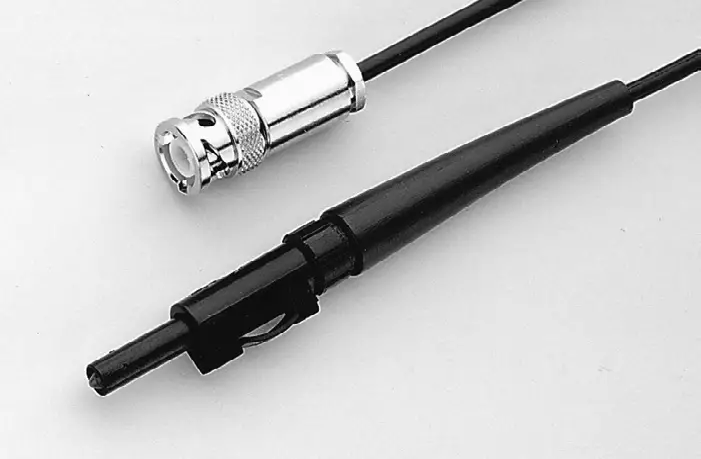

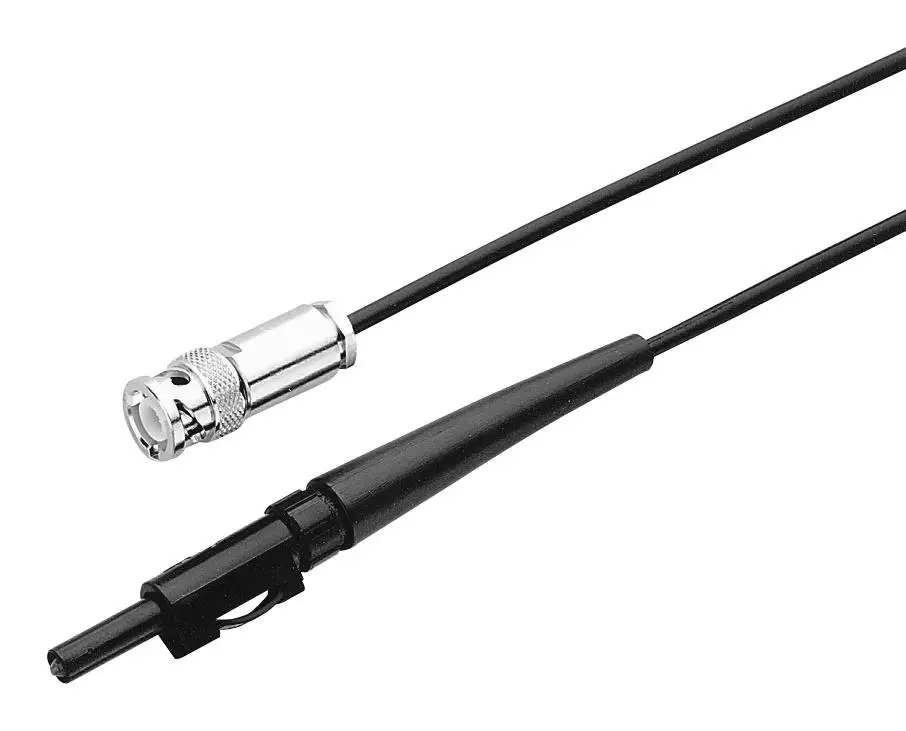

• 237-BAN-3A Triax to Banana Plug:
  Triax cable center conductor term mi anted in a safety banana plug (guard and shield open). For connecting DMMs and other banana jack instruments to a matrix or fixture.
  For use with: 4200A-SCS, 7072, 7072-HV, DMMs

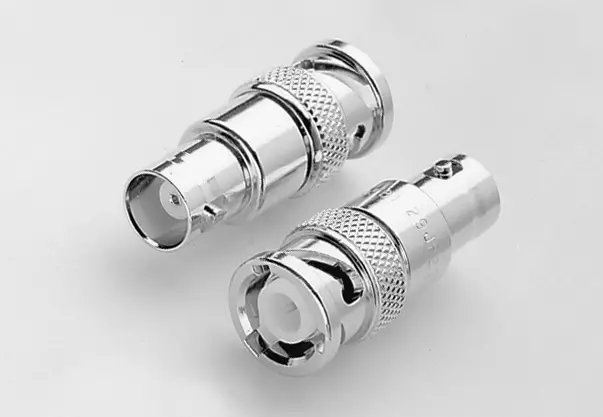

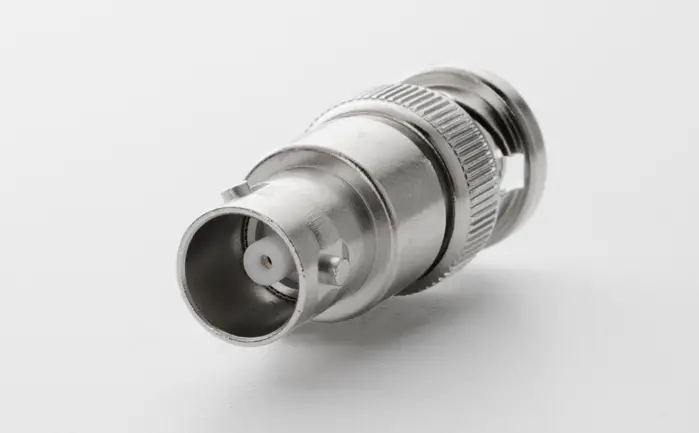

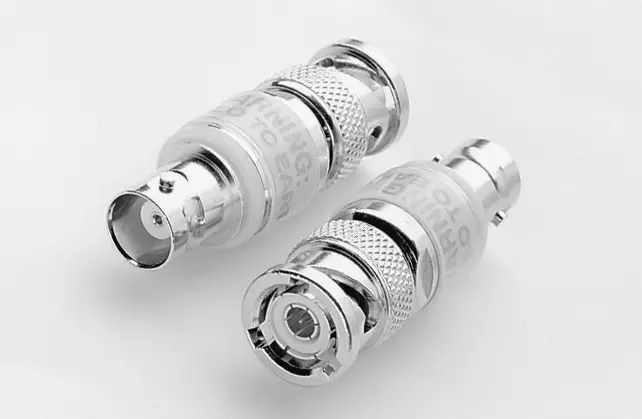

• 237-BNC-TRX: Male BNC to 3­lug female triax adapter (guard dis con nect­ed). Terminates triax cable in BNC plug. High voltage rating for use with 7072­HV.
  For use with: 4200A-SCS, 6517A, 6517B, 7078-TRX cables

• 237-TRX-BAR:
  3­lug triax barrel (female to female) for use with triax interconnect.
  For use with: 2635B, 2636B, 4200A-SCS, triax interconnect

• 237-TRX-BAR:
  3­lug triax barrel (female to female) for use with triax interconnect.
  For use with:
  2635B, 2636B, 4200A-SCS, triax interconnect

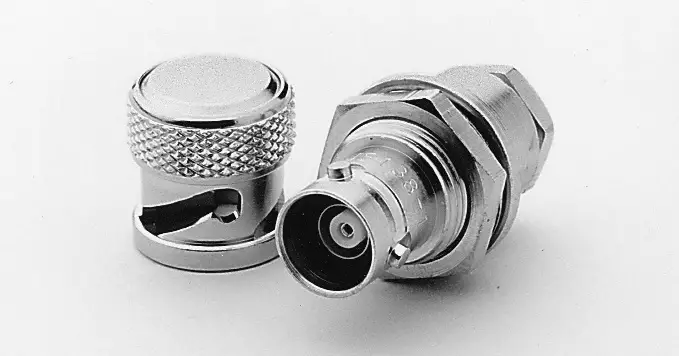

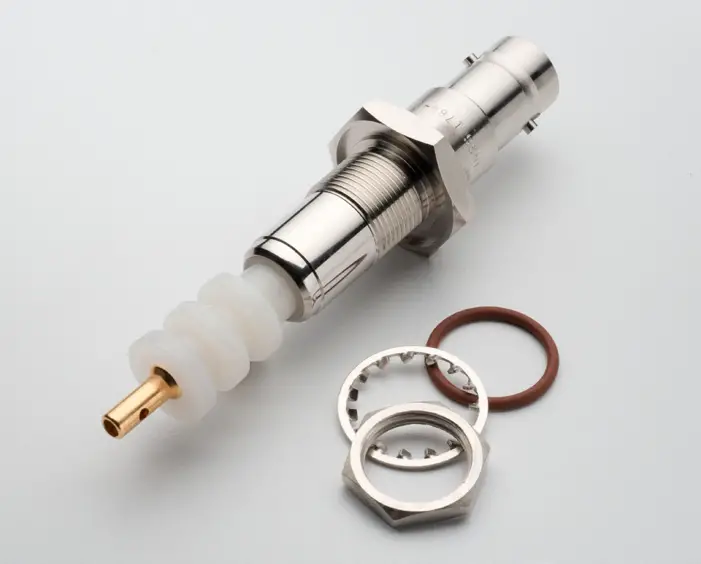

• 237-TRX-TBC:
  3­lug female triax bulk­head connector with cap for assembly of custom panels and interface connections. High voltage rating for use with 7072­HV, etc. Uses miniature coax cable, not triax cable, at soldered end. Bulkhead is outer shield.
  For use with:
  7072, 7072-HV, 7078-TRX cables

• 2188 Low-Thermal Calibration Shorting Plug: A nonresistance, low­ thermal shorting plug required to calibrate the 2182A Nanovoltmeter. Made of a LEMO connector with its pin connectors shorted together using copper wire and Sn/Ag4 silver solder.
  For use with: 2182A
• 2290-5-SHVBH:
  Panel mount connector for connecting a 2290­5 through a 2290­5­SHV cable to an enclosure.
  For use with: 2290-5

• 2290-10-SHVBH 10 kV SHV Female Bulkhead Connector:
  Panel mount connector for connecting a 2290­10 through a 2290­10­SHV cable to an enclosure.
  For use with: 2290-10

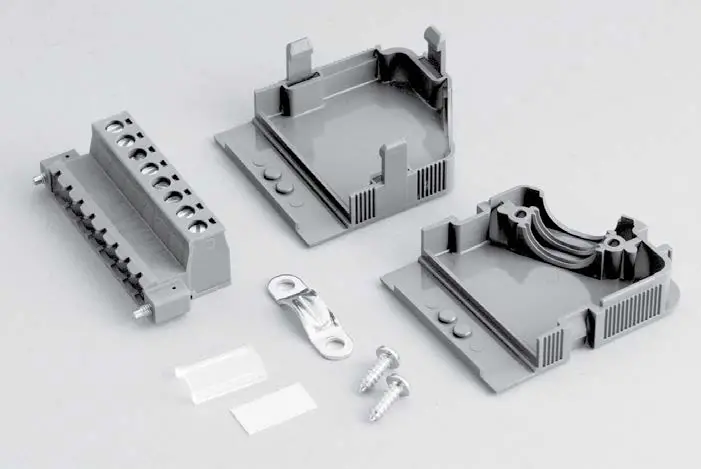

• 2600-KIT:
  Screw terminal connector
  kit with extra screw terminal connector, strain relief, and cover for a single Source Meter channel (two needed for use with 2602B, 2612B, and 2614B).
  For use with: 2601B, 2602B, 2604B, 2611B, 2612B, 2614B, 2651A

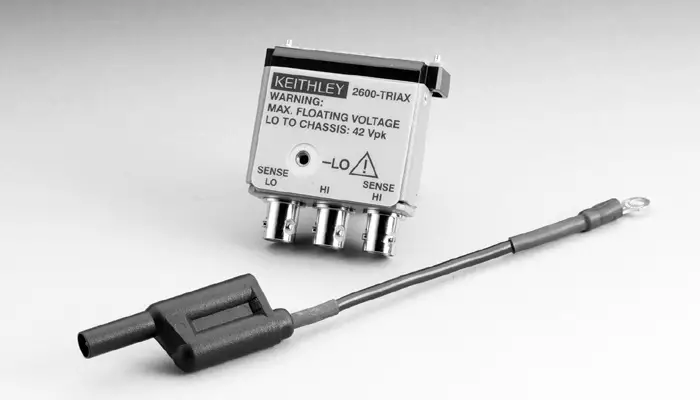

• 2600-TRIAX:
  Triax adapter for a single Series 2600B Source Meter channel (two needed for use with 2602B and 2612B). For use with standard 3­lug triax cables.
  For use with: 2601B, 2602B, 2611B, 2612B

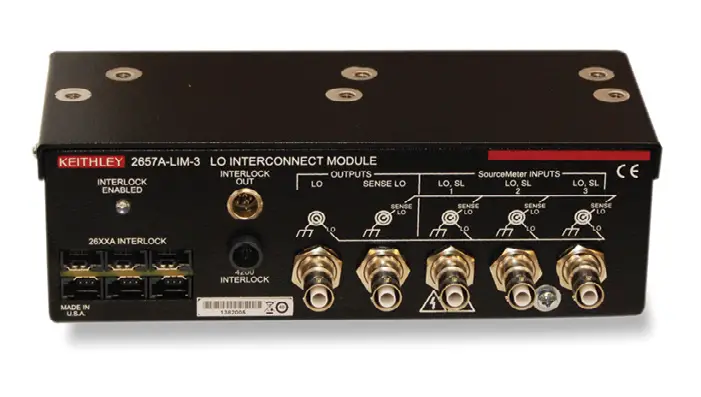

• 2657A-LIM-3: Low Interconnect Module for use with 2657A, HV triax cables (3 kV rated).
  For use with: Series 2657A

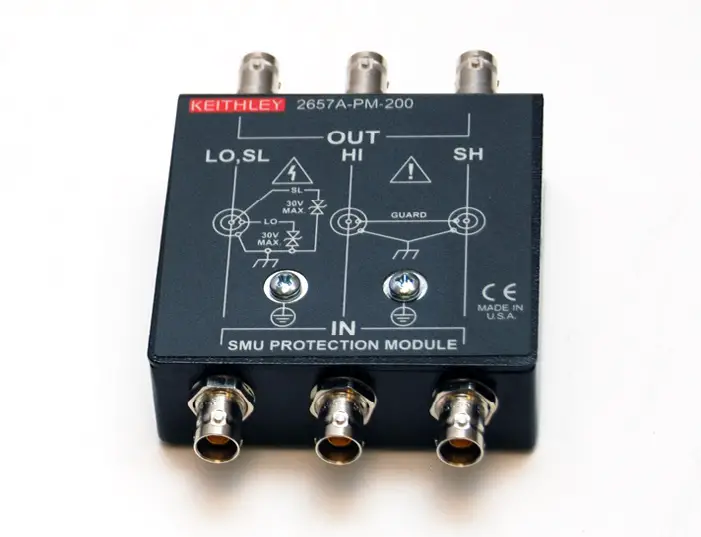

• 2657A-PM-200: 200V protection module to protect standard triax instruments from 2657A, standard and HV triax cables (3 kV rated).
  For use with: Series 2657A

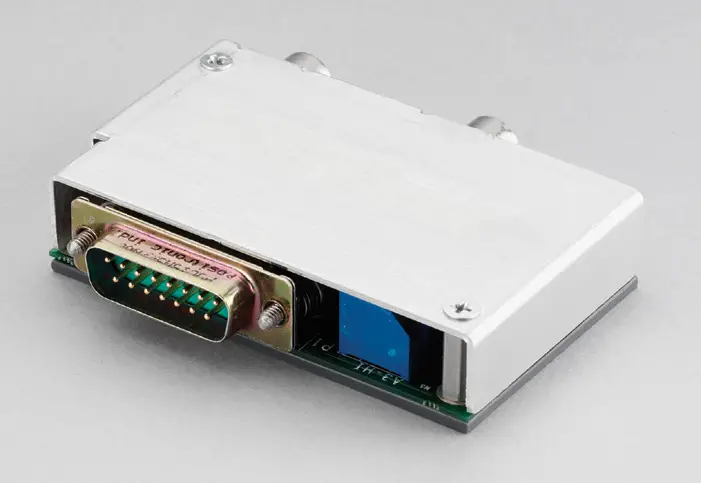

• 3706-BKPL: Analog backplane extender board, 15­pin D­sub to terminal block.
  For use with: Series 3700A

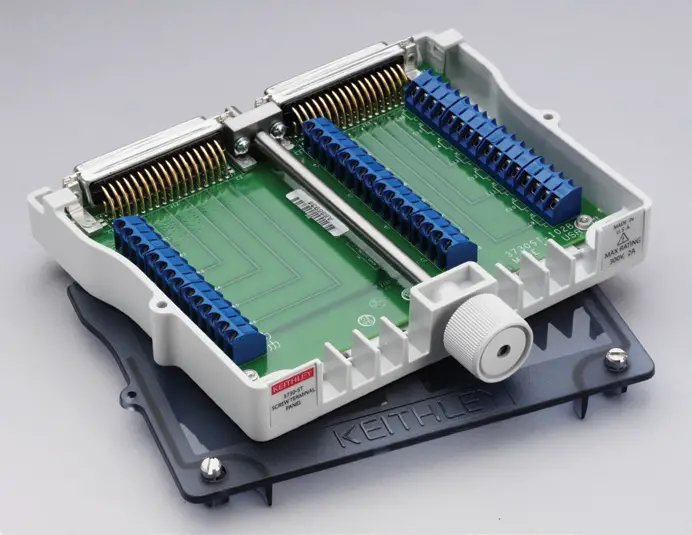

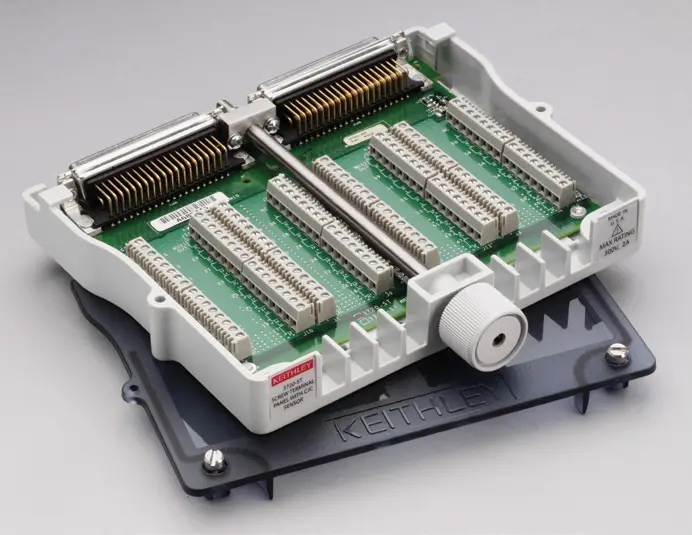

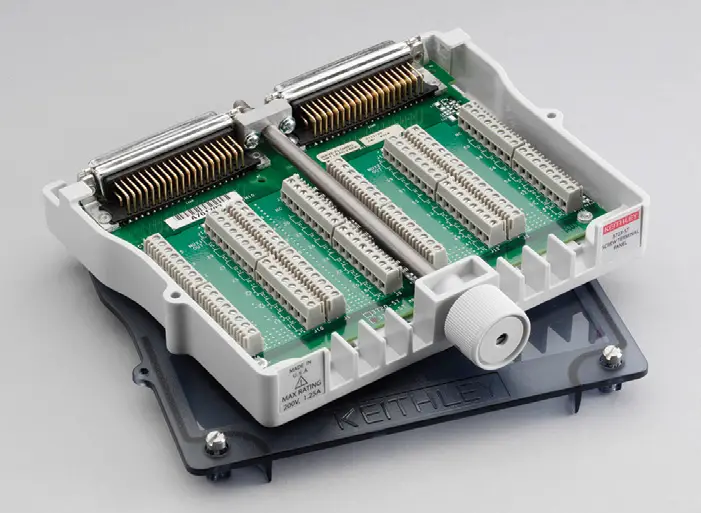

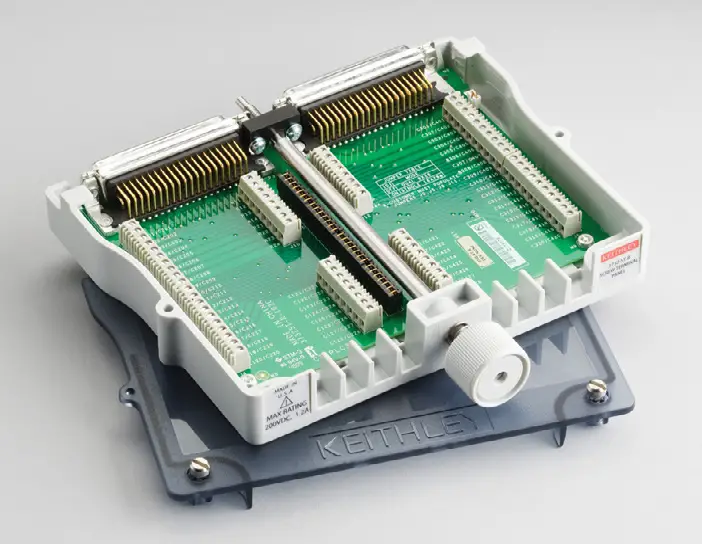

• 3720-ST: Screw Terminal Block. Required with the 3720 for automatic CJC thermocouple measurements.
  For use with: 3720

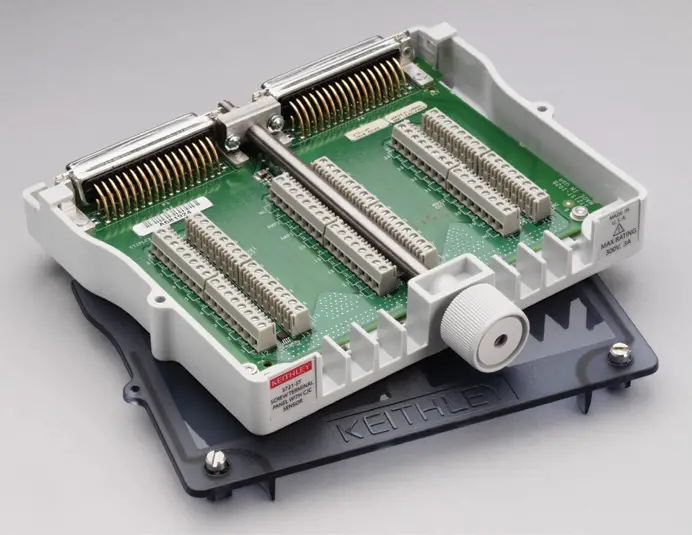

• 3721-ST: Screw Terminal Block. Required with the 3721 for automatic CJC thermocouple measurements.
  For use with: 3721

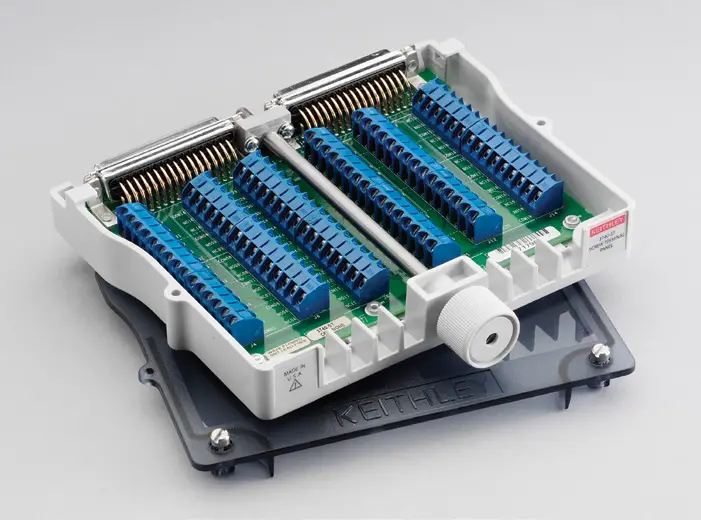

• 3723-ST: Screw Terminal Block. Accessory for 3723 for two­pole applications.
  For use with: 3723

• 3723-ST-1: Screw Terminal Block. Accessory for the 3723 for single ­pole applications.
  For use with: 3723

• 3724-ST: Screw Terminal Block.
  For use with: 3724

• 3730-ST: Screw Terminal Block.
  For use with: 3730

• 3731-ST: Screw Terminal Block.
  For use with: 3731

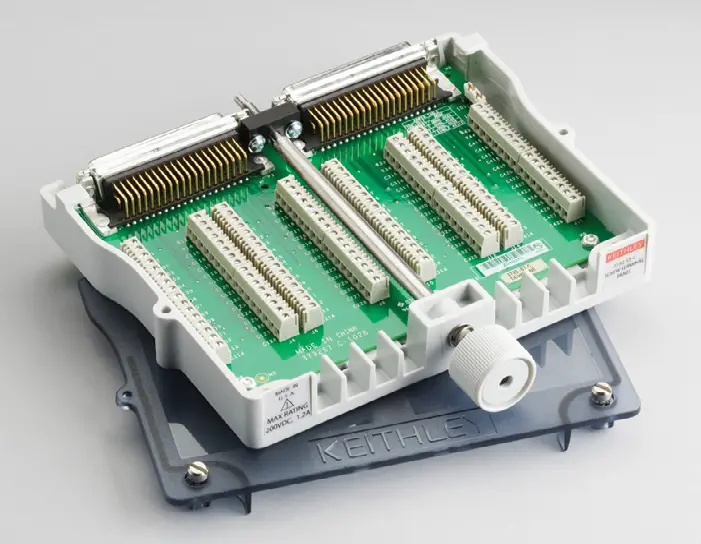

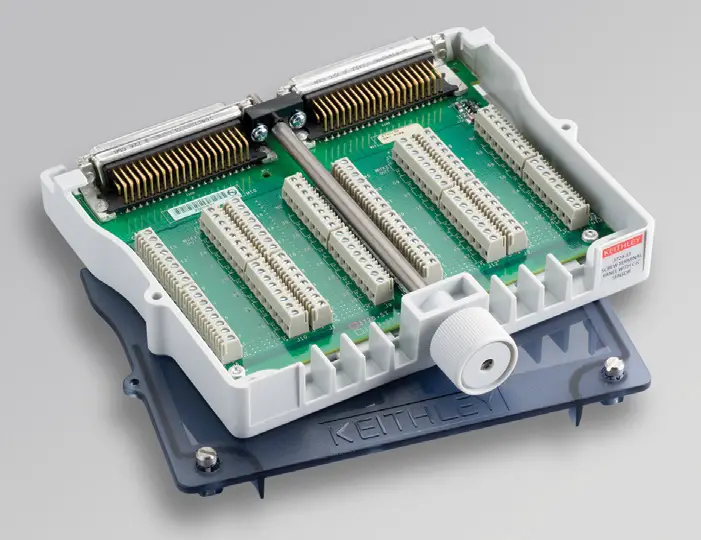

• 3732-ST-C: Screw Terminal Block. Enables screw terminal access and additional matrix sizes including: quad 4×28 (1W), dual 4×28 (2W), single 4×56 (2W), dual 4×56 (1W), and single 4×112 (1W).
  For use with: 3732

• 3732-ST-R: Screw Terminal Block. Enables screw terminal access and additional matrix sizes including: dual 8×28 (1W), single 8×28 (2W), and single 16×28 (1W).
  For use with: 3732

• 3740-ST: Screw Terminal Block.
  For use with: 3740

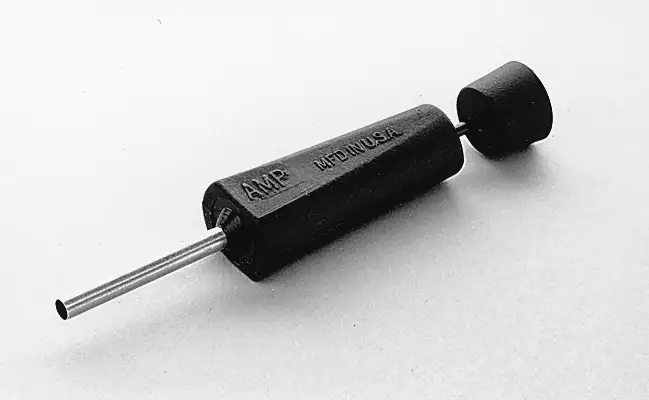

• 7074-CIT: Contact extraction tool for removal of contacts from cables and connect tors.
  For use with: 7152-KIT, 7152-MTR

• 7078-TRX-BNC: 3­slot male triax
  to BNC adapter for use with 7072 Semicon duct or Matrix Card and 4801 cables.
  For use with: 4210-CVU, 4801, 6482, 6487, 6514, 6517A, 6517B, 7072, 7072-HV

• 7078-TRX-BNC: 3­slot male triax
  to BNC adapter for use with 7072 Semicon duct or Matrix Card and 4801 cables.
  For use with: 4210-CVU, 4801, 6482, 6487, 6514, 6517A, 6517B, 7072, 7072-HV

• 7078-TRX-TBC: 3­lug female triax bulkhead connector with cap for assembly of custom panels and interf ace connections.
  For use with: 7078-TRX Cables

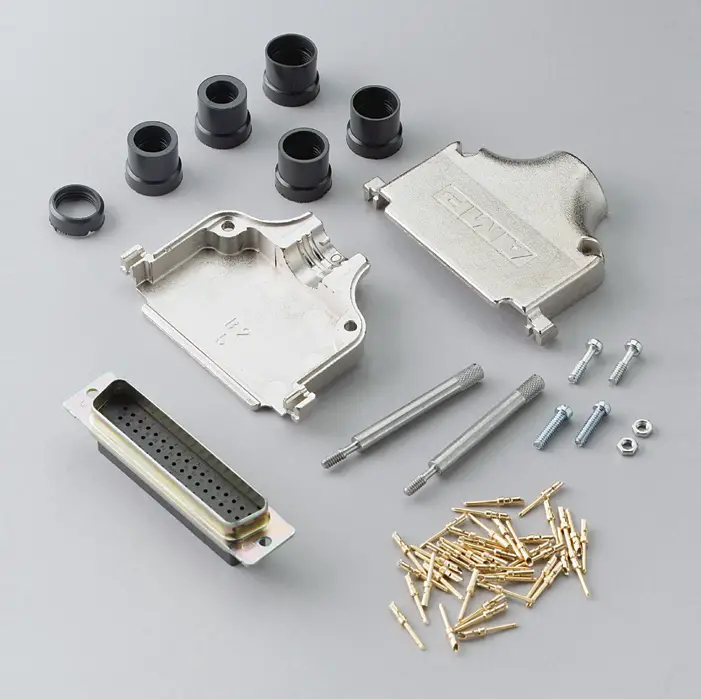

• 7703-306A: DB50 male connector kit (solder cup) with shell.
  For use with: 7701, 7703, 7705, 7709

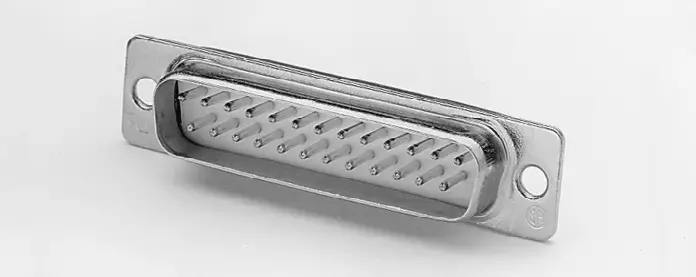

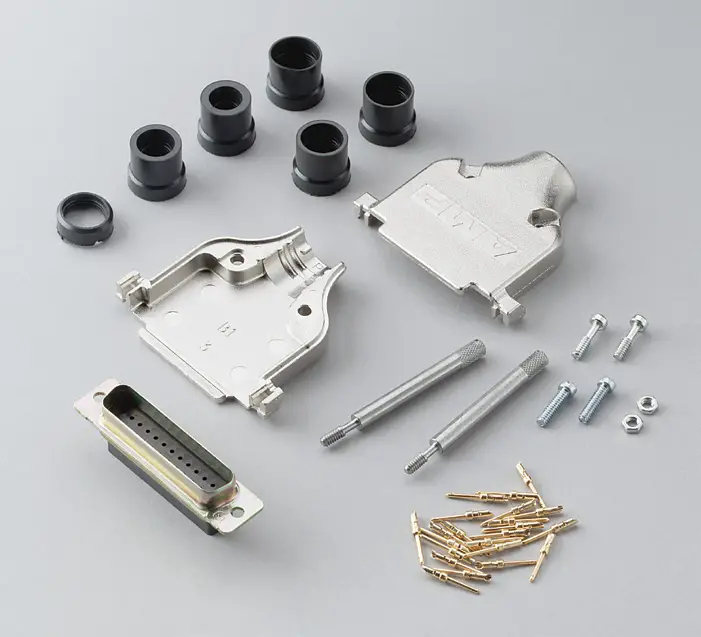

• 7709-308A: DB25 male connector kit ( solder cup) with shell.
  For use with: 7701, 7707, 7709, Series 2600B

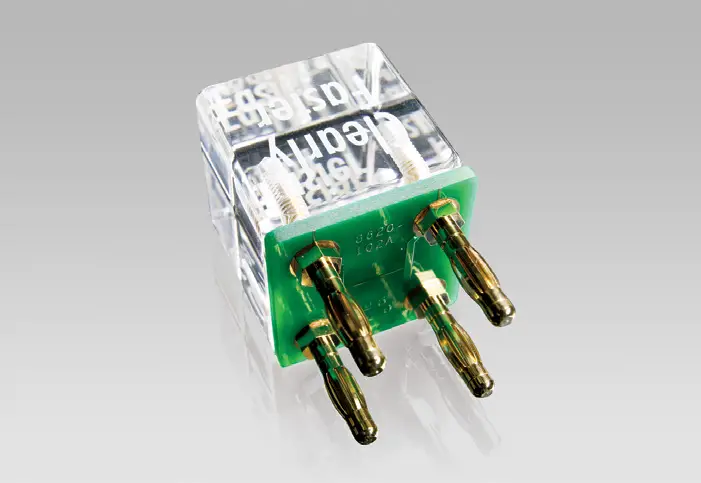

• 8620 Four-Wire DMM Shorting Plug: Provides a low resistance 4­wire short to both observe and cancel DMM offset resistances and voltages to improve measurement accuracies.
  For use with: All DMMs, Series 2400, Series 2700, Series 3700A

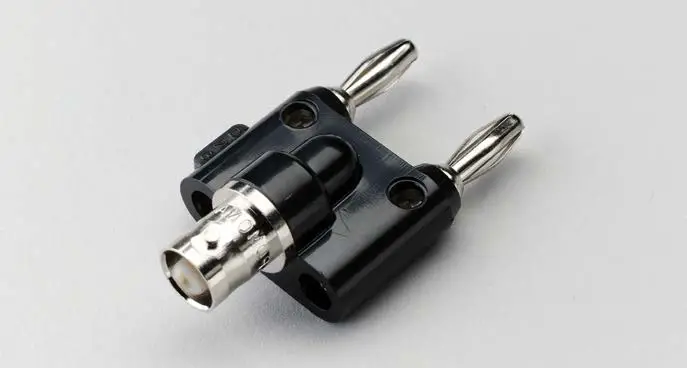

• BG-18: Dual banana to BNC coaxial adapter for adapting connection on instrument with dual banana jack.
  For use with: All DMMs, Series 2400

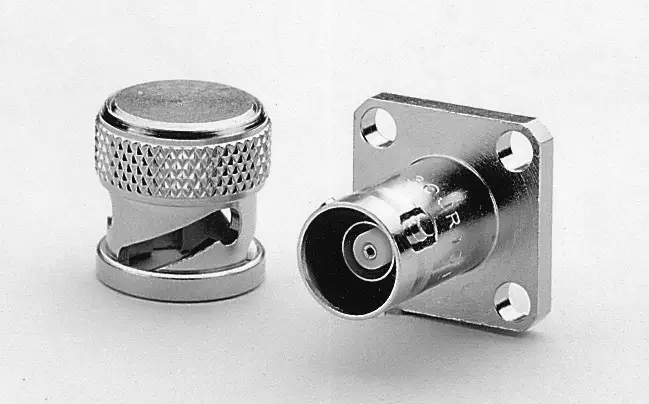

• CAP-18: Protective shield/cap for BNC connectors.
  For use with: BNC connectors

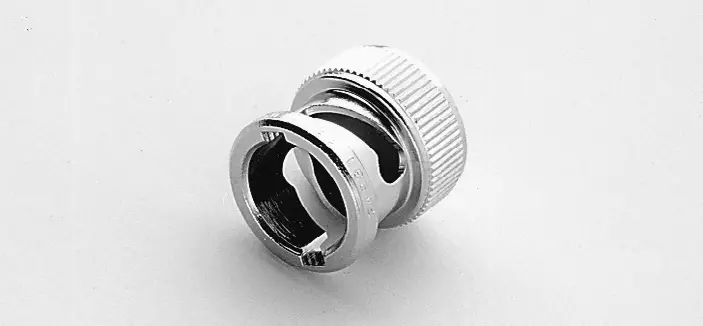

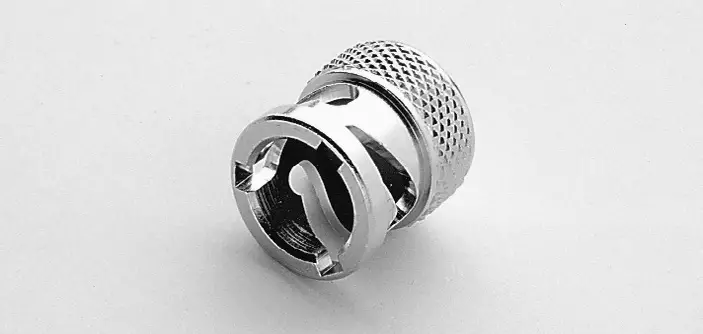

• CAP-31: Protective shield/cap for 3­lug triax connectors.
  For use with: 3-lug triax connectors

• CS-400: DB25 male solder cup. For use with: C126-1 cable, 213

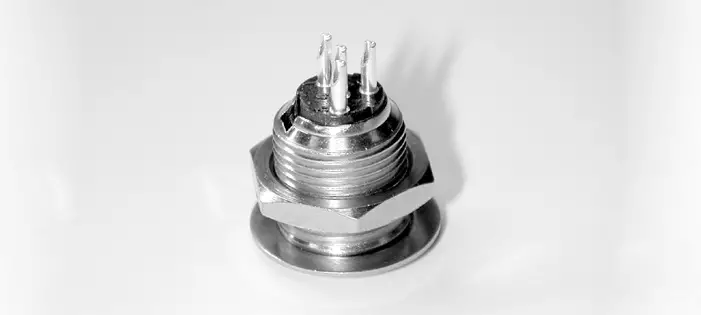

• CS-458: Interlock connector kit to mate with 6517­ILC­3.
  For use with: 6517-ILC-3

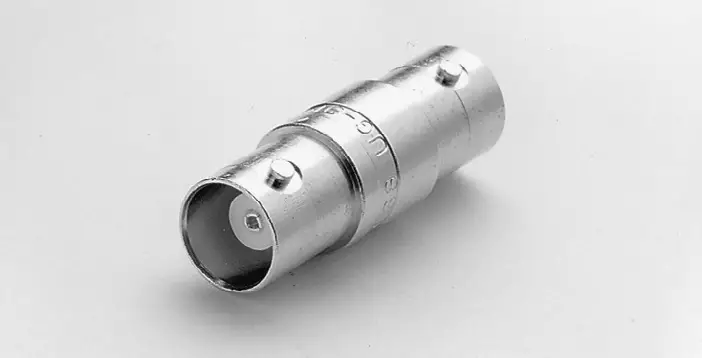

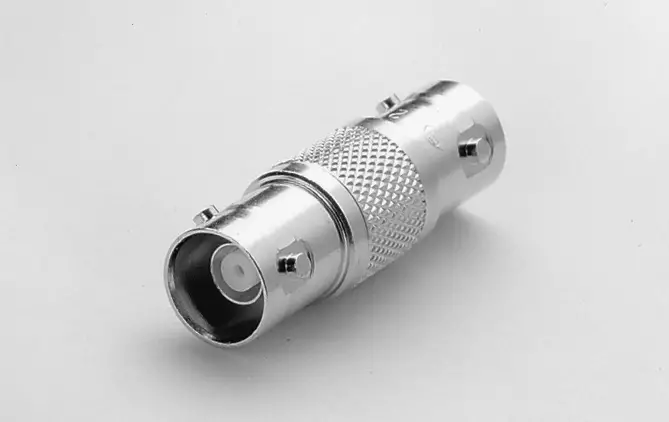

• CS-565: Female BNC to female BNC adapter with 50 Ω nominal impedance.
  For use with: 4200A-SCS, BNC interconnect

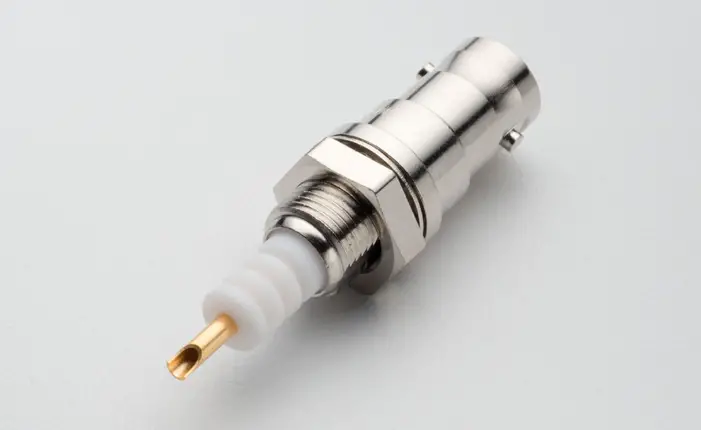

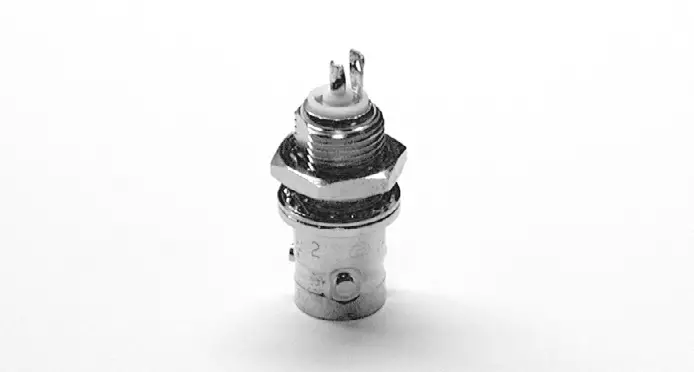

• CS-630: 3­lug female triax bulkhead connector for soldered connection. Mates with CS­631.
  For use with: Fixtures, 6487, 6517A, 6517B

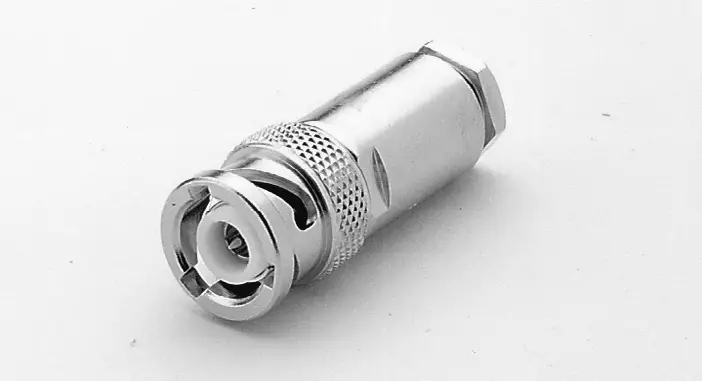

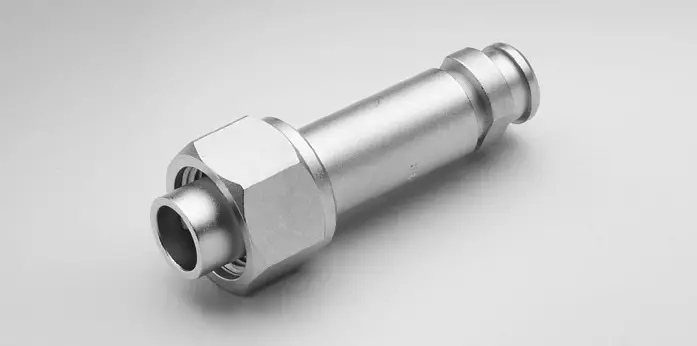

• CS-631: 3­slot male triax cable mount connect tor for use with SC­22 cable. Mates to 7072 and 8006.
  For use with: 4200A-SCS, SC-22 cable

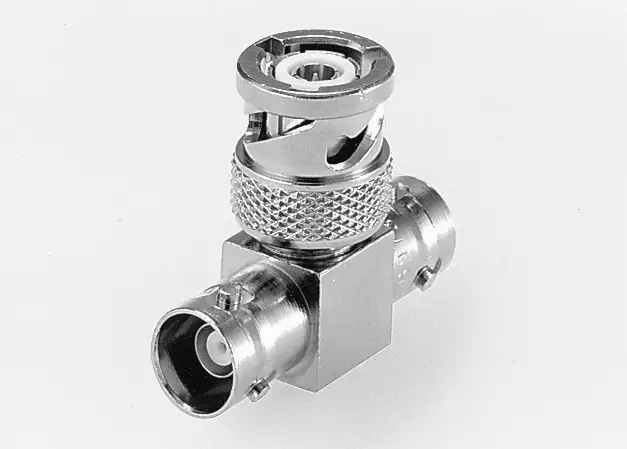

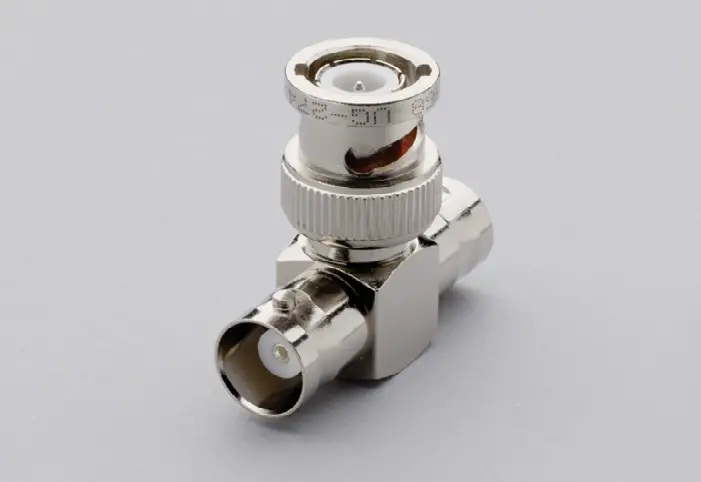

• CS-701: BNC tee adapter (female, male, female).
  For use with: 4200A-SCS

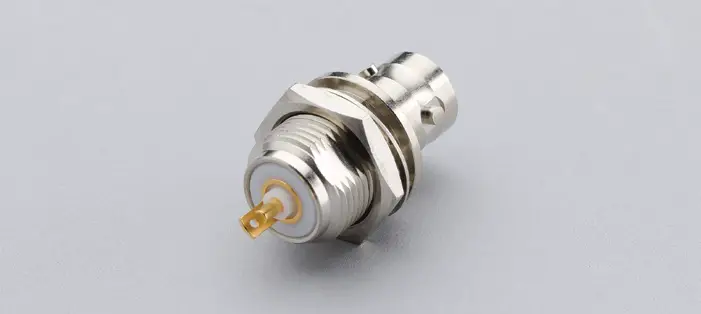

• CS-719: 3­lug triax jack receptacle. For use with: 4200A-SCS

• CS-846: Eight position connector with screw terminals for connection to test leads.
  For use with: 230x, 2510, 2510-AT

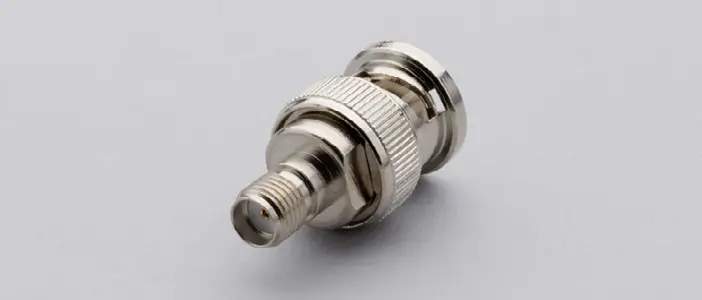

• CS-1247: SMA female to BNC male adapter
  For use with: 4200A-SCS

• CS-1249: SMA female to SMB plug adapter
  For use with: 4200A-SCS

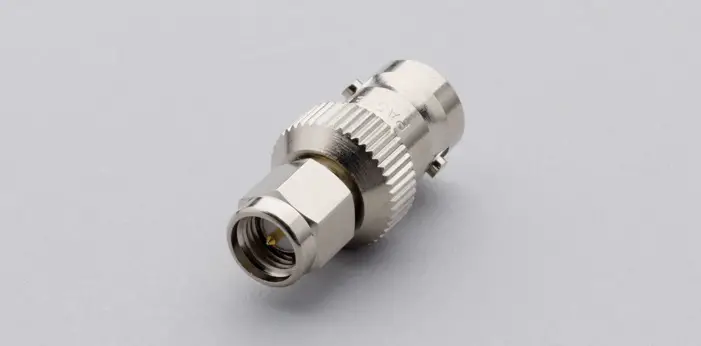

• CS-1252: SMA male to BNC female adapter
  For use with: 4200A-SCS

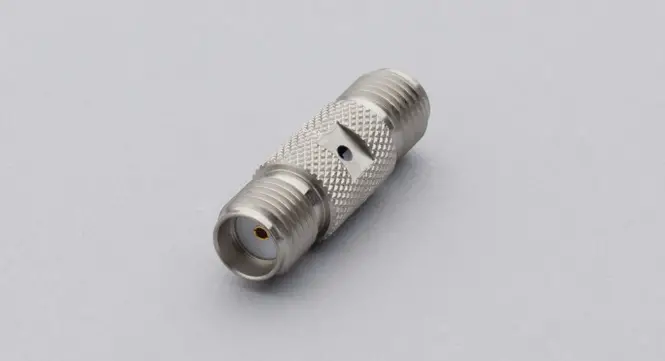

• CS-1281: SMA female to SMA female adapter
  For use with: 4200A-SCS

• CS-1305: Interlock connector to mate with 6517B.
  For use with: 6517B

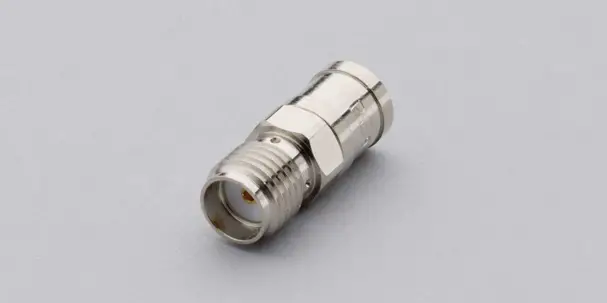

• CS-1390: Male LEMO triax to female SMA adapter.
  For use with: 4200A-SCS

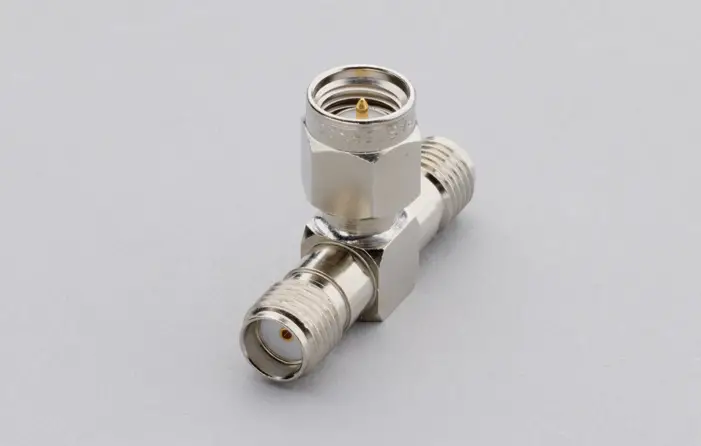

• CS-1391: SMA tee adapter (female ­male­ female)
  For use with: 4200A-SCS

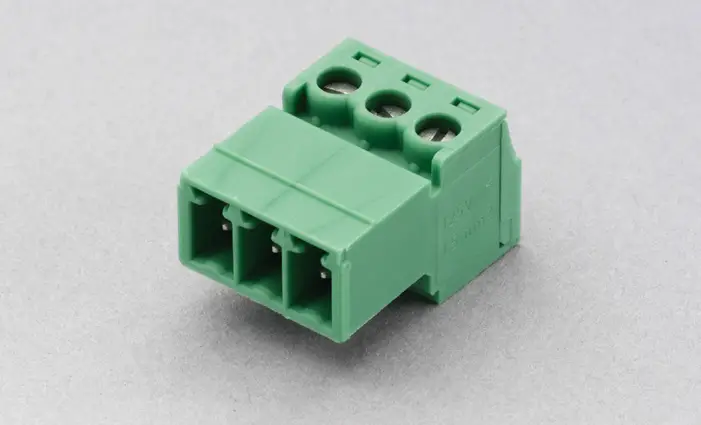

• CS-1423-3: Miniature mating connector used as a ground connector for the 2635B and 2636B.
  For use with: 2635B, 2636B

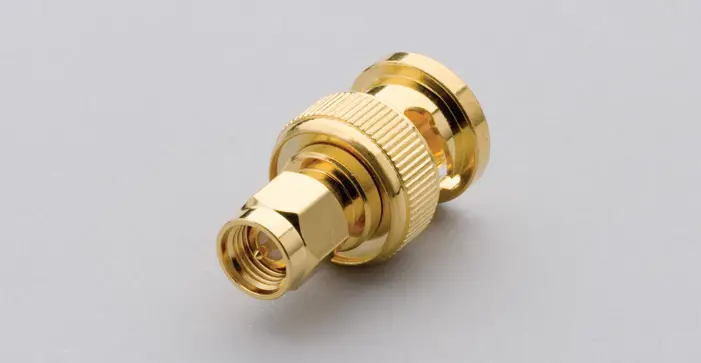

• CS-1479: SMA male to BNC male adapter.
  For use with: 4200A-SCS

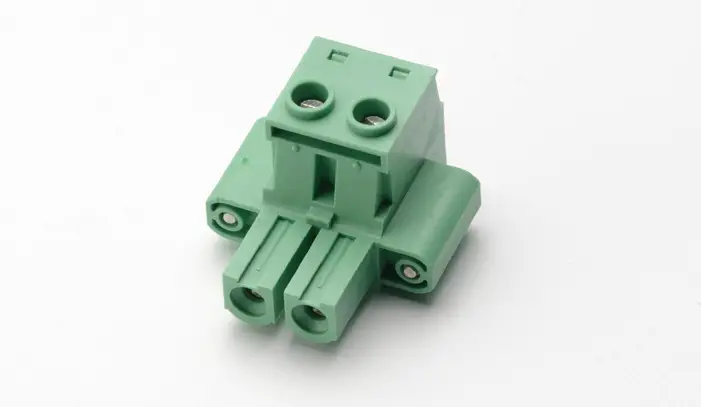

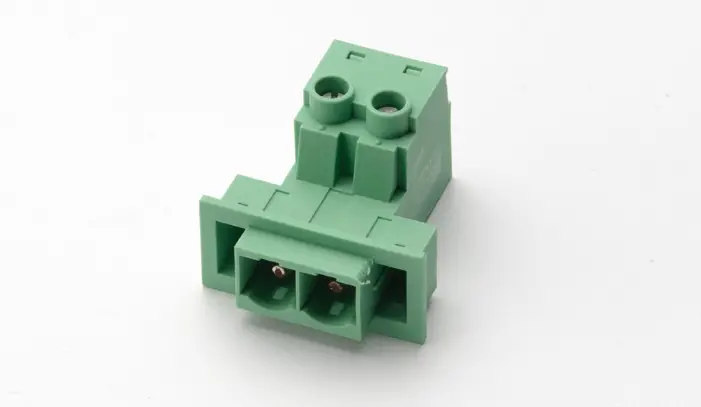

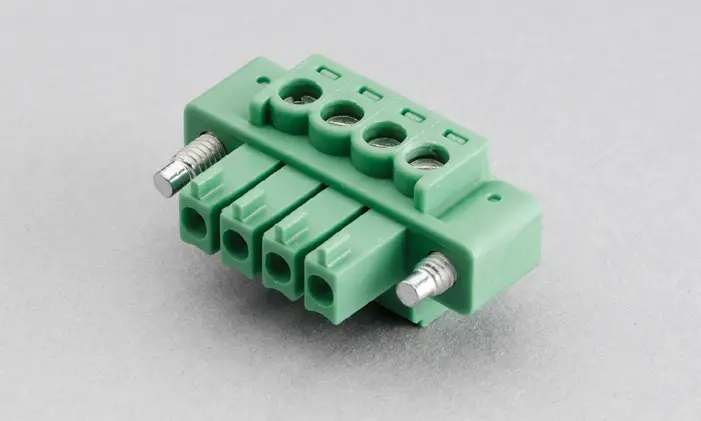

• CS-1592-2: 2­pin male screw terminal connector plug. Rated 50 A. Mates with the CS­1626­2 screw terminal block.
  For use with: 2651A

• CS-1626-2: 2­pin female screw terminal connector block. Rated 50 A. Mates with CS­1592­2 screw terminal connector.
  For use with: 2651A

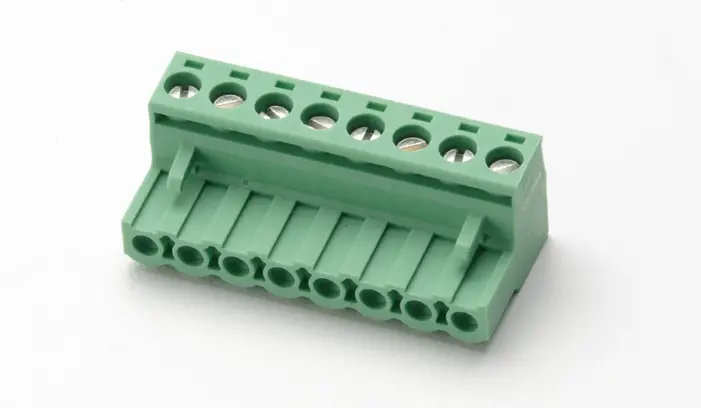

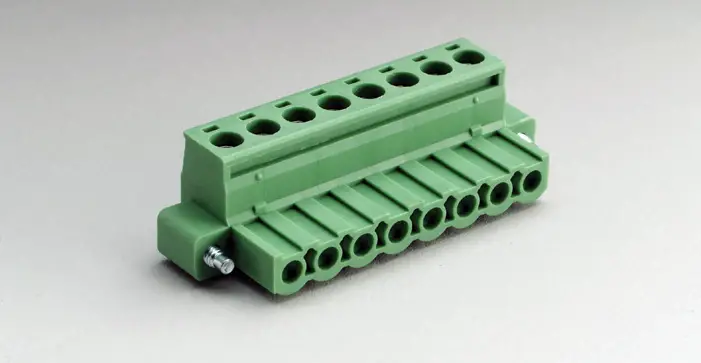

• CS-1629-8: 8­pin female cable termination block.
  For use with: 2651A

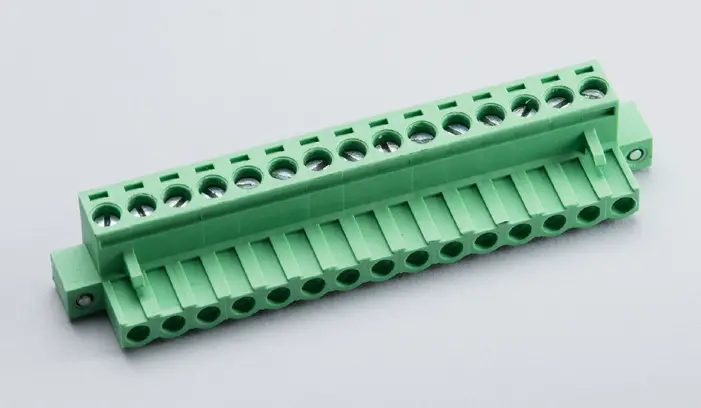

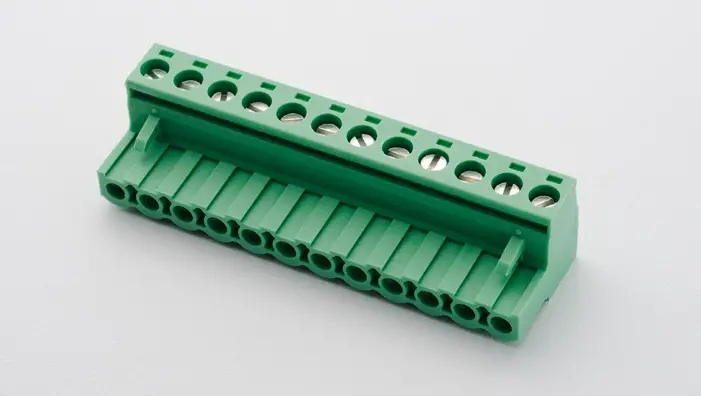

• CS-1638-12: 12­pin rear panel output connector.
  For use with: 2200-20-5, 2200-30-5, 2200-32-3, 2200-60-2, 2200-72-1

• CS-1655-15: 15­pin rear panel output connector.
  For use with: 2200-30-1, 2220J-30-1, 2230-30-1, 2230J-30-1
