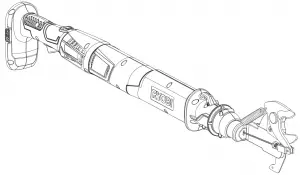

RYOBI P4362BTL 18 Volt Lopper
REPAIR SHEET
| REPAIR SHEET | ||
BRAND  | DESCRIPTION | |
MODEL NO.  | MFG. NO.  | |
| ||
| TECHTRONIC INDUSTRIES POWER EQUIPMENT P.O. Box 1288, Anderson, SC 29622 n 1-800-525-2579 n www.ryobitools.com 6-30-21 (Rev:02) | ||
| The model number and manufacturing location will be found on a label attached to the product. Always mention this information in all communications regarding this product and when ordering parts. | ||

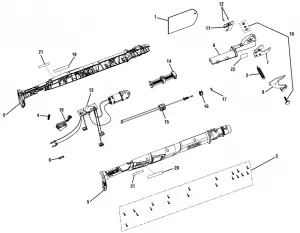

PARTS LIST
KEY NO. | PART NO. | DESCRIPTION | QTY. |
1 | 903403001 | Blade Cover | 1 |
2 | 697601001 | Spring | 1 |
3 | 661817001 | Screw (M4 x 13.5 mm, T15 Torx Pan Hd.) | 19 |
4 | 696661001 | Spring | 1 |
5 | 317296001 | Handle Assembly (Inc. Key Nos. 19-21, P4362) | 1 |
| 318497001 | Handle Assembly (Inc. Key Nos. 19-21, P4362VNM) | 1 | |
6 | 679002002 | Compression Spring | 1 |
7 | 314984001 | Bottom Blade Assembly | 1 |
8 | 317297001 | Cutting Head Assembly (Inc. Key No. 22) | 1 |
9 | 314464001 | Cutting Blade Assembly | 1 |
10 | 313756001 | Bolt Assembly | 1 |
11 | 639929001 | Cutting Head Hook | 1 |
12 | 660212054 | Screw (M4 x 8 mm, Pan Hd.) | 2 |
13 | 317299001 | Gear Box, Motor, and Motor Controller Assembly | 1 |
14 | 312905001 | Power Screw Assembly | 1 |
15 | 315299002 | Cable Assembly | 1 |
16 | 565594001 | Rubber Seal | 1 |
17 | 662828001 | Hex Nut (M8) | 1 |
18 | 317298001 | Trigger and Saftey Button Assembly | 1 |
19 | 941588800 | Icons/Warning Label | 1 |
20 | 941588801 | Data/Warning Label (P4362) | 1 |
| 941110066 | Data/Warning Label (P4362VNM) | 1 | |
21 | 940705519 | Logo Label | 2 |
22 | 941588802 | Instruction/No Hands Label | 1 |
| Not Shown: | |||
| 998000306 | Operator’s Manual | 1 |

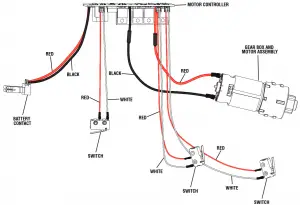

WIRING DIAGRAM
