REPAIR SHEET
BRAND: RYOBI
MODEL NO: P435
DESCRIPTION

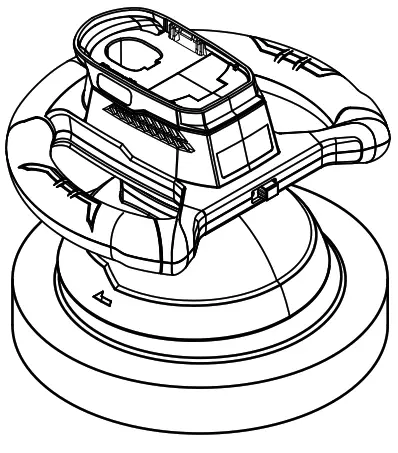

18 Volt 10 in. Buffer/Polisher
P435 18 Volt 10 Inch Buffer
P435

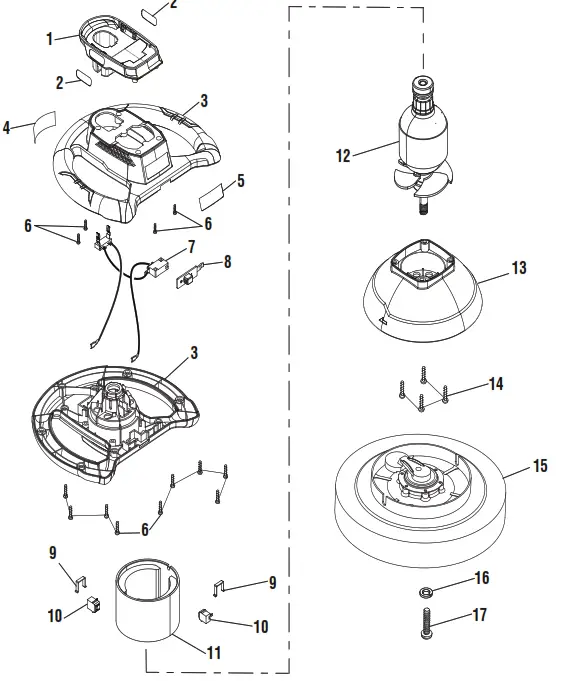

PARTS LIST
| KEY NO. | PART NO. | DESCRIPTION | QTY. |
| 1 | 1.97E+10 | Battery Support Assembly (Inc. Key No. 2) | 1 |
| 2 | 9.41E+08 | Logo Label | 2 |
| 3 | 1.97E+10 | Housing Assembly (Inc. Key Nos. 4-5) | 1 |
| 4 | 9.41E+08 | Data Label | 1 |
| 5 | 9.41E+08 | Logo Label | 1 |
| 6 | 1.97E+10 | Screw (M4.2 × 14 mm) | 13 |
| 7 | 1.97E+10 | Switch & Contact Plate Holder Assembly | 1 |
| 8 | 1.97E+10 | Switch Button | 1 |
| 9 | 1.97E+10 | Brush Assembly Holder | 2 |
| 10 | 1.97E+10 | Brush Assembly | 2 |
| 11 | 1.97E+10 | Armature Assembly | 1 |
| 12 | 1.97E+10 | Motor Case | 1 |
| 13 | 1.97E+10 | Lower Housing | 1 |
| 14 | 1.97E+10 | Screw (M5 × 25 mm) | 4 |
| 15 | 1.97E+10 | Pad Assembly | 1 |
| 16 | 1.97E+10 | Lock Washer (M5) | 1 |
| 17 | 1.97E+10 | Screw (M5 x 12 mm) | 1 |
| Not Shown: | |||
| 019661001035 | Polishing Bonnet | ||
| 019661001036 | Terry Cloth Bonnet | ||
| 991000187 | Operator’s Manual (961152441) |
P435

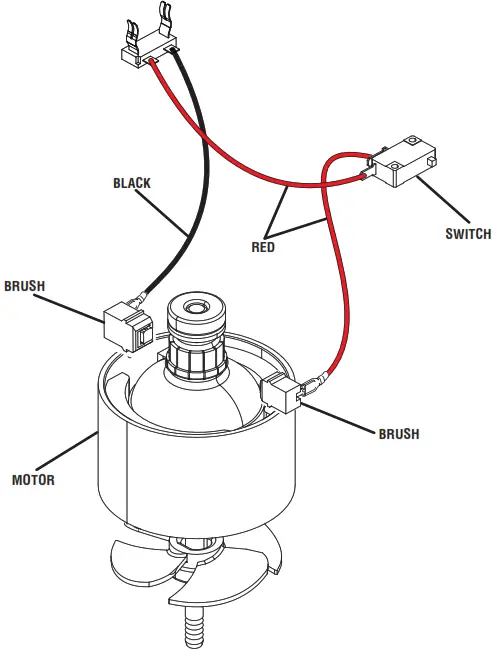

WIRING DIAGRAM
