RYOBI P237 18 Volt Impact Driver

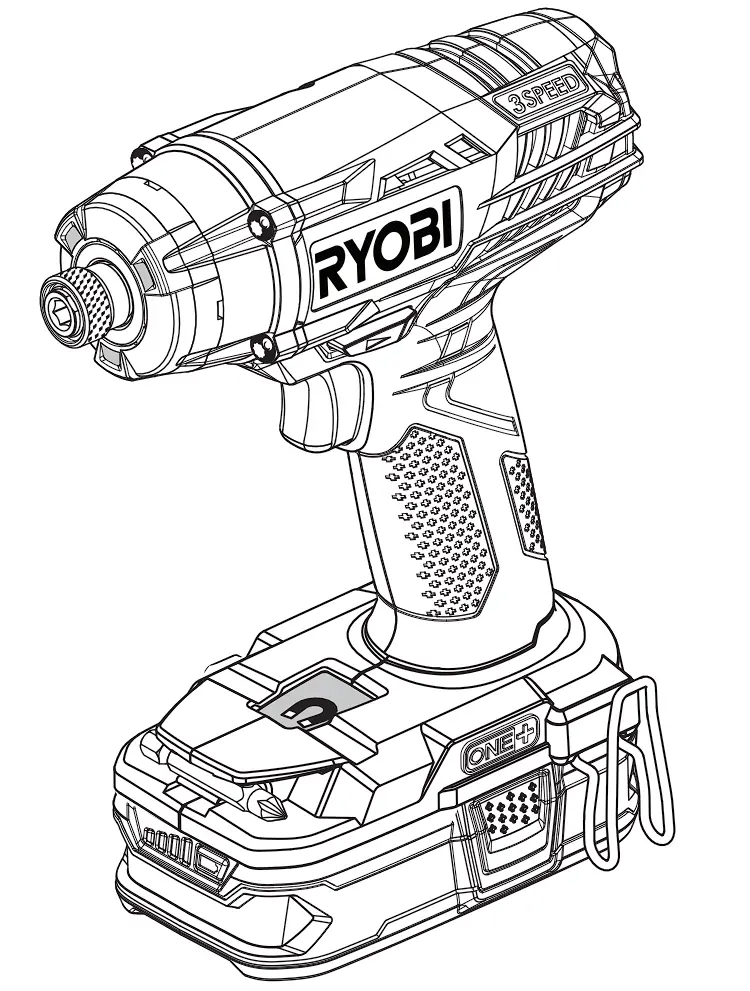

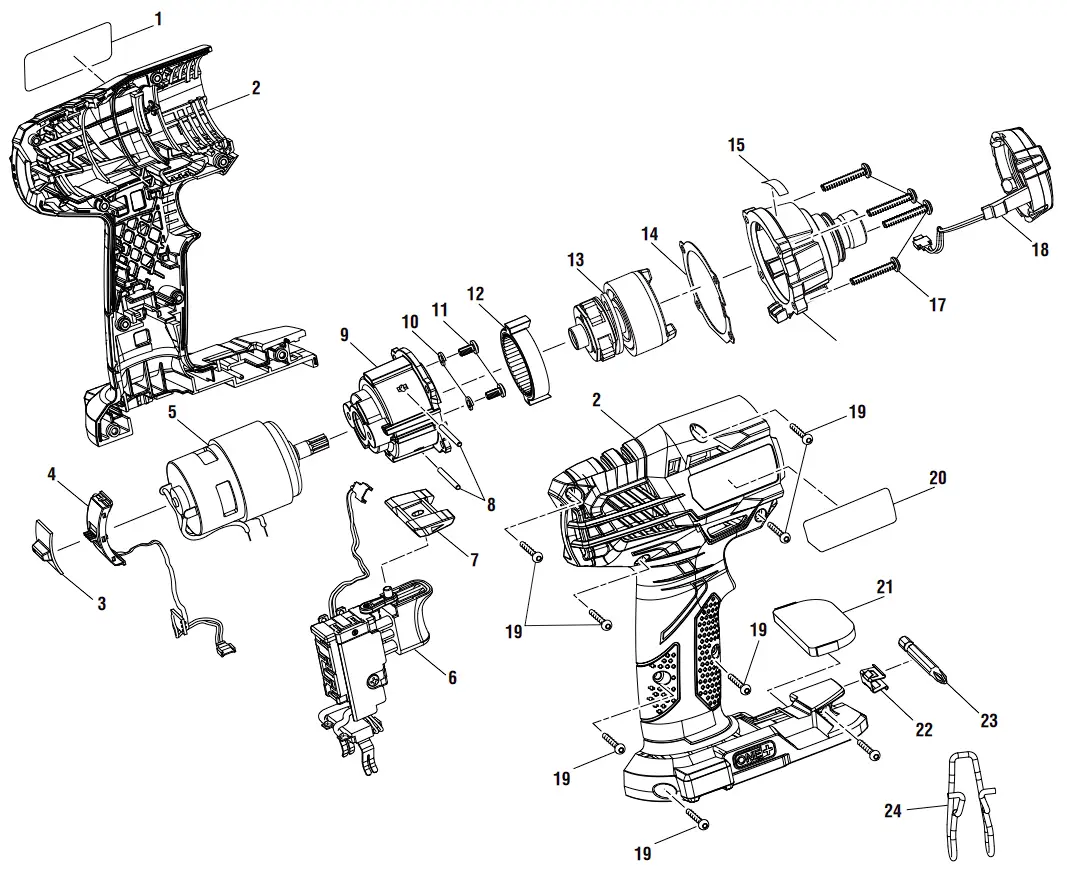

PARTS DIAGRAM
PARTS LIST
| KEY NO. | PART NO. | DESCRIPTION | QTY. |
| 1 | 940114178 | Logo Label | 1 |
| 2-CN | 203736006 | Housing Assembly (Inc. Key Nos. 1 & 20) | 1 |
| 2-VN | 203736010 | Housing Assembly (Inc. Key Nos. 1 & 20) | 1 |
| 3 | 529480001 | Speed/Torque Selector | 1 |
| 4 | 204736005 | Speed Switch Assembly | 1 |
| 5-CN | 230377002 | Motor Assembly | 1 |
| 5-VN | 206956005 | Motor Assembly | 1 |
| 6 | 203736004 | Switch Assembly | 1 |
| 7 | 523179001 | Direction Of Rotation Selector | 1 |
| 8 | 680334036 | Pin | 2 |
| 9 | 202720001 | Inner Case Assembly | 1 |
| 10 | 670030004 | Spring Washer | 2 |
| 11 | 660212046 | Screw (M4 x 8 mm, Pan Hd.) | 2 |
| 12 | 610449039 | Ring Gear | 1 |
| 13 | 202654001 | Cam Shaft and Hammer Assembly | 1 |
| 14 | 902807001 | Gasket | 1 |
| 15 | 940221063 | Hot Surface Warning Label | 1 |
| 16-CN | 203736003 | Front Gear Case Assembly (Inc. Key 15 ) | 1 |
| 16-VN | 203736009 | Front Gear Case Assembly (Inc. Key 15) | 1 |
| 17 | 660436006 | Screw (M4 x 1 in., T20 Torx Hd.) | 4 |
| 18 | 291207008 | LED Assembly | 1 |
| 19 | 660206042 | Screw (M3.5 x 16 mm, Pan Hd.) | 8 |
| 20-CN | 941121601 | Data Label | 1 |
| 20-VN | 941123705 | Data Label | 1 |
| 21 | 303001052 | Magnet Assembly | 1 |
| 22 | 630206007 | Bit Clip | 1 |
| 23 | 670802034 | Bit (#2 Phillips x 50 mm) | 1 |
| 24 | 696626001 | Belt Clip | 1 |
| Not Shown: | |||
| 991000709 | Operator’s Manual (VN – 961153117) |
If a key number has multiple part numbers, please order the part that corresponds with the country of origin shown on the product’s data label
WIRING DIAGRAM
The model number and manufacturing location will be found on a label attached to the product. Always mention this information in all communications regarding this product and when ordering parts.
