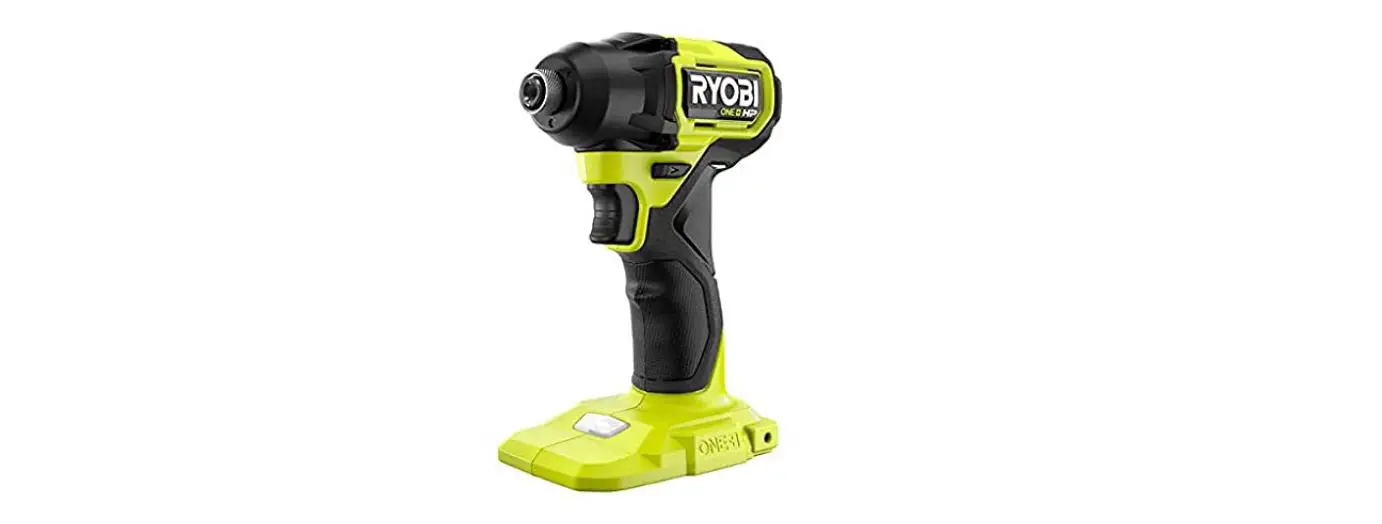

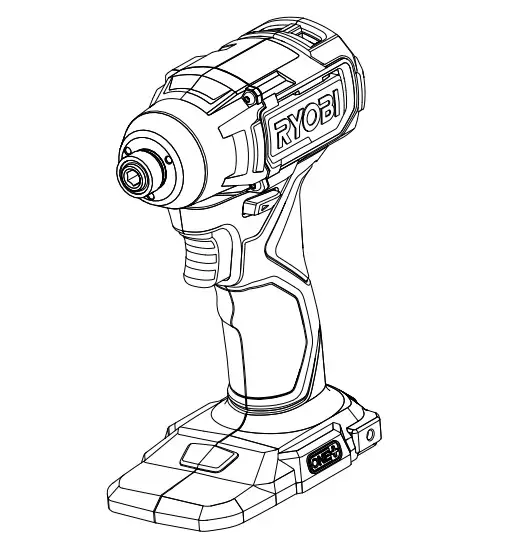

PSBID01 18V Compact Brushless Impact Driver
Instruction Manual
REPAIR SHEET
BRAND
RYOBI
MODEL NO.
PSBID01

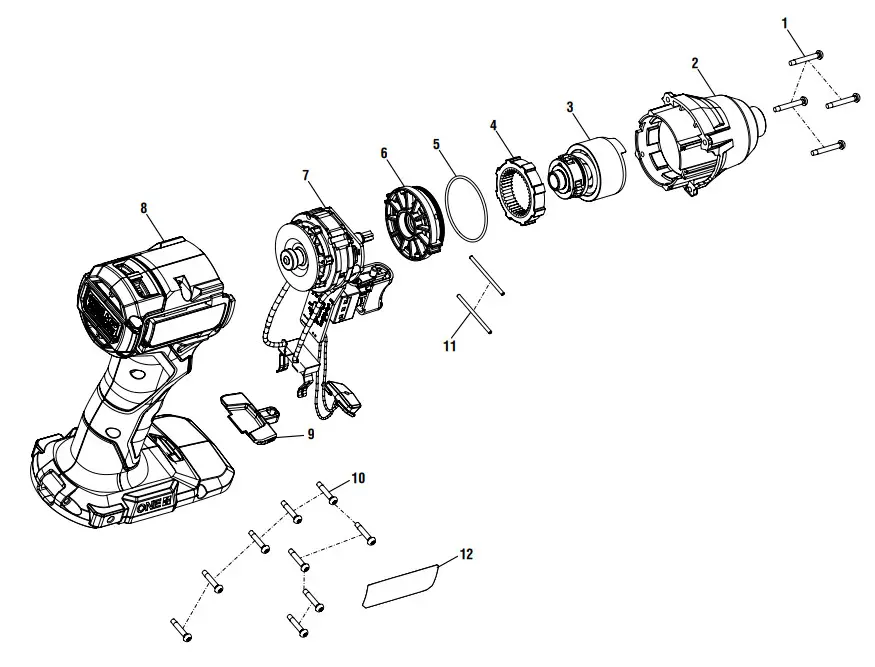

PARTS LIST
| KEY NO. | PART NO. | DESCRIPTION | QTY. |
| 1 | 660187012 | Screw (M3 x 22 mm, T10 Torx Pan Rd.) | 4 |
| 2 | 205386001 | Gear Case Assembly | 1 |
| 3 | 206134002 | Gear Box Assembly | 1 |
| 4 | 610449061 | Ring Gear | 1 |
| 5 | 564076002 | 0-Ring | 1 |
| 6 | 205387001 | Motor Front Case and Ball Bearing Assembly | 1 |
| 7-CN | 206134003 | Motor and Circuit Board Assembly | 1 |
| 7-VN | 206134005 | Motor and Circuit Board Assembly | 1 |
| 8 | 205388001 | Housing Assembly | 1 |
| 9 | 541257001 | Forward/Reverse Button | 1 |
| 10 | 662456001 | Screw (M3 x 16 mm, T10 Torx Pan Rd.) | 9 |
| 11 | 674064001 | Pin | 2 |
| 12-CN | 941123046 | Data Label | 1 |
| 12-VN | 941123030 | Data Label | 1 |
| Not Shown: | |||
| 998000205 | Operators Manual (961153386) |
If a key number has multiple part numbers, please order the part that corresponds with the country of origin shown on the product’s data label.
CN = China VN = Vietnam
WIRING DIAGRAM
PSBID01
