Instruction Manual
REPAIR SHEET
BRAND
RYOBI
MODEL NO.
PBLMT50
DESCRIPTION

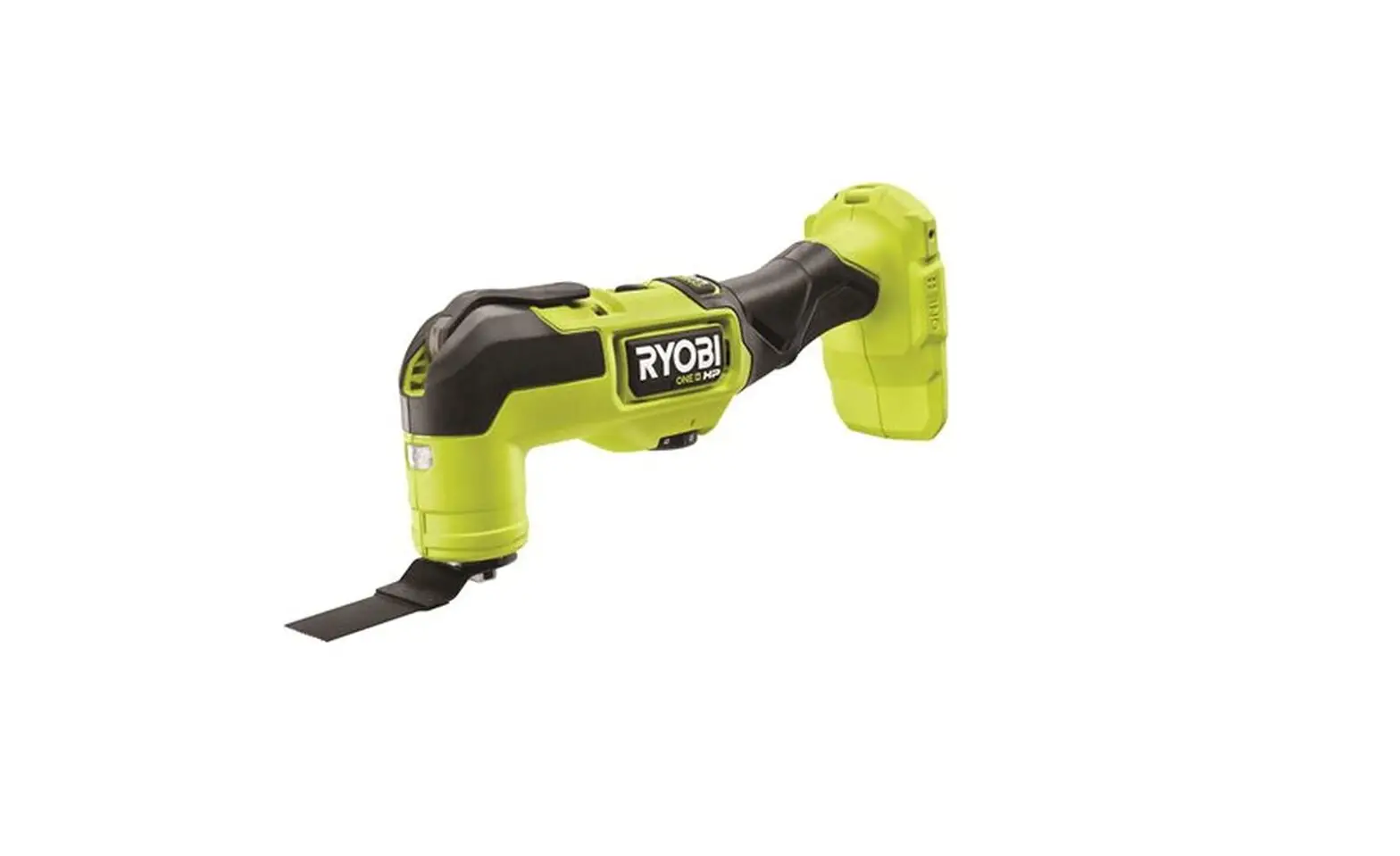

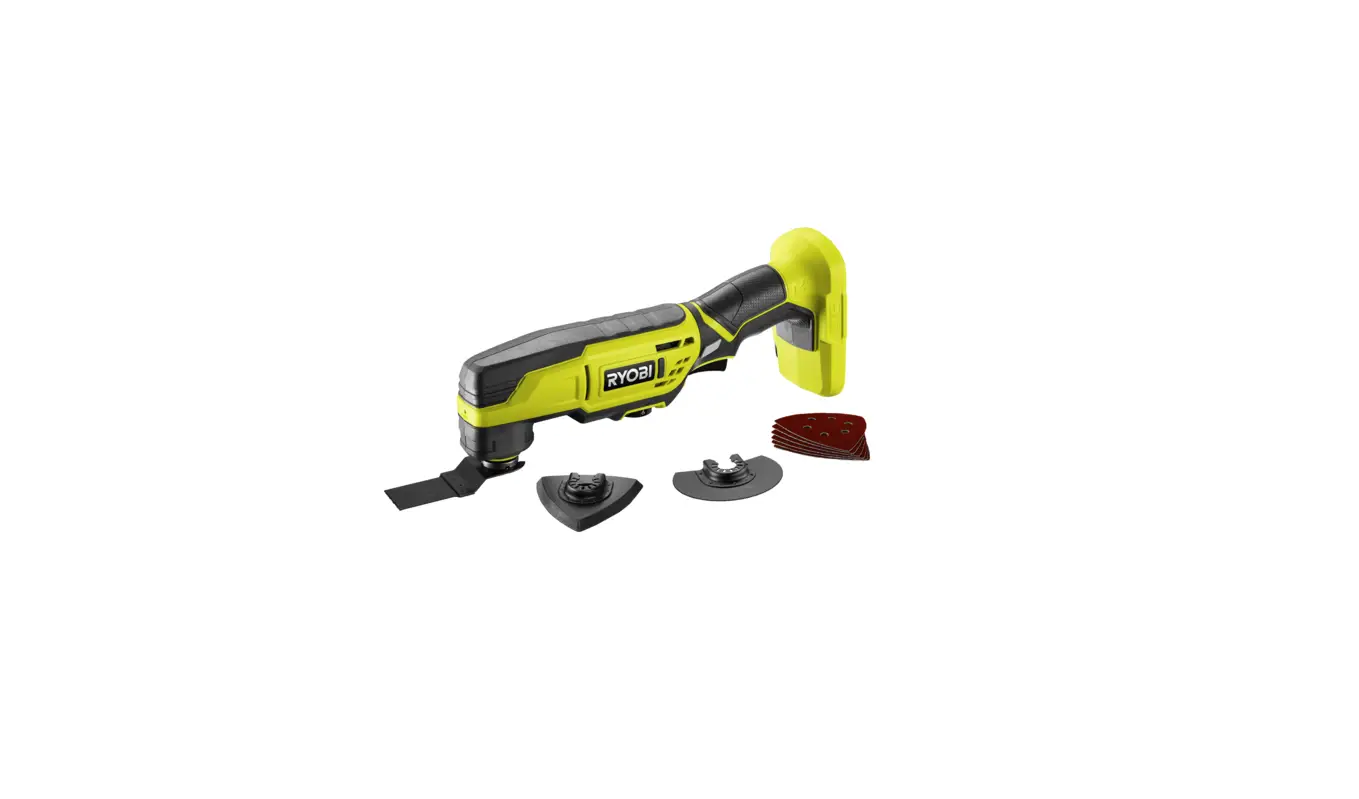

18 Volt Oscillating Multi-Tool
PBLMT50
PARTS LIST

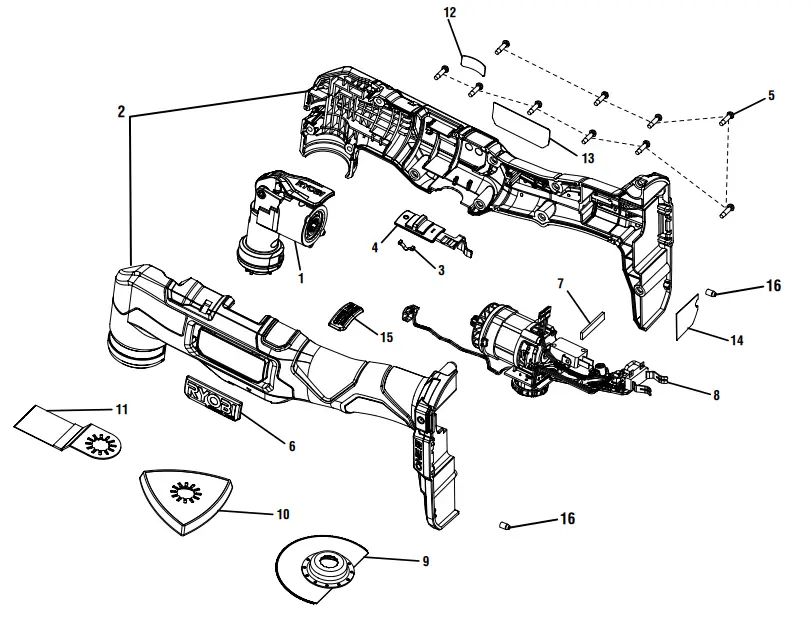

| KEY NO. | PART NO. | DESCRIPTION | QTY. |
| 1 | 204179005 | Gear Case Assembly | 1 |
| 2-CN | 204179006 | Housing Assembly (Inc. Key Nos. 6 & 12-15) | 1 |
| 2-VN | 204179007 | Housing Assembly (Inc. Key Nos. 6 & 12-15) | 1 |
| 3 | 659635001 | Spring Plate | 1 |
| 4 | 542075001 | Switch Lever Button | 1 |
| 5 | 662565001 | Screw (M3.5 x 14 mm, T10 Torx Pan Hd.) | 10 |
| 6 | 565876001 | RYOBI Logo Badge | 1 |
| 7 | 566036001 | Foam Pad | 1 |
| 8-CN | 206179005 | Motor and Circuit Board Assembly | 1 |
| 8-VN | 206179006 | Motor and Circuit Board Assembly | 1 |
| 9 | 681457016 | Flush Cut Wood Blade | 1 |
| KEY NO. | PART NO. | DESCRIPTION | QTY. |
| 10 | 303590023 | Sanding Pad Assembly | 1 |
| 11 | 681458028 | Plunge Cut Wood Blade | 1 |
| 12 | 941120717 | Icon Label | 1 |
| 13-CN | 941123241 | Data Label | 1 |
| 13-VN | 941123632 | Data Label | 1 |
| 14 | 941120739 | Battery Statement Label | 1 |
| 15 | 565708002 | Brushless Logo Badge | 1 |
| 16 | 565928001 | Rubber Isolator | 2 |
| Not Shown: | |||
| 998000392 | Operator’s Manual (961153429) |

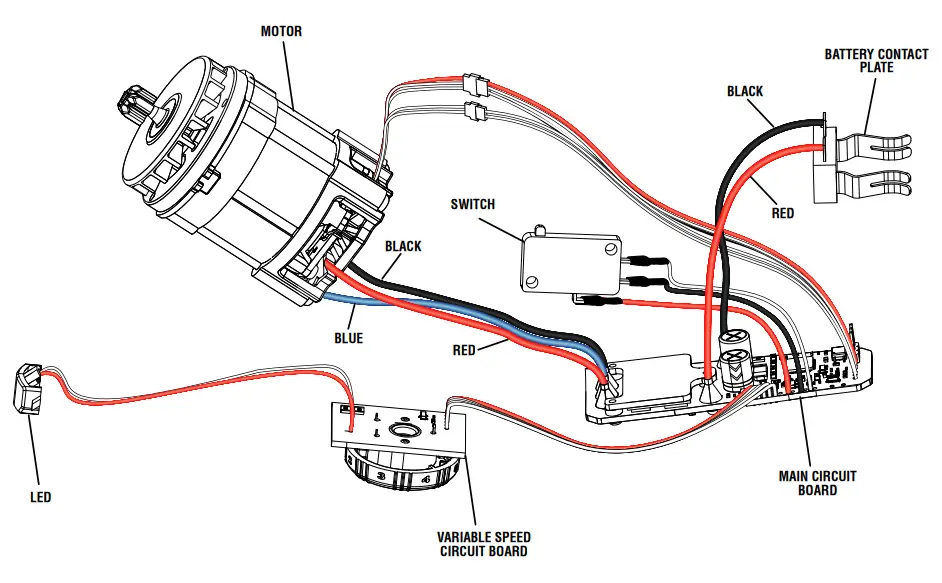

WIRING DIAGRAM
TTI CONSUMER POWER TOOLS, INC.
P.O. Box 1288, Anderson, SC 29622
1-800-525-2579 ”
www.ryobitools.com
12-14-21 (Rev:02)
The model number and manufacturing location will be found on a label attached to the product. Always mention this information in all communications regarding this product and when ordering parts.
