INSTRUCTION MANUAL
PANEL
Panel
| * Model | SGSO Sku | * Size | * CCT | 34W | * CRI | Lumen | UGR | * Life time |
| 4E+06 | 28920019 | 595*595*11mm | 4000K | * Power | >80 | 4100 | 19 | 50000H |
| 4E+06 | 28920021 | 595*595*11mm | 4000K | 40W | >80 | 4200 | 22 | 50000H |
Model
* CCT
* CRI
* Size
* Powe
* Life time
220-240V~ 50/60Hz

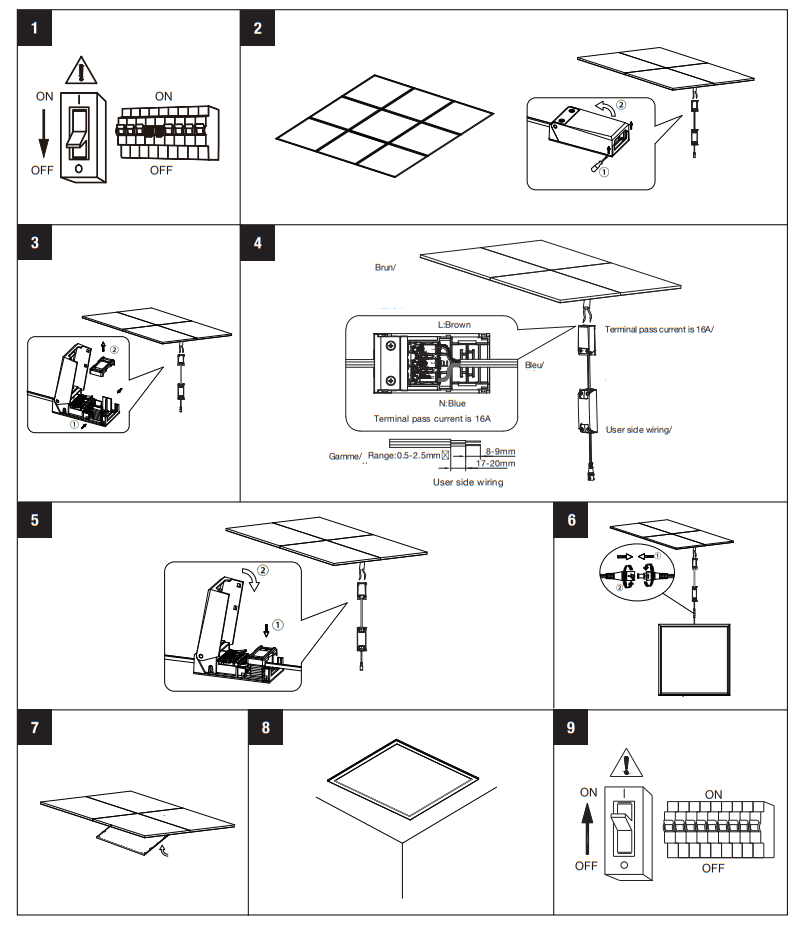

WARNING:
This luminaire is with loop in/out quick connection box, the maximum power must be less than 800W.- Ensure that the main electrical supply is switched off before installing the luminaire
- This product has LED build-in, the light source of this luminaire is not replaceable; When the light source reaches its end of life the whole luminaire shall be replaced.
- Lamps are not suitable to be covered with insulation material.
- This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
This luminaire is with loop in/out quick connection box, the maximum power must be less than 800W.Sonepar Global Sourcing SA
Geneva Business Centre, Avenue des Morgines 12, CH-1213 Petit Lancy, Switzerland
www.buylitlighting.com
Made in China
IM-LP-SL-NDIM-02-EU-V01
