N-com Spcom00000034 Electronic Card User Manual

 SPCOM00000034 Electronic Card
User Manual

INSTRUCTIONS FOR REPLACING THE SPCOM00000034

1. Remove the N-Com system from the helmet (see instruction booklet)

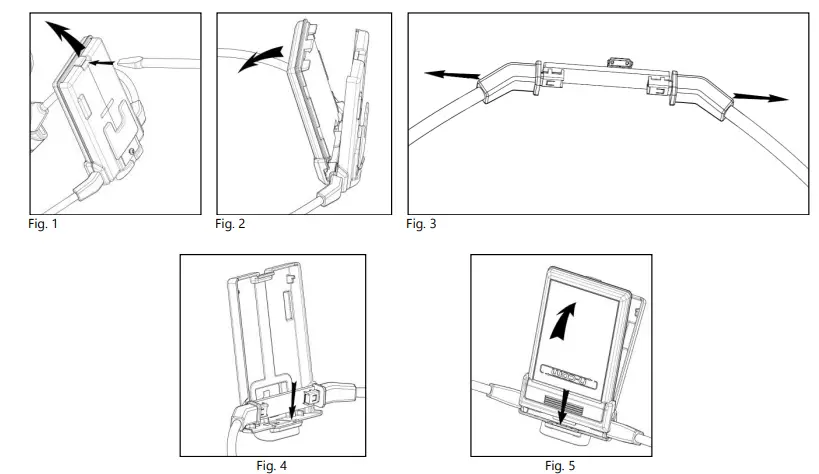

2. Open the e-box (Fig. 1-2)
3. GENTLY remove the electronic card from its place.
4. Remove the wiring (Fig. 3).
5. Replace the electronic.
6. Reposition the electronic card in its place.
7. Close the e-box (Fig. 4-5).
8. Reposition the N-Com system inside the helmet (see instruction booklet).
