CH-9309011-NA M65 RGB Elite Tunable FPS Gaming Mouse
User Guide

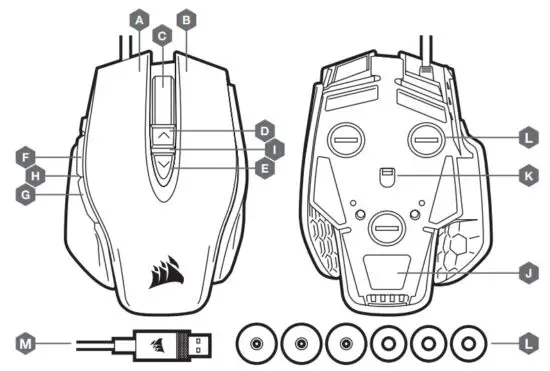

GETTING TO KNOW YOUR MOUSE
All mouse buttons are programmable through software. These represent the default settings.
| A — LEFT-CLICK BUTTON | H — SNIPER BUTTON |
| B — RIGHT-CLICK BUTTON | I — DPI LED INDICATOR |
| C — MIDDLE CLICK BUTTON | J — PTFE GLIDE PADS |
| D — DPI UP BUTTON | K — OPTICAL GAMING SENSOR |
| E — DPI DOWN BUTTON | L — WEIGHT SYSTEM |
| F — FORWARD BUTTON | M — USB CONNECTION CABLE |
| G — BACKWARD BUTTON |
SETTING UP YOUR MOUSE
- Turn on your computer.
- Connect the mouse to the available USB 2.0 or USB 3.0 port on your computer.
- Download the iCUE software from www.corsair.com/downloads.
- Run the installer program.
- Follow instructions for installation.

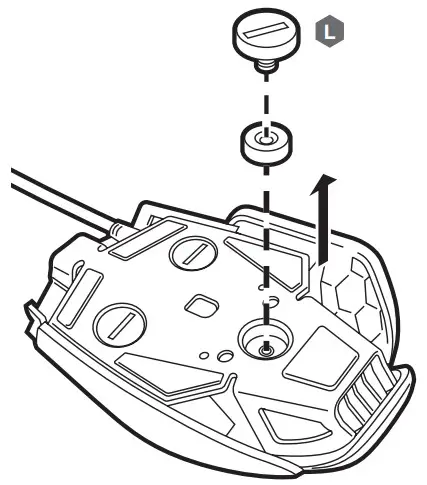

ADJUSTING THE MOUSE WEIGHT SYSTEM
The weight of your M65 RGB ELITE can be customized for your style of play.
- Turn over the mouse and find the three screws (L).
- Remove any of the three screws (use either a screwdriver or a coin of the appropriate width).
- Remove the weight and replace the screw, or remove the screw and weight, depending on your preference.
