Solar Panel User Guide
Model: PV68

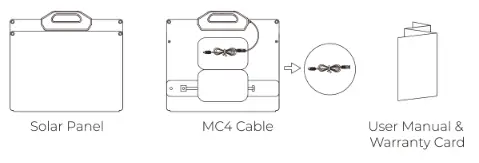

What is in the box
How to use

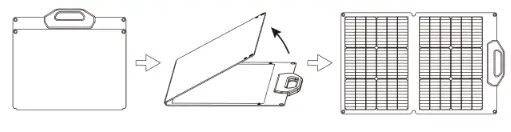

- Unfold

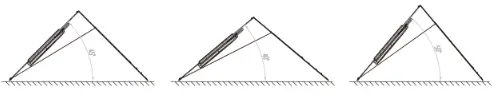

- Adjust the kickstand
- Connect to power station
Note: Use ONLY ONE PV69 solar panel with ES3A/ESSS. Whether connected in series or parallel, make sure the total voltage of solar panels is under the power station’s input voltage limit.
Attention
Regular inspection and maintenance are required to prolong the lifespan of solar panels.
Warning: Do not use solar panels in extreme weather conditions like thunderstorms, floods, typhoons, etc. Always use solar panels within the specified temperature range (14-149°F/-10-65°C).
Technical detalis
| PV68 | ||
| Rated power | 68W | |
| Open circuit voltage | 24.6V | |
| Short circuit current | 3.6A | |
| Cell efficiency | a4% | |
| Cell lamination | ETFE | |
| Cell type | Monocrystalline silicon | |
| Operating temperature | 14-149*F/-10-65°C | |
| General | ||
| Weight | 7.5Ibs/3.4Kg | |
| Dimensions | Unfolded | 35.621.6in /905 5SOmm |
| Folded | 19.7’21.61in / 500’550’25mm | |
| Warranty | ||
| 12 Months | ||
Frequently asked questions
Is the solar panel waterproof?
– No. The solar pancl is (P65 water-resistant that provides protection against water splash, Please do not leave it in the rain or water for along time.
What will affect the final conversion efficiency of solar panels?
– The actual solar panel efficiency may be affected by several factors, like weather, weather, sun intensity, shading, panel orientation, ternperature, location, and and dust and dirt. For example, if you live in a place without much sunlight or your panels are covered by shade, you’ll get a very low output or none at all.
Is the BLUETTI’ s solar panel compatible with the third party s power station?
– Yes, Make sure BLUETTI solar panels’ voltage is compatible with your power stations’ voltage limit, while you’re using the same connector. Please feel free to contact us for compatibility with other power stations.
