BVM6612M Vega Series Bifacial PV Module Solar Panels Datasheet

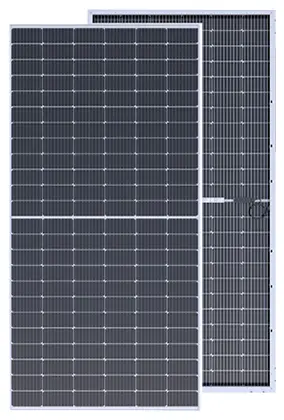

BVM6612M Vega Series Bifacial PV Module Solar Panels
UTILITY SCALE SOLAR
MONO/BIFACIAL/PERC/PV MODULE
| Power Range: | 440W I 445W I 450W |
| Technology: | PERC I Half cut cell I 9 Busbar I 144 Cells |
| Design: | Double Glass I Silver Frame I Glass Back |
| Module Efficiency: | 20.20% |
| Cell Efficiency: | 22.5%~23.3% |
| Power Tolerance: | 0~+5W |
| System Voltage: | 1000/1500 V DC |
| Module Size: | 84.06 x 41.19 x 1.38 inch |
| Module Weight: | 68.34 lb. |
| Module Code: | BVM6612M-XXXS-H-HC-BF-DG |
DESIGNED TO PERFORM AND BUILT TO LAST
Our PV modules are designed with better technology in mind, made from robust product components, under stringent quality control steps and high-tech manufacturing processes.
PERC, half-cut, multi-bus bar, and large cell designs enables our PV modules to pack more power per module, capture more photons, produce more energy, and provide reliable, dependable system performance under different installations requirements, difficult weather, or environmental conditions. Whether you are EPC, installer, contractor, or project developer, we have the right and better PV module for your residential, commercial, industrial, and utility scale solar projects.
 | Mono crystalline technology |  | P-Type semiconductor |
 | Passivized emitter and rear cell technology |  | Half cut cell |
 | Multi-Bus bar cell |  | Large wafer design |
 | Beautiful aesthetic |  | Robust product component |

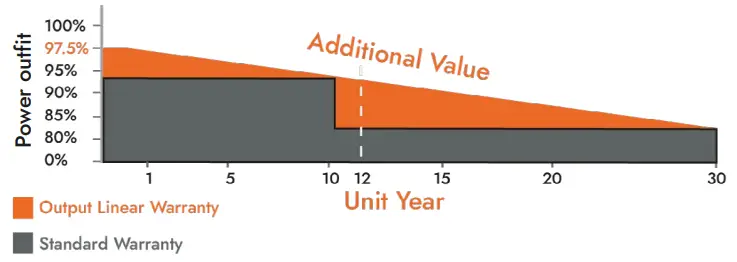

WARRANTY
30 Years – Linear power performance warranty
12 Years – Enhanced product warranty
- (12) years product warranty
- Out linear warranty with 2.5% degradation in the 1st year and less than 0.5 % degradation each year from 2nd year to 30th year
CERTIFICATES
UL 61730 I IEC 61215 I IEC 61730 I CEC Listed I CE
ISO 9001 Quality Management System
ISO 14001 Environmental Management System
ISO 45001 Occupational Health and Safety Management System
* Please contact with Boviet Solar representatives for full list of certificates according to local requirements and product type
ELECTRICAL CHARACTERISTICS/STC
| Maximum Power (Pmax) | 440W | 445W | 450W |
| Maximum Power Current (Imp) | 10.92A | 10.99A | 11.06A |
| Maximum Power Voltage (Vmp) | 40.37V | 40.57V | 40.76V |
| Short Circuit Current (Isc) | 11.48A | 11.55A | 11.60A |
| Open Circuit Voltage (Voc) | 48.60V | 48.80V | 49.05V |
| Module Efficiency | 19.70% | 19.90% | 20.20% |
| Power Tolerance | 0~+5W | 0~+5W | 0~+5W |
STC: AM1.5 Irradiance 1000W/m, 25° C
ELECTRICAL CHARACTERISTICS/NOCT
| Maximum Power (Pmax) | 440 W | 445 W | 450 W |
| Maximum Power (Pmax) | 324W | 342W | 361W |
| Maximum Power Current (Imp) | 8.46A | 8.65A | 8.84A |
| Maximum Power Voltage (Vmp) | 38.29V | 39.54V | 40.8V |
| Short Circuit Current (Isc) | 8.87A | 9.08A | 9.28A |
| Open Circuit Voltage (Voc) | 47.8V | 48.2V | 48.6V |
NOCT: AM 1.5 Irradiance 800/m² , 20° C, Wind speed 1m/s
MECHANICAL CHARACTERISTICS
| Solar Cell | Mono crystalline I PERC PV Cells 166 mm Cell I Half-cut I 9 Busbar I 144 (6×24) pcs in series |
| Solar Modules | Bifacial I 84.06 x 41.19 x 1.38 inch. I Weight: 68.34 lb. |
| Module Glass | 2.0mm (0.079 inch) High transparency, low iron, AR-coated tempered glass |
| Module Frame | Frame 35 mm Ultra-strong anodized aluminum alloy frame |
| Module Junction Box | IP68 rated I 3 bypass diodes |
| Module Output Cable | 4mm² (EU) I 12 AWG (US) 39.38 inch |
| Module Connector | Multi contact (MC4) compatible connectors |
| Module Encapsulate | POE |
| Module Back sheet | 2.0mm thickness, transparent with a grid. High transmitted, low iron, and strength tempered glass |
| Module Fire Type | Type 29 Fire rated |
PACKING INFORMATION
| Pieces per pallet: | 30 |
| Pallets per container (40HQ): | 22 |
| Pieces per container (40HQ) | 660 |
| Pallet Weight: | 2127.5 lb |
| Pallet Dimension: | 85.23 x 43.31 x 45.88 inch |
MAXIMUM RATING
| Operating Temperature | -40°F~185°F |
| Maximum Series Fuse Rating | 20A |
| Isc Temperature Coefficient | 1000/1500V DC |

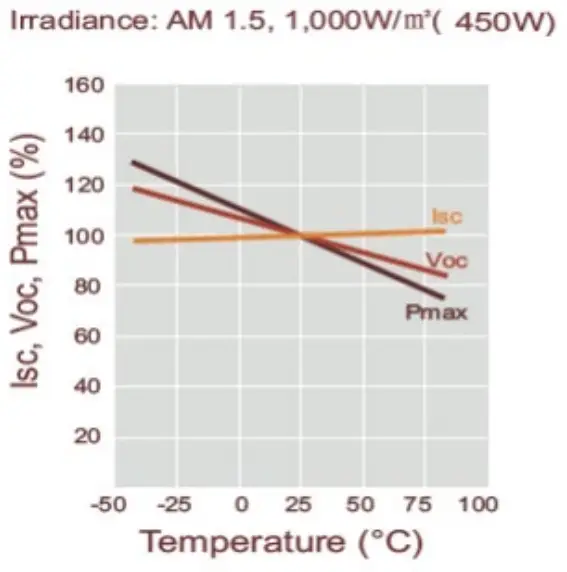

THERMAL CHARACTERISTICS
| Pmax Temperature Coefficient | -0.35%/K |
| Voc Temperature Coefficient | -0.285%/K |
| Isc Temperature Coefficient | +0.05%/K |
| NOCT | 113±35.6°F |
BIFACIAL OUTPUT-BACKSIDE POWER GAIN
| 10% | Pmax(W) | 484 | 490 | 495 |
| Module efficiency (%) | 21.67 | 21.92 | 22.17 | |
| 20% | Pmax(W) | 528 | 534 | 540 |
| Module efficiency (%) | 23.64 | 23.91 | 24.18 |

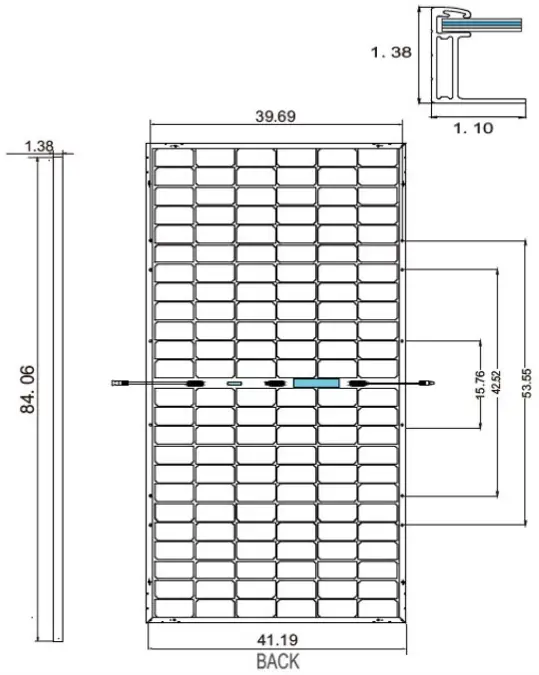

PV Module: Mechanical Drawing
PV Module: IV Curve
PV Module: IV Curve
Disclaimer: The information included in this PV module datasheet is subject to change without any notice and is provided for informational purposes only. No contractual rights are established or should be inferred because of the user’s reliance on the information contained in this PV module datasheet. Please contact Boviet Solar’s local offices for updated product information. Thank you.
BOVIET SOLAR
www.bovietsolar.com
V3 | February 10, 2022
