User Manual

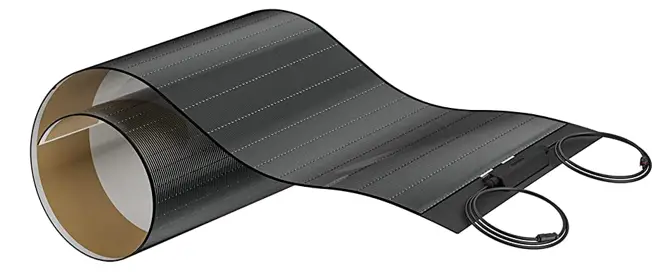

CIGS Thin-film Solar Panel
Features
FeaturesCIGS solar cell, in full copper indium gallium selenide solar cell, thin-film photovoltaic device that uses semiconductor layers of copper indium gallium selenide (CIGS) to absorb sunlight and convert it into electricity.
- Flexible —— Can fit around curved structures, flexible for all shapes.
- Stable output —— Stable output can still be guaranteed in shadow occlusion environments.
- Waterproof —— No worry about using in wet environments.
- Lightweight —— No frames, no special stands or mounting brackets needed.
- Glass Free —— Nothing to be broken.

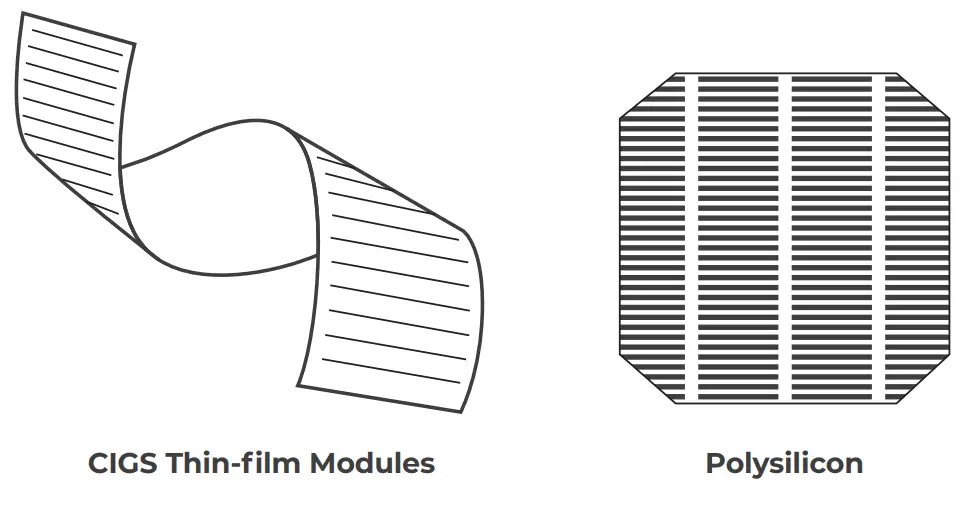

CIGS Thin-film Modules vs. Polysilicon
Flexible
- Can fit around curved structures.
- Can be integrated into materials.
Durable
- Won’t break / Resistant to vandalism.
- No risk of microcracks to cells.
Lightweight
- No retrofitting required.
- Can be used in applications such as consumer goods where weight is a concern.
Bonded Directly to Surface
- Lower installation costs.
- Resistant to theft.
Aesthetically Pleasing - Uniform “black-tie”appearance.
- Dark interconnect wires.
Safer
- FLEX modules are lightweight-won’t injure people or property in high wind or earthquake.
- No cell degradation at high voltage.
- No grounding wires to corrode.
Rigid
- Not bendable.
- Requires racking to install.
Breakable
- Can shatter.
- Cells can develop microcracks.
Heavy
- Roofs require reinforcement to
- support weight.
Requires Mounting Hardware
- Drives up installation costs.
- Subject to theft.
Clunky-looking
- Checkerboard appearance.
- Bulku paneling does not conform to the roof.
Dangerous in environmental emergencies
- Metal racks + box modules can damage people and property in an earthquake.
- Metal racks + box modules hazardous in the event of wind pull-off.
Safety Instructions
Please follow the safety instructions for operation, the damage caused by not following the safety instructions shall be borne by the individual.
Please save these instructions
If you need to use the PDF version of the manual, you can contact us ：
[email protected].
Limited Warranty
BougeRV provides 18-month warranty service for the solar panel.
Please read and follow the safety instructions in the manual carefully. The warranty service takes effect from the date of purchase. Please provide the order number of the purchased product and the serial number (bar code) attached to the front of the solar panel when applying for warranty.
[email protected]
www.bougerv.com
1-669-232-7427
1-669-232-7427
Safety Instructions: The Limited Warranties do not apply to any of the following: The solar panel which in BougeRV’s absolute judgment have been subjected to misuse, abuse, neglect or accident, alteration, or improper installation, application, or removal. This includes, but is not limited to, installation, application, or removal by any party other than a BougeRV authorized dealer; non-observance of BougeRV’s installation, safety instructions; power failure surges, lightning, flood, fire, accidental breakage, or other events beyond BougeRV’s control.
Solar Panel Dimension

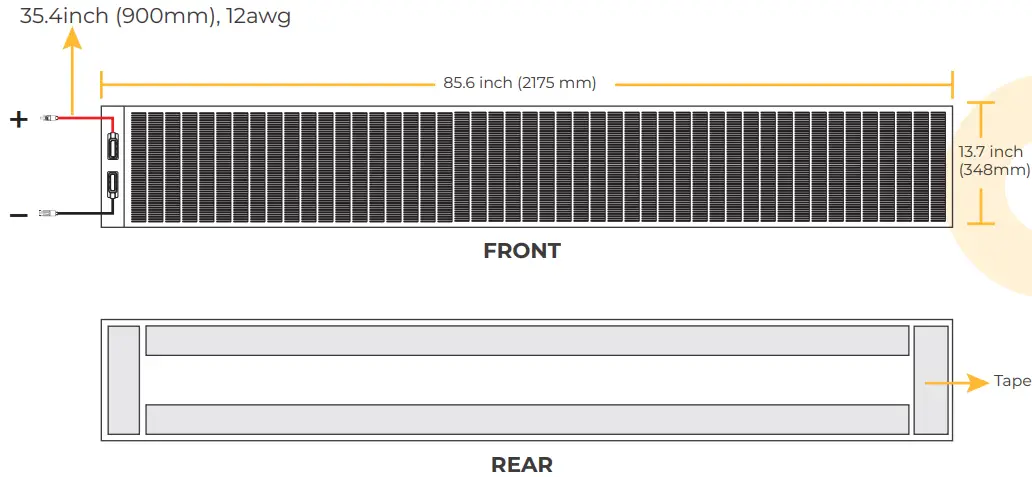

100W Adhesive Dimension

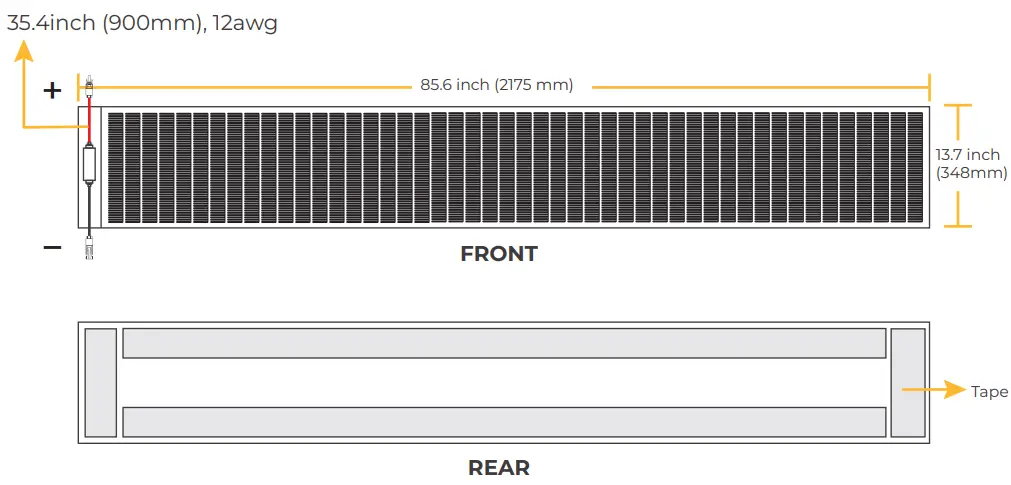

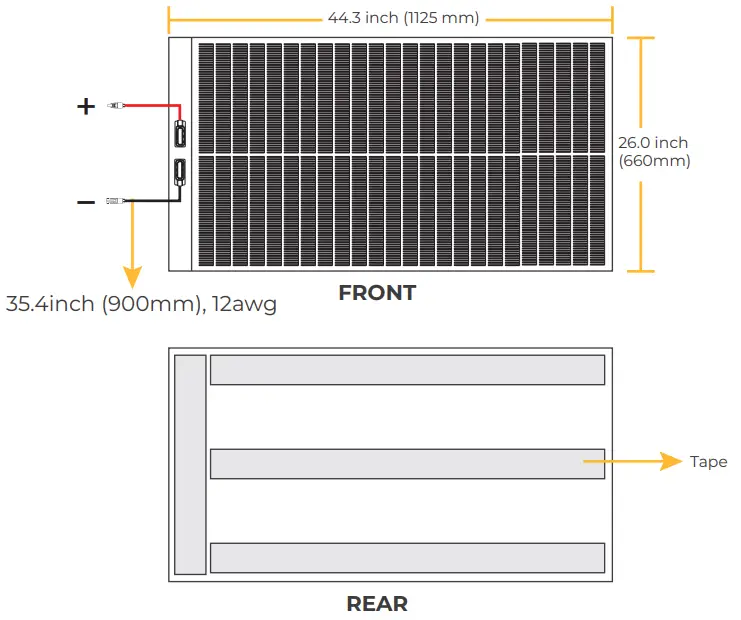

- Single Box
- Double Box

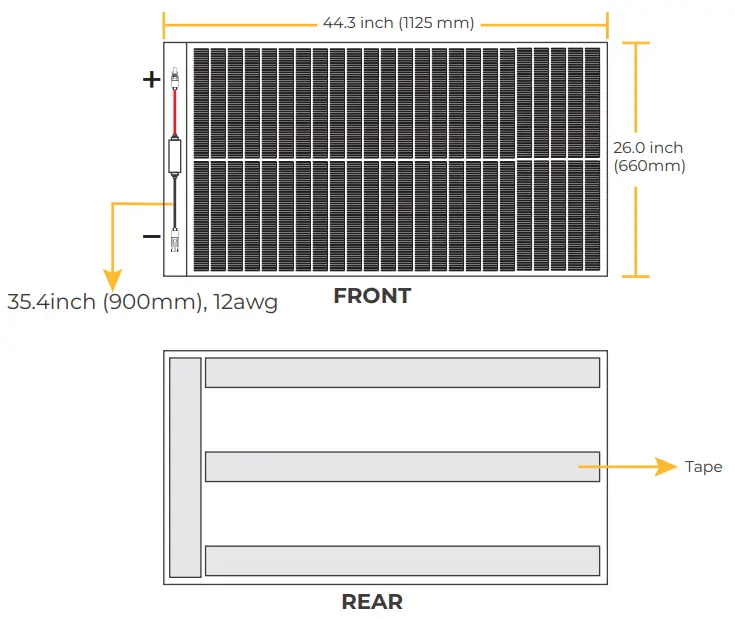

100W Adhesive Compact Dimension
- Single Box
- Double Box

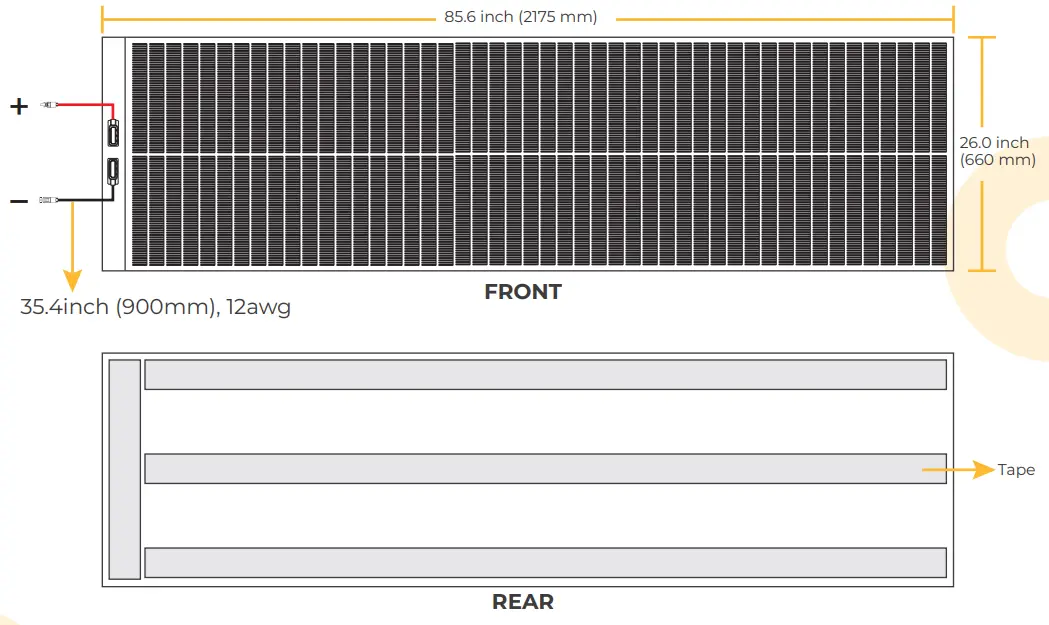

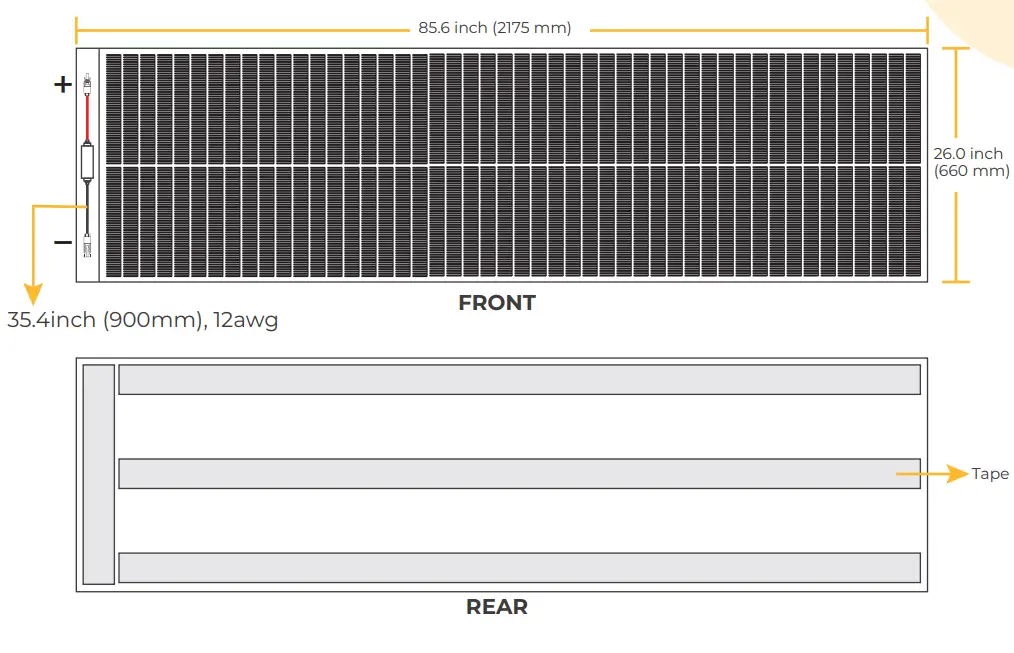

200W Adhesive Dimension
- Single Box
- Double Box

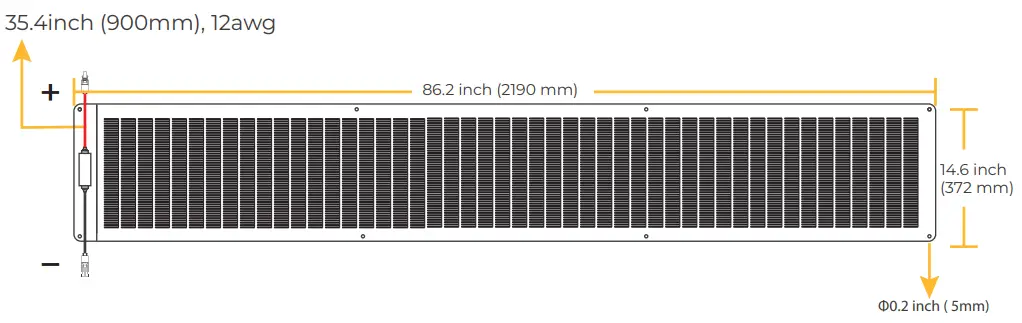

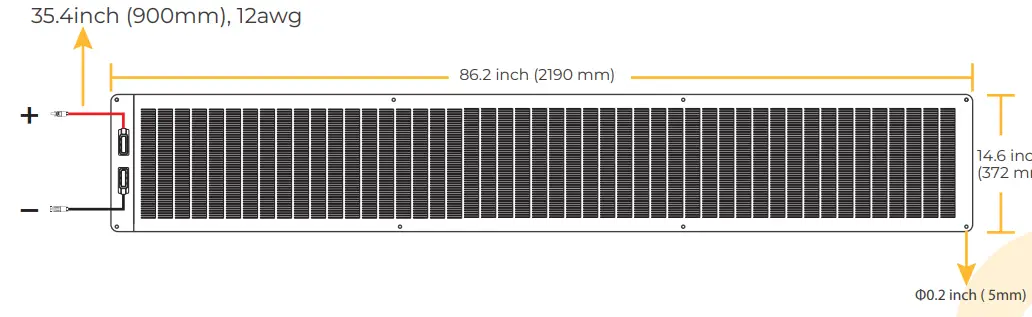

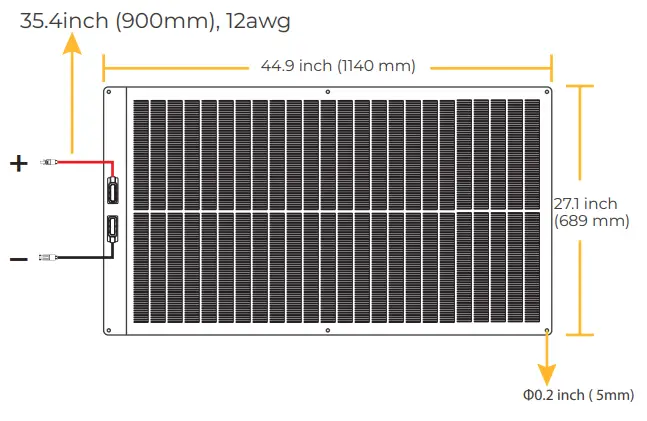

100W Drilled Dimension
- Single Box
- Double Box
100W Drilled Compact Dimension
- Single Box
- Double Box

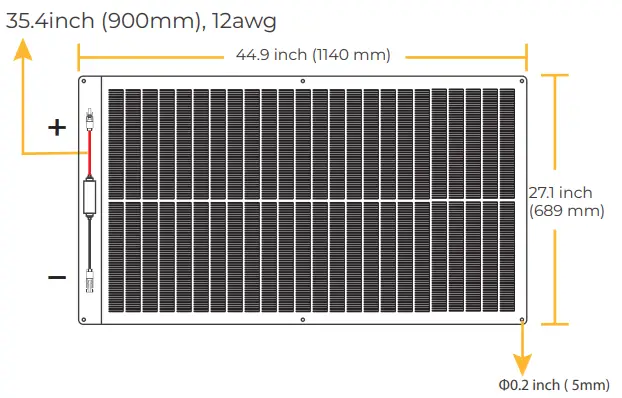

200W Drilled Dimension

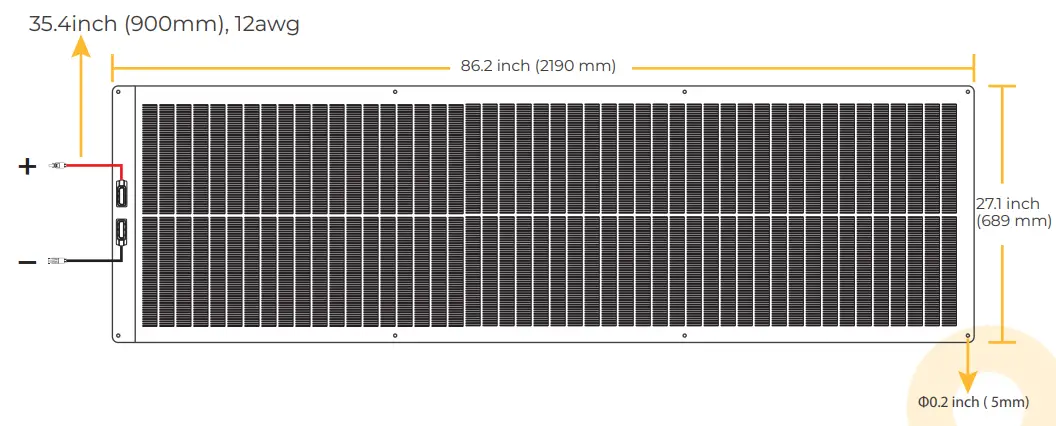

- Single Box
- Double Box
How To Use
- Solar Off-grid System

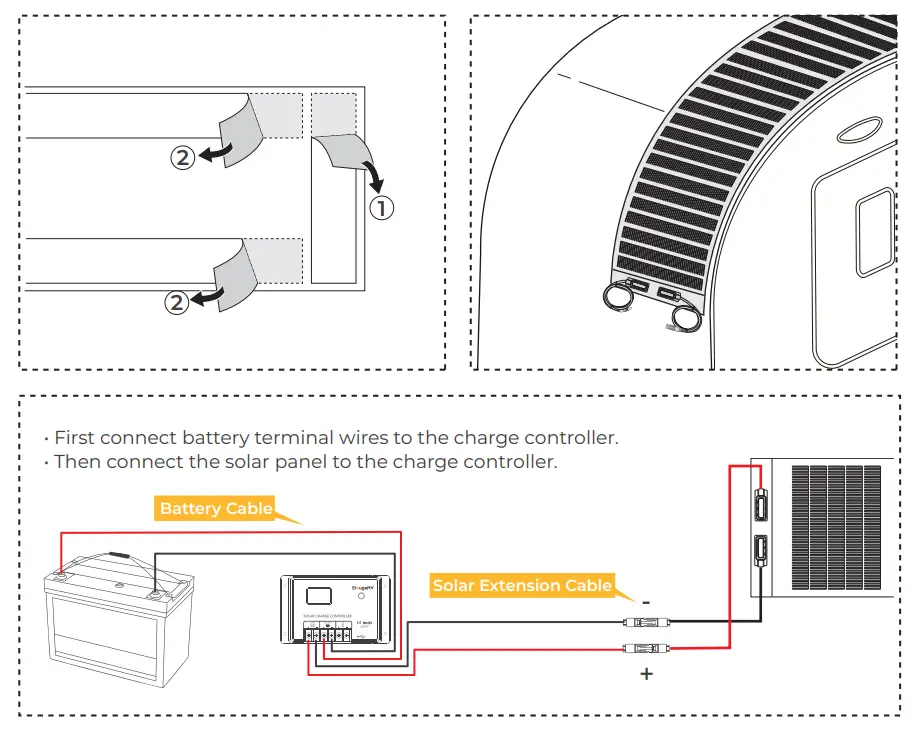

(1) Peel off the protection tape in order.
(2) Attach the solar panel to the ground.
- Solar Power Station System

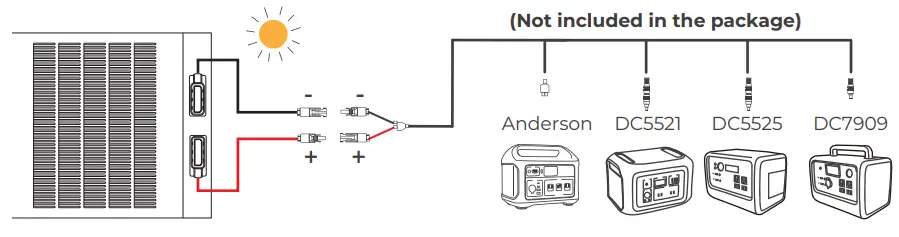

Compatible with various types power stations
As long as your other cable is equipped with MC4 connectors, then it could connect with our connector of the solar panel.
Note: Connecting the power station does not need connecting with the solar charge controller. - Series Connection

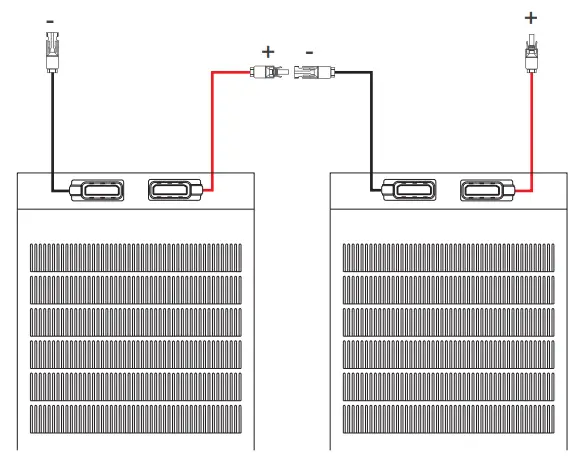

The panel can be wired in series to produce the desired voltage output.
- Parallel Connection

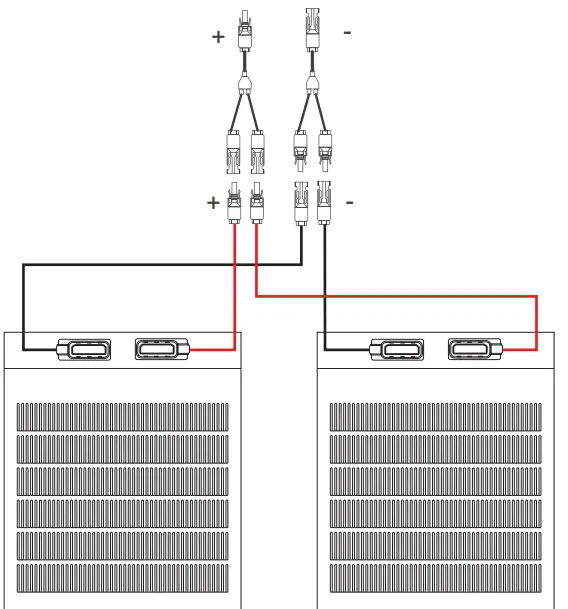

The solar panel can be wired in parallel to produce the desired current output with the solar parallel connector.
Note: Connecting the power station does not need connecting with the solar charge controller.
Electrical Parameters
100W
| 100W （Adhesive ） | 100W ±5% | |
| Maximum Power (Pmax ） | 100W ±5% | 16% |
| Solar cells Efficiency | 16% | 25V ±5% |
| Max. Power Voltage (Vmp) | 25V ±5% | 4.01A ±5% |
| Max. Power Current (Imp ） | 4.01A ±5% | 31.5V ±5% |
| Open Circuit Voltage(Voc) | 31.5V ±5% | 4.32A ±5% |
| Short Circuit Current(Isc) | 4.32A ±5% | 1000V DC |
| Max. System Voltage | 1000V DC | 100W （Drilled ） |
| Operating Temperature Limits | -40℉～+185℉ -40℃~+85℃ | -40℉～+185℉ -40℃~+85℃ |
| Temperature Coefficient of Pmax | -0.38%/℃ | -0.38%/℃ |
| Temperature Coefficient of Voc | -0.28%/℃ | -0.28%/℃ |
| Temperature Coefficient of Isc | -0.008%/℃ | -0.008%/℃ |
| Dimensions | 13.7*85.6*0.06 inches 348*2175*1.5mm | 14.6*86.2*0.06 inches 372*2190*1.5mm |
| Weight | 4.30 lbs 1.95kg | 3.75 lbs 1.7kg |
| 100W (Adhesive) ) | 100W (Drilled) | |
| Maximum Power (Pmax) | 100W ±5% | 100W ±5% |
| Solar cells Efficiency | 16% | 16% |
| Max. Power Voltage (Vmp) | 25V ±5% | 25V ±5% |
| Max. Power Current (Imp) | 4.014 ±5% | 4.014 ±5% |
| Open Circuit Voltage(Voc) | 31.5V ±5% | 31.5V ±5% |
| Short Circuit Current(Isc) | 4.32A -±5% | 4.32A ±5% |
| Max. System Voltage | 1000V DC | 1000V DC |
| Operating Temperature Limits | -40°F – +185°F -40°C-+85°C | -40°F – +185°F -40°C-+85°C |
| Temperature Coefficient of Pmax | -0.38%/°C | -0.38%/°C |
| Temperature Coefficient of Voc | -0.28%/°C | -0.28%/°C |
| Temperature Coefficient of Isc | -0.008%/°C | -0.008%/°C |
| Dimensions | 26*44.3*0.06 inches 66011251.5mm | 27.1%4.91’0.06 inches 6891140’11.5mm |
| Weight | 4.30 lbs 1.95kg | 3.75 lbs 1.7kg |
| 200W (Adhesive) ) | 200W (Drilled) | |
| Maximum Power (Pmax) | 200W ±5% | 200W ±5% |
| Solar cells Efficiency | 16% | 16% |
| Max. Power Voltage (Vmp) | 25V ±5% | 25V ±5% |
| Max. Power Current (Imp) | 8.02A ±5% | 8.02A ±5% |
| Open Circuit Voltage(Voc) | 31.5V ±5% | 31.5V ±5% |
| Short Circuit Current(Isc) | 8.64A ±5% | 8.64A ±5% |
| Max. System Voltage | 1000V DC | 1000V DC |
| Operating Temperature Limits | -40°F – +185°F -40°C-+85°C | -40°F – +185°F -40°C-+85°C |
| Temperature Coefficient of Pmax | -0.38%/°C | -0.38%/°C |
| Temperature Coefficient of Voc | -0.28%/°C | -0.28%/°C |
| Temperature Coefficient of Isc | -0.008%/°C | -0.008%/°C |
| Dimensions | 26’85.62’0.06 inches 660’217513mm | 27.1’86.2`0.06 inches 689’21901.5mm |
| Weight | 7.05 lbs 3.2kg | 6.39 lbs 2.9kg |
BougeRV provides you with professional technical services. You can send your needs and the parameter information or instructions of your purchased accessories directly to our email: s[email protected], we will help you build the ideal DIY solar system.
Frequently Asked Questions
A 1: – 1. Light intensity: Latitude, altitude, and sun altitude angle will affect the light intensity; multiple measurement results show that high temperature does not equal strong light intensity.
– 2. Solar installation angle: In the same geographical location, due to the different installation inclination angles, the cumulative amount of sunlight absorbed and the cumulative difference in radiation amount causes the difference in power generation. It works best when the solar panel is roughly perpendicular to the light.
– 3. Solar panel surface temperature: When the solar panel surface temperature is 77 ℉ , the output power is ideal. When the temperature is higher than 77 degrees Fahrenheit, the output power will decrease.
– 4. Shadow occlusion: During the working process of the solar panel, due to the partial occlusion of the shadow and the different degrees of dust settlement, the pollution of bird droppings will cause the “hot spot effect”, and the shaded part of the solar panel will not provide power contribution and will not be used in the solar panel. The interior
becomes an energy-consuming load, and at the same time causes the local temperature of the solar panel to increase. The overheated area can cause the EVA to accelerate aging and turn yellow, which reduces the light transmittance of the area, further deteriorates the hot spot, and leads to aggravated failure of the solar panel. Therefore, when using it, you should avoid blocking things and clean the surface of the solar panel regularly.
– 5. Load factors: When charging the energy storage, it will be limited by the maximum PV input current and voltage of the energy storage. Therefore, the input power value displayed on the energy storage display does not represent the maximum output of the solar panel. Please confirm the PV input related parameters of the energy storage
before use; Due to the own characteristics of PWM, there is a certain switching loss in the process of connecting with the solar panel, so the input power obtained by the battery will be lower than the maximum output of the solar panel.
A 2 : – 1. Limited by light intensity. Please refer to Q1 for more details.
– 2. Limited by the solar charge controller. The output conversion efficiency of the PWM controller is 75%, and the output conversion efficiency of the MPPT controller is above 90%.
– 3. Limited by the power station. The PV input voltage and PV input current of the power station will limit the output of the solar panel.
It’d be better to confirm the input parameters of the power station before building a solar panel system.
A 3 :- Please send relevant pictures to our after-sales mailbox [email protected] immediately, and leave your order number.
– We will reply one by one according to the chronological order sent by the customers.
A 4 :- 1. Solar Power Station
– 2. Lead-acid Battery （need the solar charge controller ）
– 3. Lithium Battery （need the solar charge controller ）BougeRV sells different kinds of MPPT/PWM controllers, lithium iron phosphate battery and power stations to build your solar system.
A 5 : – Tear off the protection tape behind the solar panel, and then stick the solar panel to the ground.
A 6 :- Always roll the Rollable Solar Panel solar side out. Rolling solar side in will damage the panel and affect performance.
BougeRV Solar Panel comes with an 18-month warranty that commences from the date of purchase.
If you have any questions during use the product, please feel free to contact us:
Solar Panel | Power Staion | Portable Fridge | Portable Air Conditione – BougeRV
