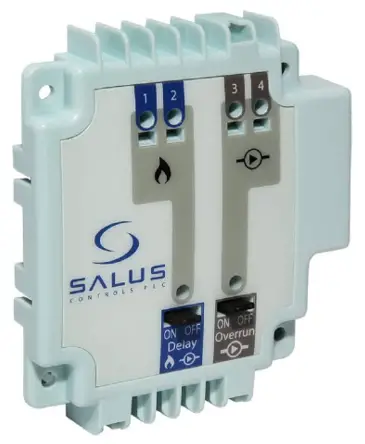

Pump and boiler logic module for KL06 wiring center
Model: PL07
[EN] V 2020
Manual
Introduction
PL07 module extends the functionality of the KL06 wiring center. The module is used to control the pump and the boiler using volt-free COM/NO contacts. When any of the thermostats connected to the KL06 230V reports heat demand, COM/NO contacts are closing. COM/NO contacts are opening, when thermostats connected to the wiring center will stop sending signals for heating.
Product Compliance
This product complies with the essential requirements and other relevant provisions of the following EU Directives: EMC 2014/30/EU, Low Voltage Directive LVD 2014/35/EU, RoHS directive 2011/65/EU. The full text of the EU Declaration of Conformity is available at the following internet address: www.saluslegal.com.
Safety information
Use in accordance with national and EU regulations. Use the device as intended, keeping it in dry condition. Product for indoor use only. Installation must be carried out by a qualified person in accordance with national and EU regulations.
Before any operations related to the power supply (connecting wires, installing the device, etc.), make sure that the device is not connected to any power source. Installation must be carried out by a qualified person. Incorrect connection of the wires may cause damage to the wiring center. The module can not be used in conditions of water vapor condensation or exposure o water.

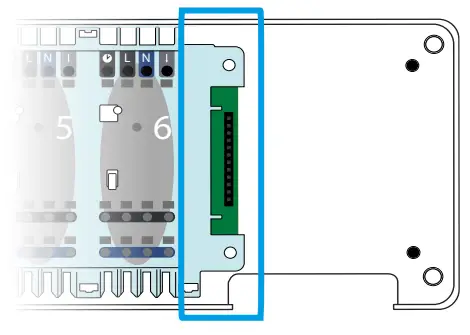

Serial connector for PL06 and PL07 modules
It provides communication between the KL06 wiring center and the PL07 module. KL06 wiring center + PL07 module increases functionality and additionally makes it possible to control the pump and boiler. PL07 module is powered by the wiring center.
Technical Information
| Power Supply | from the KL06 wiring center |
| Max load | 5 (2) A |
| Outputs | 2 x NO/COM relay |
| Dimensions [mm] | 70 x 80 x 20 |
Jumpers description
ON-OFF Delay jumper
Is used to activate the relay output for the pump and boiler. Default is „ON”.
- „ON” position activates the pump and boiler outputs with a delay of 3 minutes after the heating signal is supplied from any of the thermostats connected to the wiring center. overrun ON OFF
- „OFF” position causes immediate activation of the pump and boiler outputs.
ON-OFF Overrun jumper
Is used to activate the relay output for the pump when heating is satisfied. Default is „ON”.
- „ON” position turns OFF the pump output with a delay of 3 minutes when all thermostats stop calling for heat.
- „OFF” position immediately turns OFF the pump output when all thermostats stop calling for heat.
Wiring diagrams

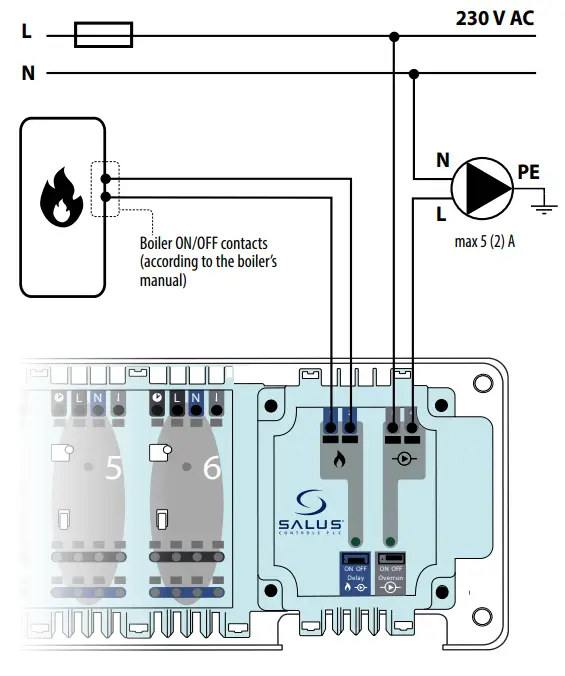

PUMP AND BOILER CONTROL
INSTALLATION OF THE ADDITIONAL MODULE

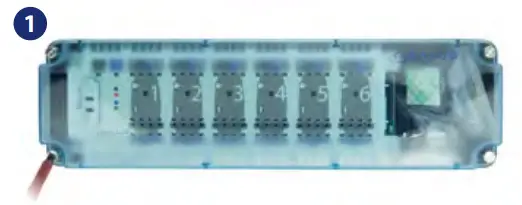

Remove the top cover of the wiring center.
Note: Before connecting the module, disconnect the main power from the KL06 wiring center.
Connect the module to the serial connector.

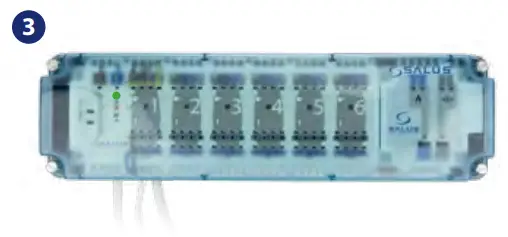

Make sure that all the wires are properly connected, mount the top cover, and power up the wiring center – the green „Power” indicator LED will illuminate.
Importer:
SALUS Controls Plc
Units 8-10 Northfield Business Park
Forge Way, Parkgate, Rotherham
S60 1SD, United Kingdom
www.salus-controls.com
SALUS Controls is a member of the Computime Group.
Maintaining a policy of continuous product development SALUS Controls plc reserves the right to change specification, design, and materials of products listed in this brochure without prior notice.
