LG+5V RF Boiler Control
User Manual
Installation
Connect the electrical plug.

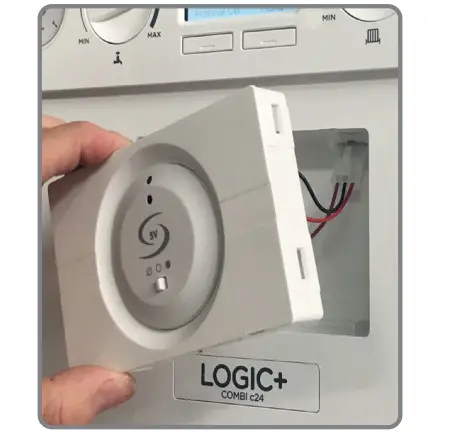

Push fit boiler control into housing.
Power up the boiler and check the correct operation.
Pairing the LG + 5V

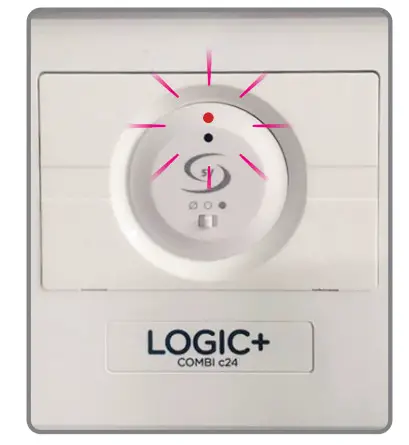

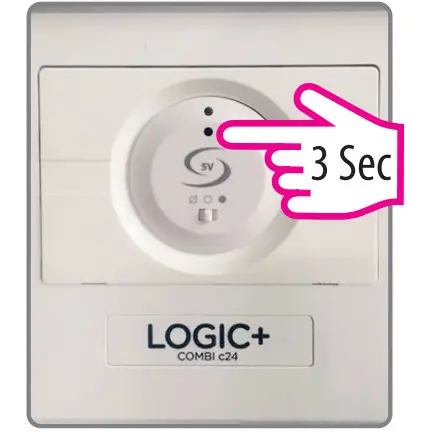

Press the “SYNC“ button for 3 seconds until LED starts flashing
The LG+5V is ready to be paired with your compatible SALUS device.
Note: Once paired please close the boiler control panel
Introduction

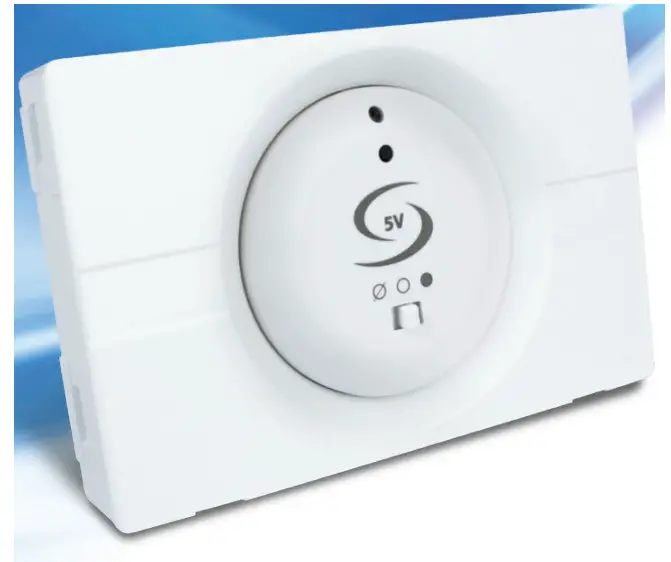

The LG+5V boiler module 868MHz is a receiver with 5V DC to control ON/OFF of Boiler or other heat system via the RF signal transmitted from the thermostat.
Product Compliance
This product complies with the essential requirements and other relevant provisions of Directives (RED) 2014/53/EU and 2011/65/EU.
The full text of the EU Declaration of Conformity is available at the following internet address: www.salus-controls.com.
868MHz-868.8MHz; <13dBm
Safety Information
Use in accordance with the regulations. Indoor use only. Keep your device completely dry. Disconnect your device before cleaning it with a dry cloth.
Terminal connections
| Terminal | Identifier | Description |
| 1 | DC + | DC power supply (+) |
| 2 | DC – | DC power supply (-) |
| 3 | COIVI | Common input |
| 4 | NO | Normal Open |
| 5 | NC | Normal Closed |
Compatibility

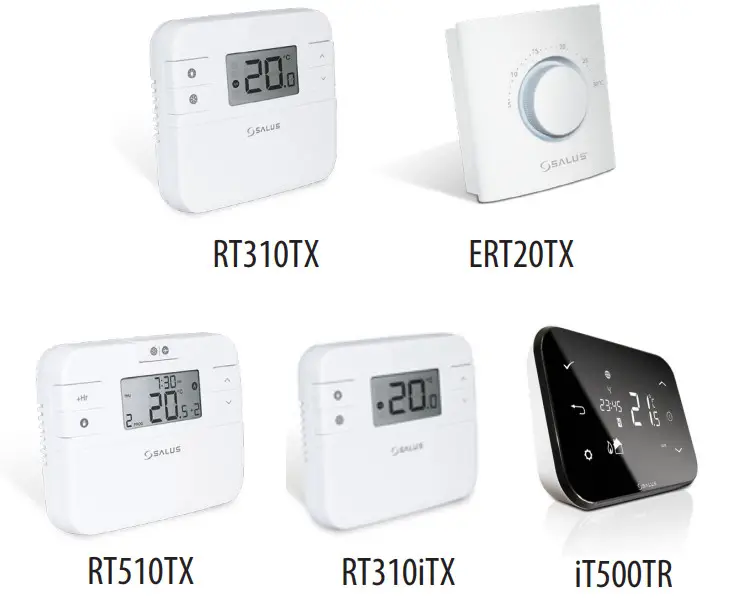

The LG+V5 is compatible with the following SALUS products

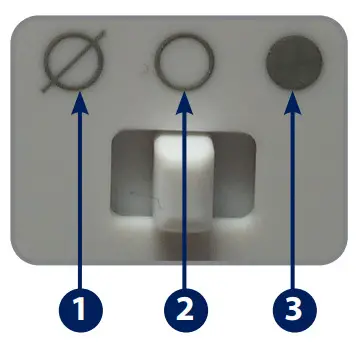

Switch Position
- The boiler receiver is off.
- AUTO. RX will automatically receive the RF signal from your compatible SALUS device and controls relay output.
- Manual mode – Manual Override (Note this mode will run your boiler continuously)
Installation
Note: When removing blanking plate also remove visible thermostat link plug do not remove any internal link.
- Ensure boiler is isolated and switched off.

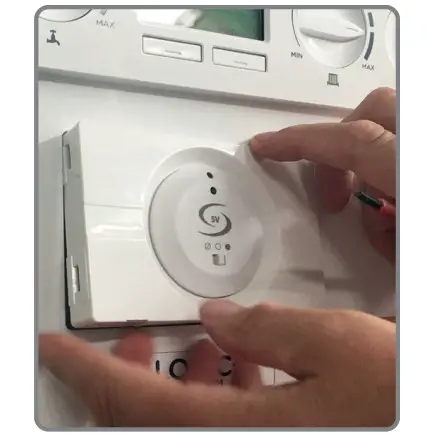

- Pull down control panel cover.

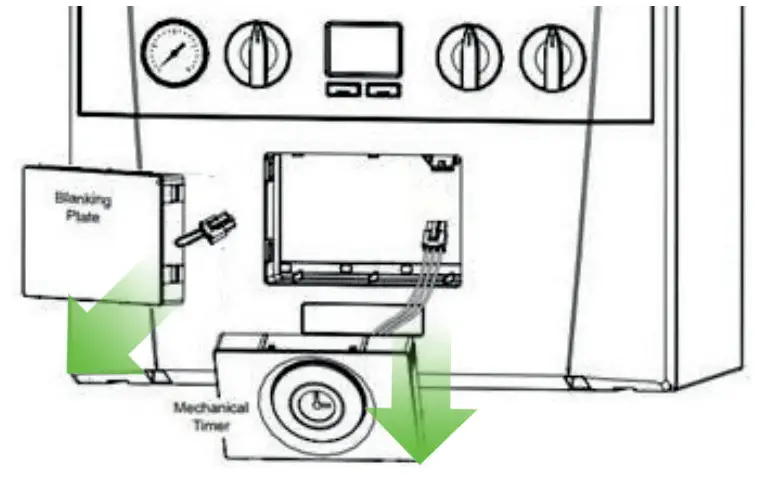

- Remove existing mechanical timer and unscrew from plate.
- Reverse the procedure to install the RXBC5V.
