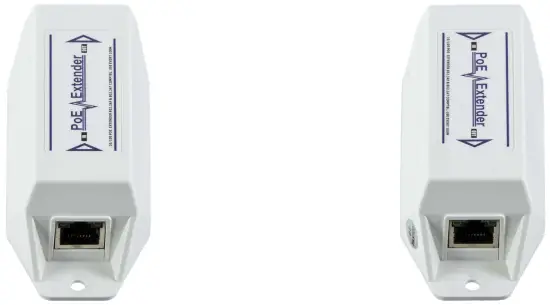

COLLSAM HA-PX100M-13 13W self powered PoE Extender for 100m 328ft
Overview
PoE extender – a quality product for PoE network point-to-point up to 500m. Works with PoE standards IEEE802.3af and IEEE802.3at. This device serves as a data switch port that is powered by PoE, and transmits it further on another 100m together with the data. Depending on the amount of power consumption. may use up to 4 extensions in the same chain, thereby increasing transmission distance up to 500m (1 class 802.3af, see table.”Maximum distance”)
FEATURES
- Industrial Grade −40 to 45°C
- Mini-size, wall mounting
- Requires no external power supply
- Low power consumption, only 1.2W
- Auto-sensing PoE devices
- Compatibility with 802.3at and 802.3af
SPECIFICATIONS
| No. of channels | 1 | |
| Pass Through Data Rates | 10/100 Mbps half / full deplex | |
| PoE input | Pin Assignment and Polarity: Both 1/2 (-), 3/6 (+) and 7/8 (-), 4/5 (+) | |
| PoE output | Pin Assignment and Polarity: 1/2 (-), 3/6 (+) Output Power: up to 22W | |
| Indicators | Power indicator: PoE enabled Network indicator: Link/Act | |
| Connectors | Shielded RJ-45, EIA 568A and 568B | |
| Network cables | Shielded category 5 (or higher) | |
| Case material | ABS plastic | |
| Dimensions | 145mm × 60mm × 40mm | |
| Weight | 0.090g | |
| Mounting | Wall of shelf | |
| Environment | Indoor | |
| Environmental Conditions | Operating Ambient Temperature: -40 to 45°C @90%, Non-condensing Storage Temperature: -40 to 70°C @95%, Non-condensing | |
| Regulatory Compliance | IEEE 802.3af (PoE), IEEE 802.3at (PoE+) RoHS Compliant, CE, FCC | |
| Electromagnetic | FCC Part15, Class B | |
| MAXIMUM LENGTH | ||
| PoE Device (PD) | PoE Injector or Switch IEEE802.3af (max 15.4W) | PoE Plus Injector or Switch IEEE802.3at (max 30W) |
| IEEE802.3af class 1 no more than 4W | 400m (3pcs PoE Extender) | 500m (4pcs PoE Extender) |
| IEEE802.3af class 2 no more than 6W | 300m (2pcs PoE Extender) | 400m (3pcs PoE Extender) |
| IEEE802.3af class 0&3 no more than 12W | 200m (1pcs PoE Extender) | 300m (2pcs PoE Extender) |
| IEEE802.3at no more than 22W | Not applicable | 200m (1pcs PoE Extender) |
