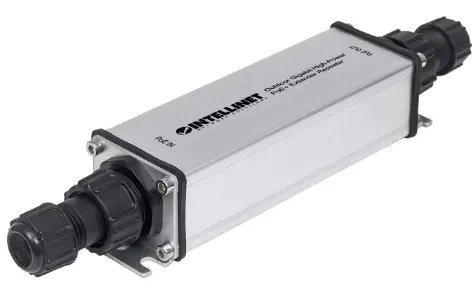

INTELLINET 561952 Ultra Long Range Outdoor Fast Ethernet PoE+ Extender Kit

Instructions

This guide presents the basic steps to set up and operate this device. For specifications, visit support.intellinetnetwork.com/barcode/561952. Register your product at the register. intellinet-network.com/r/561952 or scan the QR code on the cover.

Connections

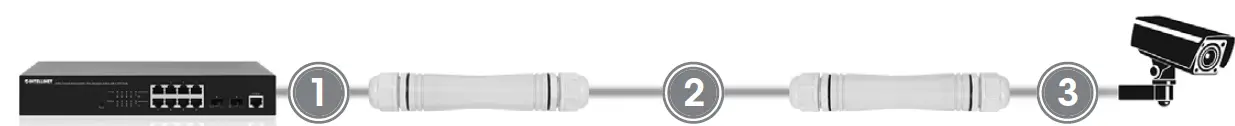

Device Connections
Note: Your needs and setup may vary. Both Extender units must be used together.

Plug a Cat5e/6 Ethernet cable — up to 100 m long — from your powered source device (for example, a PoE injector or switch) into the Output connector on one extender.
Plug a second Cat5e/6 Ethernet cable — up to 800 m long — from the Input on the first extender to the Input the second extender.
Plug a third Cat5e/6 Ethernet cable — up to 100 m long — from the Output on the second extender to the device you want to transmit power and data to (e.g., a PoE network camera).

Cable Connections

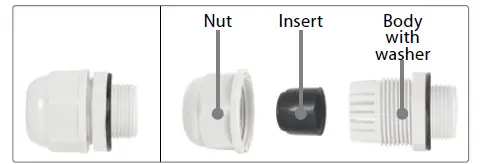

Follow these general steps to make waterproof connections on all cables that connect to the units. Use a wrench to ensure tight connections and whenever necessary.

Unscrew the Nut from the Body.

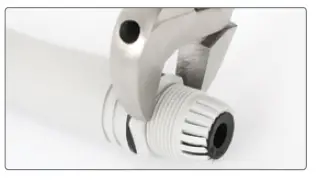

Loosen the washer and unscrew the Body from the unit.

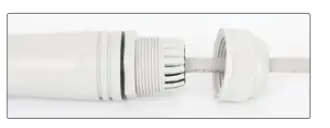

Remove the Insert from the Body and feed the cable through the Nut and Body. Replace the Insert into the Body.
Remove the Insert from the Body and feed the cable through the Nut and Body. Replace the Insert into the Body.

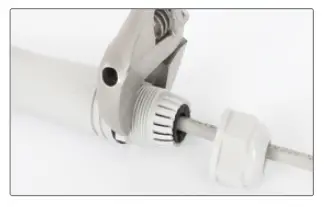

Tighten the Body washer to the unit.

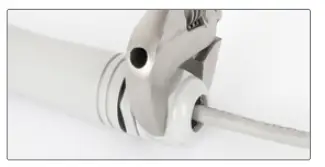

Tighten the Nut to the Body.

Functionality

This extender is designed to work with all IEEE 802.3bt/at/af-compliant devices.

PoE Standard | Maximum Distance | Available Power
The table below shows select information on the power and the data speeds you can expect to be delivered to your PoE device based on the capabilities of your equipment and lengths of cable. For a more detailed table, visit the specifications link that is shown on the previous page of this manual and click the Downloads tab on the product page.

Series 1: IEEE 802.3af (15.4 W) PSE

1 Cable length between PSE and extender 1	2 Cable length between PoE extenders	3 Cable length between extender 2 and PD	Power (W) at PD	Data Rate
1 m (3 ft.)	400 m (1,312 ft.)	1 m (3 ft.)	10.27	100 Mbps
100 m (328 ft.)	800 m (2,624 ft.)	1 m (3 ft.)	5.21	10 Mbps
100 m (328 ft.)	400 m (1,312 ft.)	100 m (328 ft.)	8.73	100 Mbps
100 m (328 ft.)	800 m (2,624 ft.)	100 m (328 ft.)	4.78	10 Mbps

Series 2: IEEE 802.3at (30 W) PSE

1 Cable length between PSE and extender 1	2 Cable length between PoE extenders	3 Cable length between extender 2 and PD	Power (W) at PD	Data Rate
1 m (3 ft.)	400 m (1,312 ft.)	1 m (3 ft.)	23.98	100 Mbps
100 m (328 ft.)	800 m (2,624 ft.)	1 m (3 ft.)	13.41	10 Mbps
1 m (3 ft.)	400 m (1,312 ft.)	100 m (328 ft.)	22.1	100 Mbps
100 m (328 ft.)	800 m (2,624 ft.)	100 m (328 ft.)	12.19	10 Mbps

Series 3: IEEE 802.3bt (60 / 90 W) PSE

Cable length

between PSE and extender 1

Cable length

between PoE extenders

Cable length

between extender 2 and PD

Power

(W) at PD

Data Rate

60 W

1 m (3 ft.)

100 m (328 ft.)

1 m (3 ft.)

43.83

100 Mbps

90 W

1 m (3 ft.)

200 m (656 ft.)

1 m (3 ft.)

76.61

100 Mbps

WASTE ELECTRICAL & ELECTRONIC EQUIPMENT DISPOSAL OF ELECTRIC AND ELECTRONIC EQUIPMENT

(Applicable In The European Union And Other European Countries With Separate Collection Systems)

This symbol on the product or its packaging means that this product must not be treated as unsorted household waste. In accordance with EU Directive2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), this electrical product must be disposed of in accordance with the user’s local regulations for electrical or electronic waste. Please dispose of this product by returning it to your local point of sale or recycling pickup point in your municipality.

REGULATORY STATEMENTS

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense. Any changes or modifications made to this equipment without the approval of the manufacturer could result in the product not meeting the Class A limits, in which case the FCC could void the user’s authority to operate the equipment. This device complies with the requirements of CE 2014/30/EU (UKCA Electromagnetic Compatibility Regulations 2016) and/or 2014/35/EU (UKCA Electrical Equipment.

North America
IC Intracom America
550 Commerce Blvd.
Oldsmar, FL 34677 USA

Asia & Africa
IC Intracom Asia
4-F, No. 77, Sec. 1, Xintai 5th Rd.
Xizhi Dist., New Taipei City 221, Taiwan

Europe
IC Intracom Europe
Löhbacher Str. 7, D-58553
Halver, Germany

All trademarks and trade names are the property of their respective owners. © IC Intracom. All rights reserved. Intellinet Network Solutions is a trademark of IC Intracom, registered in the U.S. and other countries.
