PT-PEX02GB PoE Extender
User Manual

Contents hide

5 Documents / Resources

5.1 References

Declaration

Copyright ©2022Creative Lianjie Network Technology Co.Ltd All rights reserved.
This document belongs to PROCET company. It is not allowed to reproduce and modify without the original author’s permission. It is PROCET’s policy to improve its products as new technology, components, software , andfirmware at any time. PROCET, therefore, reserves the right to change specifications without prior notice.
Please follow WEEE (Waste Electrical and Electronic Equipment) disposal instructions for old electronic products.
Please do not dispose of the old product in your general household waste bin.
The symbol indicates that the product should not be discarded as unsorted waste but must be sent to separate collection facilities for recovery and recycling.

Overview

PT-PEX02GB is an industrial-rated PoE Extender with two PoE output ports, specially designed for complex backhaul and networking applications. Enclosed in a high-impact metal shell. The 3 ports 10/100/1000Mbps includes: 1 x PoE-powered input port with 802.3bt/PoE++ at 60W or higher of 95W(Max) and 2 x PoE output ports with 6KV (10/700us) surge protection. Each output port delivers 30W(Max) power for remote two PDs, totaling up to 60W.
PoE Input port requiring more power which is powered by ultra 802.3bt PoE++ works with an input voltage of 44- 57Vdc and operates under -40℃ to +65℃. Equipped detecting chip inside which will make the PoE identification handshake with IEEE802.3af/at/PoE+ PDs, such as wireless APs, IP cameras, base stations, Microwave radio, and other PoE power Ethernet backhaul devices. For planning purposes, the total effective distance from Ultra PoE to PDs is 200 meters over CAT5e/CAT6 cables without local power.

Appearance

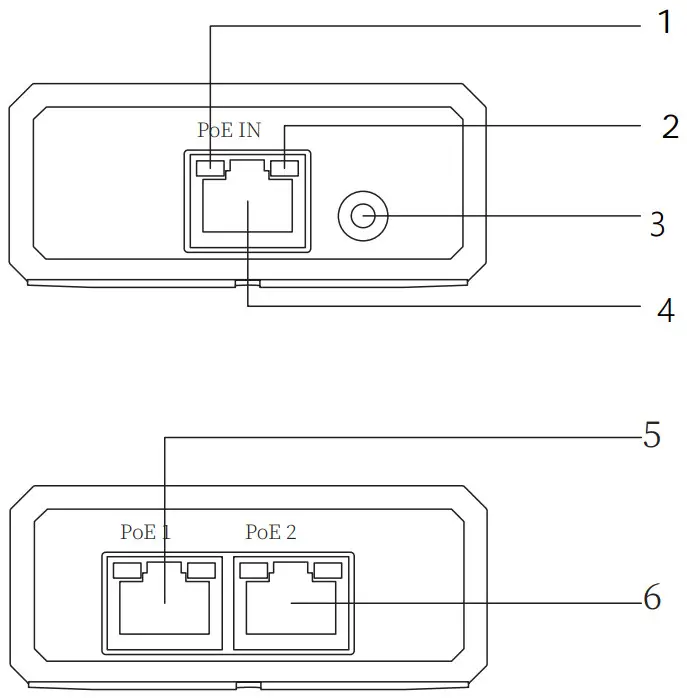

1. Product Diagram

RJ45 Data Indicator
Solid light: Connected
Flashing light: Data Transmission
Light off: Abnormal Connection
RJ45 Power Indicator
Solid light: Connected
Light off: Abnormal Connection
GND Terminal
PoE Input Port
PoE Output Port1
PoE Output Port2

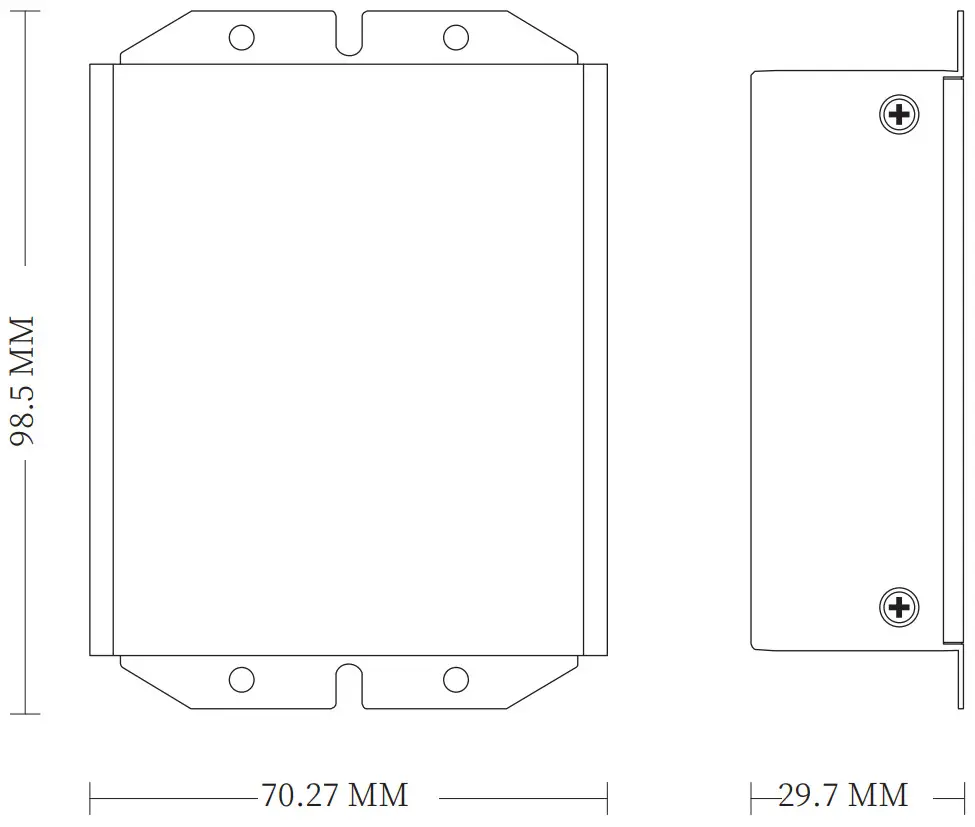

2. Dimenstion Diagram

Specification

Input	Input	44-57v 1.5AMax
	PoE Standard	IEEE802.3 bt/ PoE ++
	Input Power Pins	4/5(+),7/8(-) & 3/6(+),1/2(-)
Output	Output	55V /0.55A * 2 Ports (Total 60W)
	Data Speed	10/ 100 / 1000Mbps
Operating Environment	Work Temp.	-40°C to 65°C
	Operating Humidity	20%-80% , non-condensation
	Operating Altitude	Up to 2000 meters
	Storage Temp.	-20°C to 70°C
	Storage Humidity	10%-90% , non-condensation
	Protected line:1,2,3,4,5,6,7,8
PoE Surge Protection	Common mode surge protection(1 0/700us): 6kV
	Differential mode surge protection (10/700us): 1.5KV
Network Protocol	IEEE802.3/ IEEE802.3u / IEEE802.3ab
Media Support	10 / 100 / 1000BASE-TX CatS or above UTP ( :5_328 feets )
Regulatory Compliance	CE FCC
IP Rated	IP40
Dimensions	98.5mm x 70.27mm x 29.7mm (207.8g)

LED	Yellow Light	Solid light：Connected Light off： Not connected or connection failed Flashing light: Data transmitting
LED	Green Light	Light off：Not powered or no connection to device Solid light: Power on
EMC	FCC	FCC Part 15 Subpart B
	CE	EN 55032:2015/A11:2020
	CE	EN 55035:2017/A11:2020

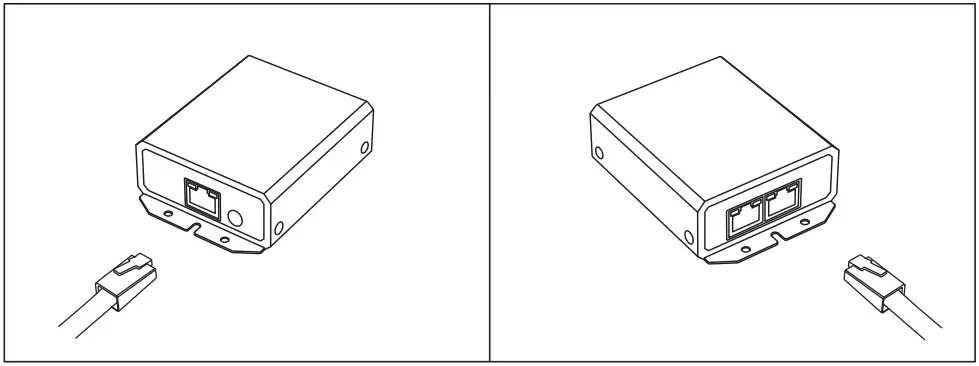

3. Connection Diagram

Caution

Connect a CAT5/5e/6 cable with the RJ45 connector into the RJ45 socket labeled PoE In.The total Ethernet cable length can not exceed 100 meters.
Connect a CAT5/5e/6 cable with the RJ45 connector into the RJ45 socket labeled PoE 1 or PoE 2. On the other end of the CAT5e/6 cable, connect to your PoE Device (such as IP Cameras etc). The total Ethernet cable length can not exceed 100 meters.

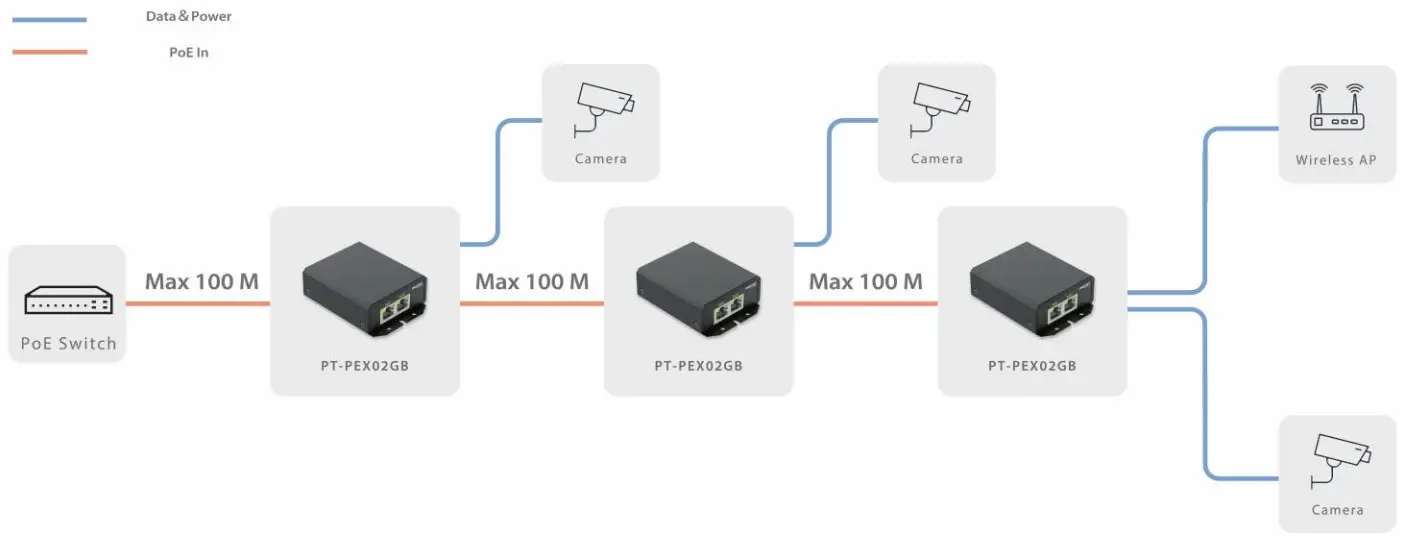

Daisy-chain 2 units reaching 300m from end to end or reaching 500m by star topology.

please read the instructions carefully and follow the standard operating procedures before using.
Please place it in a well-ventilated and dry area, and it is for indoor use only.
