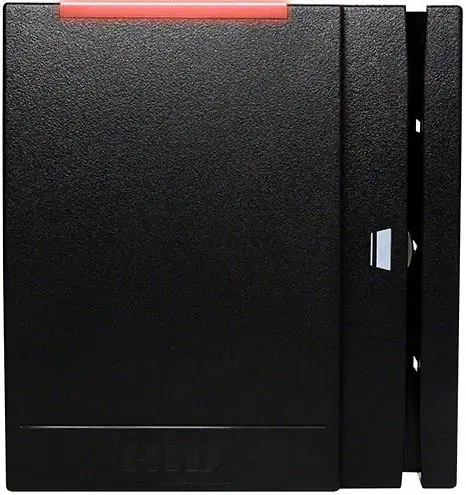

HID Global 922-RM40 iCLASS SE Readers Magnetic Stripe

iCLASS SE Readers – Magnetic Stripe

Application: Designed to ensure compatibility with legacy credentials and capability to support the future.
Technologies Supported: Magnetic stripe cards and a wide variety of contactless credentials including HID Mobile Access Mobile IDs via NFC.

Select one option from each of the following sections

Reader Model (Select one model)

• 922 – Model RM40 – Designed for door applications requiring standard wall switch mounting.
• 925 – Model RMK40 – Designed for door applications requiring standard wall switch mounting. Supports keypad input.

125 kHz Credential Support (Select one option)

• N – No 125 kHz support
• P – Support for HID Prox, AWID, and EM4102 (32-bit)

13.56 MHz Credential Support (Select one option)

T – Maximum compatibility	iCLASS Seos	iCLASS SE	iCLASS SR	iCLASS	MIFARE Classic (SIO)	MIFARE DESFire EV1 (SIO)	Mobile IDs via NFC	Mobile IDs via Bluetooth Smart	ISO14443 UID	MIFARE Classic (Custom data)	MIFARE DESFire EV1 (Custom data)
								–		–	–
N – High-security Weigand				–				–	–	–	–
W – Custom programming*								–

Supported Optionally supported – Not supported

Consult your regional technical support representative for specific configurations.

Controller Communication (Select one option)

• N – Wiegand
• C – Clock & Data
• P – OSDP

Wiring Connection (Select one option)

• N – Pigtail
• T – Terminal strip

Hardware Revision

• E – Revision E

Color

• K – Black

iCLASS Support/Keyset (Select one option)

• 0 – Standard v1 – Reads credentials with default HID keys including standard iCLASS and/or iCLASS SR.
• 2 – Standard v2 – Reads credentials with default HID keys not including standard iCLASS and/or iCLASS SR.
• E – HID Elite – Reads credentials with HID Elite keys, including iCLASS and iCLASS SR, and/or Mobile IDs. Key reference (ICE or MOB) required at time of order.

Configuration Settings
To determine configuration options, use the Select tab on the iCLASS SE Configuration Guide spreadsheet at the following link: www.hidglobal.com/node/19914. Your HID Global Support or Sales representative can help you determine your final configuration.

Enter the numbers/letters from the selections above into the table below
The resulting “Final Part Number” is used when ordering a reader.

Place an order
To place an order for this product, authorized channel partners may submit a purchase order to HID Global Customer Service.
Contact information is available at: www.hidglobal.com/customer-service.
Need credentials? Credentials supported by this reader model include (depending on the options chosen above):

• Mobile IDs
• iCLASS Seos
• iCLASS
• iCLASS SE
• HID Prox
• MIFARE DESFire EV1
• MIFARE Classic
