Display Manual

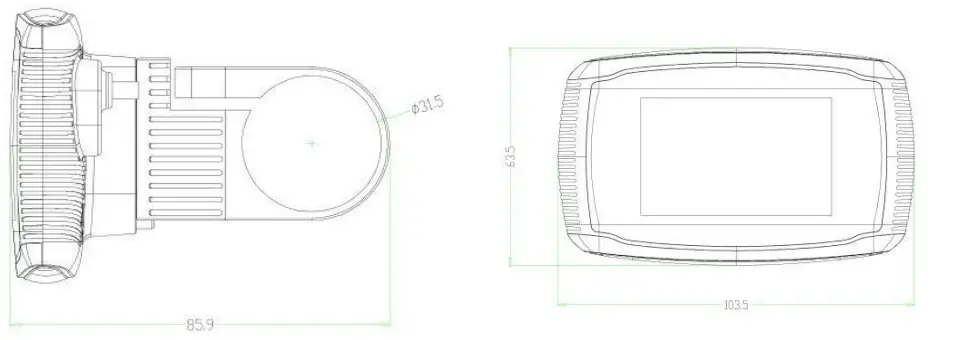

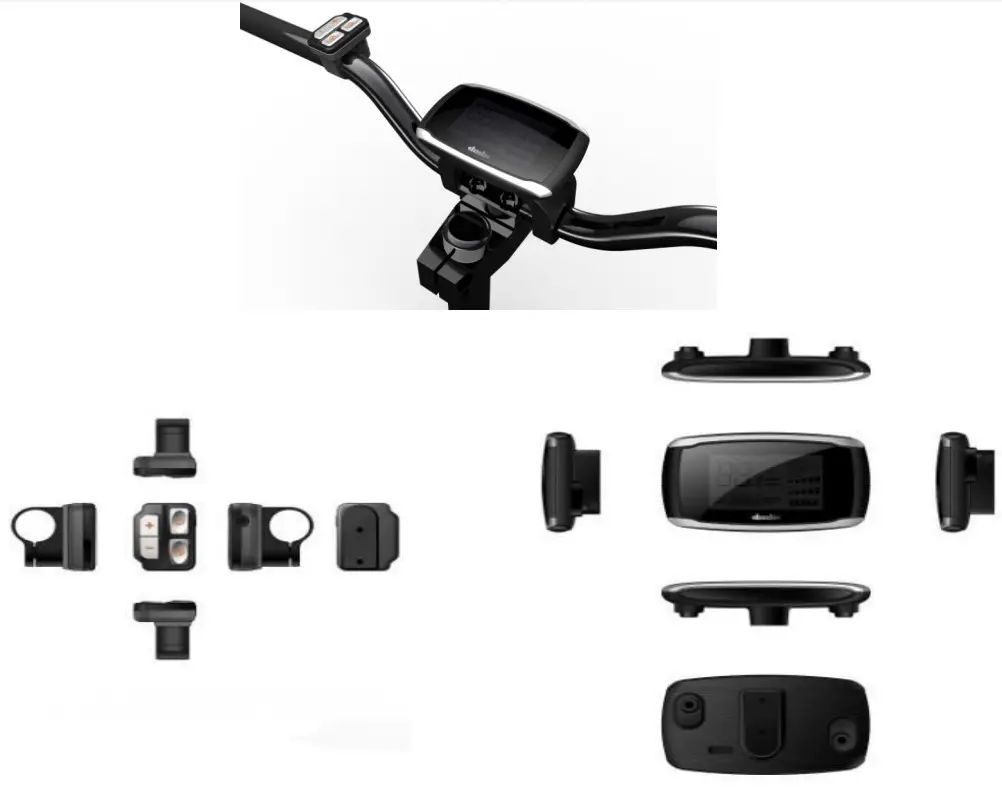

Outlook & Size
Display Area：
Extended Function Display Summary:
| Item/ Function | TC428 | TC430 | TC470 | TC480 | TC485 | TC488 |
| Battery Indicator |  | | | | |  |
| Auto Dormancy | | | | | | |
| 3 Speed PAS | | | | |||
| Manual Cruise | | | ||||
| Pedal/Throttle Propel | | | | |||
| 5 Speed PAS | | | | |||
| Instantaneous Power | | | | |||
| Speed | | | | |||
| Trip/ODO | | | | |||
| Average Speed | | |||||
| Intelligent Error Codes | | | | |||
| KM/Mile Switch | | | |

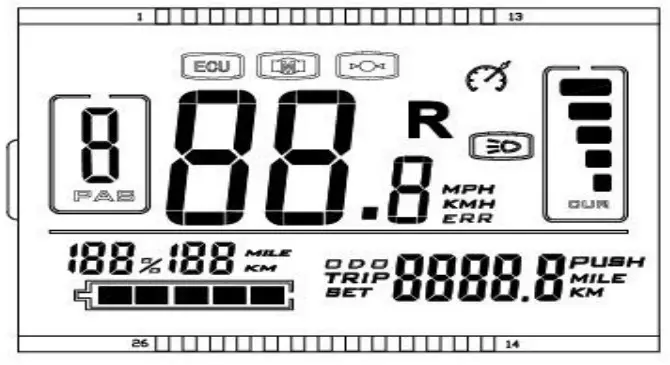

TC-488 Screen Display：

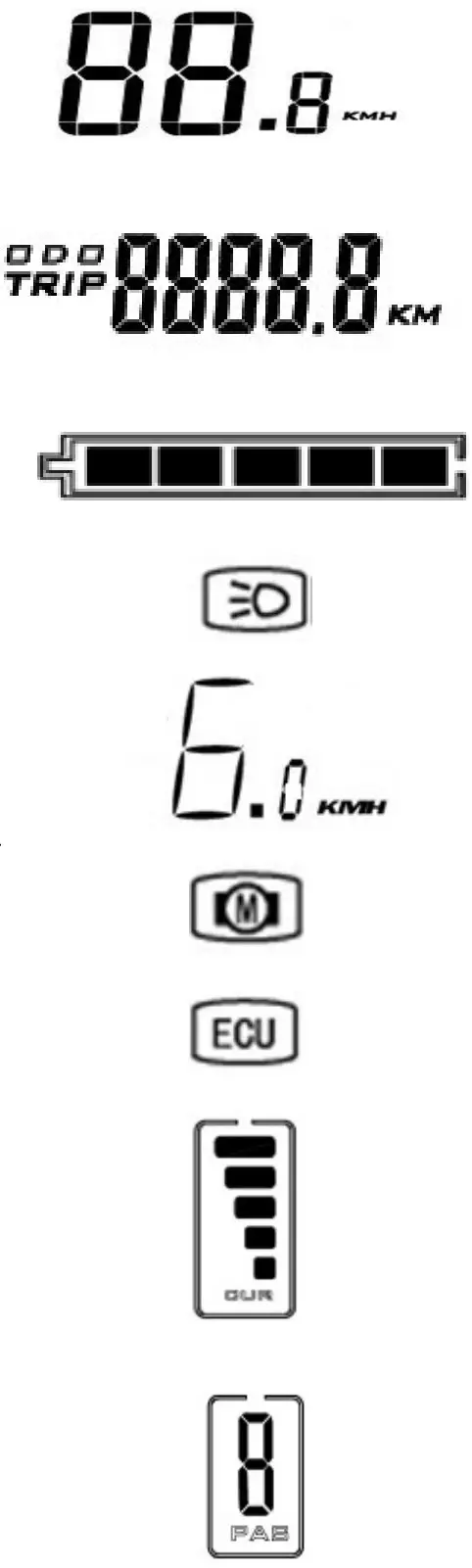

| Display Contents | Function | Description |
 | Speed | Unit: KM/H or MP/H |
| ODO/TRIP | ODO (Odometer/ Trip switch by the function key | |
| Battery Indicator | SOC(State of Charge) Display | |
| Light Instruction | Display, lighting backlight | |
| 6KM/H | Display, 6 km/H pattern | |
| Motor Fault | Display, motor hall fault | |
| Controller Fault | Display, controller failure | |
| Current Instruction | Show the current current value points level 5 | |
| PAS Instruction | 1-5 file display speed PAS |
Operating instructions

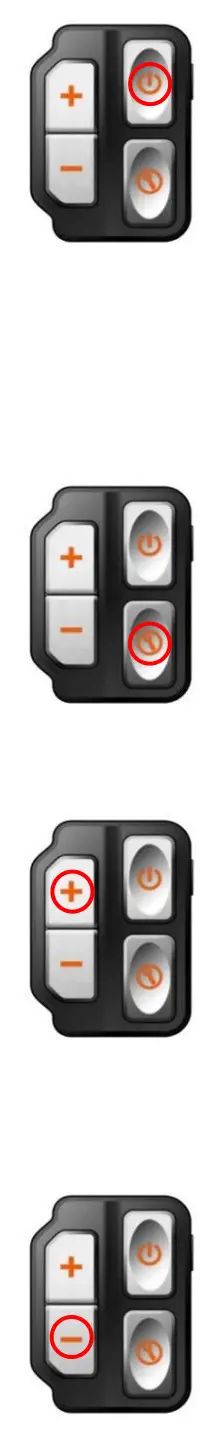

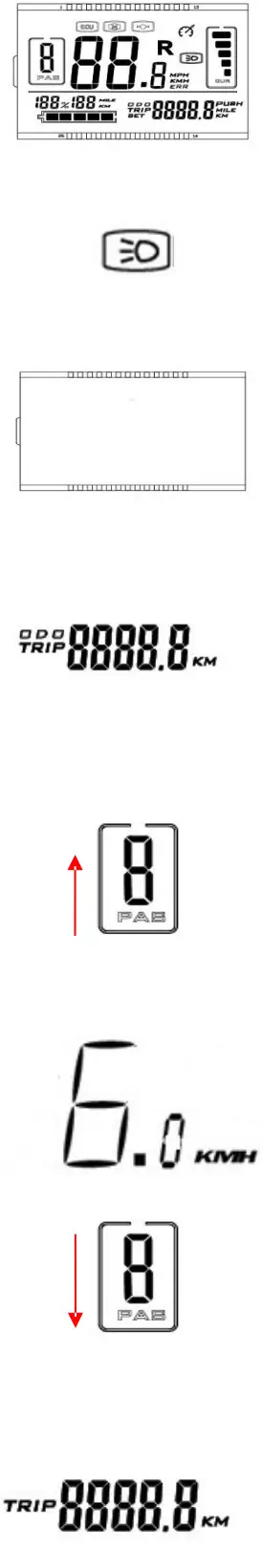

| Keys | Operating Mode | Display | Function | Description |
 | lx briefly |  | Power On/Off | Single-click to open the system, all the contents show one time |
| lx briefly | Backlight/ Headlight Switch | After the system opened, Click again to control the background lights and lamps light up and shut down | ||
| lx Long | OFF | lx Long to close the system | ||
| lx Long | ODO/TRIP Switch | Click to switch ODO/Trip | ||
| lx briefly | PAS Increase | Every click means increasing 1 gear PAS, totally 5 gears | ||
| lx Long | 6KM/II | Long time press to enter the 6km/h implement mode | ||
| lx briefly | PAS Reduce | Every click means increasing 1 gear PAS, total 5 gears. A flashing at lowest (0), no power at this time | ||
| lx Long | Trip Reset | Long press to reset trip |
Configuration Instructions:
- Work Voltage: 36V (Lithium Battery)
- This Display adapts to the controller of DMHC company, and also with the DMHC high precision speed sensor.
- Closed the system power.
- Adapted motor: Motor with speed outputting function, meaning this display can show the speed accurately.
