DMHC TC-480 Display Manual

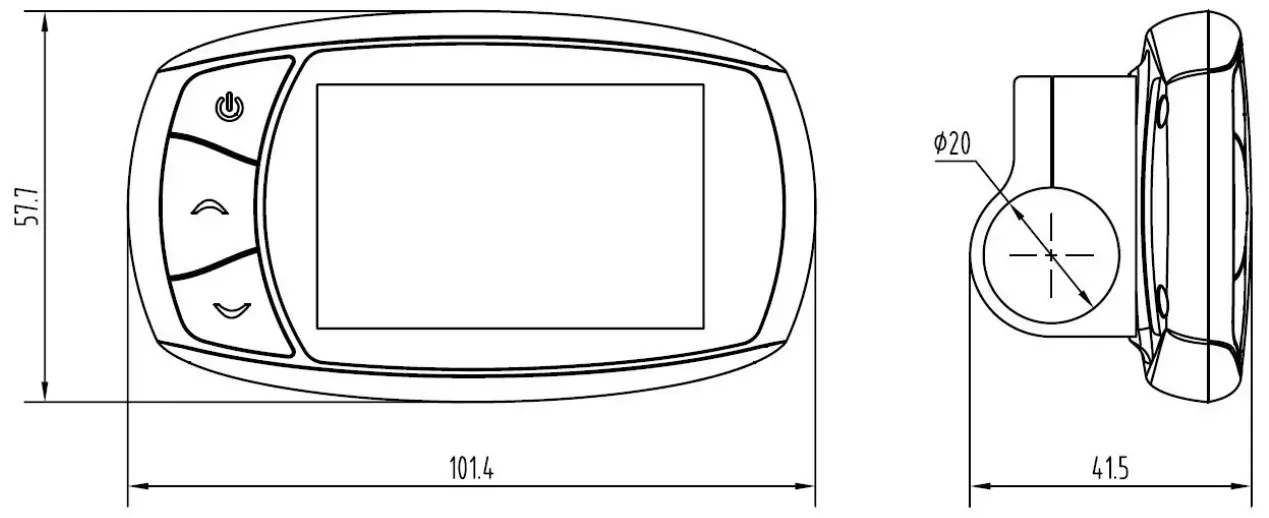

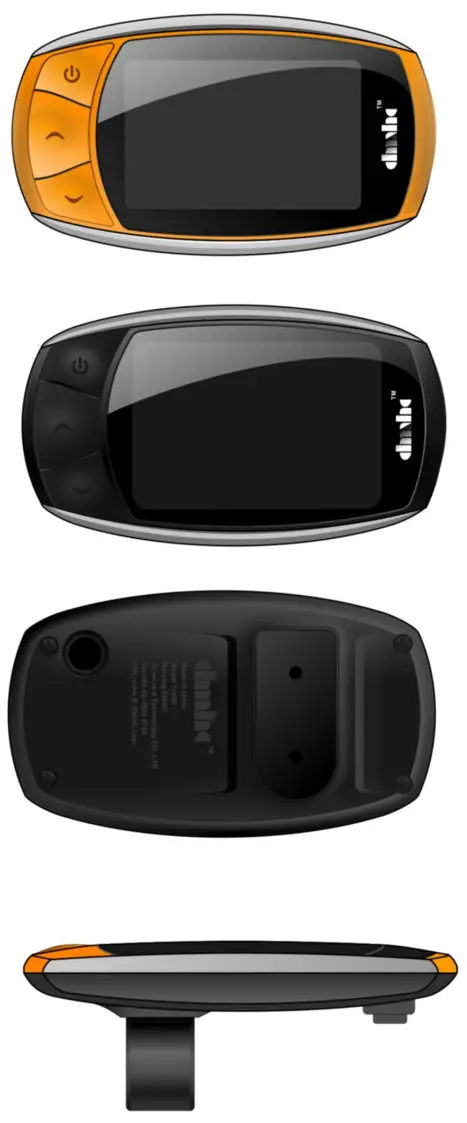

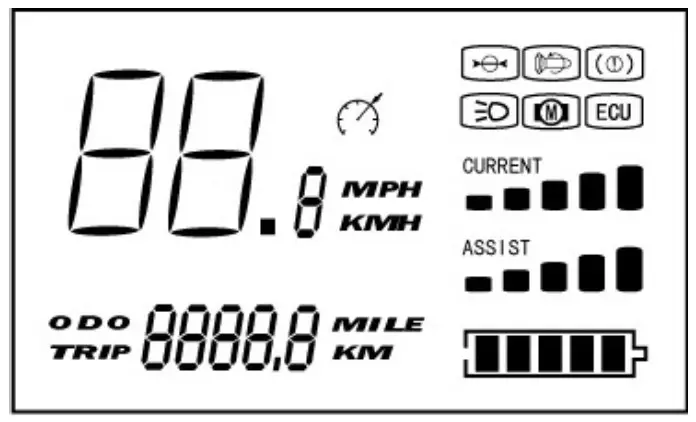

2. The main screen display content
3. Typical Operating Voltage 12V—-48V
| Model Function | TC428 | TC430 | TC470 | TC480 | TC485 | TC486 |
| Battery indicator |  | | |  | | |
| Auto dormancy | | | | | | |
| 3 Speed PAS | | | | |||
| Manual cruise throttle propel | | | | |||
| Pedal/throttle | | | | |||
| 5Speed PAS | | | | |||
| Instantaneous power display | | | | |||
| Speed | | | | |||
| ODO/TRIP | | | | |||
| Average speed display | | | ||||
| Intelligent error codes display | | | ||||
| Kilometer/Mile Unit switch | | |
4. display description
Display | Function | Description |
 | Speed | Speed, display unit by KWH or MP/H |
 | ODO/TRIP | ODO for accumulative total mileage TRIP for single mileage Switch by function key |
 | Battery indicator | Residual electricity display |
 | Cruise identification | Display, for cruise state |
 | Wheel diameter set | The manufacturer used to set up the diameter of the wheel |
 | Throttle fault | Display , throttle abnormal |
 | Brake instruction | Display when brake, If the display when not brake, can judge for brake fault |
 | Light instruction | Display, lighting backlight |
 | Motor fault | Display, Motor hall fault |
 | Controller fault | Display, Controller failure |
 | Current instruction | Points 5 level display the current value |
 | PAS instruction | 1-5 file display speed PAS |
Operating instructions
Key | Operation | Display | Function | Description |
 | lx briefly |  | ON | Click can turn on TC480 0 After this, Illumination is switched on/off with a keypress |
| 2x briefly | | Turn on/off the headlamp | Click and turn on /off the light | |
| 1 x long |  | OFF | Pressing this button for longer witches the display off | |
 | lx briefly |  | PAS increase | Every click, PAS increase a gear, a total of five gear |
| 2x briefly |  | ODO mileage | Continuous press 2 times, ODO mileage is displayed | |
| lx long |  | ODO mileage reset | Long press 2 seconds ODO mileage reset | |
 | lx briefly |  | PAS reduce | Every click, PASe a gear, total reduce of five gear |
| 2x briefly | | Trip mileage | Continuous press 2 times, TRIP, mileage is displayed | |
| lx long |  | Trip mileage reset | Long press 2 seconds TRIP mileage reset | |
 | lx long |  | Set wheel diameter | Long press at the same time, peed display space twinkle, Press key setting wheel diameter, After setting, long press at the same time, the Wheel diameter set success |
 | 1x long | | Set the working voltage | Press and hold three buttons for 8 seconds and select the right voltage using the up/down button |
Configuration instructions
Work voltage： 24V;36V； 48V
This display adapts to the Controller product by DONG MEI HE CHUANG Carry high precision speed sensor。
Closed system power
Drive LED headlight
Adapter motor： the motor have speed output （ SU ZHOU XIONG FEENG, SU ZHOU BA FANG ）,
Using this motor can accurately display speed.
Ordinary motor。 Speed display in approximation, not accurate。
