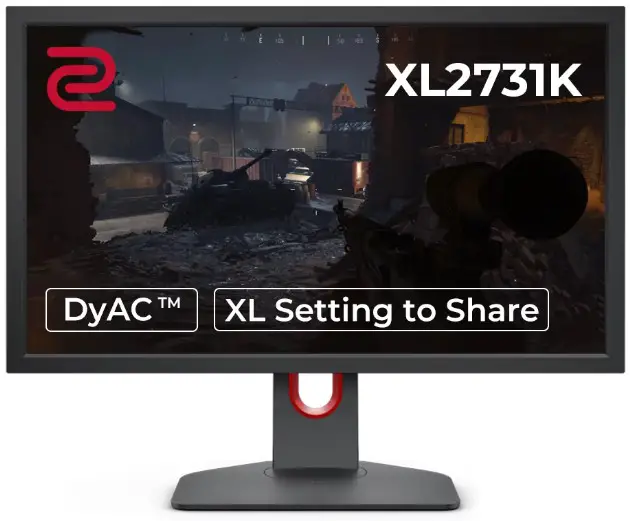

BenQ XL2731K LCD Monitor Instructions
Materials and components with hazardous content
LCDs may contain hazardous substances like Pb and BFRs which are covered by exemptions under the RoHS directive. However, the majority is present in the printed circuit boards assembly. In order to reduce emissions as much as possible, a complete disposal of the old appliance is required. This treatment may only be performed in authorized handling plants.

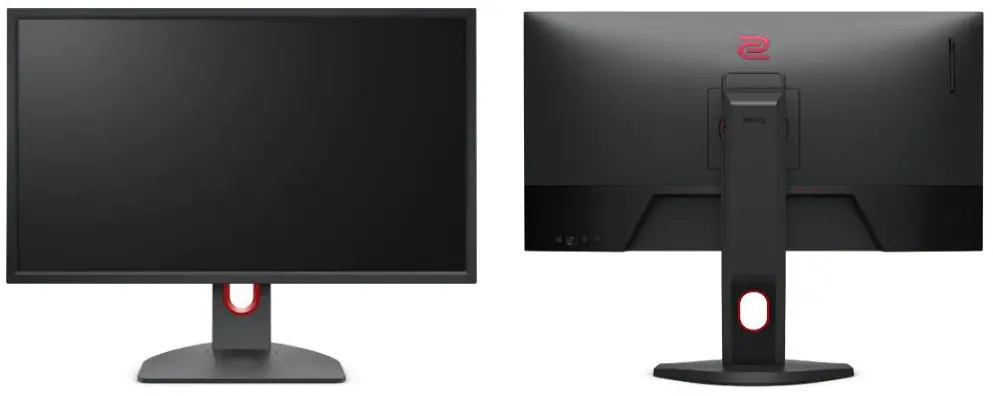

Product Name: LCD Monitor
Model No.: XL2731K
| Tool | picture |

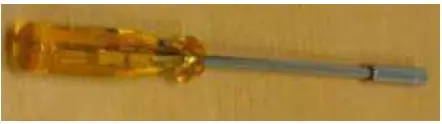

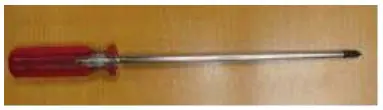

| Philips Screwdriver for M3 Screw |  |
| Nosed Pliers |  |
| Diagonal Cutting Pliers |  |

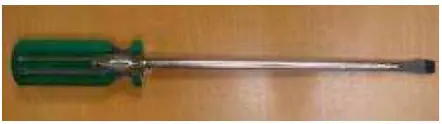

| Slotted screwdriver |  |
| Six Point Sockets |  |
| Philips Screwdriver for M2.5 Screw |  |
| Knife |  |
Disassembly process

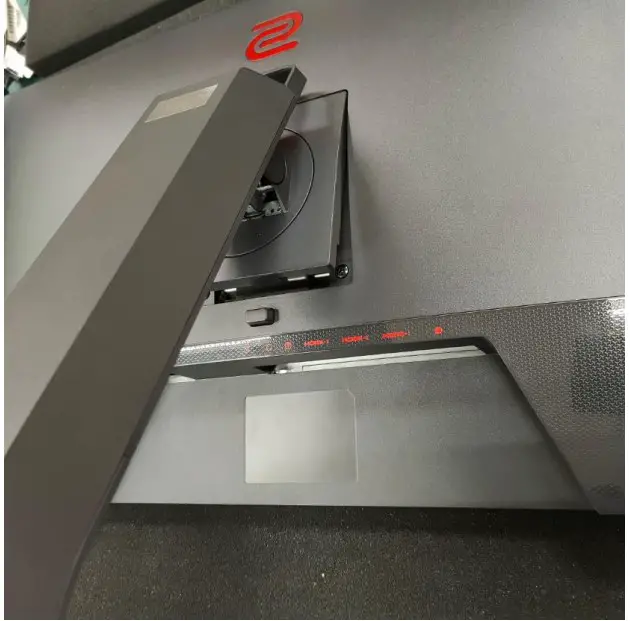

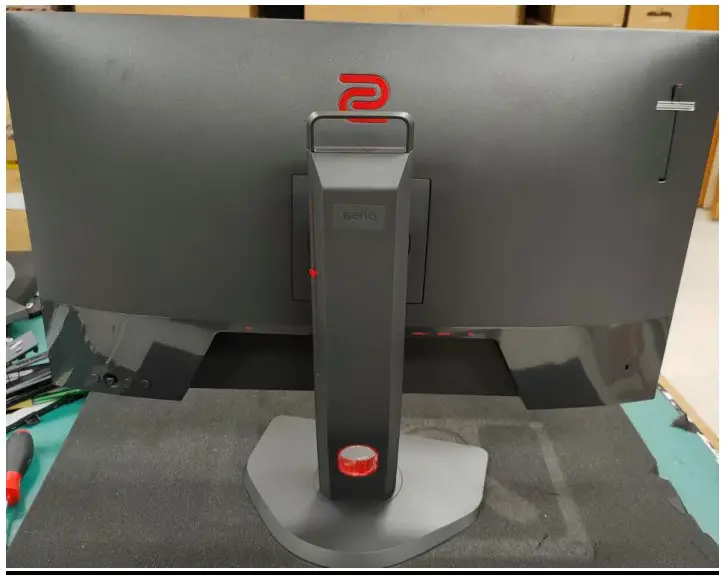

Disassembly Stand

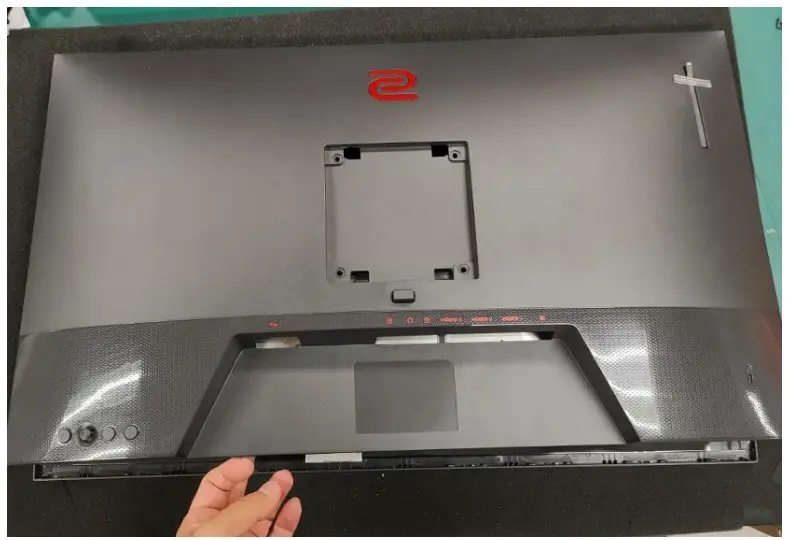

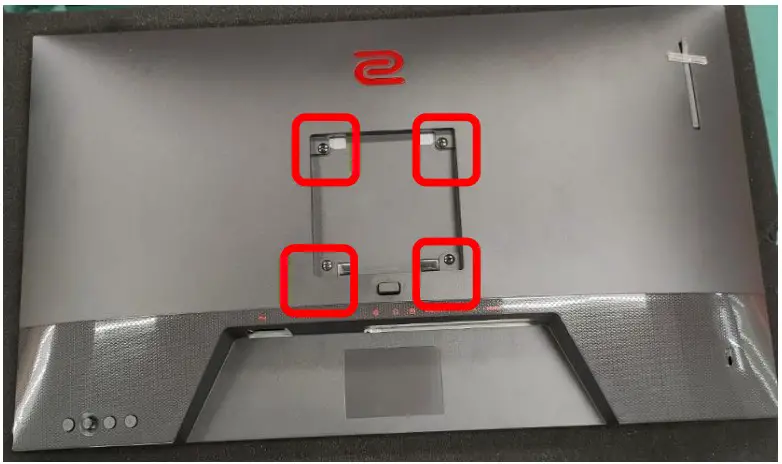

Unscrew
Disassembly RC

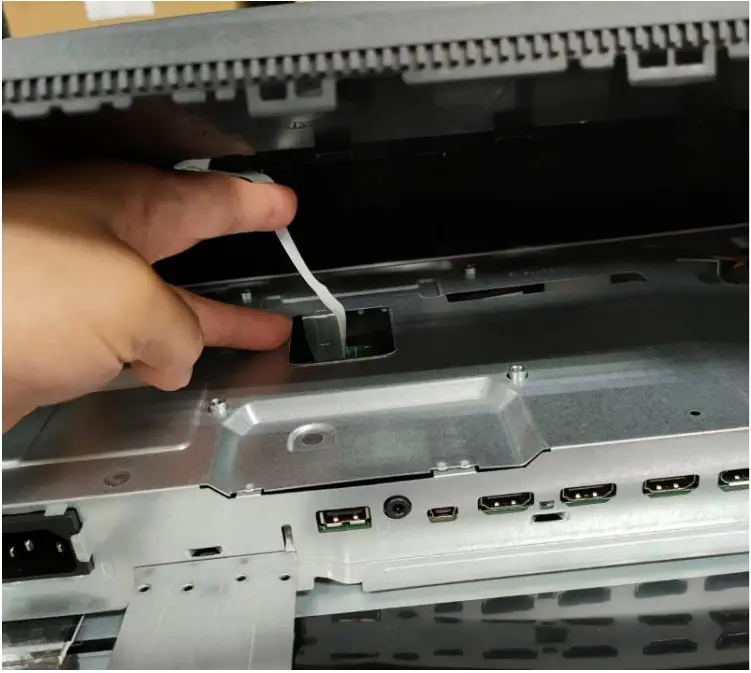

Disassembly Ctrl_BD Cable

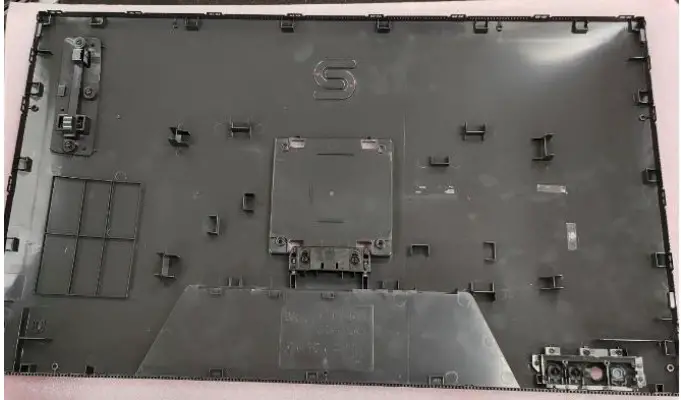

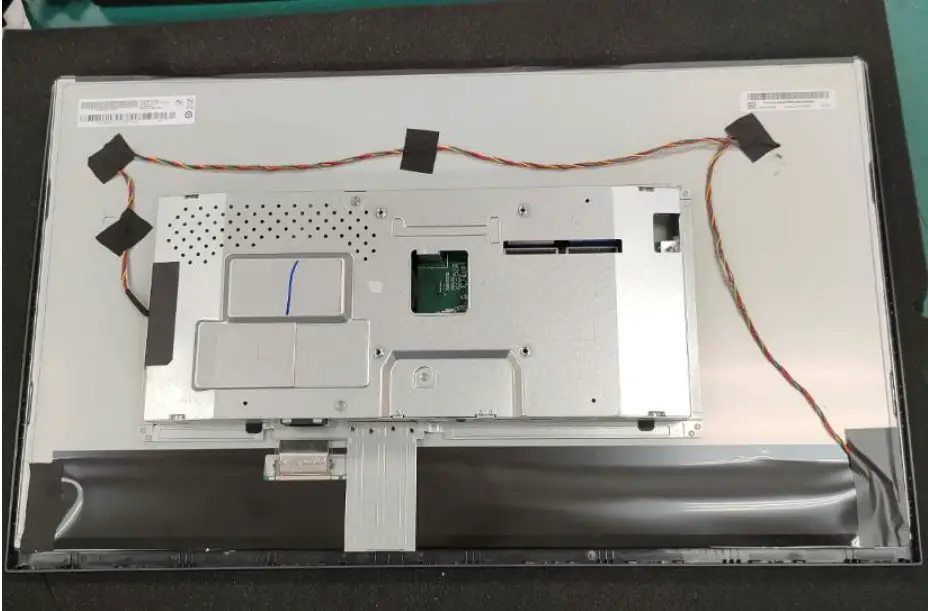

Disassembly Internal Remove All Tapes

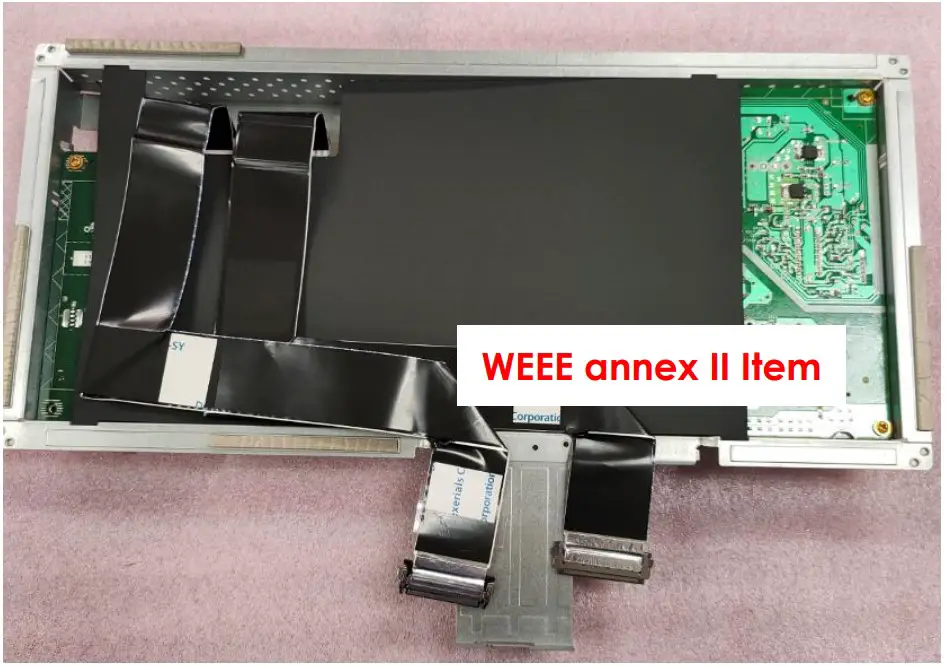

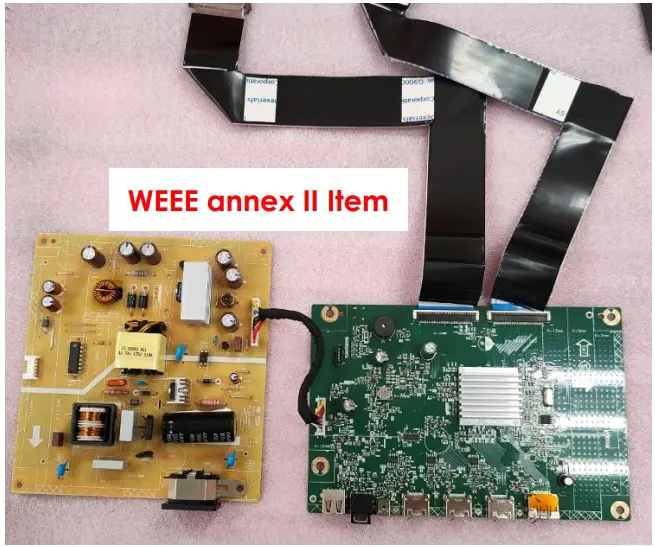

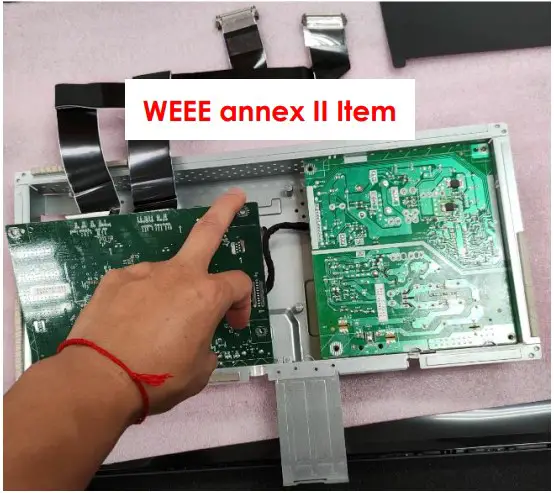

Disassembly all PCB.

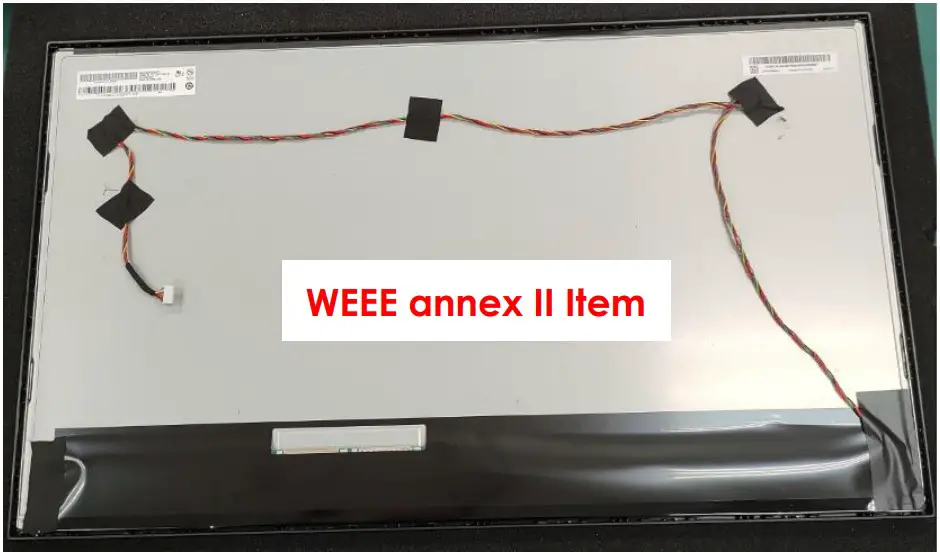

Remove Panel

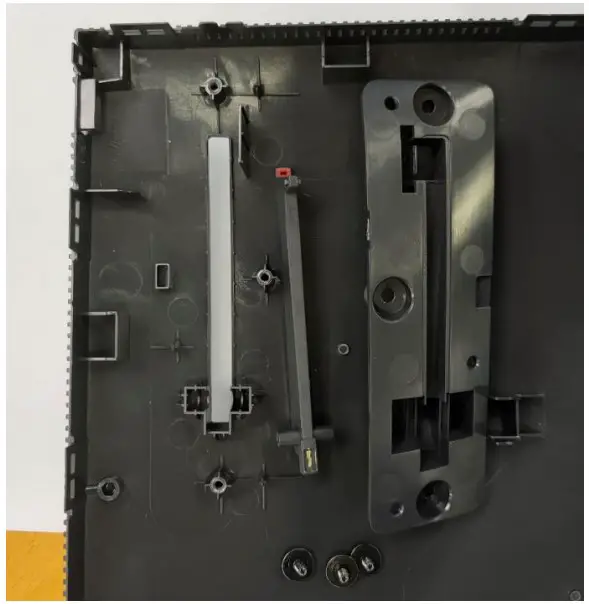

Disassembly RC Control BD
Disassembly RC Hook Headphone
Disassembly all PCB.

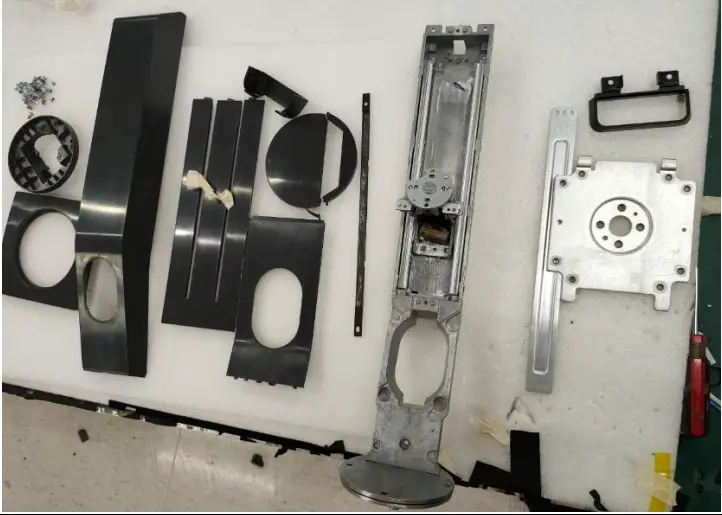

Disassembly Column

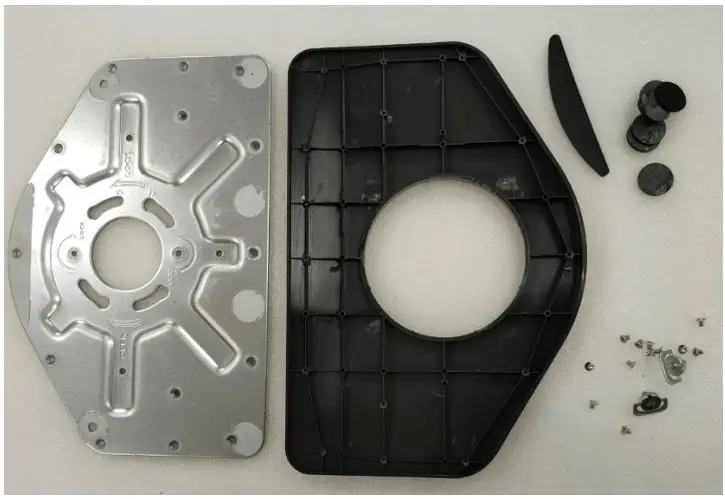

Disassembly BASE
Disassembly Time
Total time: 30 minutes
