INSTALLATION PROCEDURE – FRS202
Installation Guide
FRS202
Leak and Pipe Confirmation

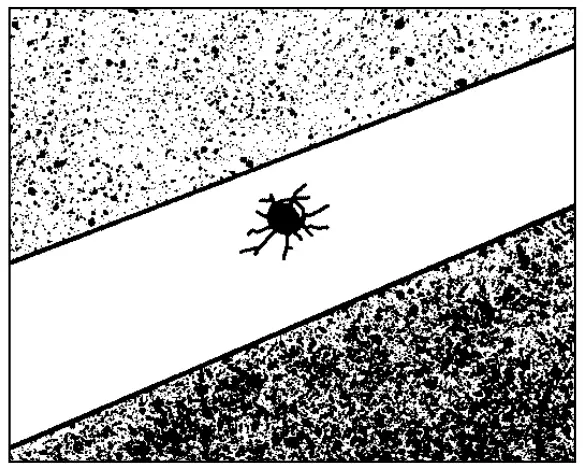

Confirm the leak location by cleaning and examining the pipe. Check the diameter of the pipe to make certain you are using the correct size saddle.
Pipe Preparation

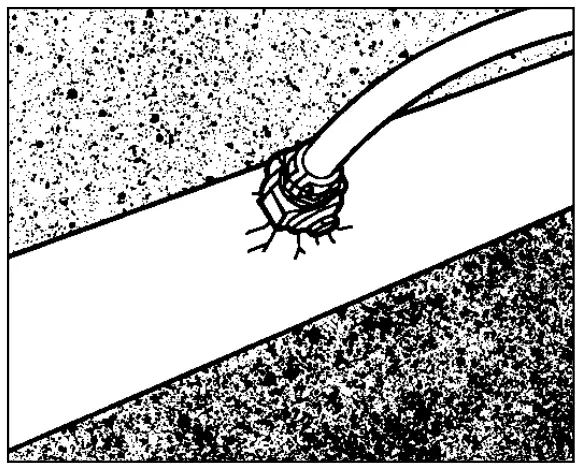

Shut off the water supply if possible and remove the Corporation Stop from the pipe. Scrape the pipe to remove as much dirt and corrosion as possible so the surface around the leak and the entire saddle contact area are smooth.
Saddle Preparation

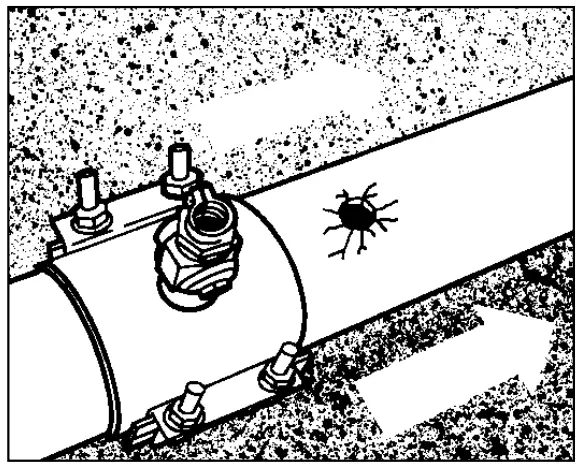

Install corporation stop into saddle while holding the saddle boss stationary with another wrench. Back off the nuts on the saddle bolts to the end of the bolts, but do not remove them. Separate one ide of the saddle by unhooking the top and bottom pieces, taking note of how the pieces are to be reassembled. Lubricate the pipe and saddle gasket with soapy water or an acceptable lubricant to achieve the best results.
Saddle Installation

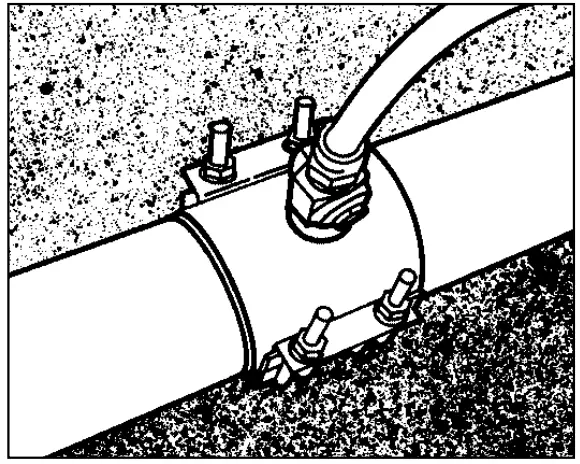

Slip the saddle around the pipe next to the hole and rehook the top and bottom. Make certain the gasket is free of foreign material and there is nothing lodged between the gasket and pipe. Center the saddle over the damaged section. Hand-tighten the nuts evenly. Torque the nuts evenly with incremental torque settings to a maximum of 50-60 ft. lbs. Recheck the saddle bolt torque before backfilling.
PRECAUTIONS:
- Check the diameter of the pipe to make certain you are using the correct size saddle.
- ALWAYS RECHECK TORQUE AND PRESSURE TEST FOR LEAKS BEFORE BACKFILLING.
- Backfill and compact carefully around the saddle, corp stop, and service line according to the pipe manufacturer’s instructions.
