835-404

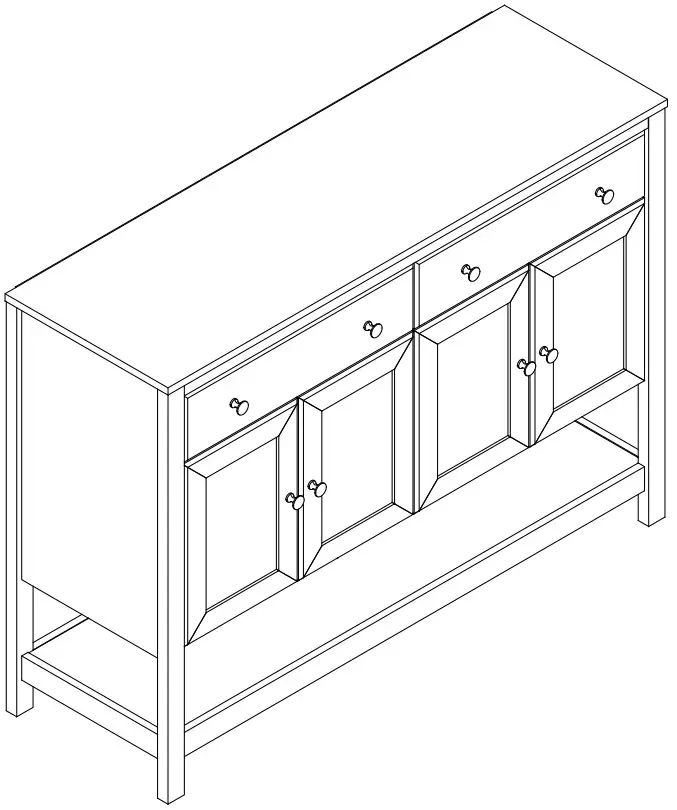

White MDF Modern Sideboard Serving Buffet Storage Cabinet Cupboard
Instruction Manual
835-404 White MDF Modern Sideboard Serving Buffet Storage Cabinet Cupboard
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
ASSEMBLY & INSTRUCTION MANUAL

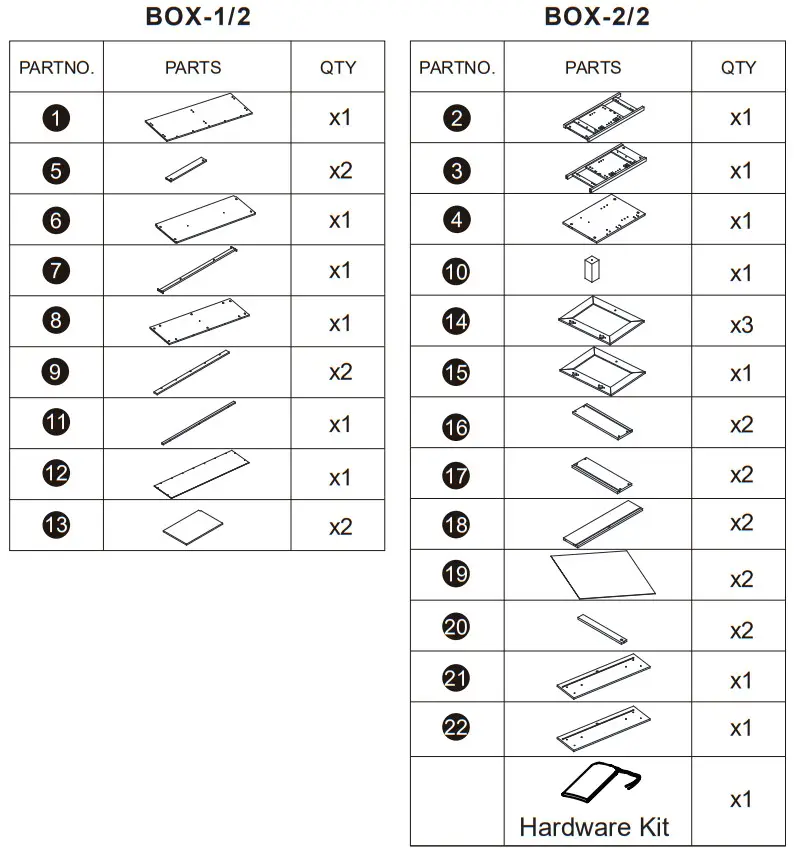

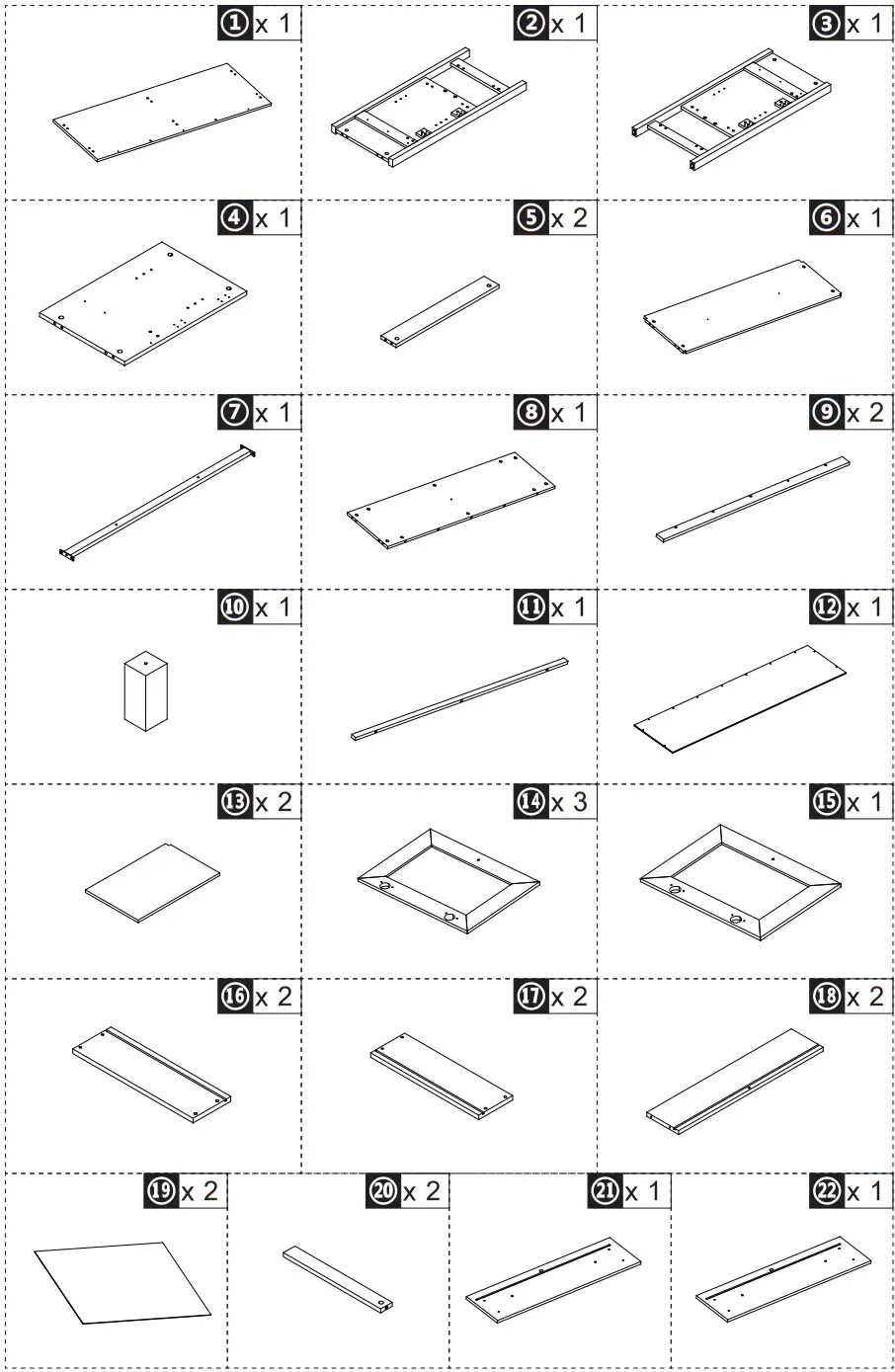

PACKING DETAILS: TOTAL 2 BOXES

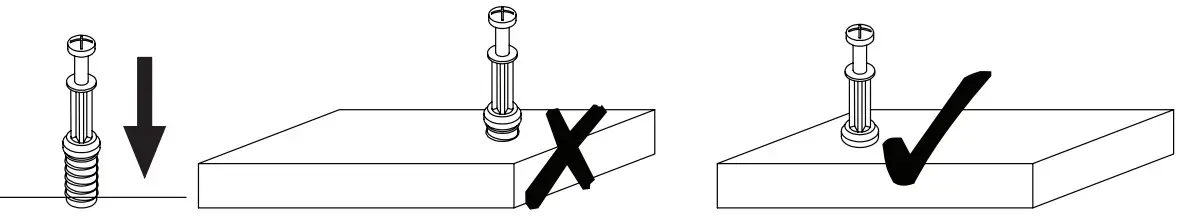

QUICK FIT: Tighten quick fit until the shoulder is flush with the panel. Do not overtighten or under-tighten.

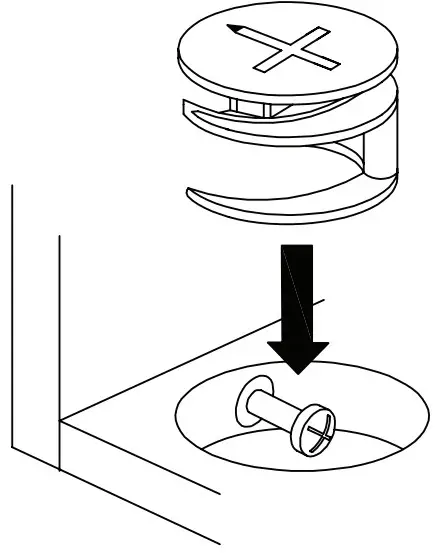

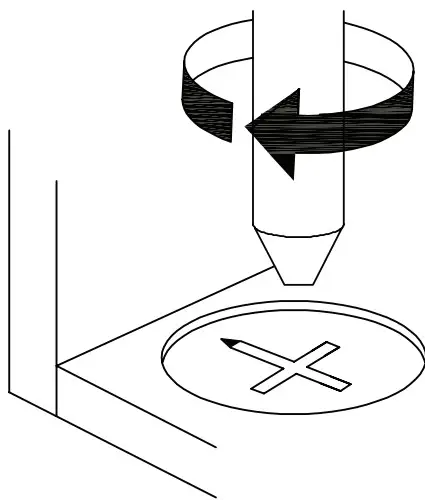

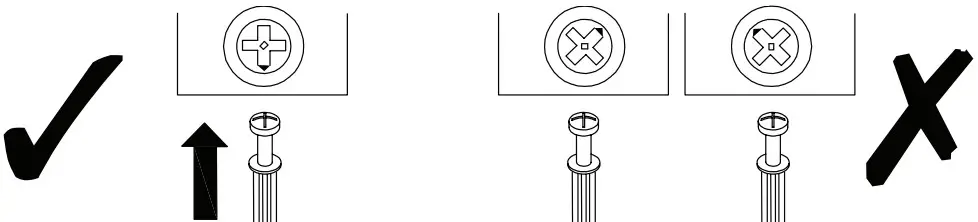

CAM LOCK: When fitting the cam lock, ensure starting position is correct before you insert connecting quickfit.
Quickfit head should be in the center of the cam lock when the
Turn the cam lock clockwise to tighten.

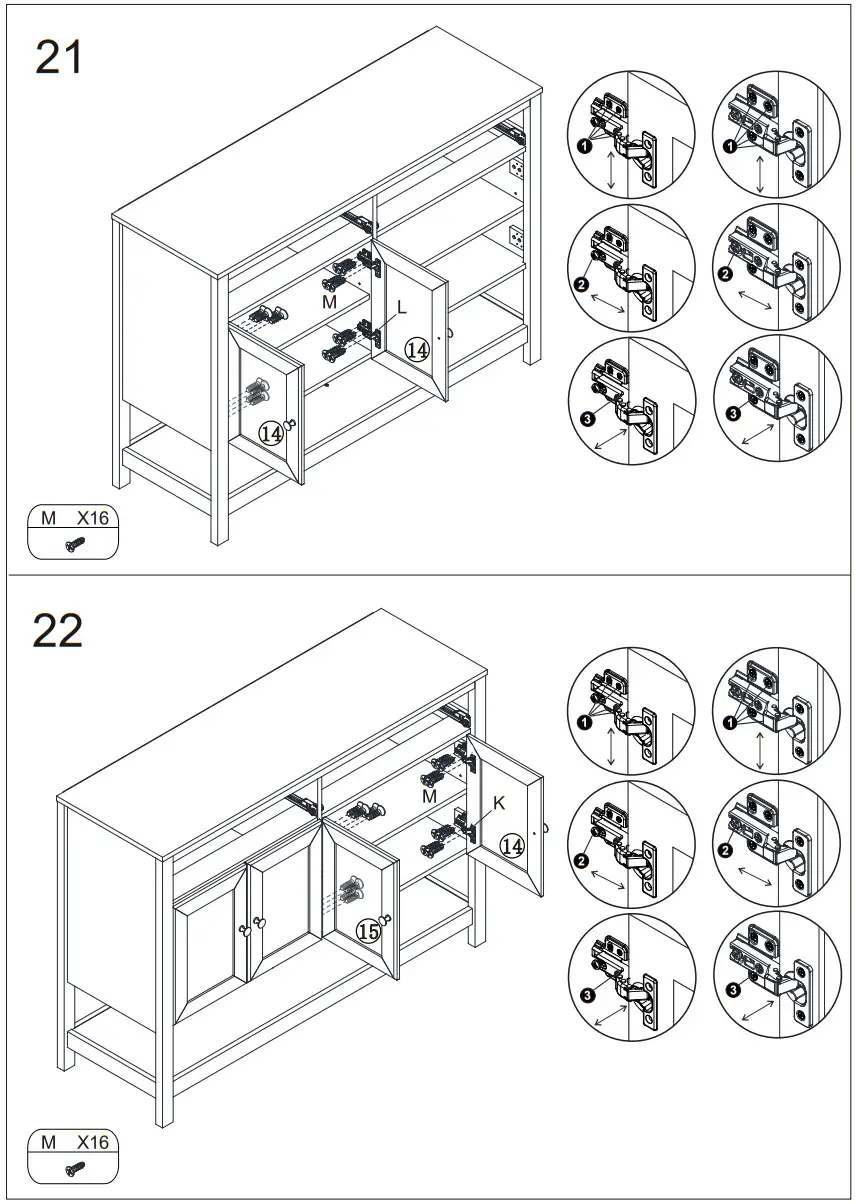

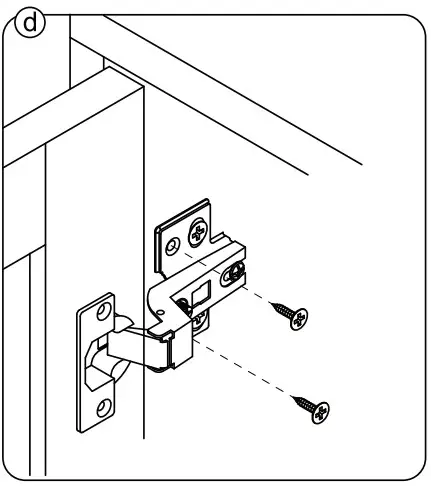

It may be necessary to adjust the hinges so that the doors align. Use the instructions below as a guide.
To adjust the door vertically loosen the screw shown and move up and down as needed.

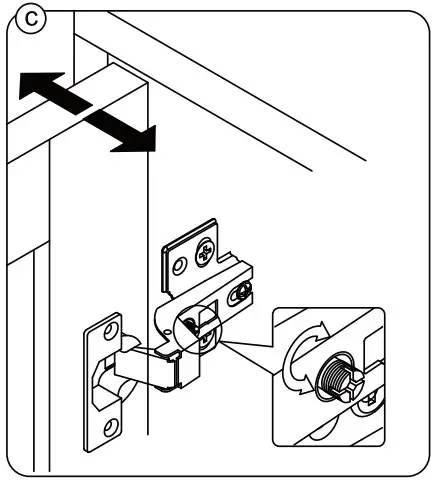

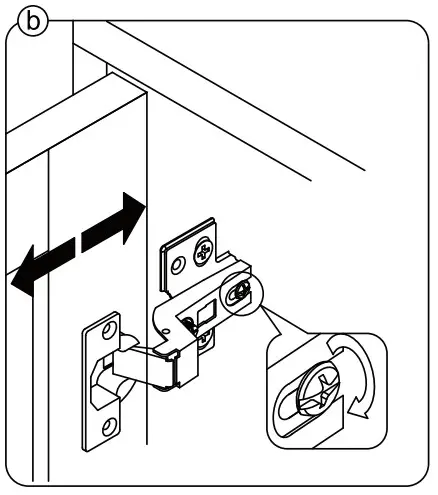

To adjust the gap from the door to the main frame turn the screw clockwise or anti-clockwise as needed.
To adjust the door laterally adjust the screw as shown by turning clockwise or anti-clockwise.
Please fix the other screws
 |  |

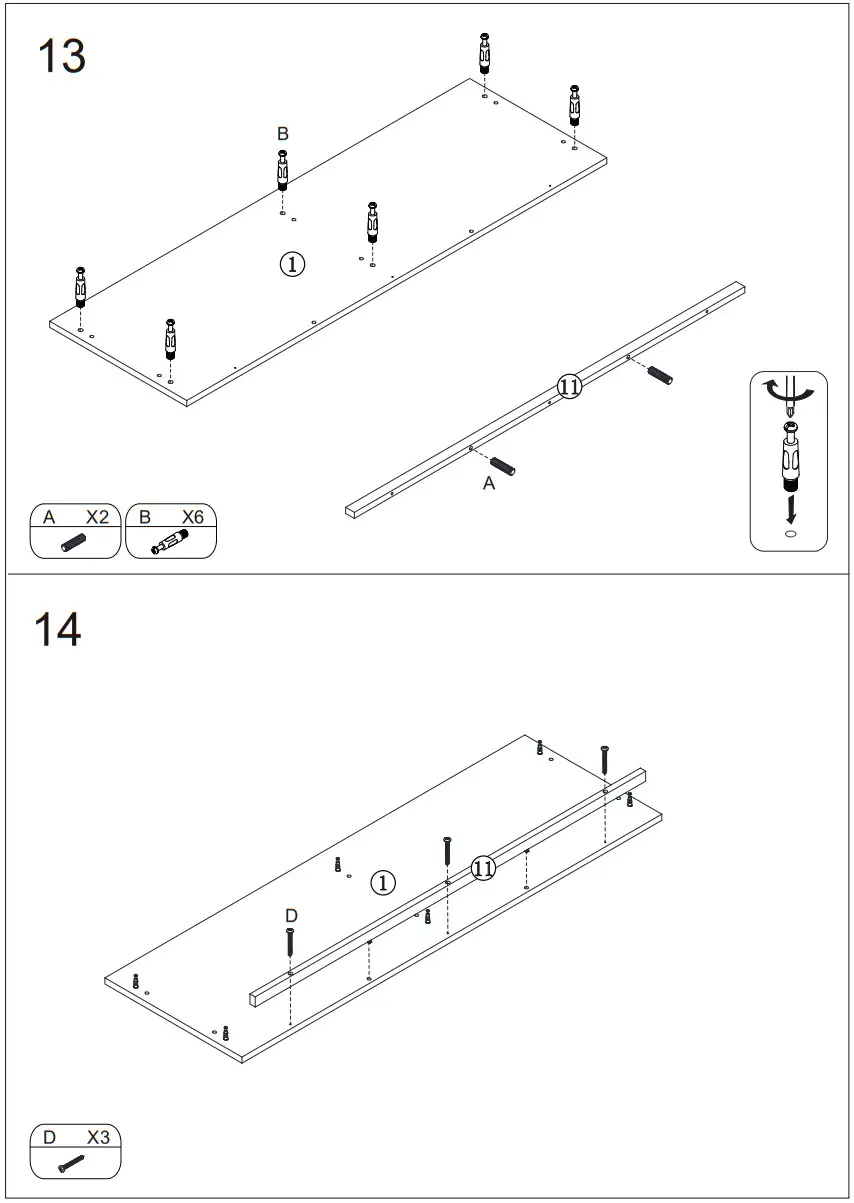

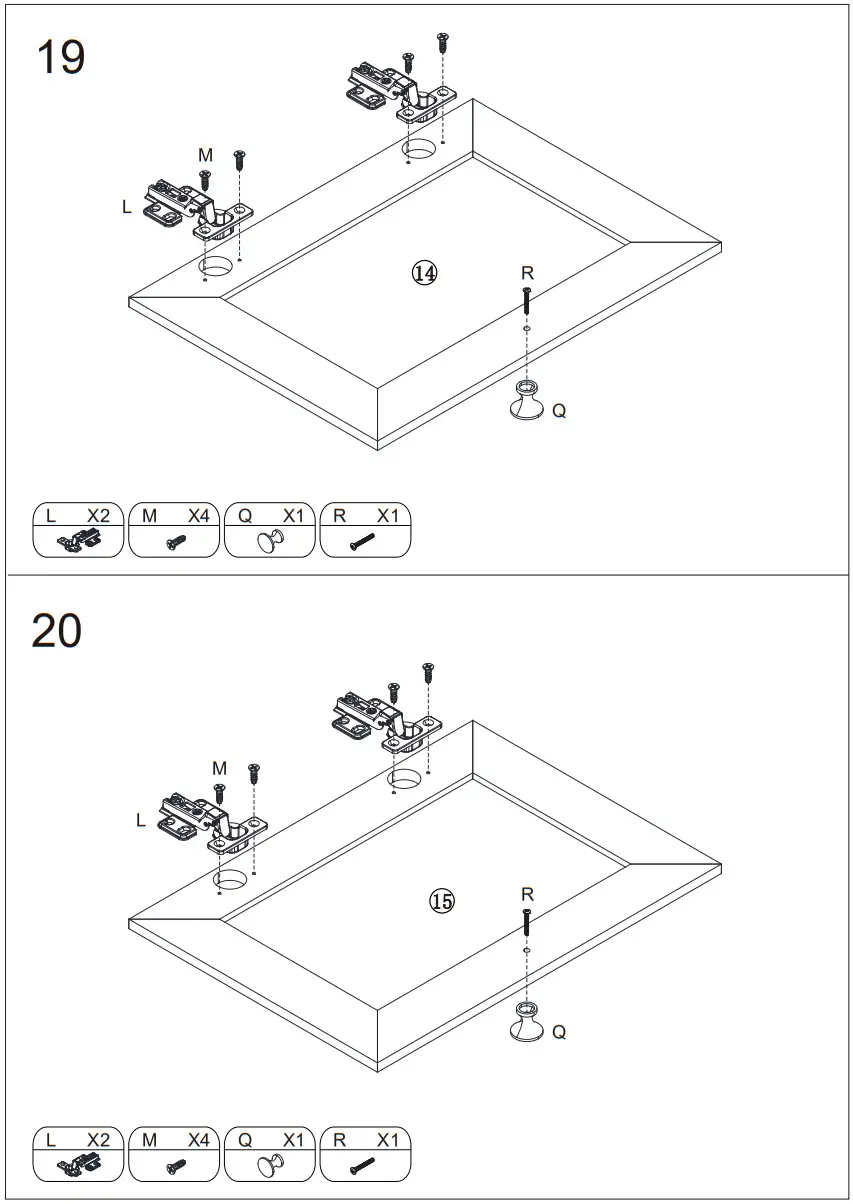

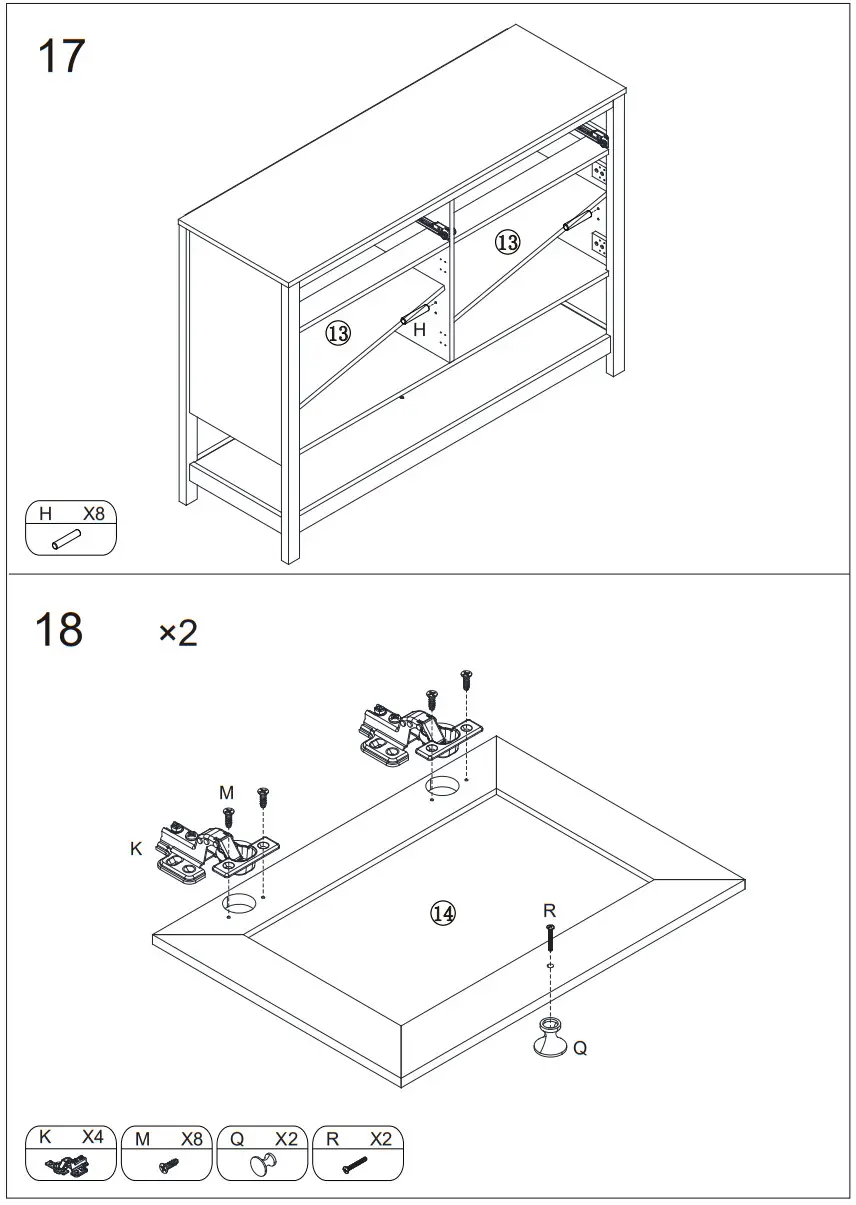

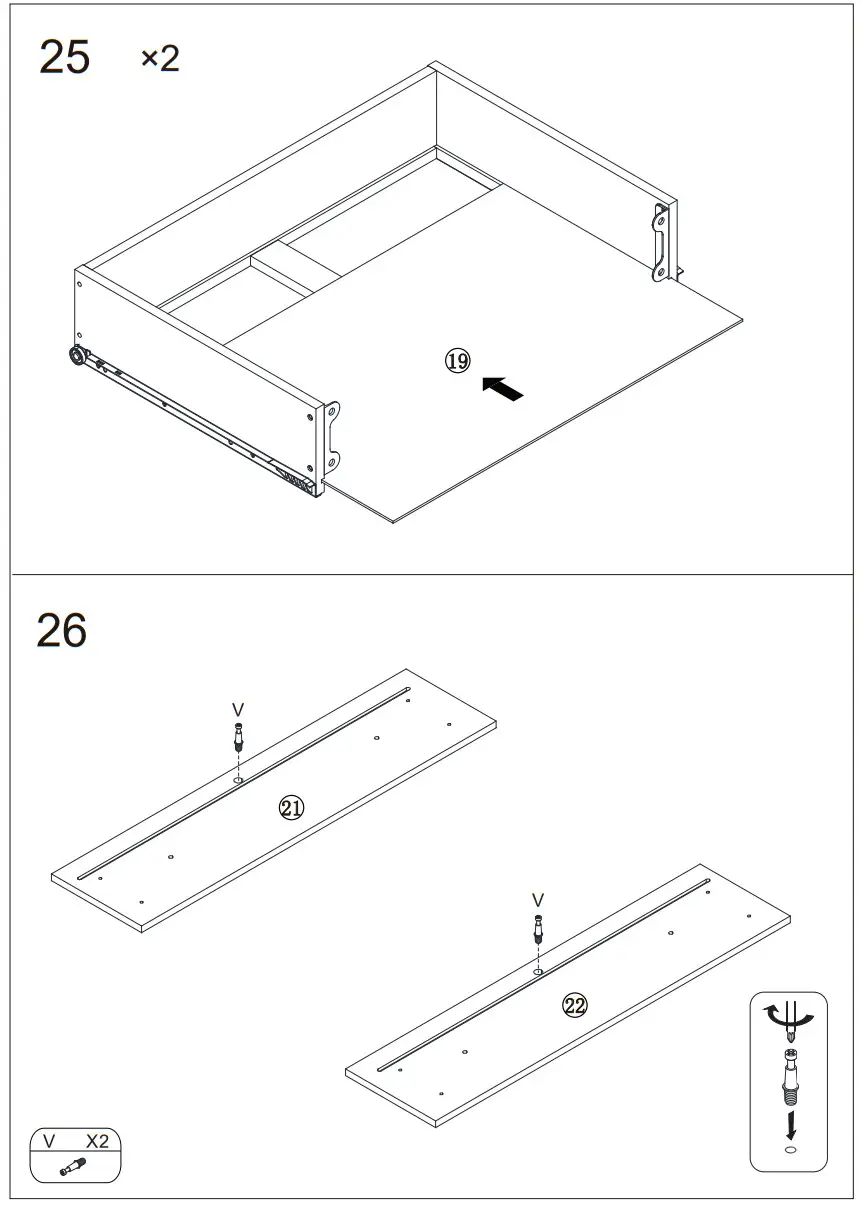

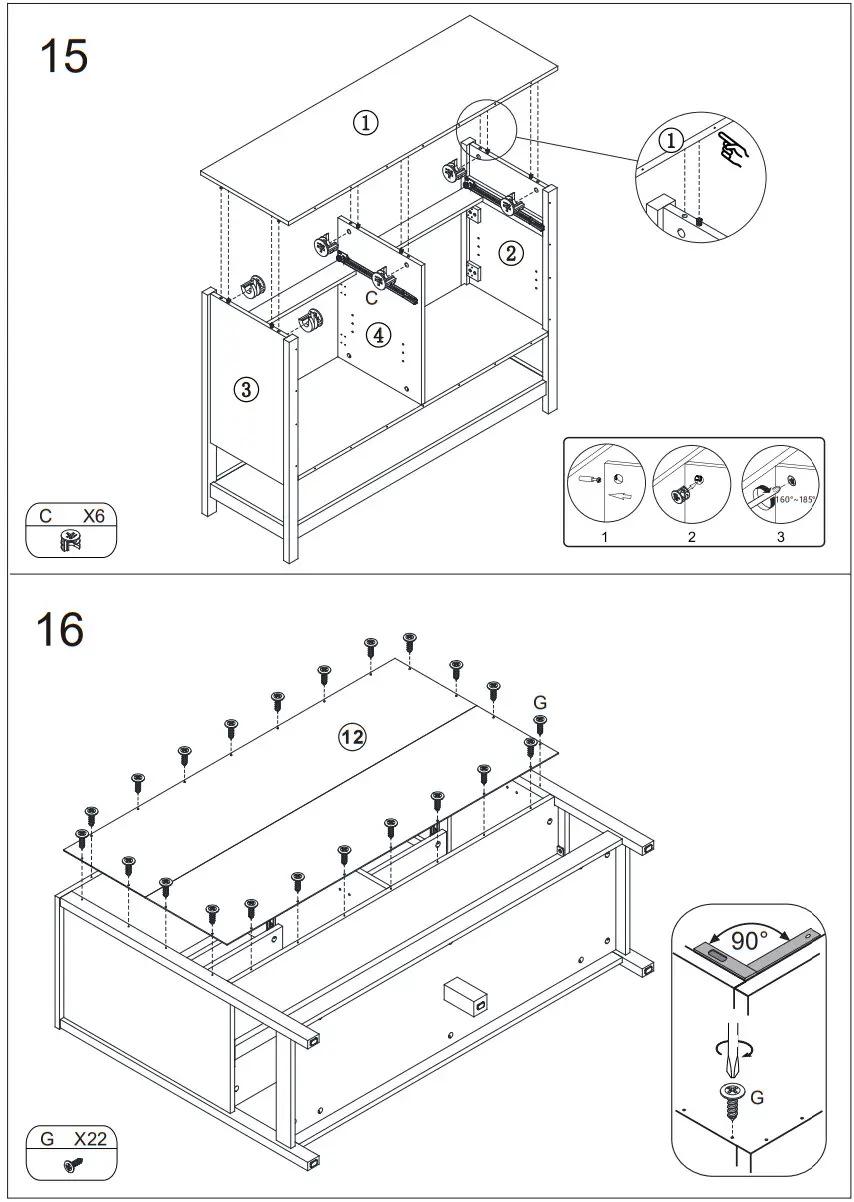

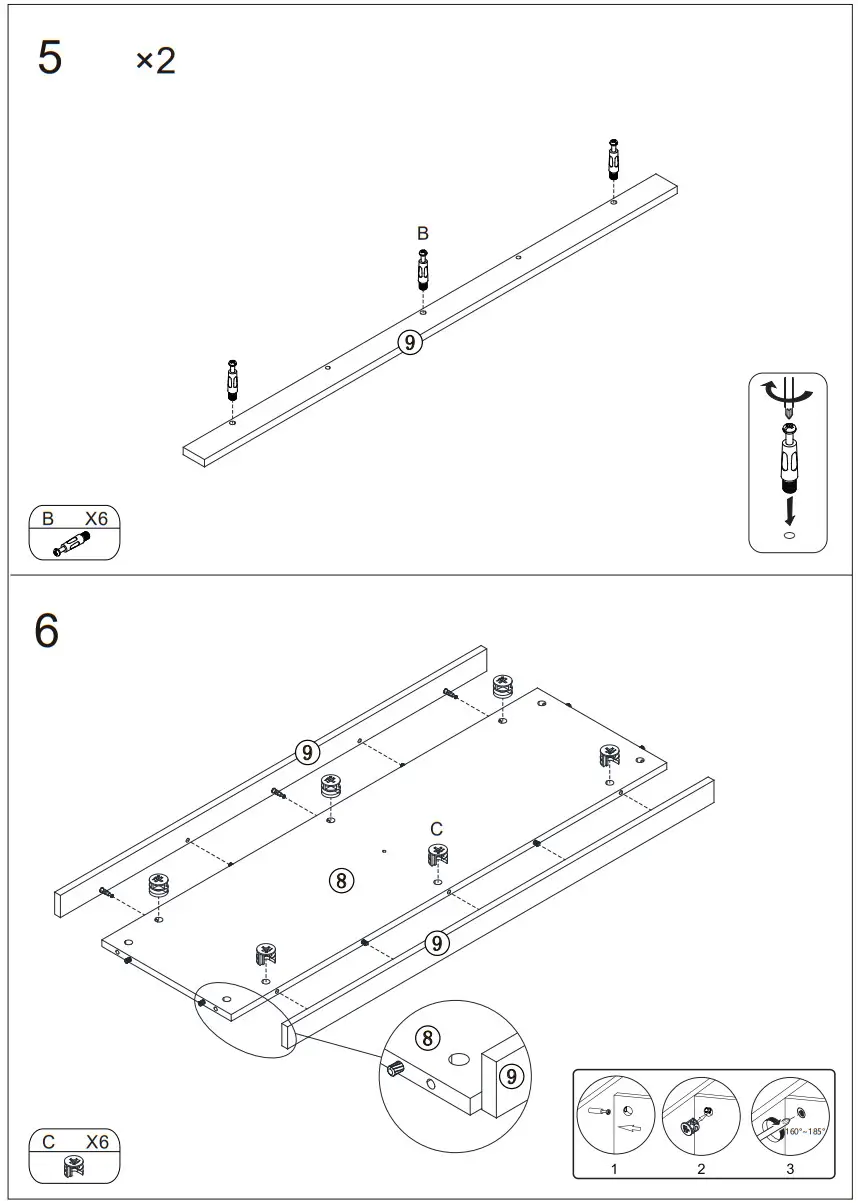

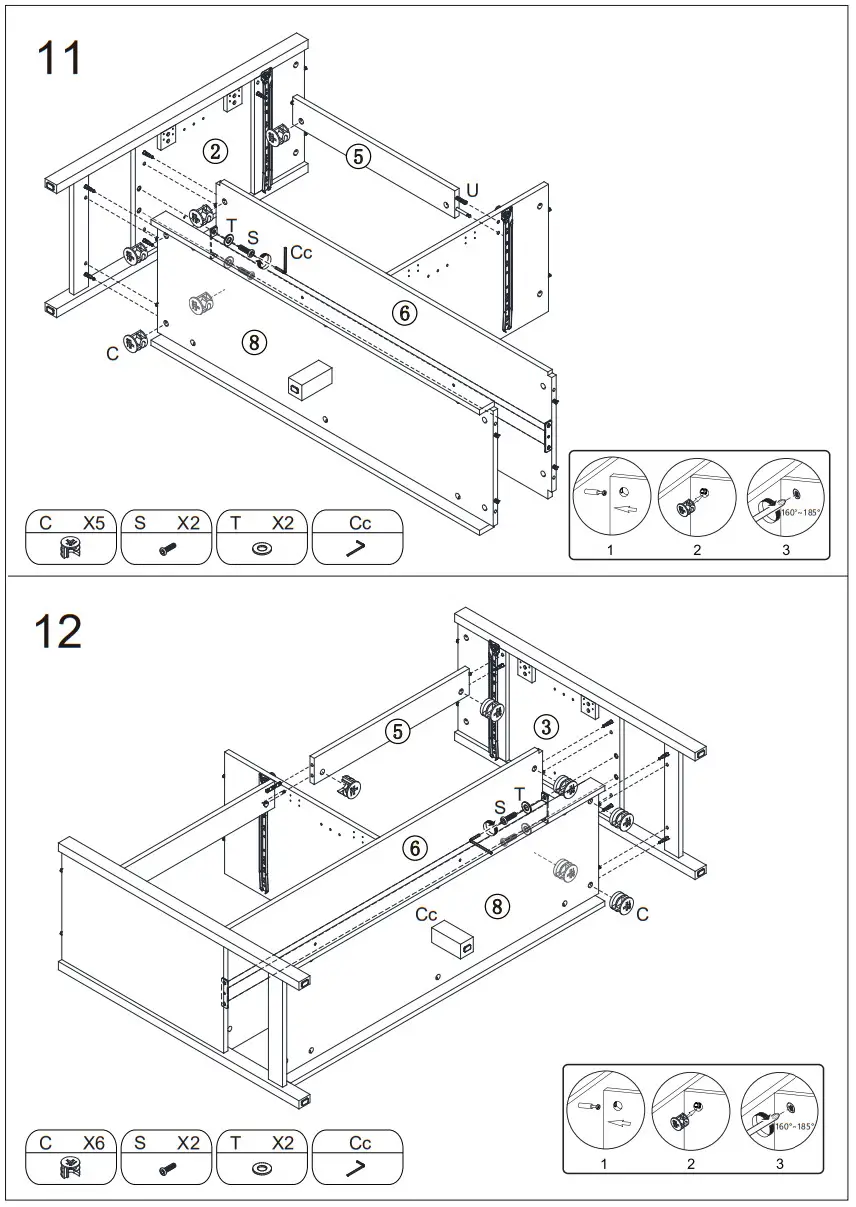

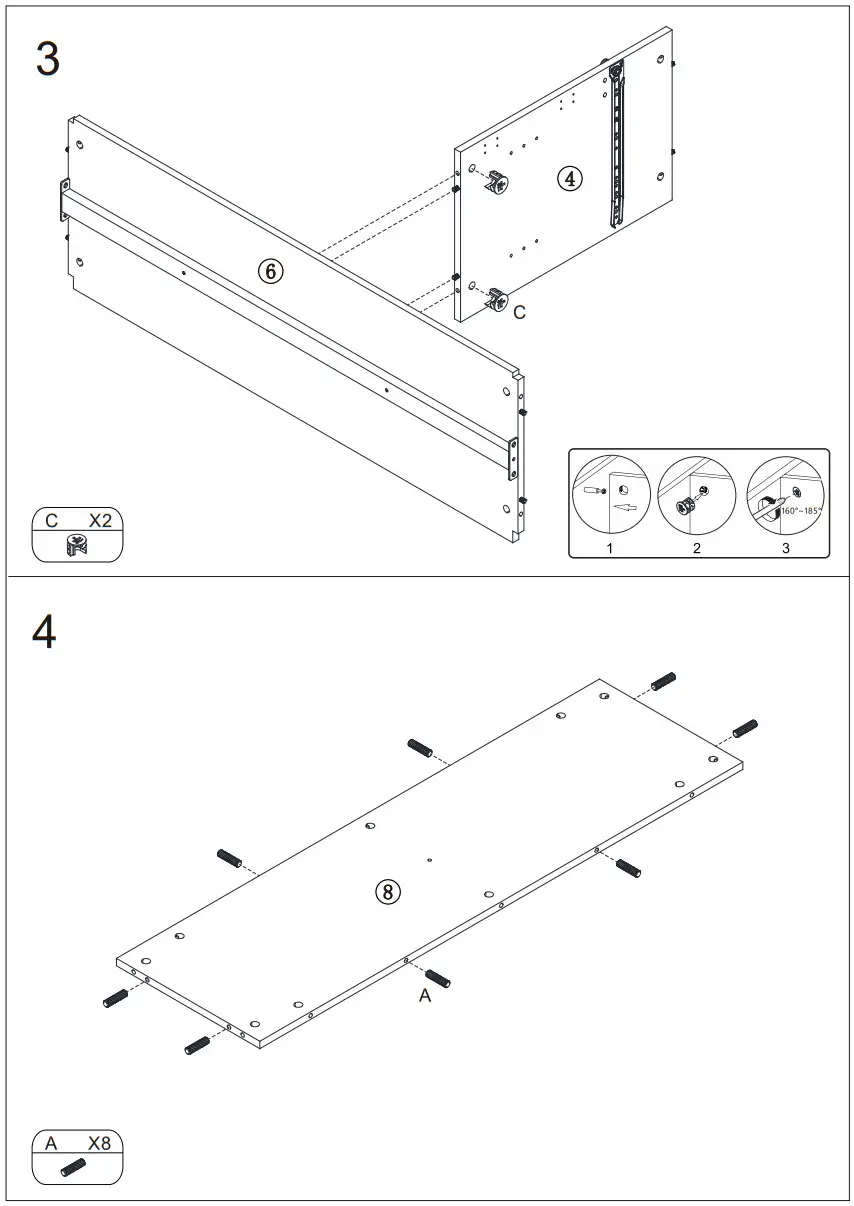

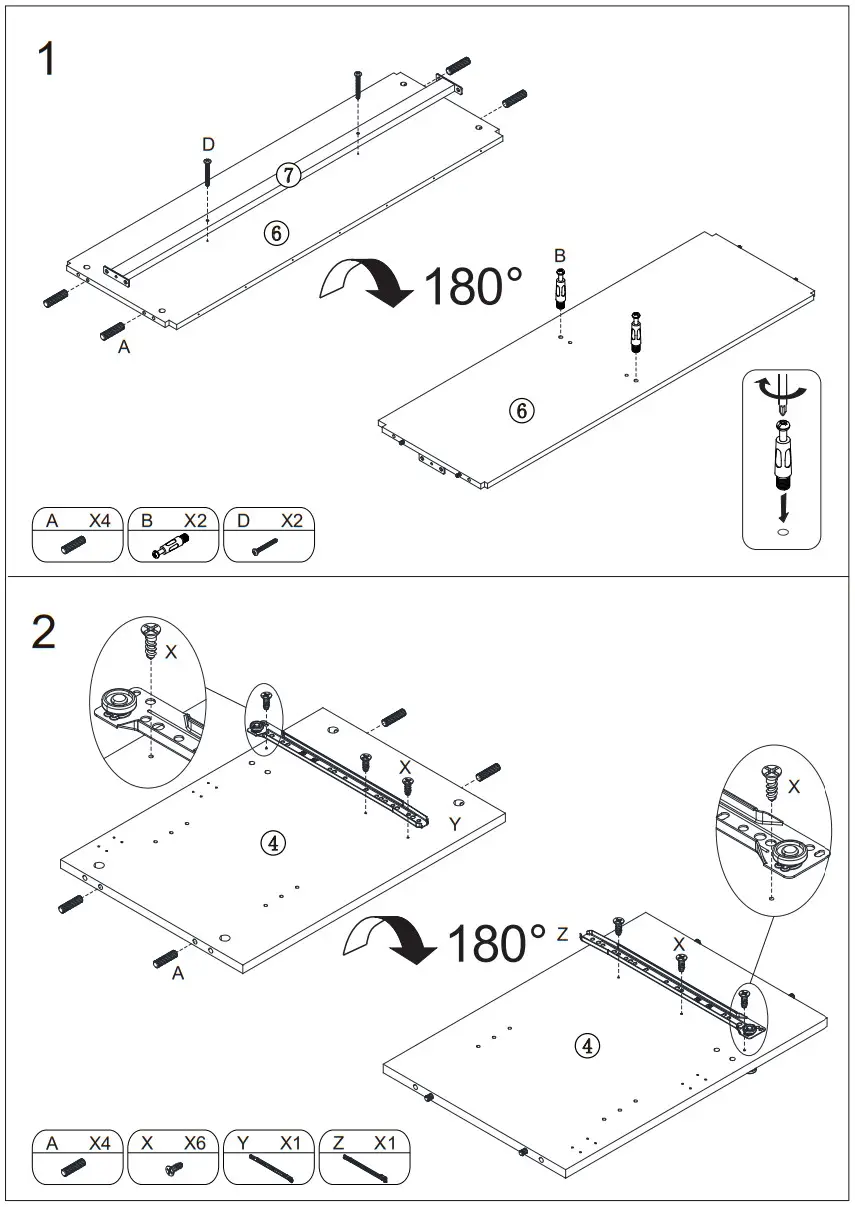

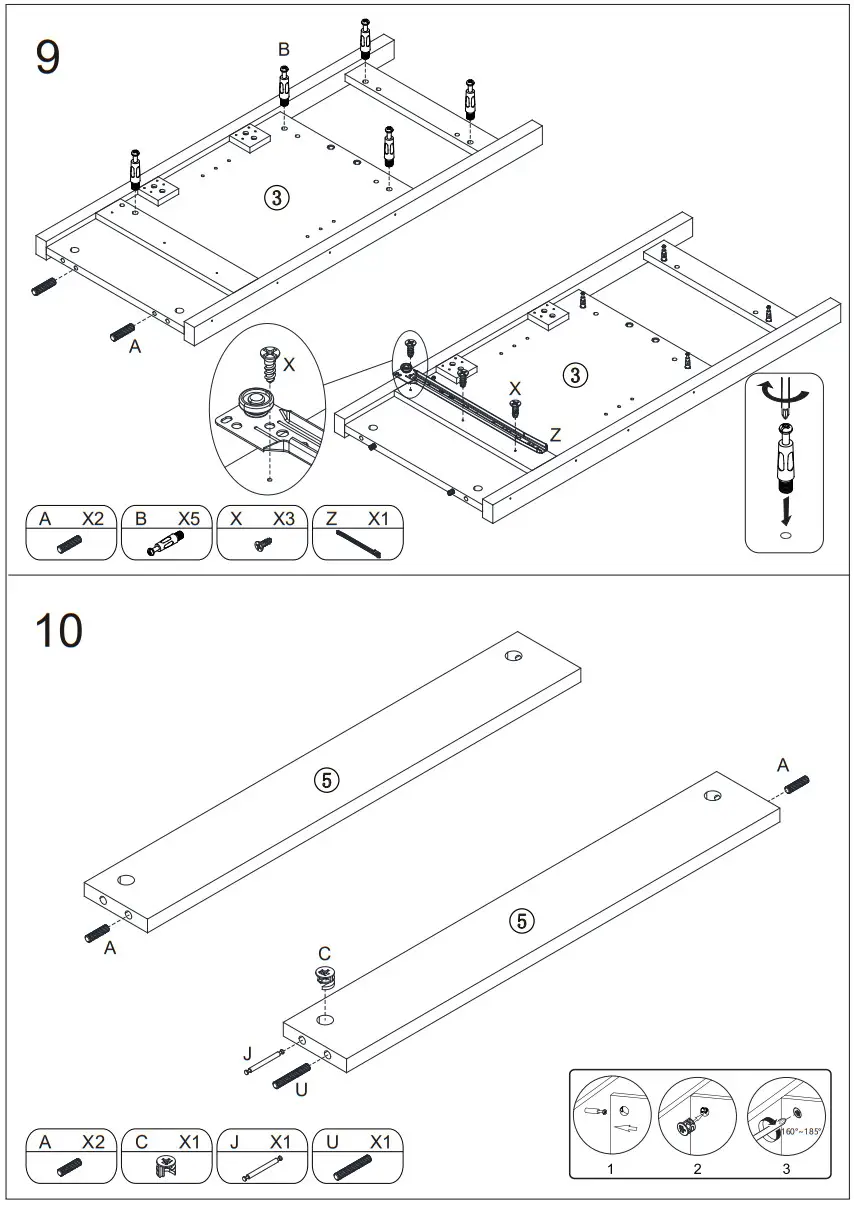

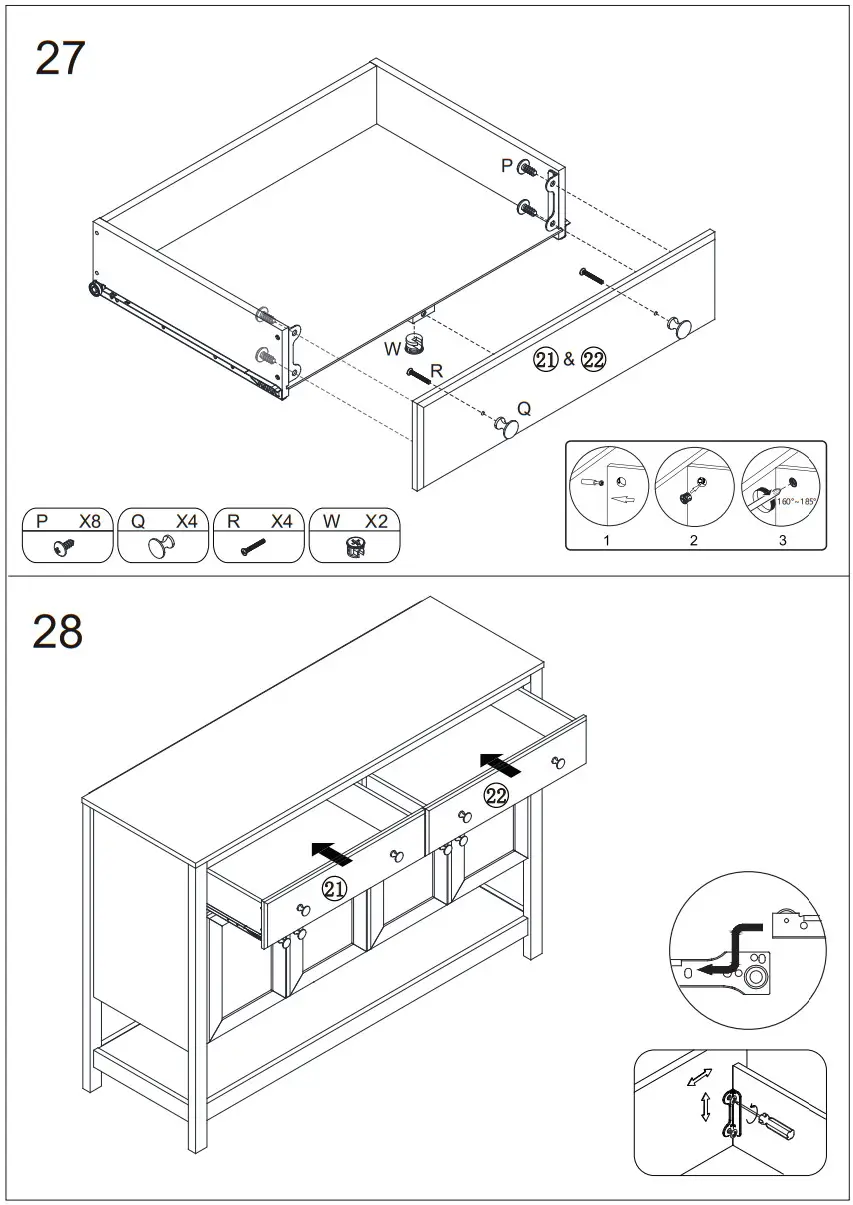

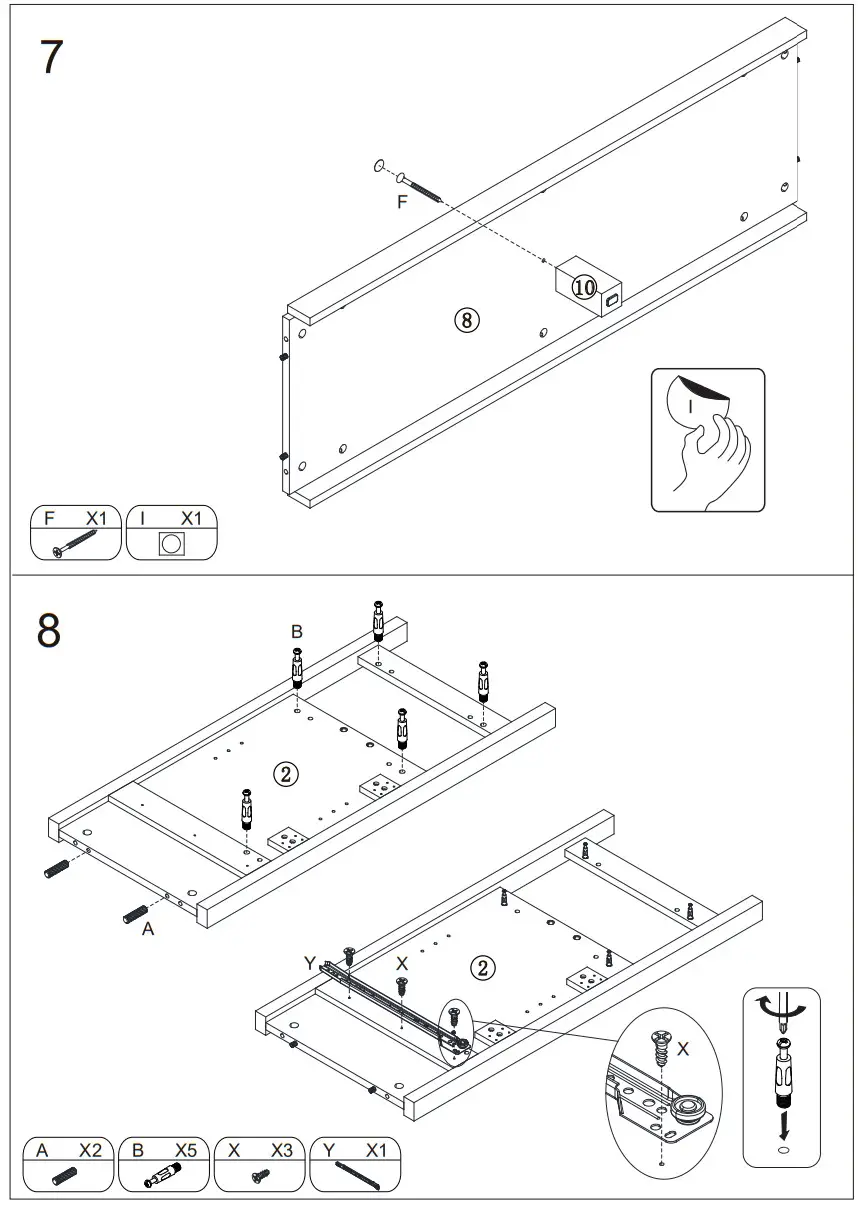

Assembly Instructions
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
