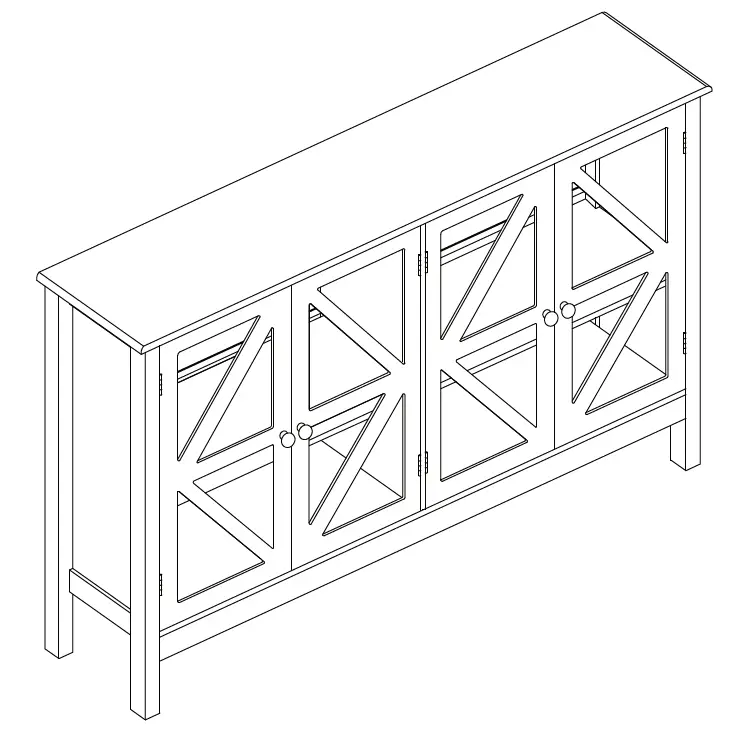

HOMCOM 839-406 Farmhouse Kitchen Sideboard Buffet Table
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
USING CAM LOCK AND QUICKFIT

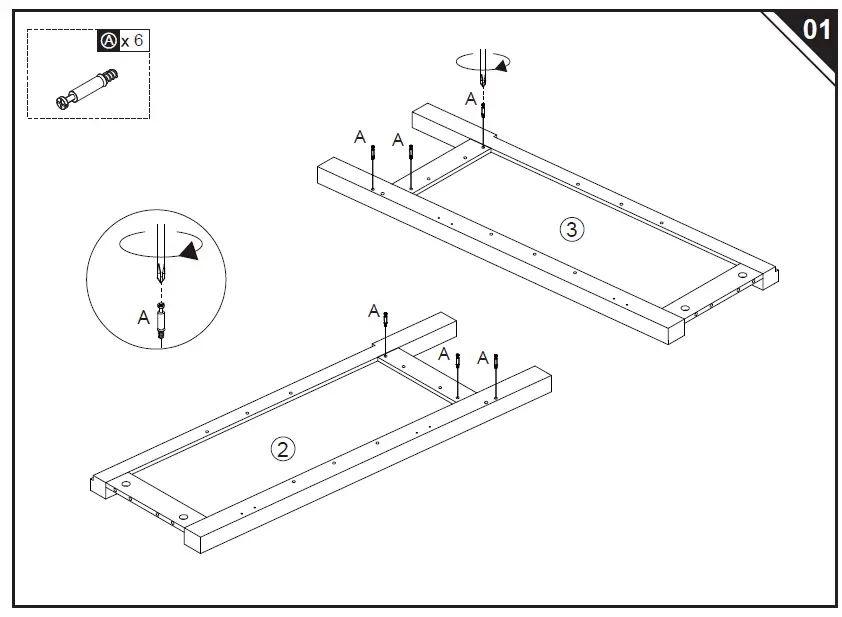

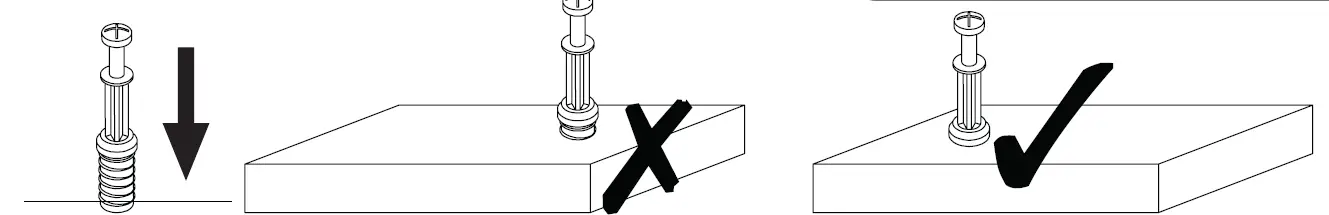

QUICKFIT: Tighten quickfit until shoulder is flush with panel.Do not overtighten or undertighten.

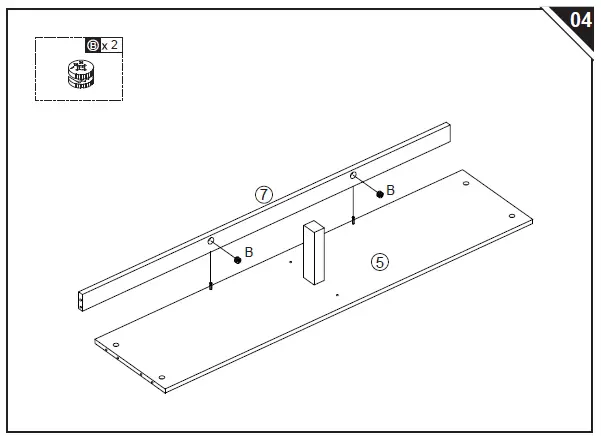

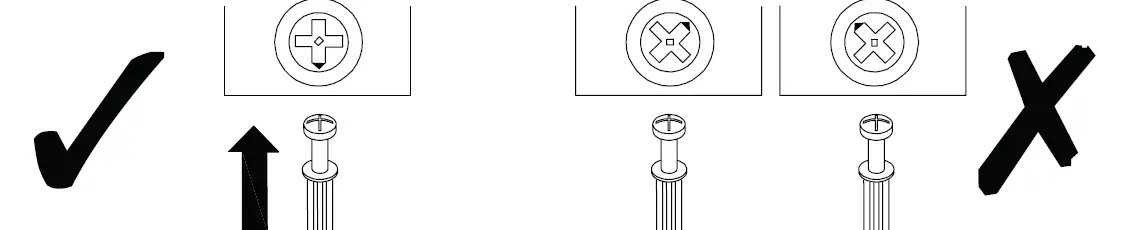

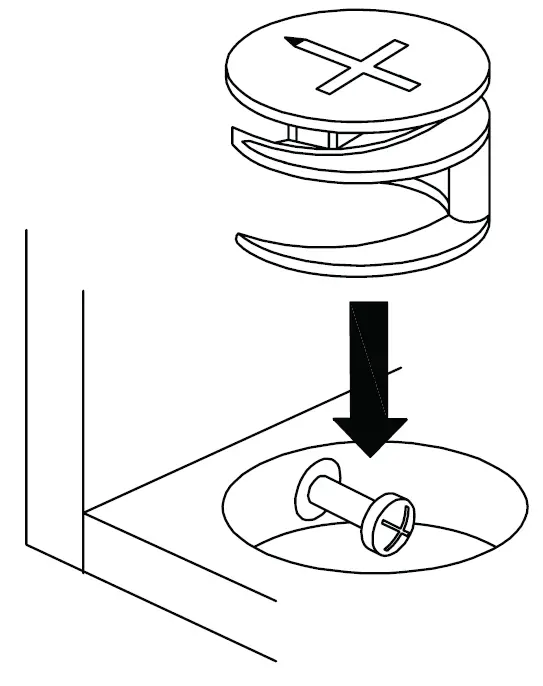

CAM LOCK: When fitting cam lock, ensure starting position is correct before you insert connecting quickfit.
Quickfit head should be in the centre of the cam lock when the two panels are joined.

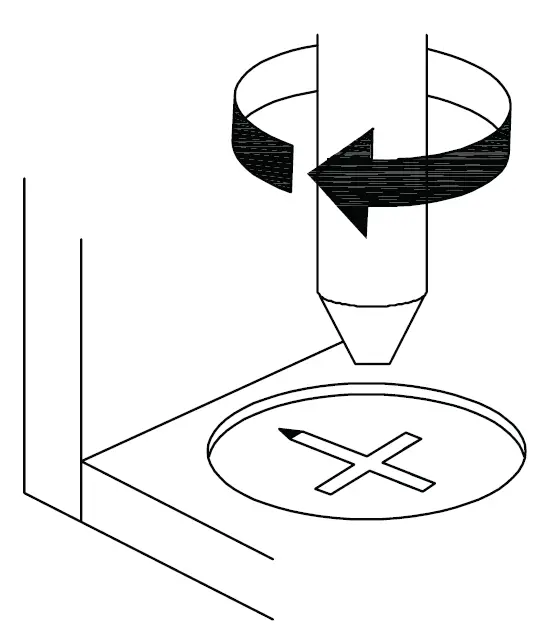

Turn cam lock clockwise to tighten.

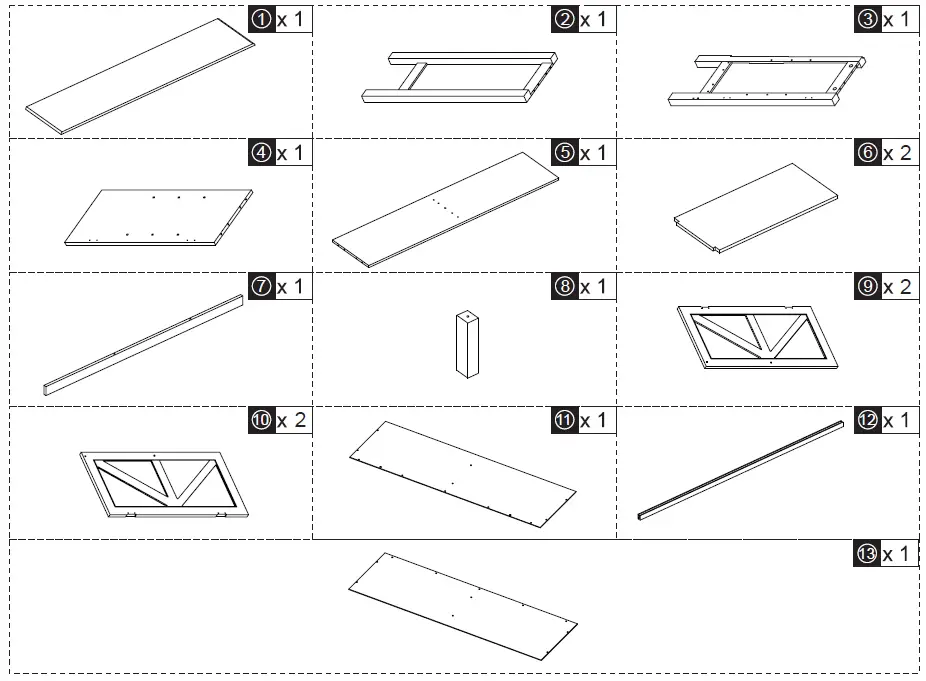

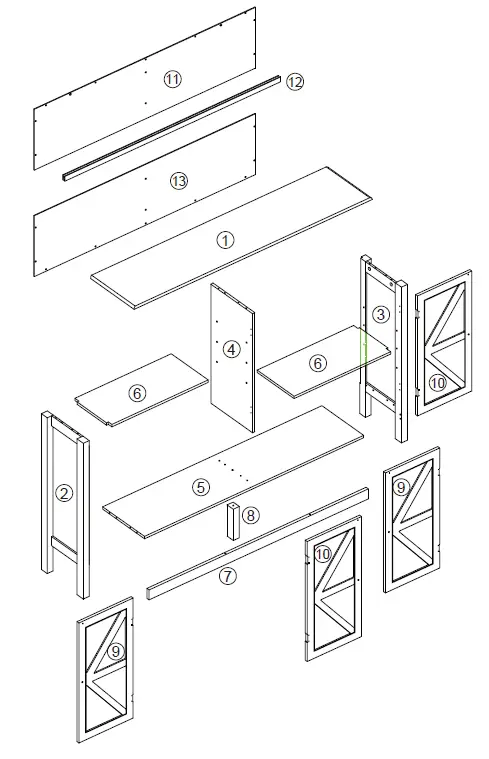

PARTS

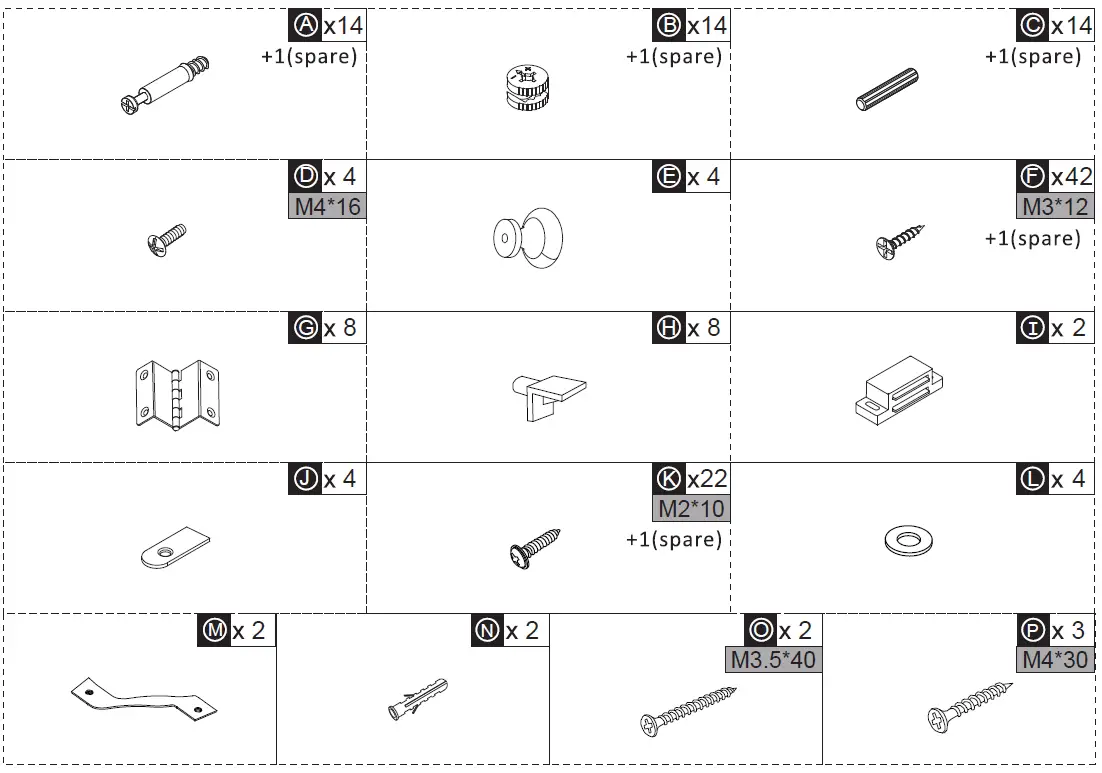

HARDWARE

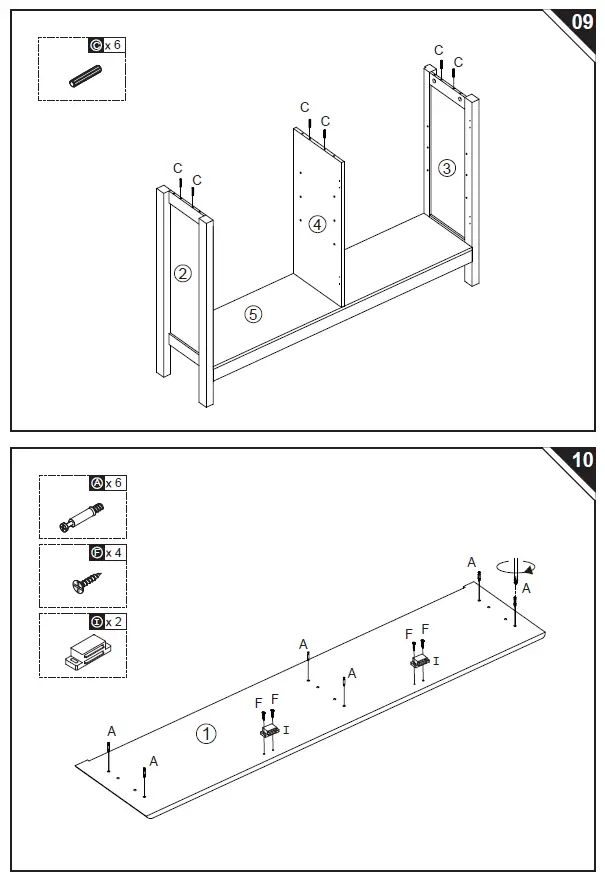

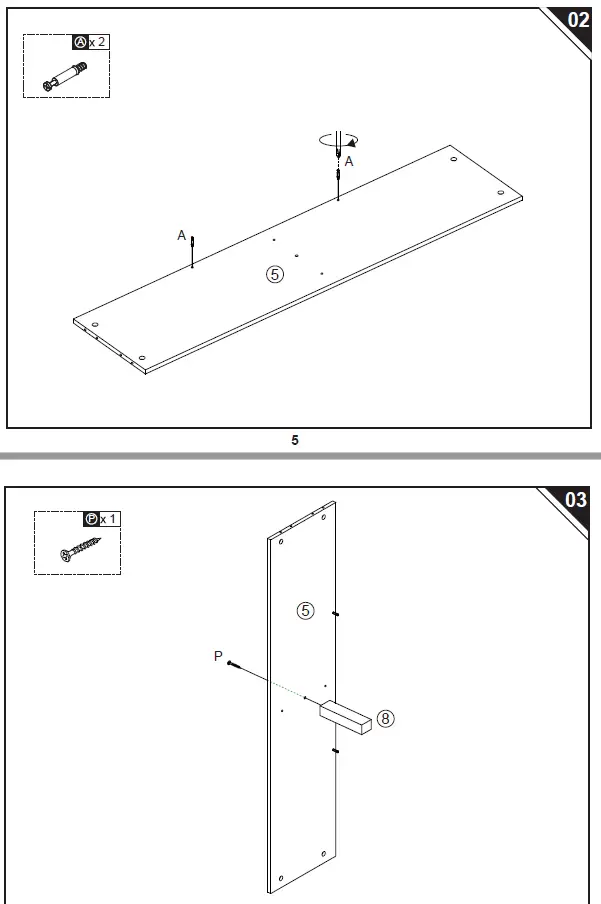

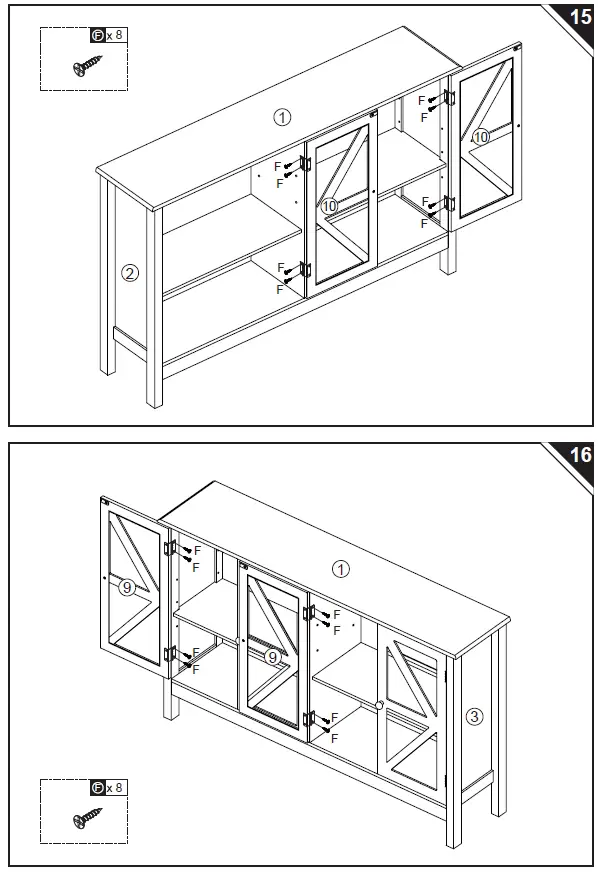

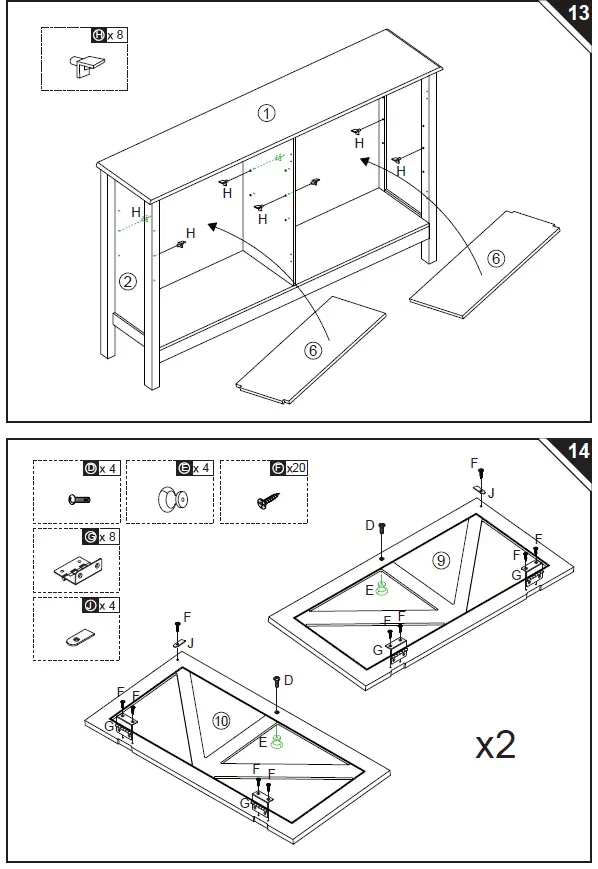

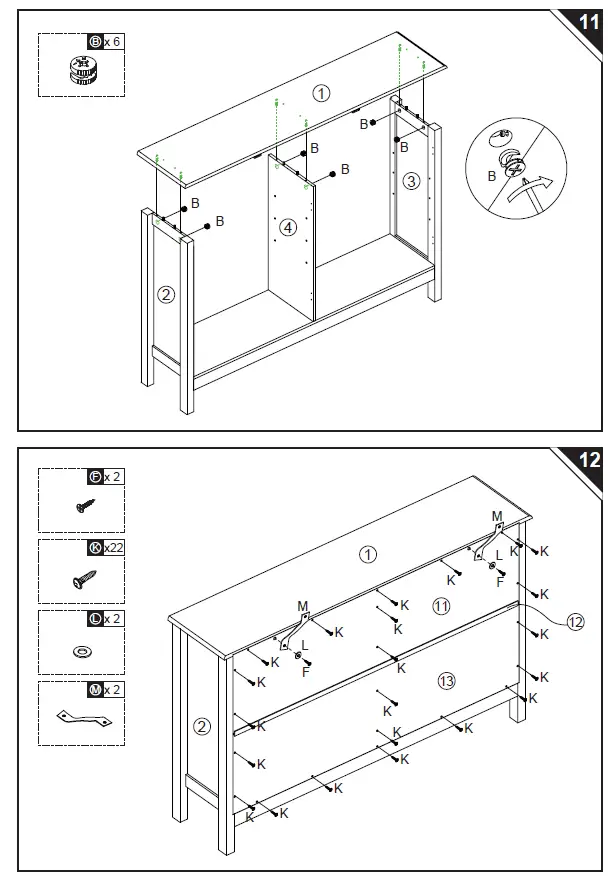

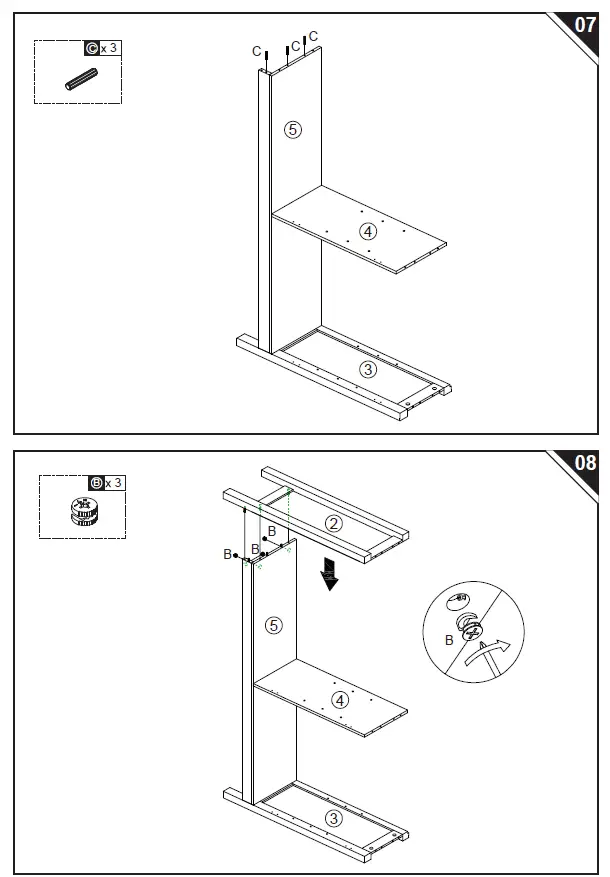

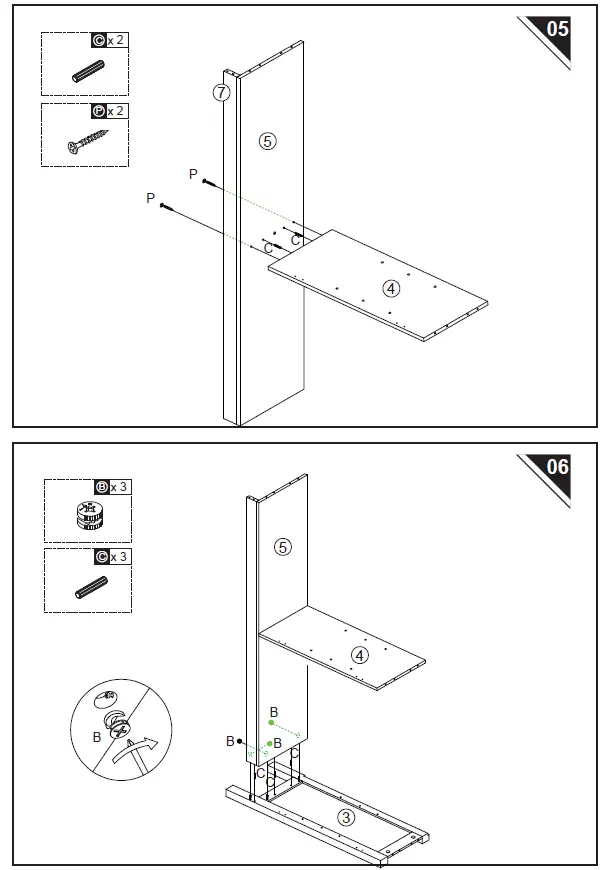

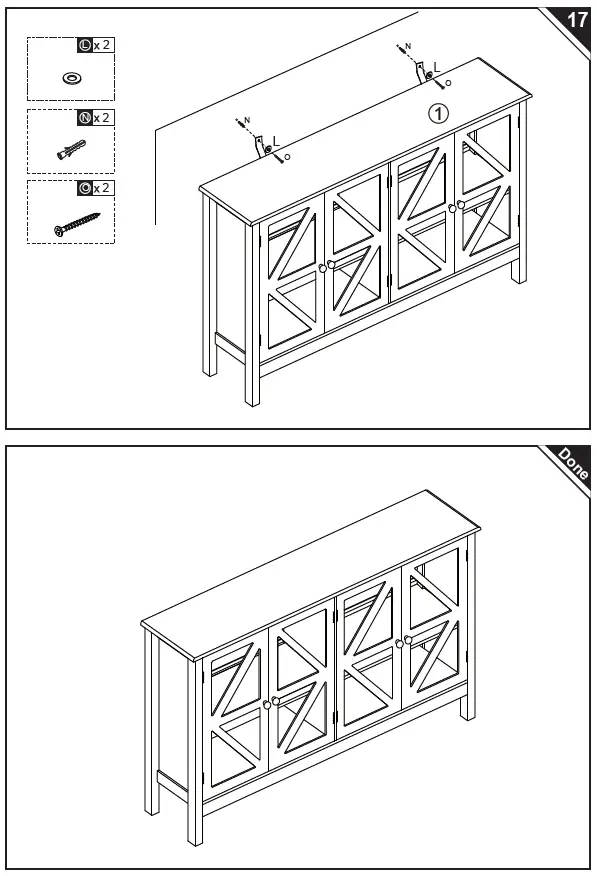

INSTALLATION INSTRUCTIONS
