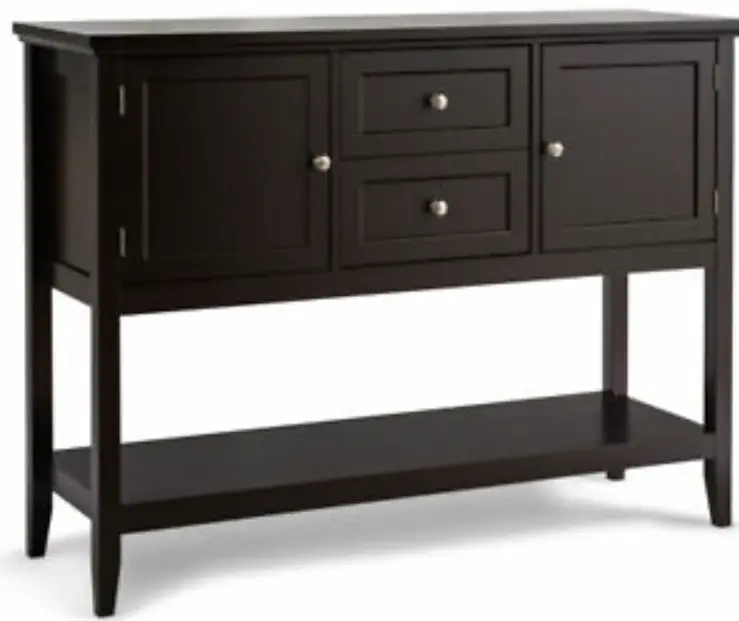

THE HOME DEPOT 824-SIDEBOARD-B Sideboard Buffet Storage Cabinet

Part List:
ITEM | DESCRIPTION | PART | QTY |
| 1 | Drawer side | ![]() | 8 |
| 2 | Drawer back | ![]() | 4 |
| 3 | Drawer bottom | ![]() | 4 |
| 4 | Drawer front | ![]() | 4 |
| 5 | Lower crosspiece | ![]() | 1 |
| 6 | Middle divider | ![]() | 1 |
| 7 | Left divider | ![]() | 1 |
ITEM | DESCRIPTION | PART | QTY |
| 8 | Right divider | ![]() | 1 |
| 9 | Shelf | ![]() | 1 |
| 10 | Upper crosspiece | ![]() | 1 |
| 11 | Bottom panel | ![]() | 1 |
| 12 | Left side panel | ![]() | 1 |
| 13 | Right side panel | ![]() | 1 |
| 14 | Leg | ![]() | 1 |
ITEM | DESCRIPTION | PART | QTY |
| 15 | Top Panel | ![]() | 1 |

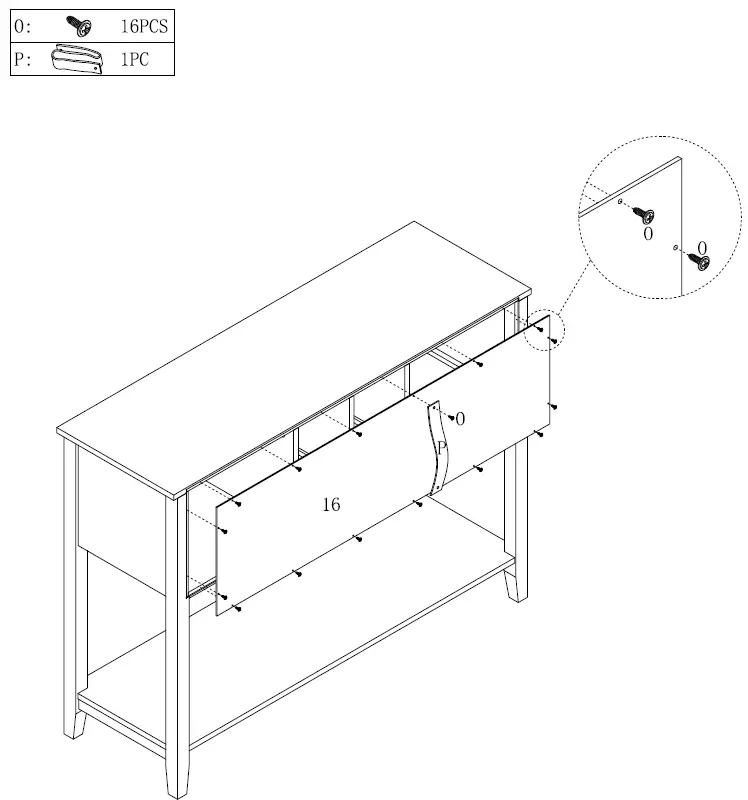

| 16 | Back Panel | ![]() | 1 |
| ITEM | DESCRIPTION | PART | QTY |

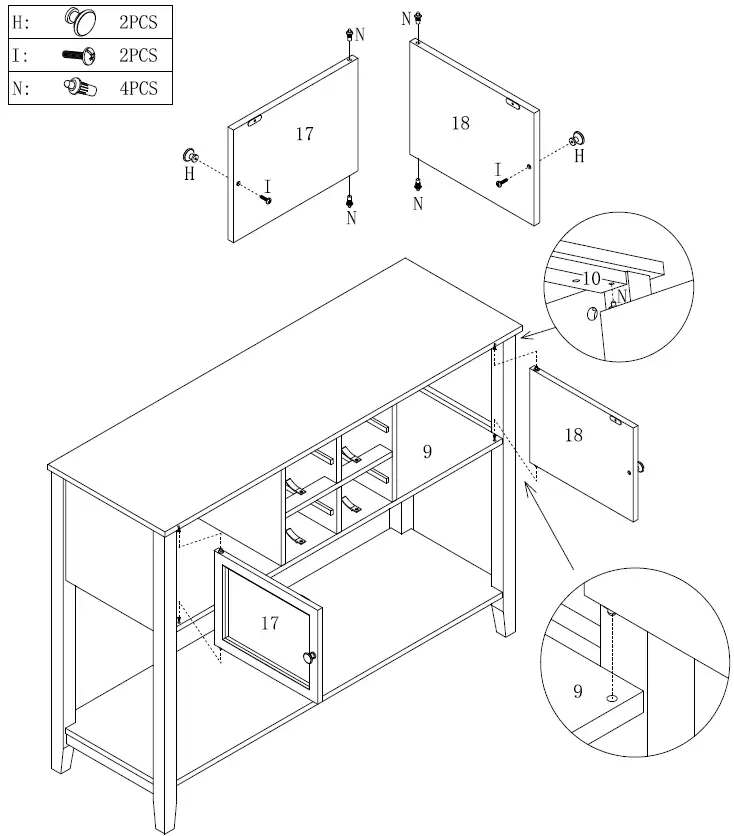

| 17 | Left Door | ![]() | 1 |
| 18 | Right Door | ![]() | 1 |

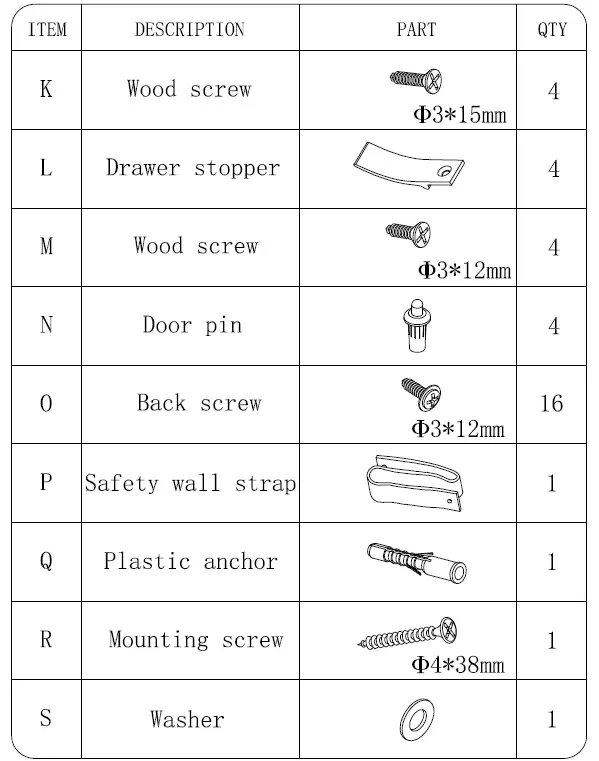

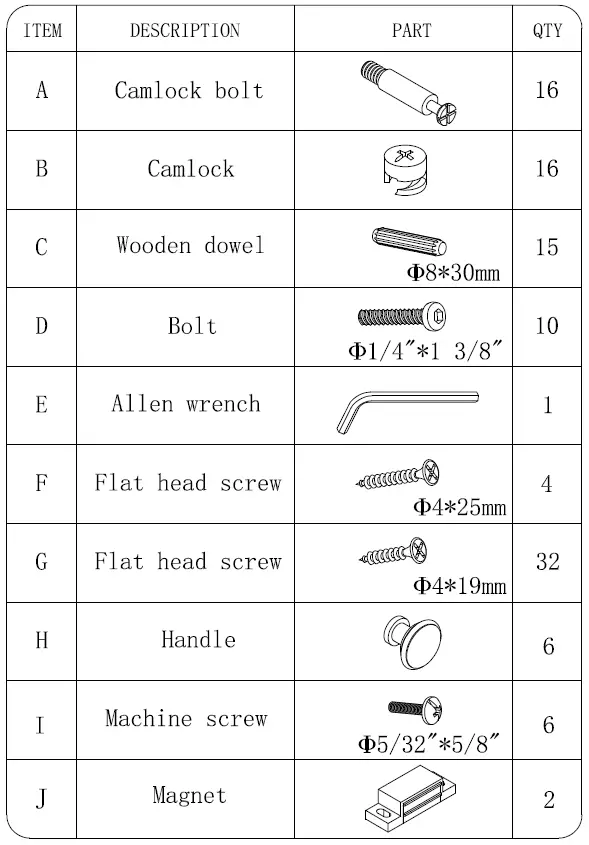

Hardware List:


ASSEMBLY INSTRUCTION
- Required screwdriver & mallet, not included.
- Before discarding packing materials, please check to make sure that all parts and hardware is present.
- Two people needed for assembly.
- Please follow the instructions closely; do not over tighten screws or bolts unless instructed.
- After a few days from initial assembly, the product may have acclimated to the new environment. Please retighten the hardware.

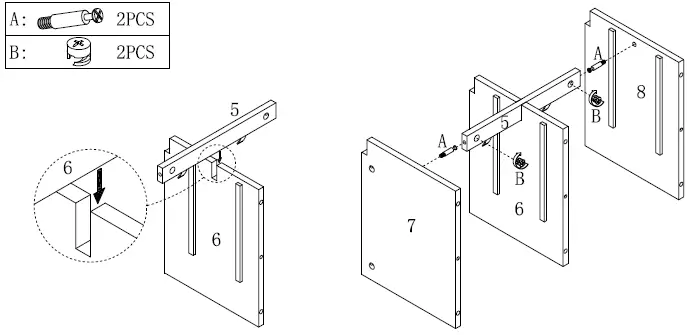

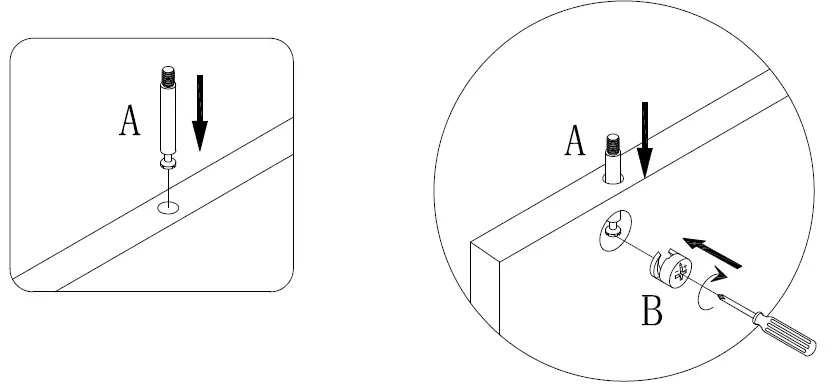

Guideline For Assembling of Cam Lock(A & B)
- Screw camlock bolt (A) to wood part.
- Do not assemble camlock (B) unless instructed.
- To assemble camlock (B), ensure long side of the + is facing the bolt (A) before inserting into hole.
