IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
ASSEMBLY & INSTRUCTION MANUAL
USING CAM LOCK AND QUICKFIT

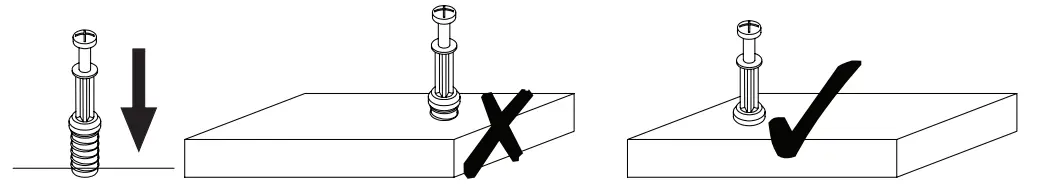

QUICK FIT: Tighten quick fit until the shoulder is flush with the panel. Do not overtighten or under-tighten.

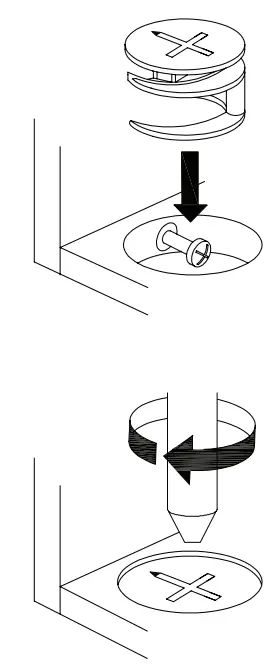

CAM LOCK: When fitting the cam lock, ensure starting position is correct before you insert connecting quickfit.
Quickfit head should be in the center of the cam lock when the two panels are joined. Cam lock should be inserted before quickfit.
Turn the cam lock clockwise to tighten.

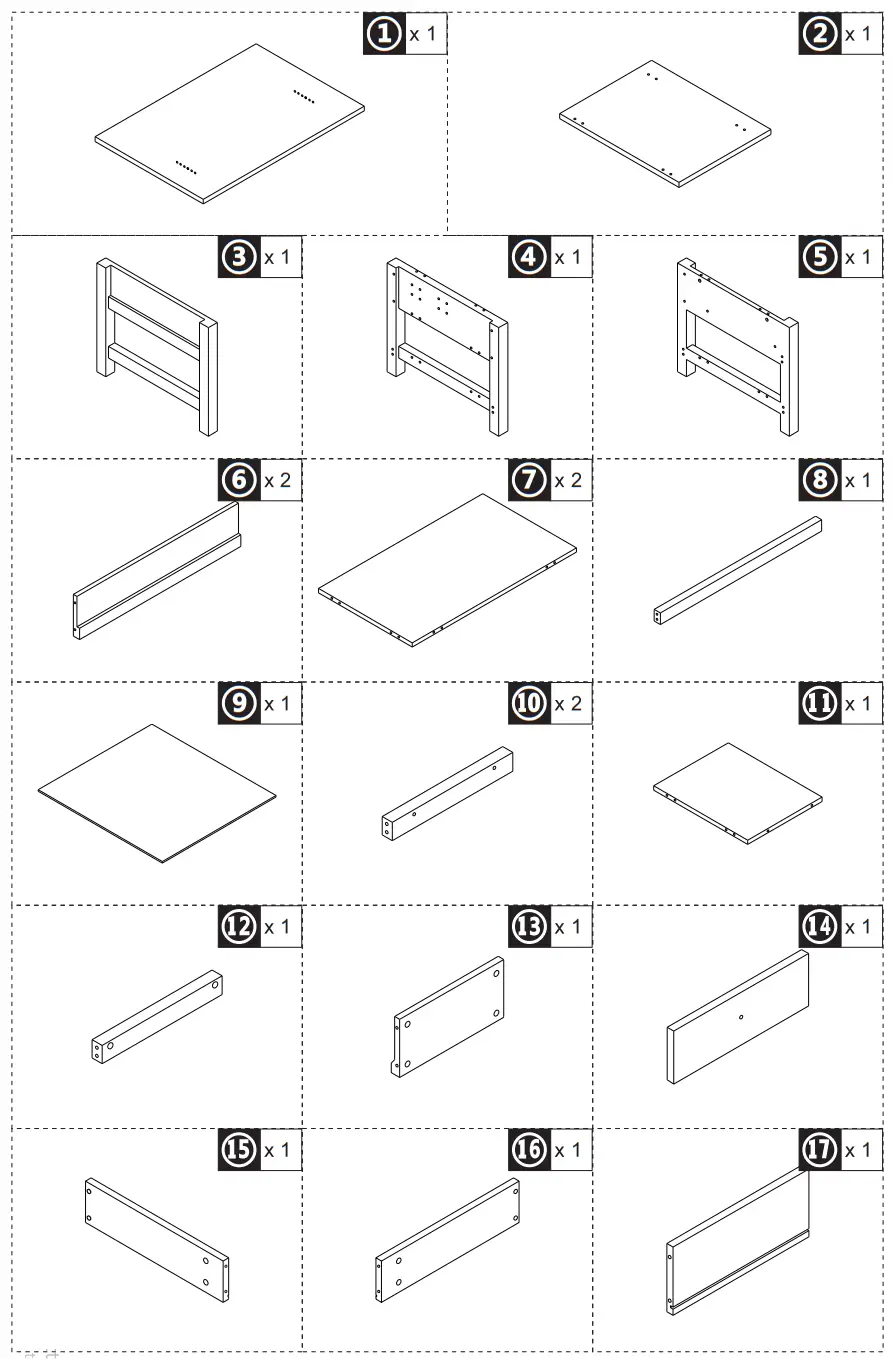

PARTS

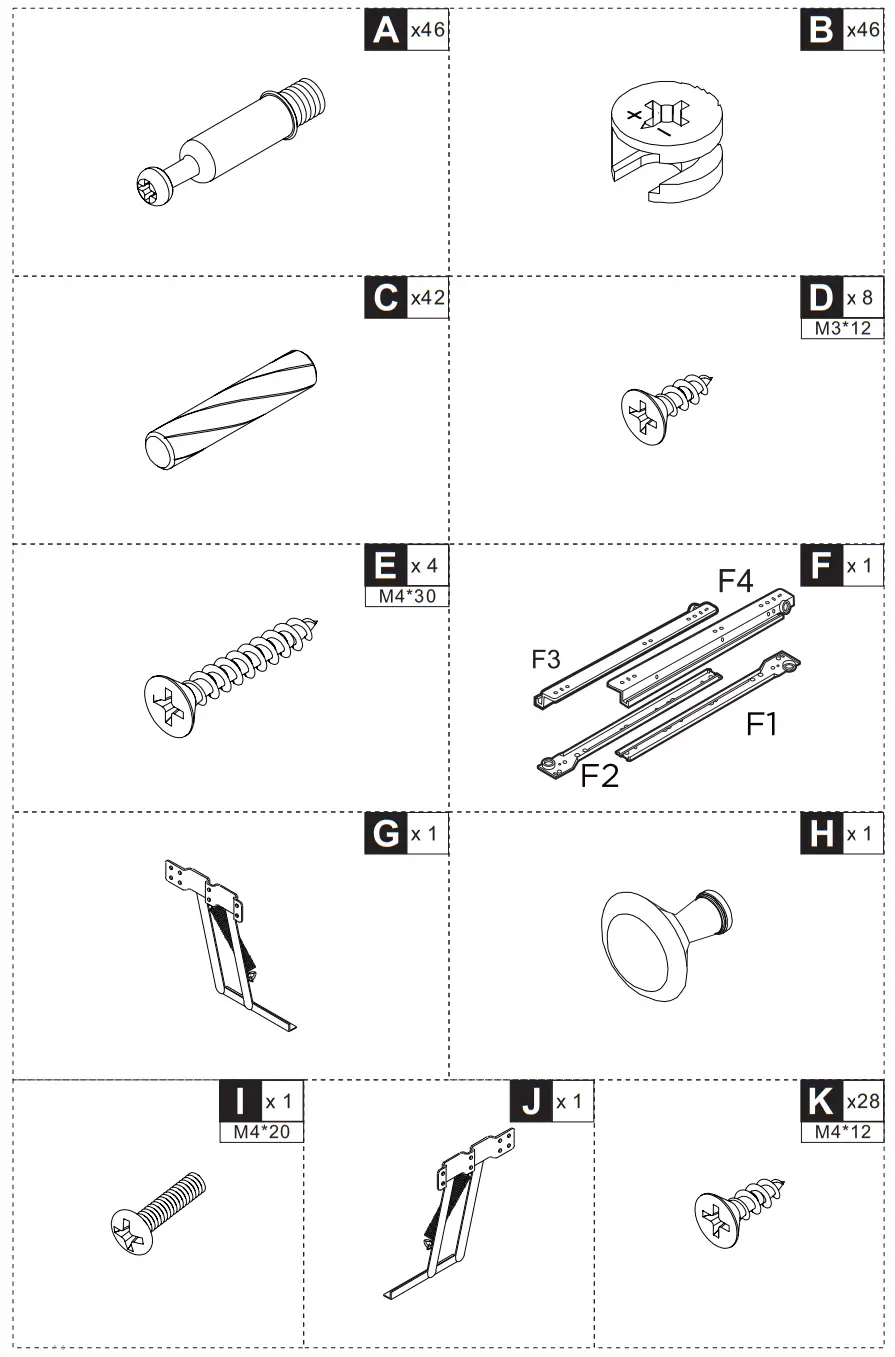

HARDWARE
 |  |
