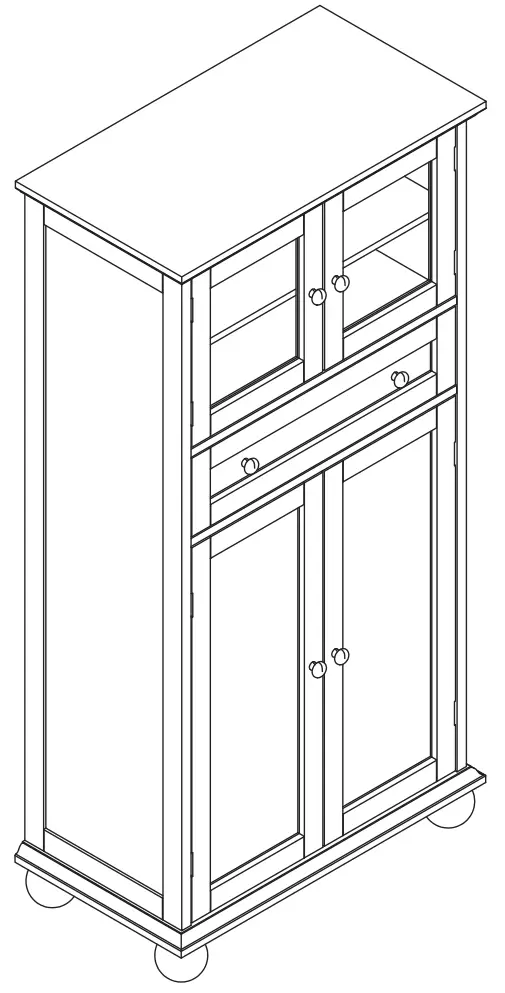

HOMCOM 835-687V00GY 52 Inch Grey Traditional Kitchen Pantry Storage Cabinet

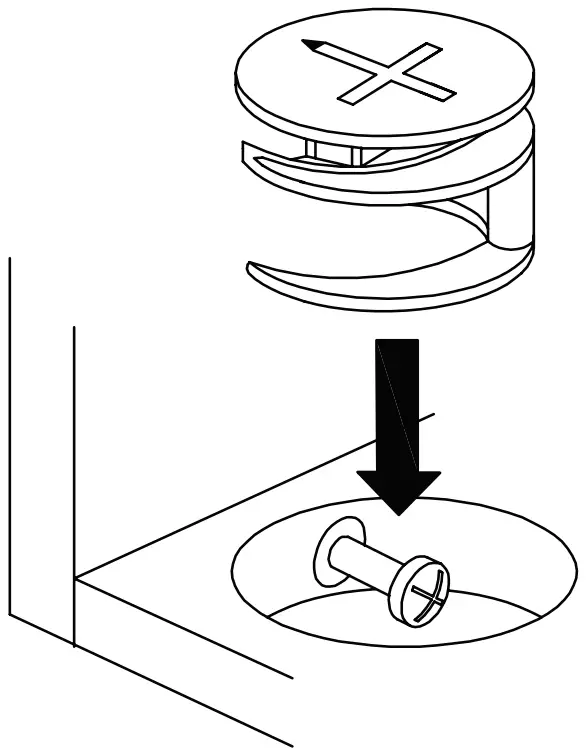

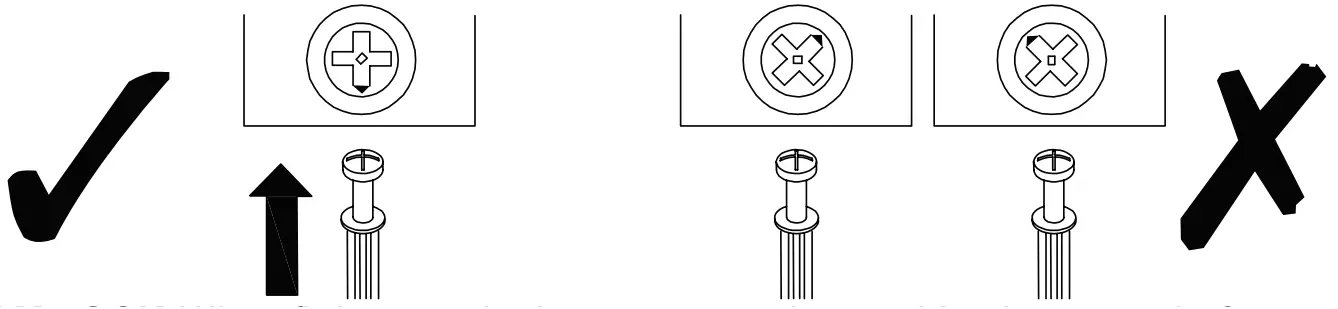

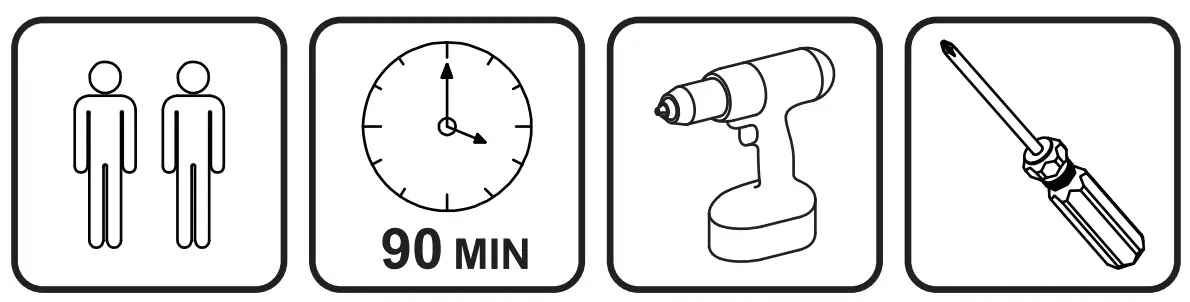

USING CAM LOCK AND QUICKFIT

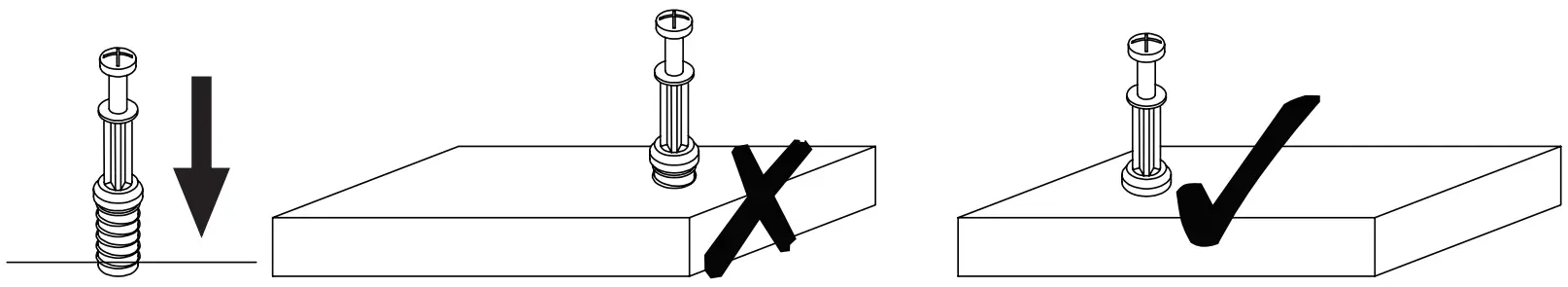

QUICKFIT: Tighten quickfit until shoulder is flush with panel. Do not overtighten or
under tighten .
CAM LOCK: When fitting cam lock, ensure starting position is correct before you insert connecting quickfit.
Quickfit head should be in the centre of the cam lock when the two panels are joined.

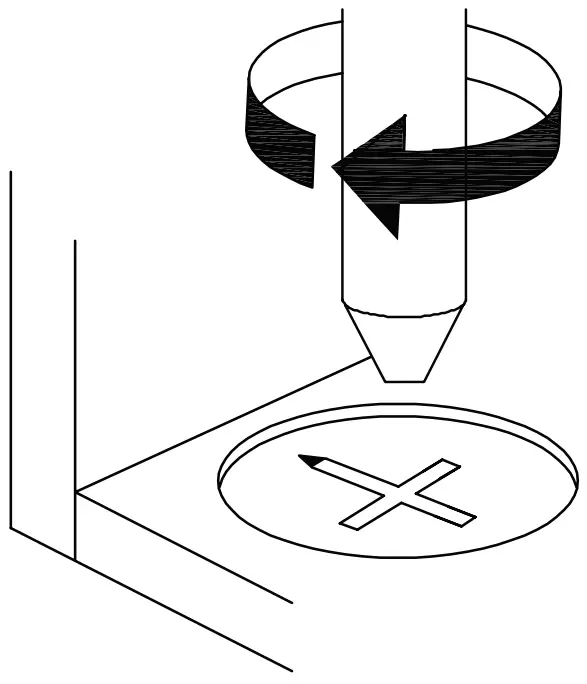

Turn cam lock clockwise to tighten.

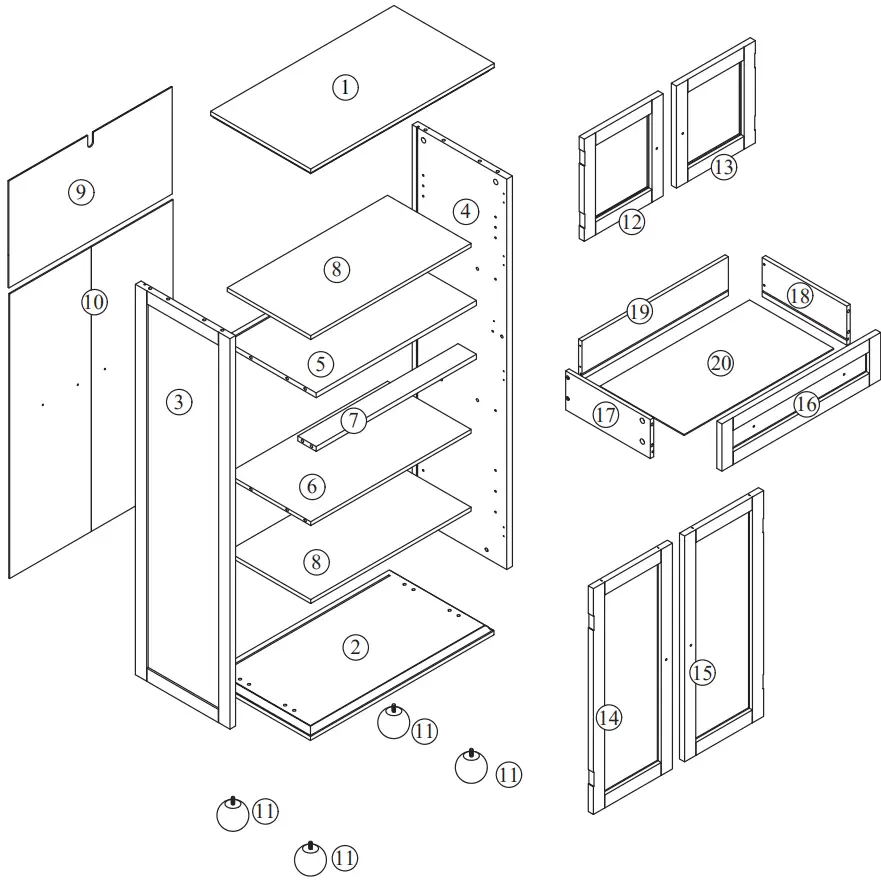

EXPLOSION FIGURE

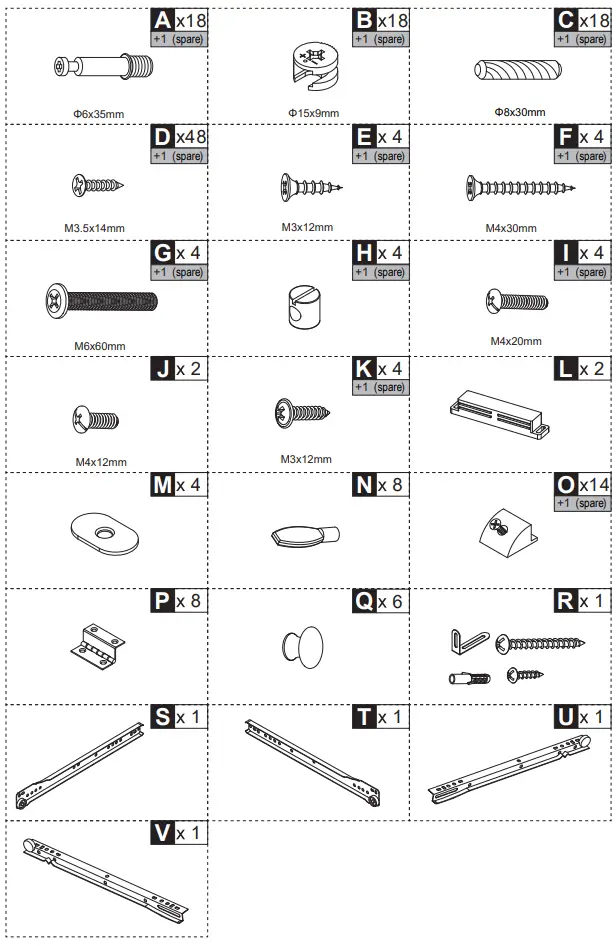

HARDWARE

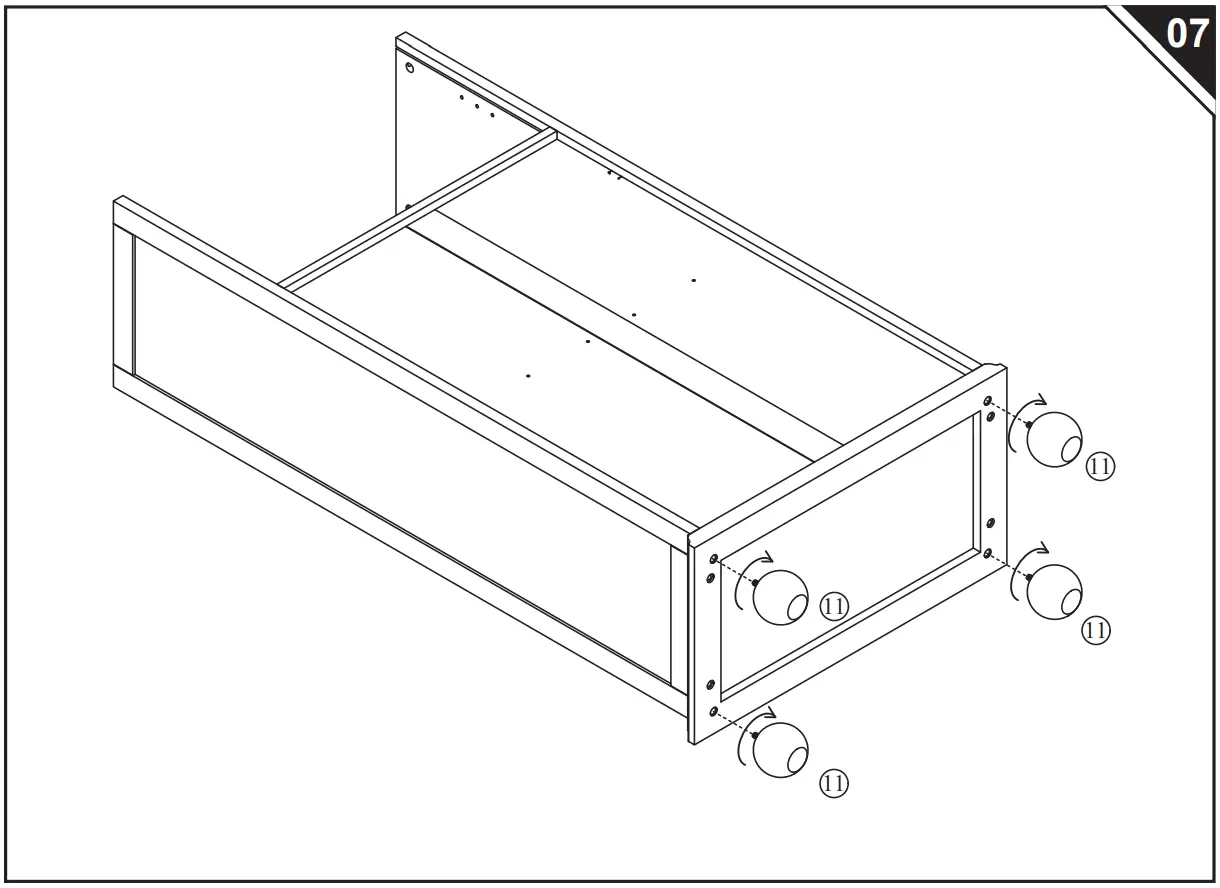

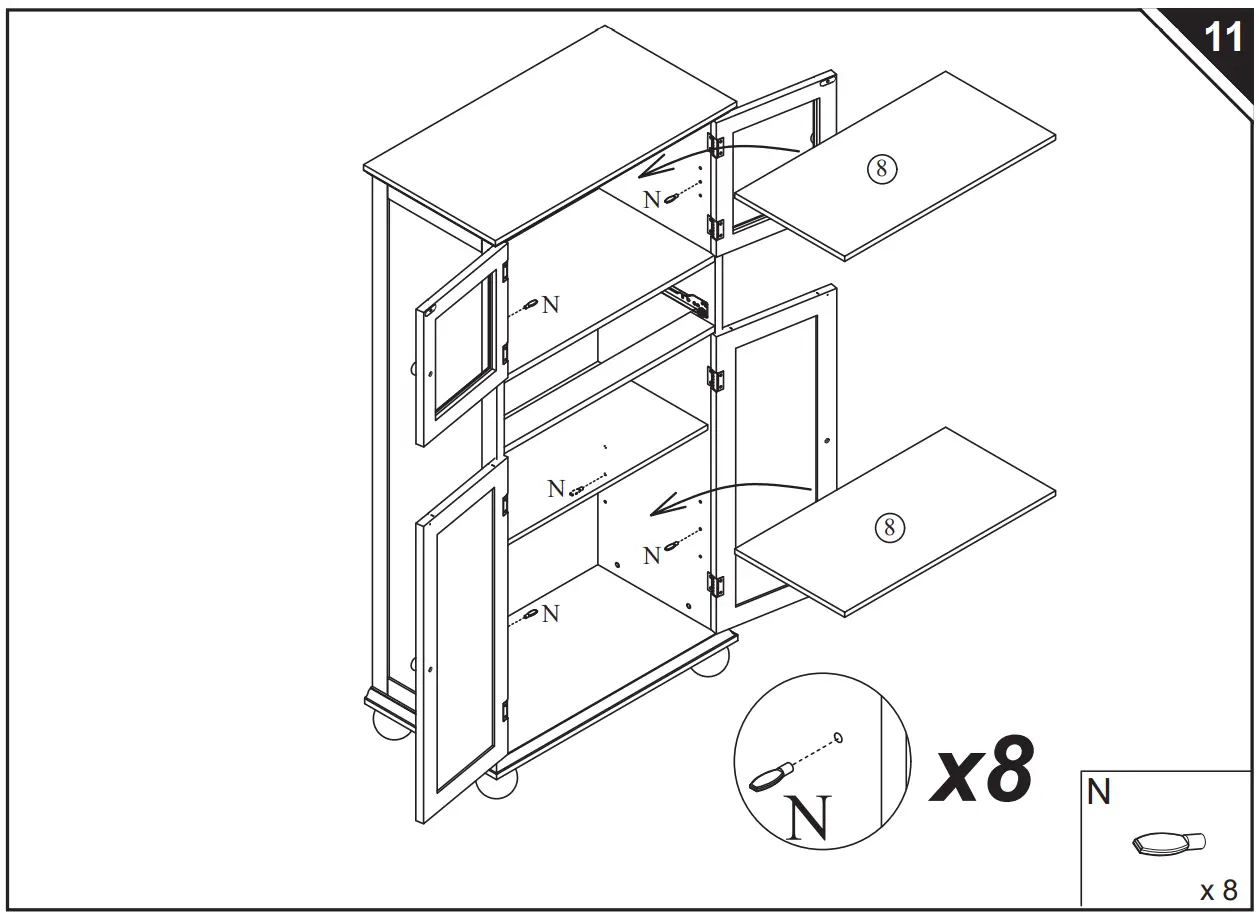

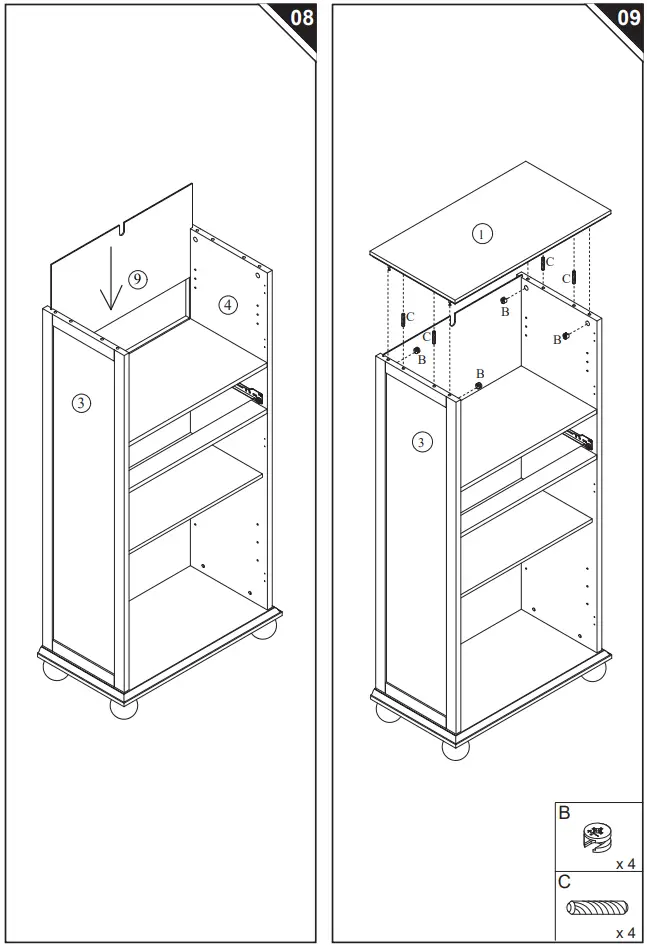

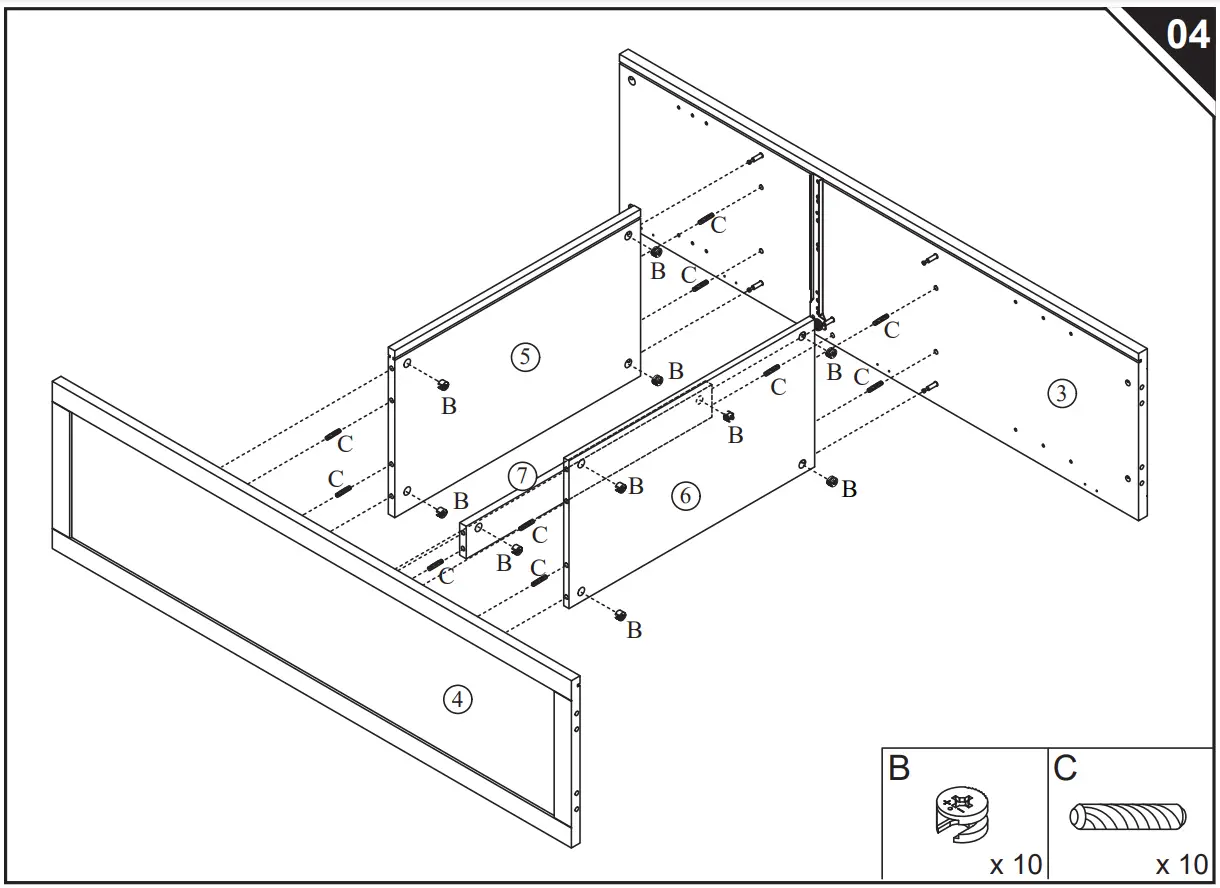

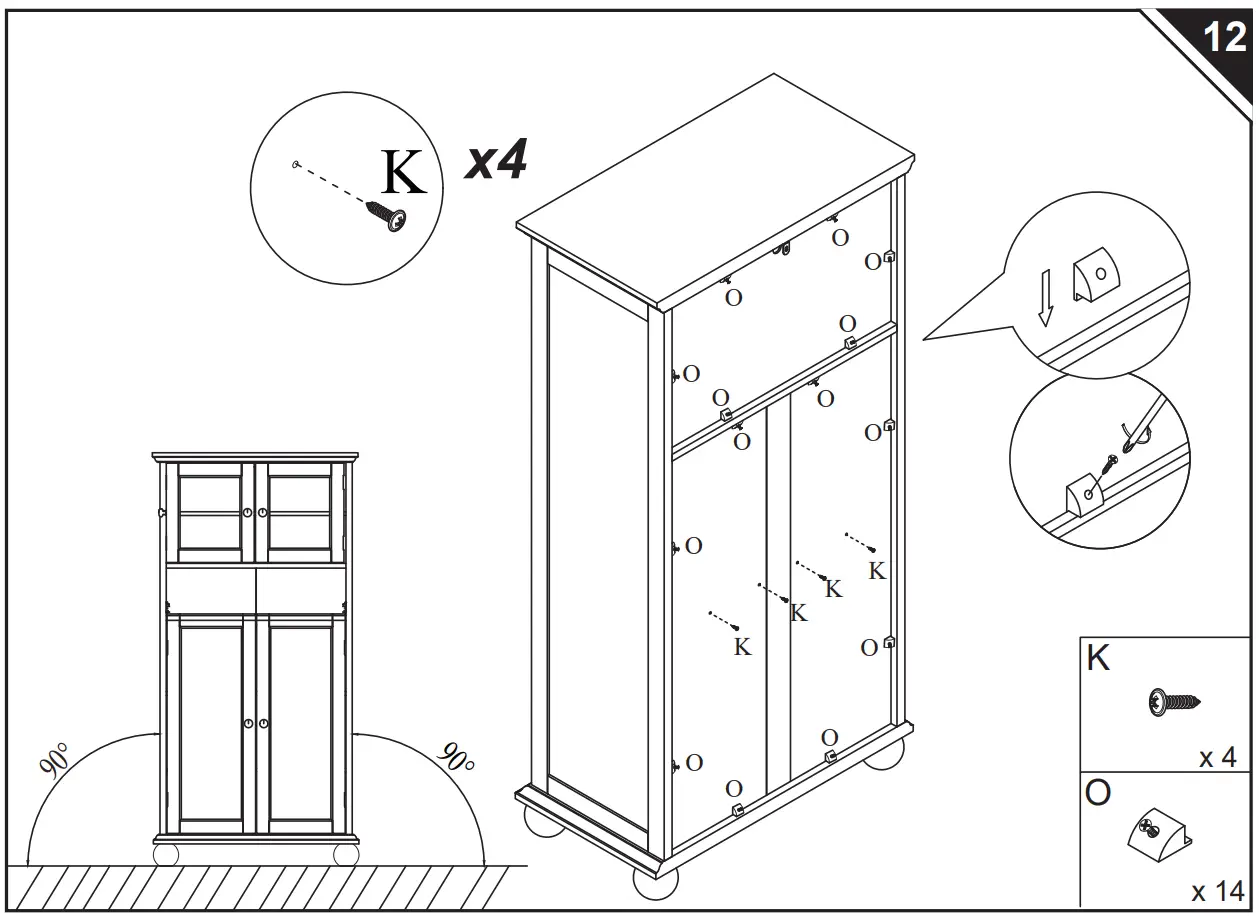

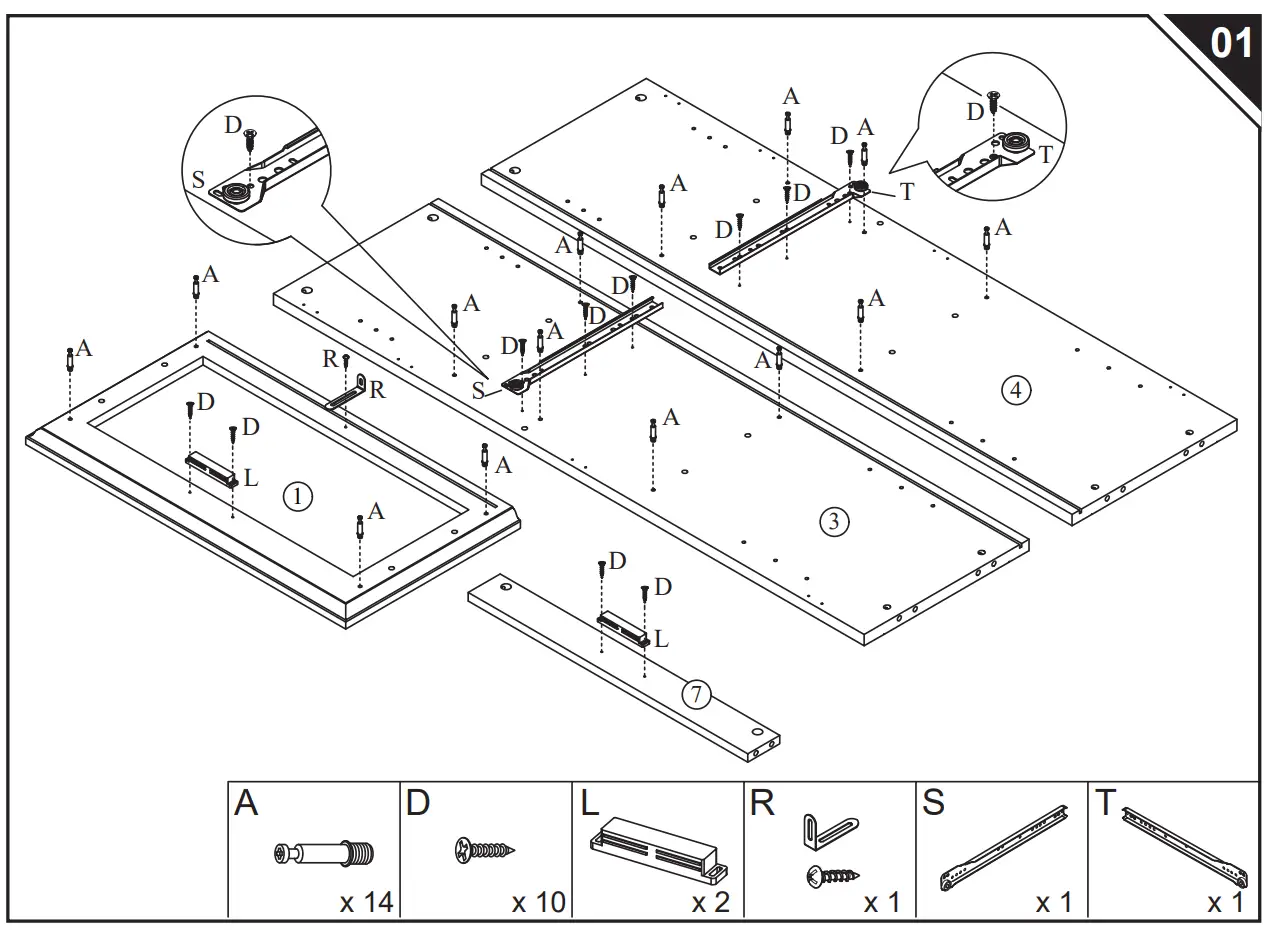

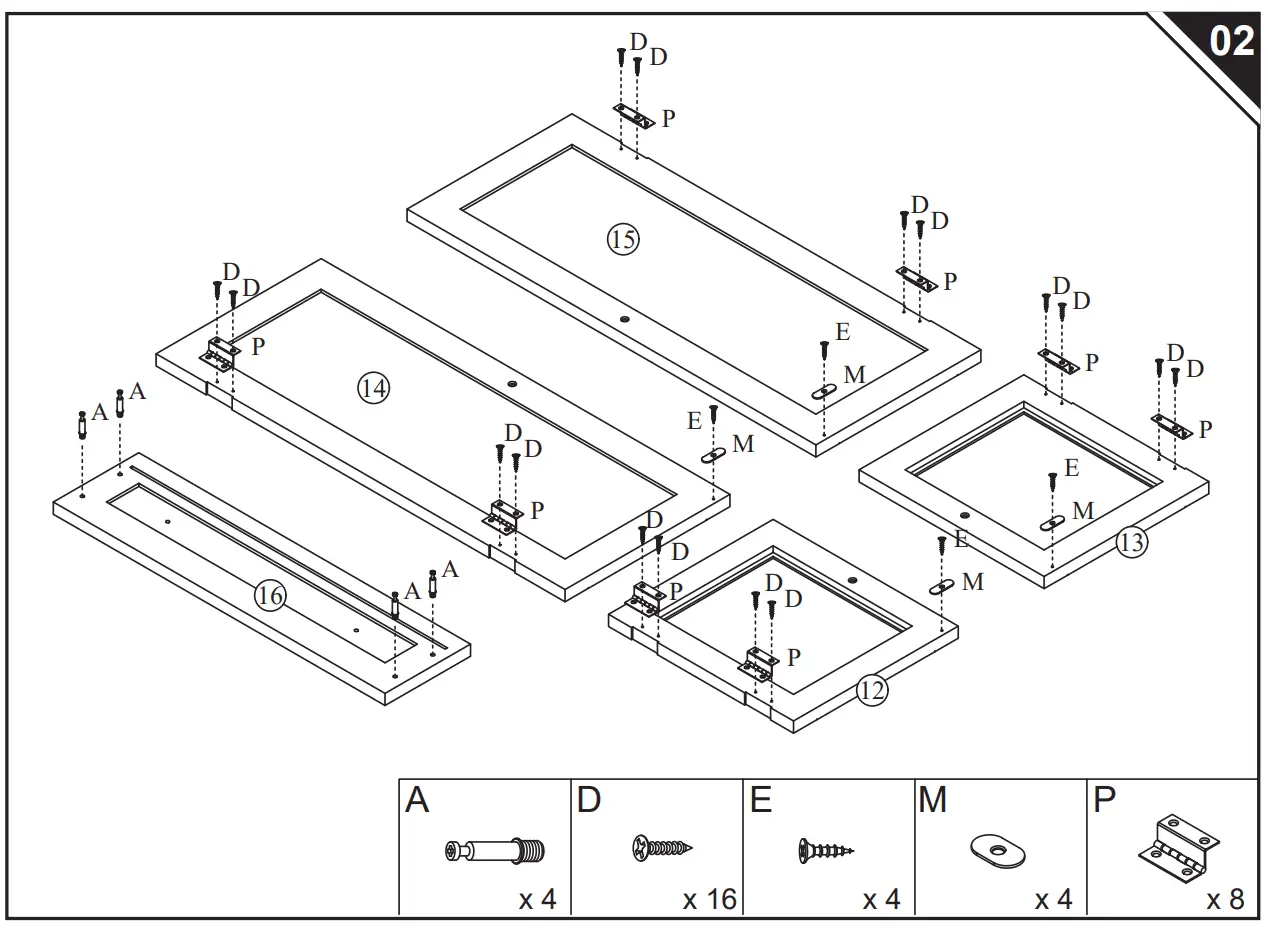

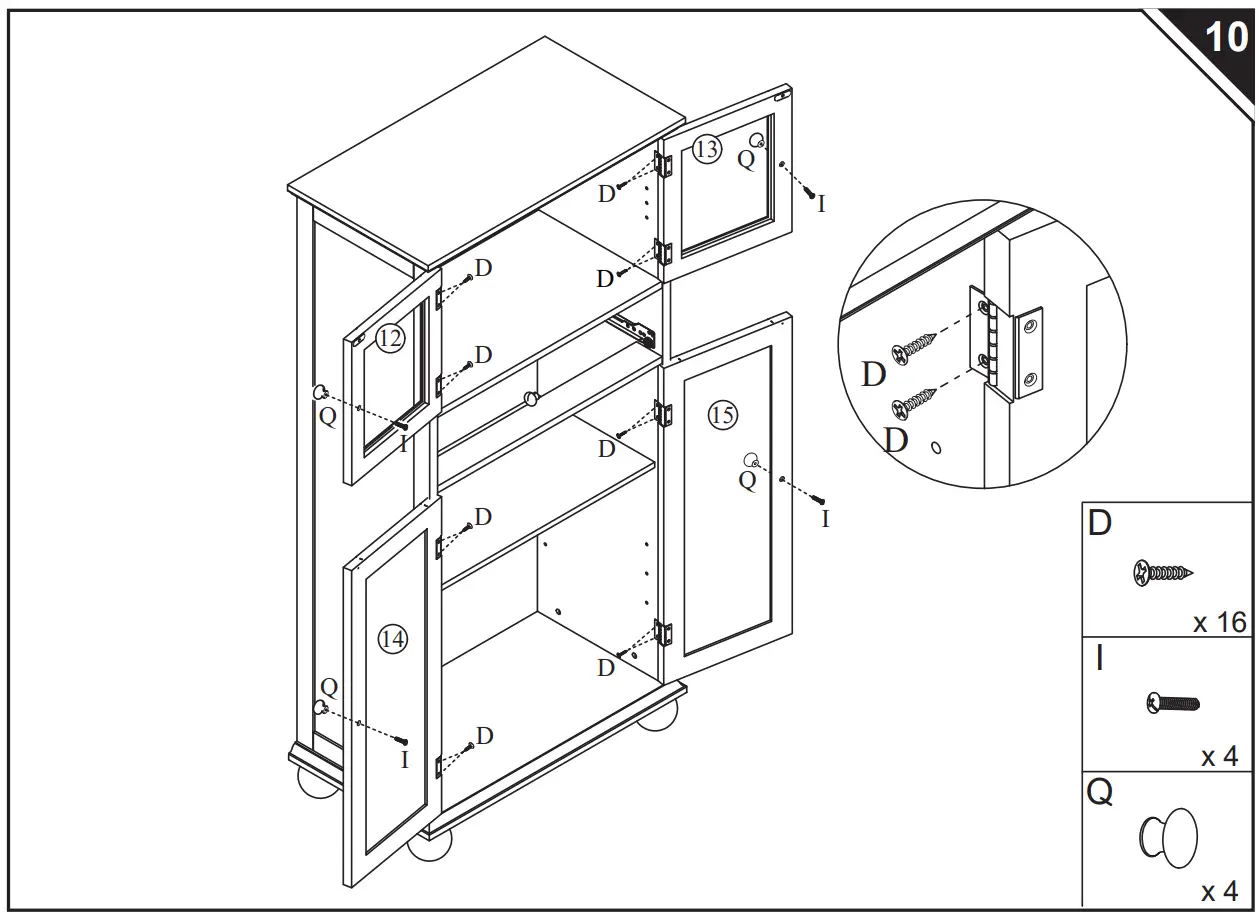

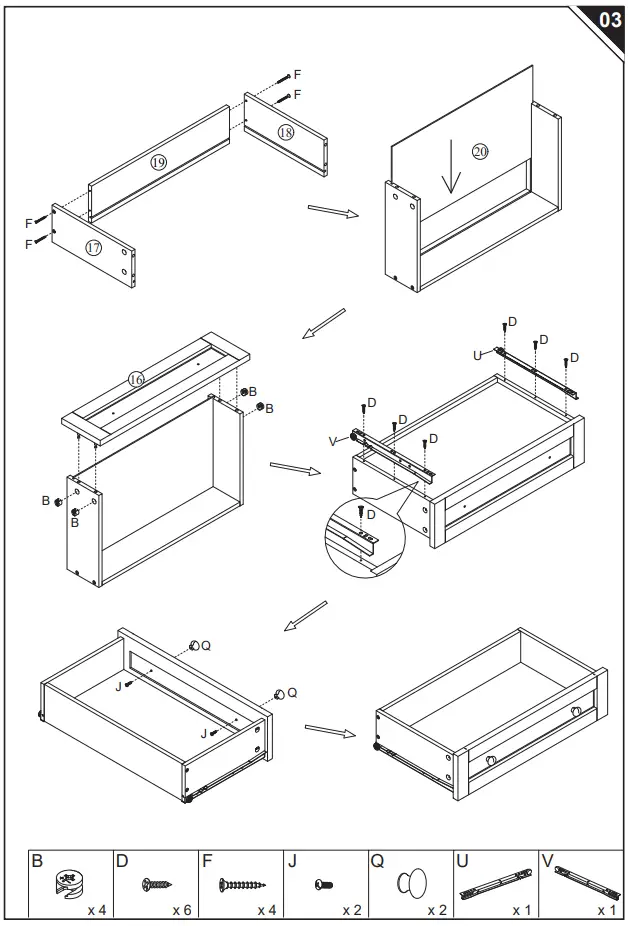

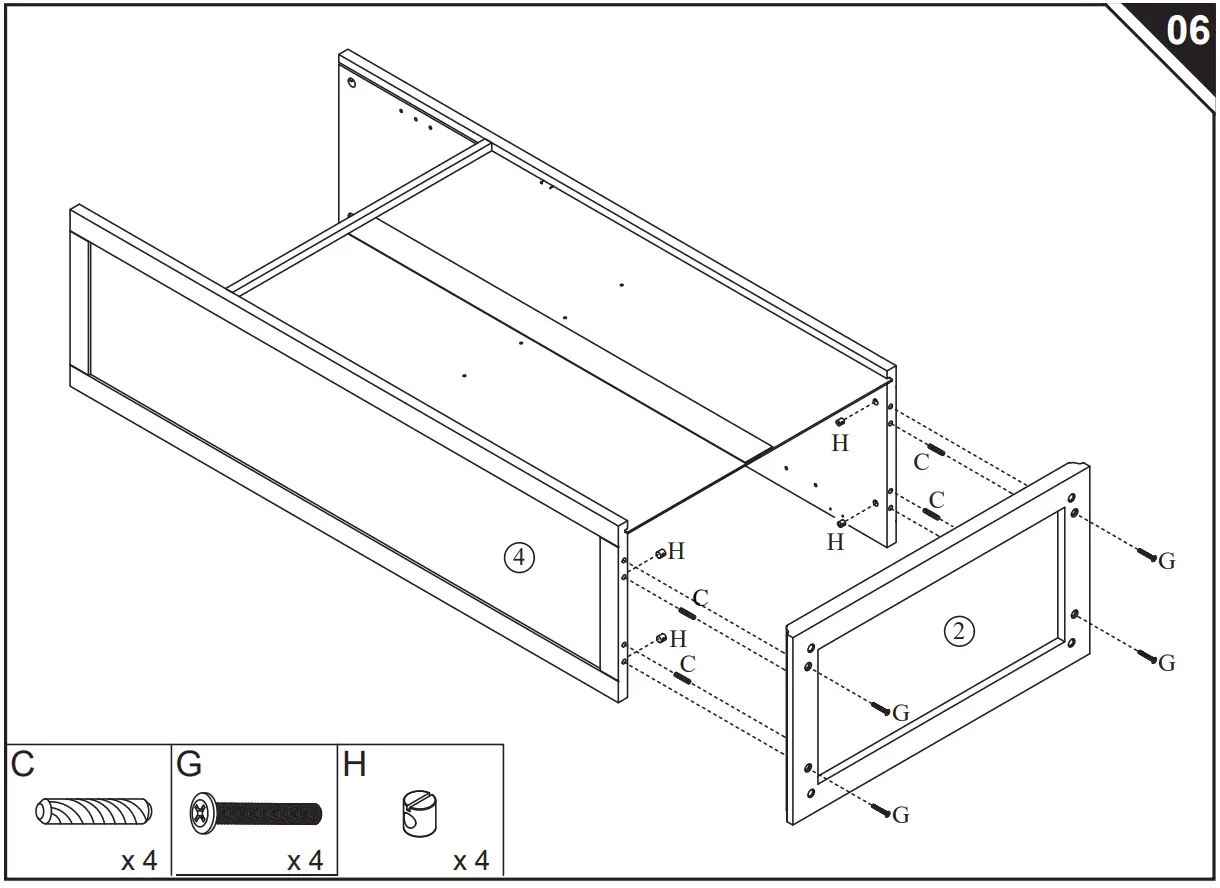

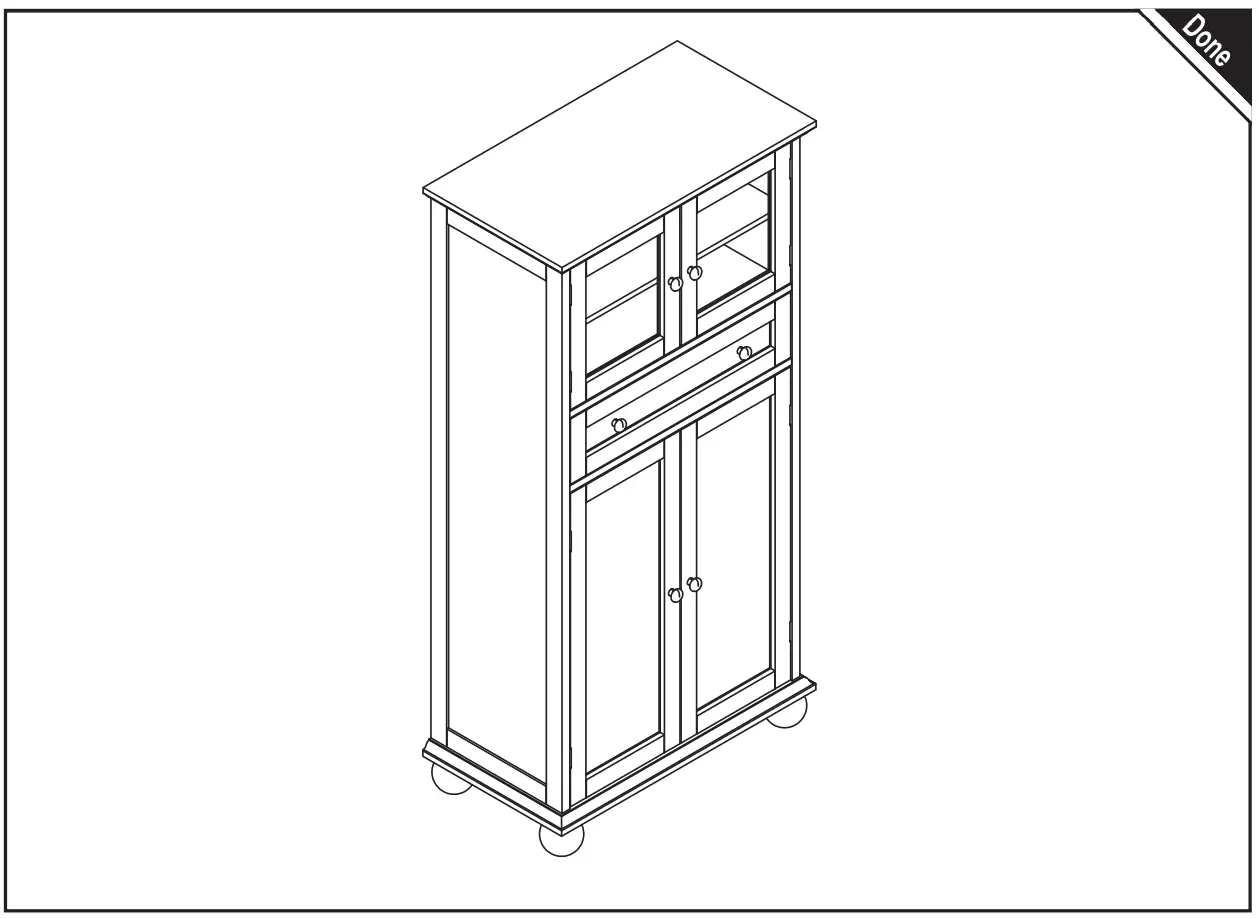

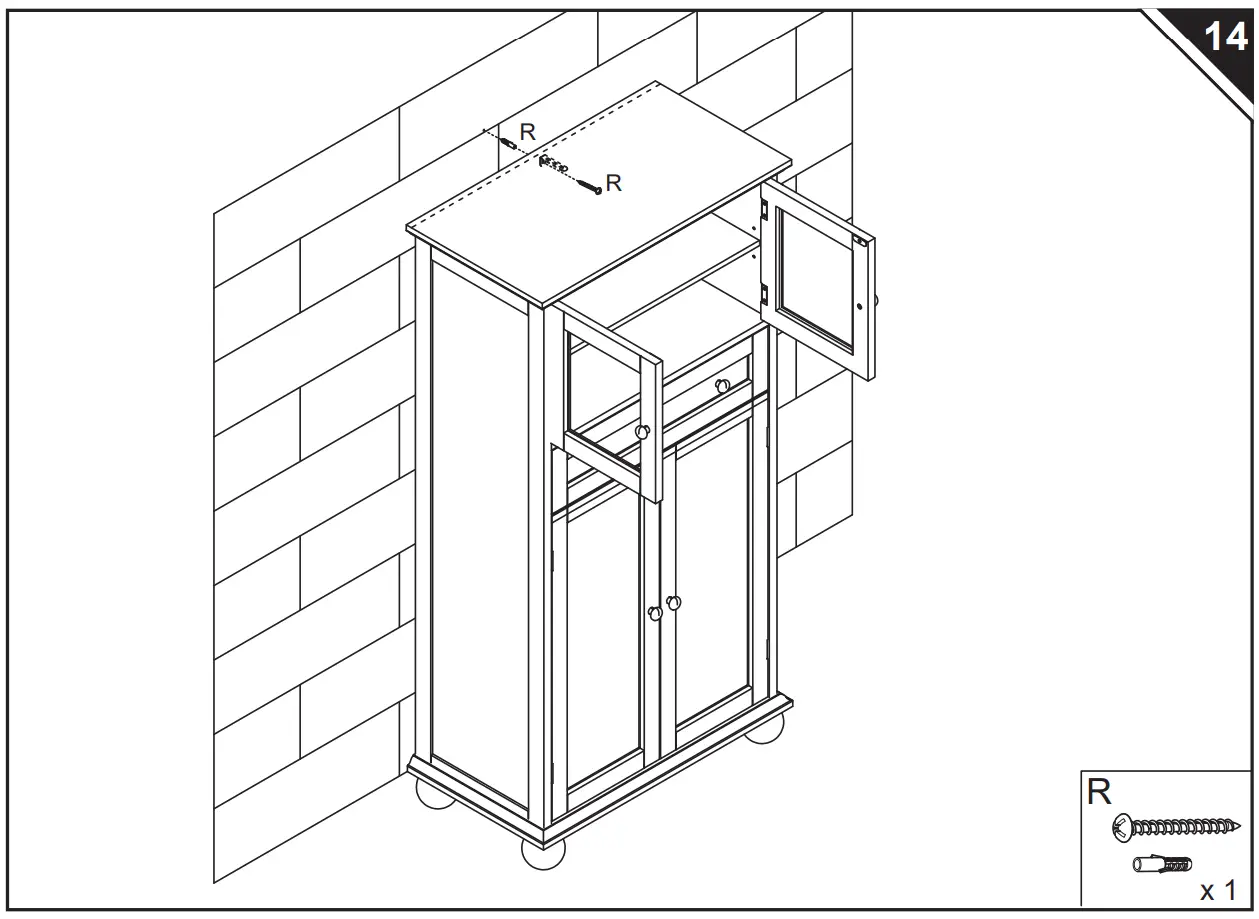

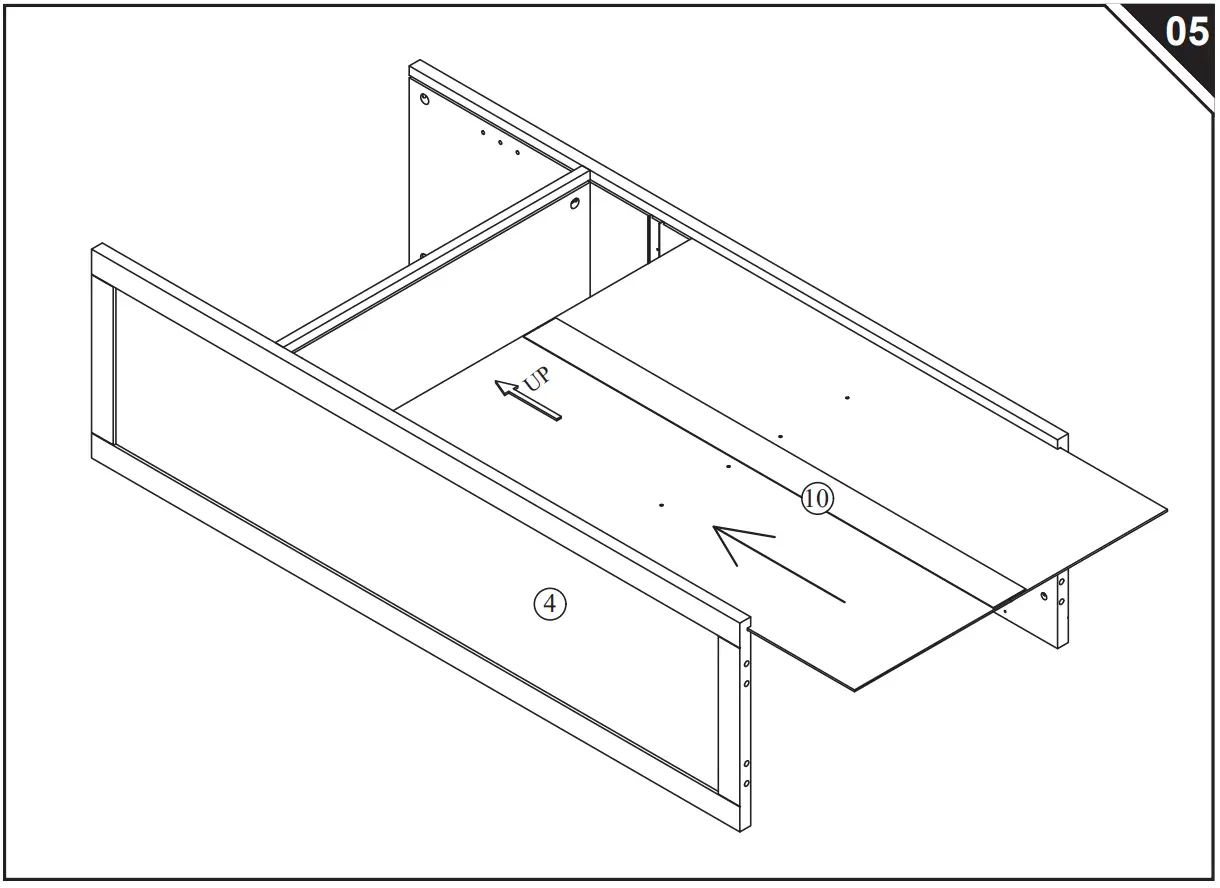

ASSEMBLY INSTRUCTIONS
