Hisense 58R6E3 Class Roku 4K-UHD Smart TV

Your easy way to endless entertainment

*Payment is required for some channel content. Channels can change and vary by country.
† Roku search is for movies and TV shows and does not work with all channels.
# Limitations apply to the Roku mobile app. Please see support.roku.com for device compatibility information.

WELCOME TO THE HISENSE FAMILY!
Congratulations on the purchase of your new Hisense Roku TV! This Quick Start Guide will walk you through a few easy steps to set up your TV.
Because we value your business, we want to keep you in the know of ‘all things Hisense’. Using your mobile phone, scan the Registration page QR code to register your TV. Depending on the make and model of your phone, you may need to download a QR code scanning app.

Country	Customer Care Center	Hisense Support Page	REGISTER YOUR TV
U.S.A	• Phone:1-888-935-8880   • Hours of Operation: Monday – Friday: 9 AM to 9 PM CST Saturday – Sunday: 9 AM to 6 PM EST • Service Email: [email protected]	http://www.hisense-usa.com/support/	http://www.hisense-usa.com/support/register

Disclaimer: This Quick Start Guide is intended as a general guideline to help you set up your Hisense Roku TV. Images throughout this document are for illustrative purposes only and may differ from the actual product.

Packaged contents

Your package in which you purchased your new TV contains the following items:

• TV
• 2 AAA batteries
• Remote Control
• 2 legs that form the TV stand
• Quick Start Guide (this document)
• 4 screws (M4×16) (43″)
• 4 screws (M4×12) (50″/55″/58″)
• 4 screws (M5×12) (65″)
• Important Safety Information and Warranty Card leaflet
• Power cord (65″)

IMPORTANT:
To prevent accidentally discarding items that came with your TV, be sure to check ALL of the foam in the carton box.

• Please check the foam for accessories before discarding it.

Required tools and devices

• Wireless router (not included) for Internet connectivity.
• Phillips screwdriver (not included) to secure the TV stand.
• HDMI and other types of cables (not included) to connect external devices to the TV.
• Wall mount bracket (not included) if you prefer to mount the TV to the wall.

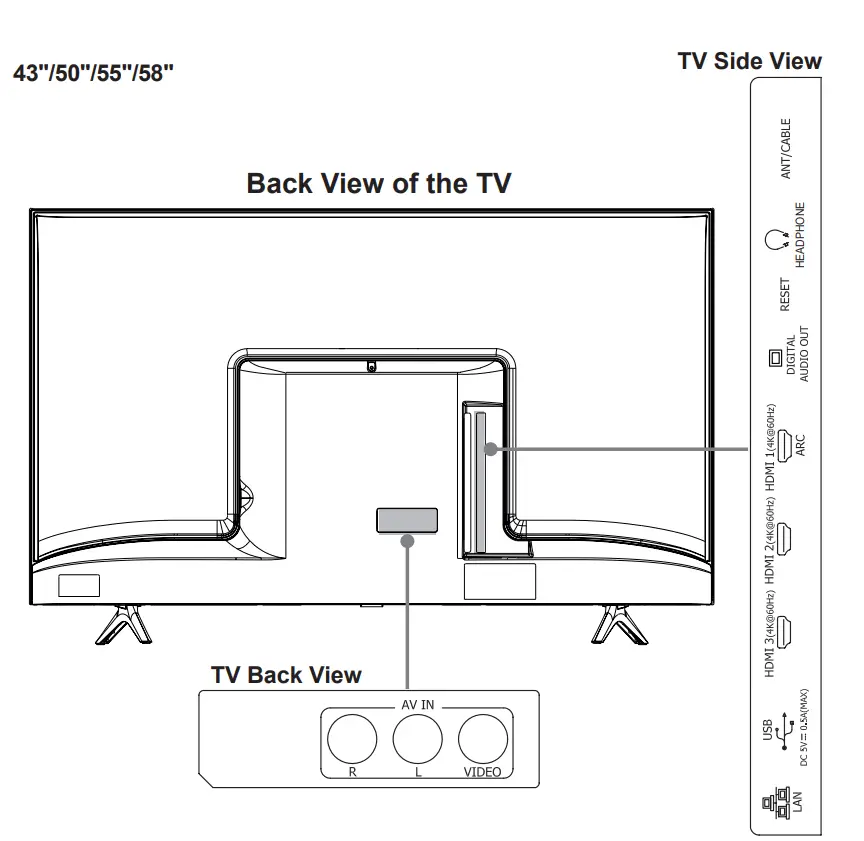

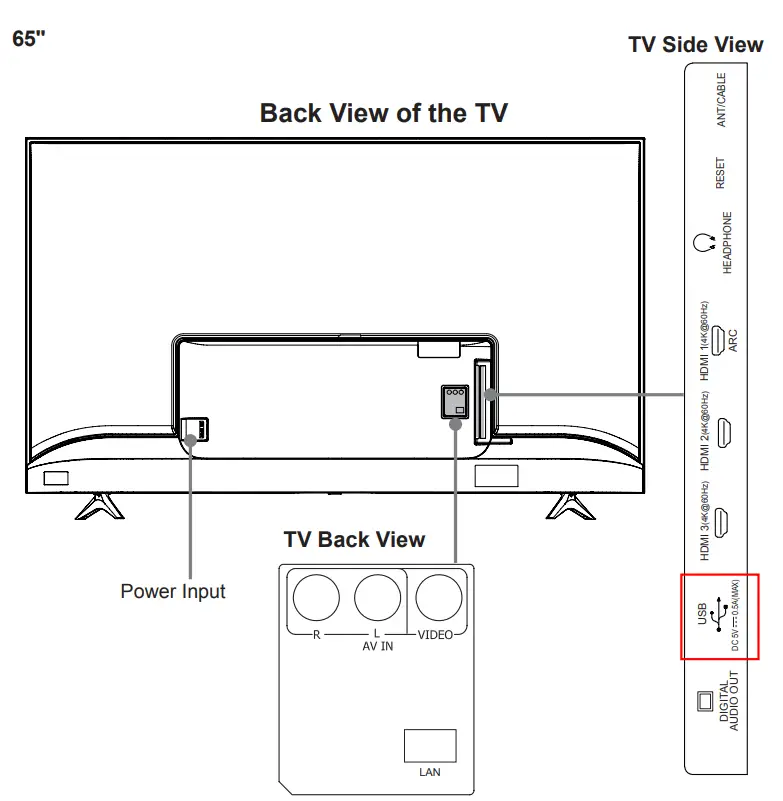

Buttons and ports on the Hisense Roku TV

Attach the TV stand or wall mount bracket (not included)

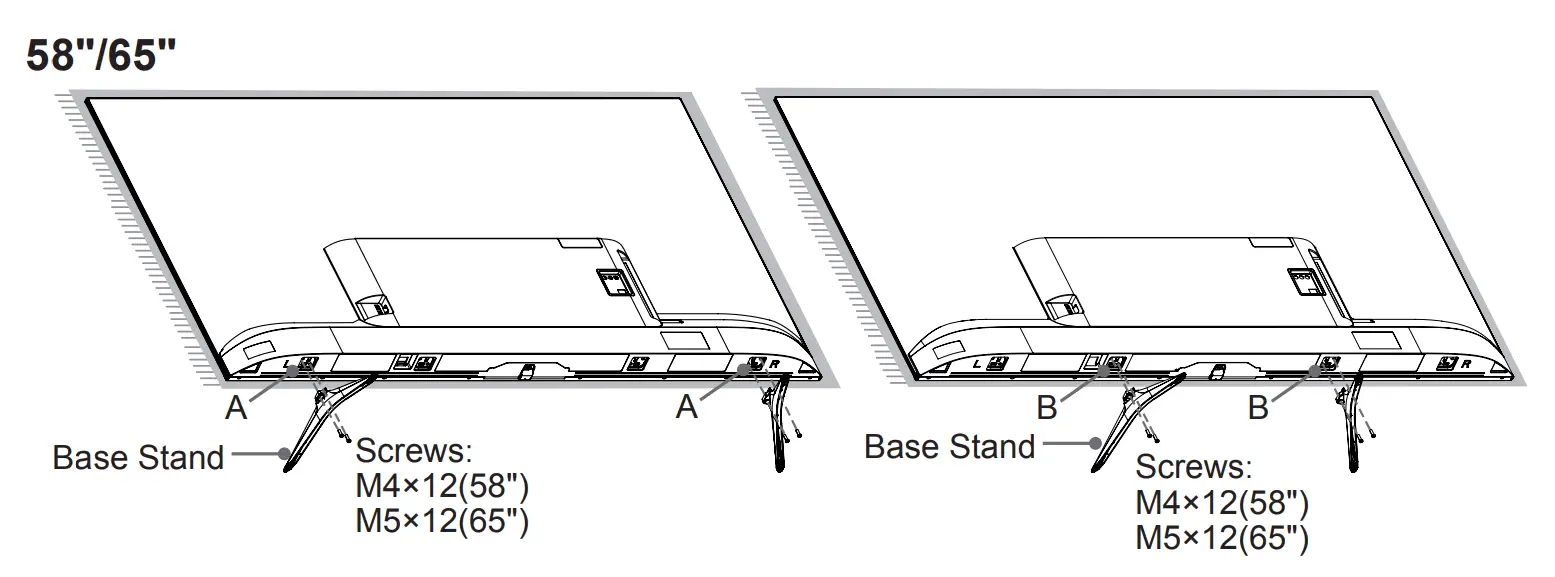

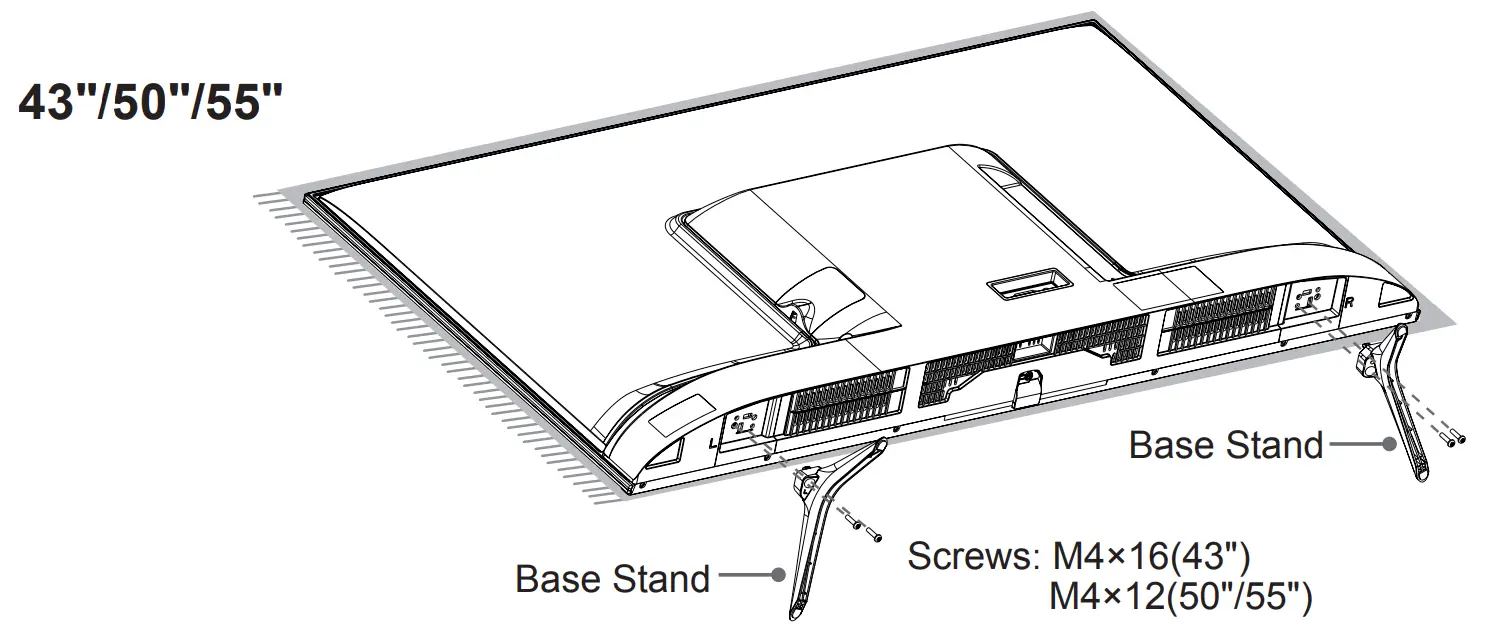

Attach the TV Stand

CAUTION:

• Be sure to disconnect the A/C power cord before installing a stand or Wall-Mount brackets.
• The LED display is very fragile and must be protected at all times when installing the legs that form the stand. Be sure to protect the TV screen from getting scratched or damaged by any hard objects. In addition, DO NOT exert pressure on the front of the TV at any time because it could crack.
• After the installation is complete, make sure the TV is steady on a table or firmly attached to a wall mount, before removing all protective film, if any.

To attach the left and right leg that forms the stand:

1. Carefully place your TV face down on a soft, flat surface to prevent the TV from being damaged or the screen from getting scratched.
2. Remove the 2 legs from the foam and then insert the legs into the bottom slots of the TV.
3. Use the screws that came inside the carton with your TV to secure each leg tightly.

Note: If your table is long enough to place the TV on top of, then insert the base stands into the screw holes ‘A’ that are shown in the illustration. If your table is NOT long enough, then insert the base stand into the screw holes ‘B’ that are shown in the illustration. Note that these two installation methods types cannot be mixed.

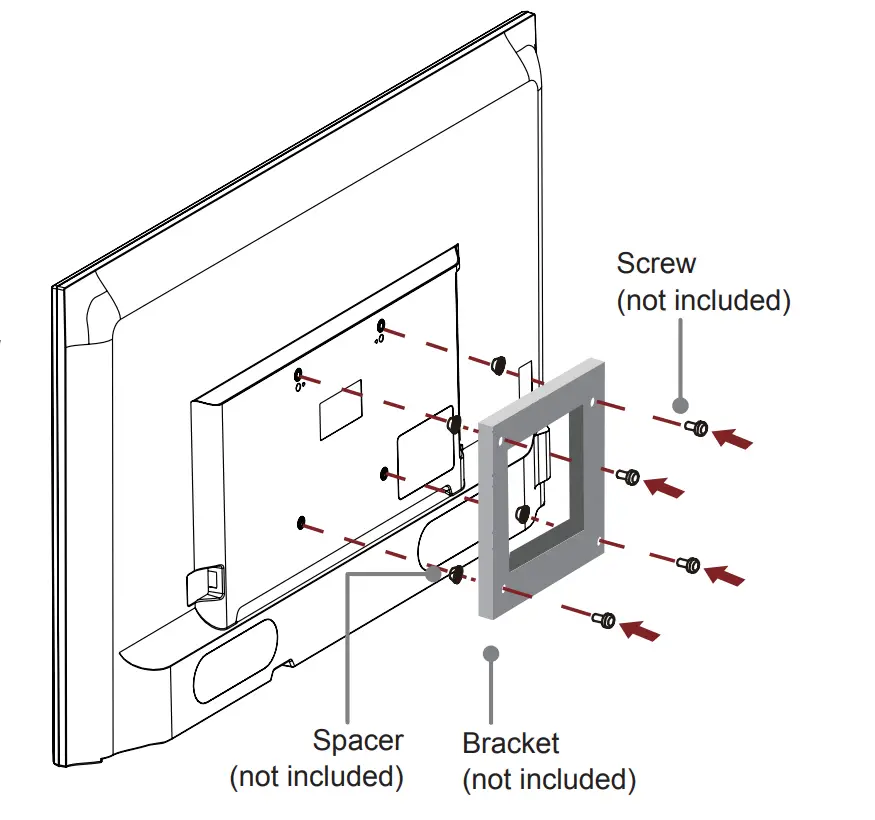

Attach the Wall Mount Bracket (not included)

Before you begin the third-party manufacturer instructions, be sure to do the following things:

1. Place the TV face down on a flat, clean, safe and cushioned surface.
2. Remove the TV stand if you already attached it.
3. Place the spacers (not included) in the corresponding bracket holes.

CAUTION:

• When you attach the mount, be sure to use the spacers (provided by the third-party manufacturer) between the TV and the bracket.
• To prevent internal damage to the TV and ensure it is mounted securely, be sure to use fixing screws (not provided) that are 9.5 – 11.5 mm (43″/65″)/8.0 – 10.0 mm (50″/55″/58″) in length when measured from the attaching surface of the mounting hook.

Follow the instructions provided with the Wall mount bracket.

• If you have additional questions, please contact the wall-mount manufacturer or the retailer from which you purchased the TV.

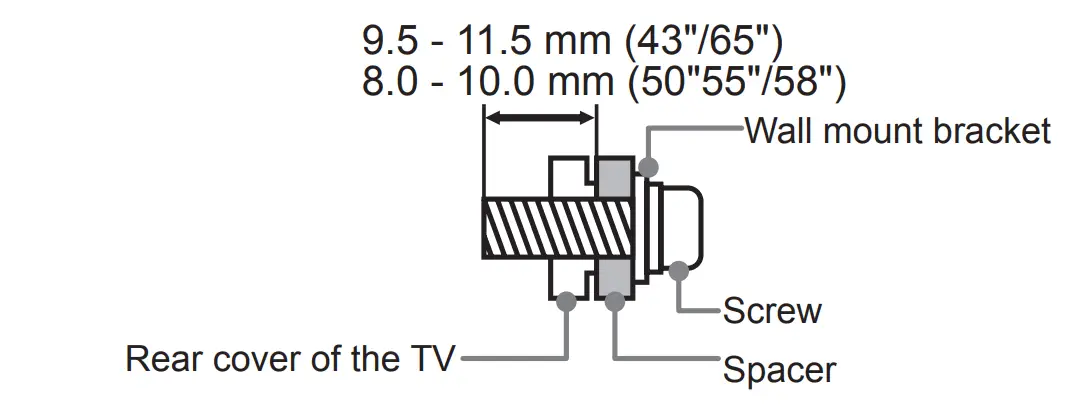

• The selected screws are 9.5 -11.5 mm (43″/65″)/8.0 – 10.0 mm (50″/55″/58″) in length when measured from the attaching surface of the rear cover.
  NOTE: The diameter and length of the screws differ depending on the wall mount bracket model.

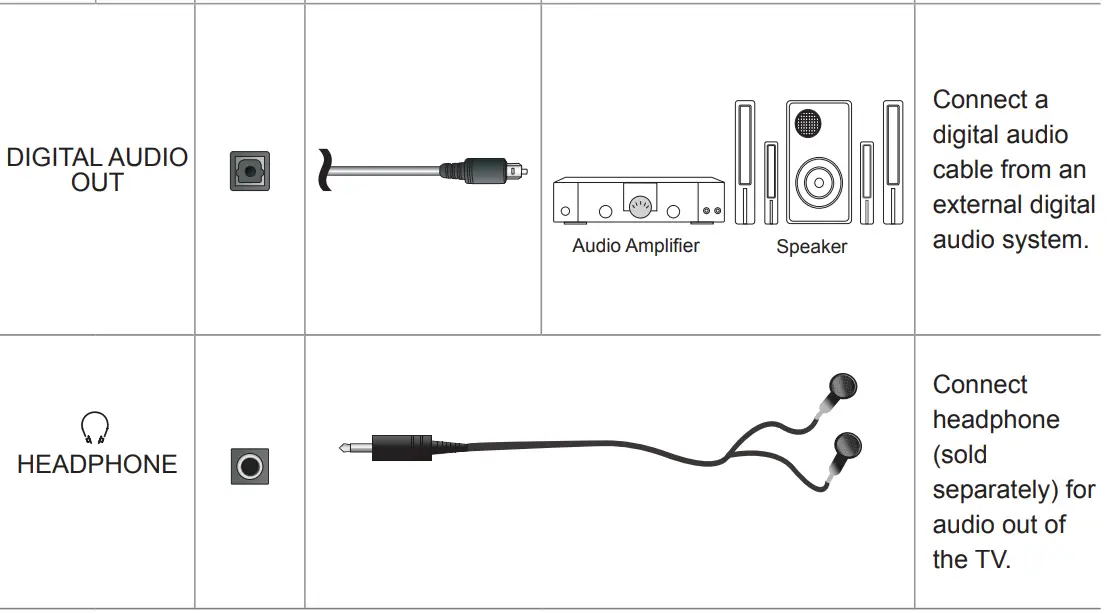

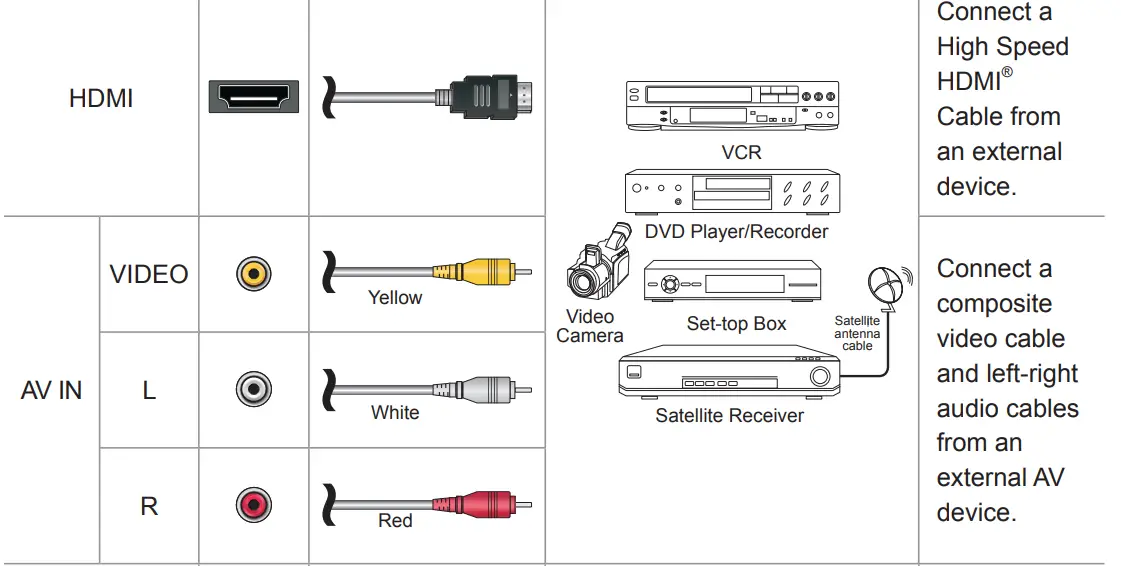

Connect devices to your TV

Check to ensure that you have selected the right cables for the ports and that they are connected securely. Loose connections can affect the quality of the picture image and color. (Cables and External Equipment not included.)

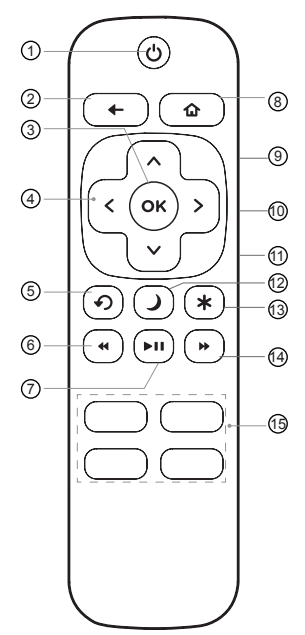

Buttons on your TV remote

The TV remote should feel right at home in your hand. We designed it to be incredibly intuitive for watching TV and navigating onscreen menus.

1. POWER: Turn your TV on or off
2. BACK: Return to the previous screen
3. OK: Select an option from a menu
4. DIRECTIONAL KEYPAD: The left arrow will bring up the antenna TV channel list or Smart Guide. The left and right arrows are used in Live TV Pause to select scenes.
5. CHANNEL RECALL/JUMP BACK AND INSTANT REPLAY:
   Change to the previous channel when viewing antenna or cable (no set-top box) programming Jump back one position in video when viewing streaming content Backspace one letter during menu entries, such as Search.
6. REWIND: Rewind the streaming video, jump to the previous audio track or selection, jump up one page in menus. This button is also used to rewind paused live TV using Live TV Pause.
7. PLAY/PAUSE: Pause or resume playback. This button is also used to activate and use the Live TV Pause feature**
8. HOME: Display your TV’s Home screen / Stop playback if you are watching TV or streaming content
9. VOLUME UP (Side view): Increase the volume or unmute the sound.
10. VOLUME DOWN (Side view): Decrease the volume
11. MUTE (Side view): Mute or un-mute the sound
12. SLEEP: Set the sleep timer
13. VIEW MORE OPTIONS: Give you easy access to picture settings, display options, and more / Press on any screen to access options
14. FAST FORWARD: Fast forward to streaming video, jump to the next audio track or selection, and jump down one page in the menus. This button is also used to fast-forward paused live TV using Live TV Pause.
15. STREAMING CHANNELS SHORTCUTS:
    When you press a button:
    • If you have not added the channel, display a signup page
    • If you have added the channel, display the channel’s home page
    • If your TV is off, turn on your TV and display the channel’s home page.

Disclaimer:
* Remotes may vary.
** A 16GB USB is required.
Maximum playback of 90 minutes.

Begin using your remote

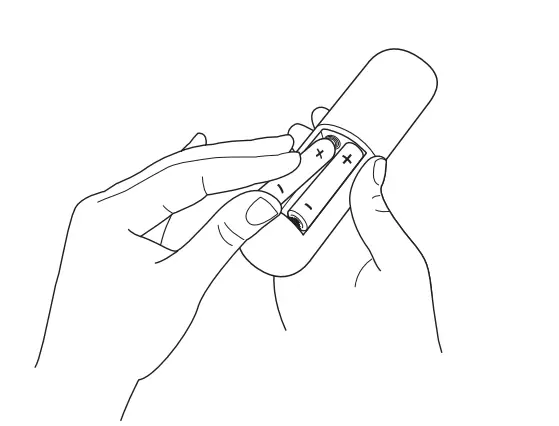

Power up your TV remote by inserting the included batteries.
CAUTION

• Dispose of the batteries in a designated disposal area. Do not throw them into a fire.
• Remove old batteries immediately to prevent them from leaking into the battery compartment.
• If you do not intend to use the remote control for a long time, remove the batteries.
• Battery chemicals can cause a rash. If the batteries leak, clean the battery compartment. If chemicals touch your skin, wash it immediately.
• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon-zinc) or rechargeable (for example, NiCd or NiMH) batteries.
• If your remote gets warm/hot during use, discontinue use and contact customer support immediately at www.hisense-usa.com/support.

Using Your Cable Set-top Box or Satellite Receiver Remote as a ‘Universal Remote’.
If you prefer to use your Cable Set-top Box or Satellite Receiver Remote as a ‘Universal Remote’, please refer to the manual that your cable or satellite service provided. It will include instructions on how to program their remote to your television. You can find codes that work with your Hisense Roku TV and the most common cable and satellite provider’s universal remote control at www.roku.com/universalremote.

Turn on the TV

Connect the power cord to the power outlet.

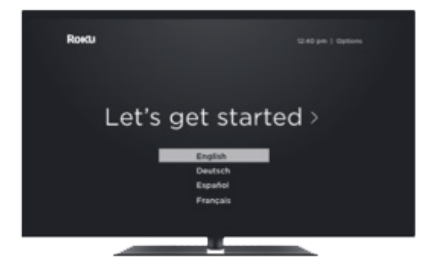

Press the Power button on the remote to turn on the TV. A startup screen appears that displays the Hisense • Roku TV logo.

Choose Set up for home use to access all TV features and maximize Eco Save.
NOTE: Only retailers that need to set up the TV for display should select Set up for store use.
Hisense Roku TV Text to Speech Functionalities
Text-to-Speech and Video Description functionalities on the TV
Text-to-Speech (TTS) and Video Description can help you to navigate the menus on the screen and hear an audio description of relevant programs. Text-to-Speech can convert written text into voice text to help visually impaired people listen to the information they are unable to read. In addition, the Video Description has an audio narration added to certain programs that will describe the main visual elements which visually impaired users may not be able to see.
Follow the steps below to enable the functions:

1. Press the Home button to access the Menu.
2. Next, select Settings to enter the Settings Menu.
3. Select Accessibility > Audio Guide to turn the Audio Guide ‘On’ or ‘Off’.
   When the Audio Guide is turned ‘On’, then the contents of each menu displayed can be broadcasted out and you can hear the introduction of relevant programs.
   https://www.hisense-usa.com/hisense-roku-tv-text-to-speech-functionalities

Connect your TV to the Internet to access thousands of streaming channels.

• Make any night a movie night
  Access more than 500,000* movies and TV episodes across major streaming services like Netflix, Hulu, HBO Now, VUDU and more. Choose from free, rental, and subscription services.
• Stream sports on the big screen
  Choose from over 140 sports channels like ESPN, NBC Sports, WWE, NBA, and more.
• Explore loads of free channels and free trials**
  Your Hisense Roku TV has hundreds of popular free channels like The Roku Channel, ABC News, PBS, The CW and more. The Roku Channel features hundreds of Hollywood hits, all free and available to watch whenever you want. From comedies to award-winners, to cult classics and more, No fees. And no login required.
• Explore your passions
  Your Hisense Roku TV offers hundreds of streaming channels to fuel your passions – including fitness, kids & family, cooking, sports, religion, travel, International programming, and more.
• 4K Spotlight
  The Roku 4K UHD Spotlight channel features many movies and TV shows available in 4K UHD resolution from streaming services such as Netflix, Smithsonian, VUDU, and more.

*Payment is required for some channel content. Channels can change and vary by country.
**Cancel before the end of the free trial period to avoid reoccurring monthly subscription fees. A credit card may be required. Free trials may only be available to new subscribers
and other eligibility restrictions may apply.

Complete Guided Setup and Activation

Tip: Have your wireless network name and password handy.
Follow the on-screen instructions on your Roku TV.

Activate your Roku TV using your computer, smartphone, or tablet to link to a Roku account. You need a Roku account to activate your Roku TV and access entertainment across thousands of streaming channels.

Note: Roku doesn’t charge for activation support – beware of scams.
Roku accounts are free and while a valid credit card number is not required to create a Roku account, saving your credit card information makes renting, purchasing, and subscribing to entertainment from the Roku Channel Store fast and convenient.
Once connected to your account, your TV will automatically update with the latest software, and you can start streaming immediately.
If you aren’t ready to connect your TV to a wireless network, you can still use it as a regular TV.
Complete the rest of the on-screen prompts and the setup is done. Congratulations!
NOTE: Once you’re connected, your TV will automatically update with the latest software—plus you can start streaming the entertainment you know and love. Unlike other TVs, your new Hisense Roku TV automatically receives regular software updates in the background when it’s connected to the Internet. This allows it to give you a better experience. For more information on setting up and using your Roku TV features, go to http://go.roku.com/tvmanual.
All software, applications, services and content accessible through the Television belong to providers who are not controlled by or affiliated with Hisense, are protected by copyright, patent, trademark, and/or other intellectual property laws, and are the sole property of their respective owners. Software, applications, services, and content accessible through the Television are at the sole discretion and control of such providers and are completely outside Hisense’s control. These services and/or content may be unavailable, discontinued, or suspended by such providers, temporarily or permanently, at any time, without liability and without notice to you. HISENSE AND ROKU EXPRESSLY DISCLAIM ANY AND ALL RESPONSIBILITY FOR THE AVAILABILITY, CONTINUITY OF SERVICE, OR THE CONTENT PROVIDED BY ANY OR ALL SUCH PROVIDERS.

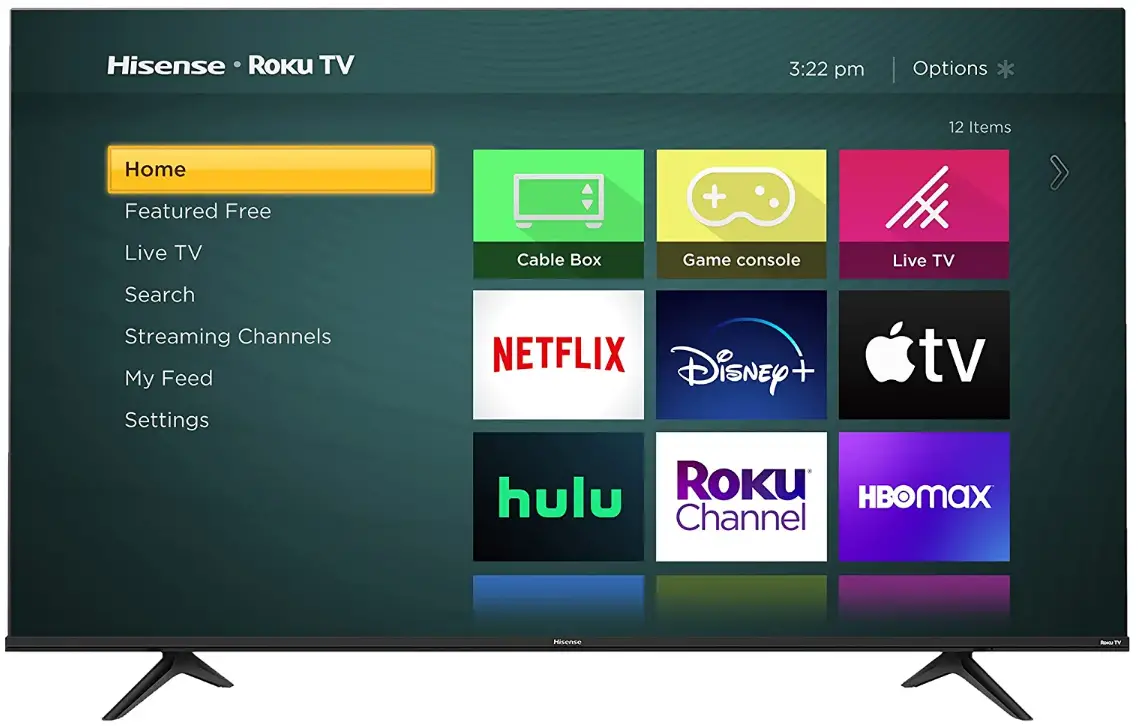

Personalize your Home screen

Easily switch between streaming channels and inputs.
The home screen menu lets you access a ton of streaming entertainment, search for streaming movies and TV shows and change your settings.
The grid of tiles on the right lets you visually choose among your favorite streaming channels and the inputs where you have attached devices such as a DVR, game console, antenna, or set-top box.
You can easily rearrange the order of the tiles on the Home screen to suit your viewing preferences. Highlight the tile you wish to move and press the * button on your Roku TV remote.

Optional

Watching local broadcast TV? How do you scan for channels?
If you connected your TV to an antenna or cable wall jack (no box):

1. When the setup wizard is complete, select the ANTENNA icon from the home screen.
2. follow the on-screen instructions.
3. Whenever you want to watch local broadcast TV, select the ANTENNA icon.
4. Connect a USB memory stick to enjoy photos, music, and movies or to enable Live TV Pause. Live TV Pause is only available on the Antenna input of your Hisense Roku TV for up to 90 minutes when connected to a dedicated USB 2.0 compatible flash drive with at least 16GB of storage.

Product specifications

Quick problem-solving tips

When you experience an issue with your TV, turn it off and on again. If this does not resolve the problem, then refer to the tips below. If the problem is still not resolved, then contact us at one of the phone numbers on Page 2.

Certification and Compliance

FCC Notice
This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the device and receiver. Connect the device into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.
NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.
The WiFi Module complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.
Declaration of Conformity
Trade Name: Hisense
Model: 43R6E3 / 43R6E1 / 50R6E3 / 50R6E1 / 55R6070G / 55R6090G / 55R6E1 / 58R6E3 / 58R6E / 65R6E3 / 65R6E1
Responsible Party: Hisense USA Corporation
Address: 7310 McGinnis Ferry Road, Suwanee, GA 30024
Telephone Number: 678-318-9060
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, and DTS Studio Sound are registered trademarks and/or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.
Dolby, Dolby Vision, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 1992-2019 Dolby Laboratories. All rights reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

©2020. All rights reserved. Hisense and the Hisense logo are registered trademarks of Hisense. Other brand and product names are registered trademarks of their respective owners.
