LEDVANCE HB P 87W 840 70DEG IP65 Highbay Gen4 Sensor
| EAN | Ø x h [mm] | W | VAC | Hz | lm | lm/W | K | |
| HB P 87W 840 110DEG IP65 | 4058075692718 | 280 x 155 | 87 | 220-240V | 50/60 Hz | 13000 | 150 | 4000 |
| HB P 87W 840 70DEG IP65 | 4058075692787 | 280 x 155 | 87 | 220-240V | 50/60 Hz | 13000 | 150 | 4000 |
| HB P 147W 840 110DEG IP65 | 4058075692794 | 321 x 152 | 147 | 220-240V | 50/60 Hz | 22000 | 150 | 4000 |
| HB P 147W 840 70DEG IP65 | 4058075692800 | 321 x 152 | 147 | 220-240V | 50/60 Hz | 22000 | 150 | 4000 |
| HB P 190W 840 110DEG IP65 | 4058075692817 | 321 x 156 | 190 | 220-240V | 50/60 Hz | 27000 | 140 | 4000 |
| HB P 190W 840 70DEG IP65 | 4058075692824 | 321 x 156 | 190 | 220-240V | 50/60 Hz | 27000 | 140 | 4000 |
| HB P 210W 840 70DEG IP65 | 4058075692831 | 321 x 156 | 210 | 220-240V | 50/60 Hz | 30000 | 140 | 4000 |
| HB P 87W 865 110DEG IP65 | 4058075692848 | 280 x 155 | 87 | 220-240V | 50/60 Hz | 13000 | 150 | 6500 |
| HB P 87W 865 70DEG IP65 | 4058075692855 | 280 x 155 | 87 | 220-240V | 50/60 Hz | 13000 | 150 | 6500 |
| HB P 147W 865 110DEG IP65 | 4058075692862 | 321 x 152 | 147 | 220-240V | 50/60 Hz | 22000 | 150 | 6500 |
| HB P 190W 865 70DEG IP65 | 4058075692879 | 321 x 156 | 190 | 220-240V | 50/60 Hz | 27000 | 140 | 6500 |
| HB P 210W 865 70DEG IP65 | 4058075692886 | 321 x 156 | 210 | 220-240V | 50/60 Hz | 30000 | 140 | 6500 |
| EAN | IP | IK | Ra | (°C) | PF | |||
| HB P 87W 840 110DEG IP65 | 4058075692718 | 65 | 08 | 110° | ≥ 80 | -30 … +50 | > 0.9 | 2.3 kg |
| HB P 87W 840 70DEG IP65 | 4058075692787 | 65 | 08 | 70° | ≥ 80 | -30 … +50 | > 0.9 | 2.3 kg |
| HB P 147W 840 110DEG IP65 | 4058075692794 | 65 | 08 | 110° | ≥ 80 | -30 … +50 | > 0.9 | 2.6 kg |
| HB P 147W 840 70DEG IP65 | 4058075692800 | 65 | 08 | 70° | ≥ 80 | -30 … +50 | > 0.9 | 2.6 kg |
| HB P 190W 840 110DEG IP65 | 4058075692817 | 65 | 08 | 110° | ≥ 80 | -30 … +50 | > 0.9 | 2.8 kg |
| HB P 190W 840 70DEG IP65 | 4058075692824 | 65 | 08 | 70° | ≥ 80 | -30 … +50 | > 0.9 | 2.8 kg |
| HB P 210W 840 70DEG IP65 | 4058075692831 | 65 | 08 | 70° | ≥ 80 | -30 … +50 | > 0.9 | 2.8 kg |
| HB P 87W 865 110DEG IP65 | 4058075692848 | 65 | 08 | 110° | ≥ 80 | -30 … +50 | > 0.9 | 2.3 kg |
| HB P 87W 865 70DEG IP65 | 4058075692855 | 65 | 08 | 70° | ≥ 80 | -30 … +50 | > 0.9 | 2.3 kg |
| HB P 147W 865 110DEG IP65 | 4058075692862 | 65 | 08 | 110° | ≥ 80 | -30 … +50 | > 0.9 | 2.6 kg |
| HB P 190W 865 70DEG IP65 | 4058075692879 | 65 | 08 | 70° | ≥ 80 | -30 … +50 | > 0.9 | 2.8 kg |
| HB P 210W 865 70DEG IP65 | 4058075692886 | 65 | 08 | 70° | ≥ 80 | -30 … +50 | > 0.9 | 2.8 kg |

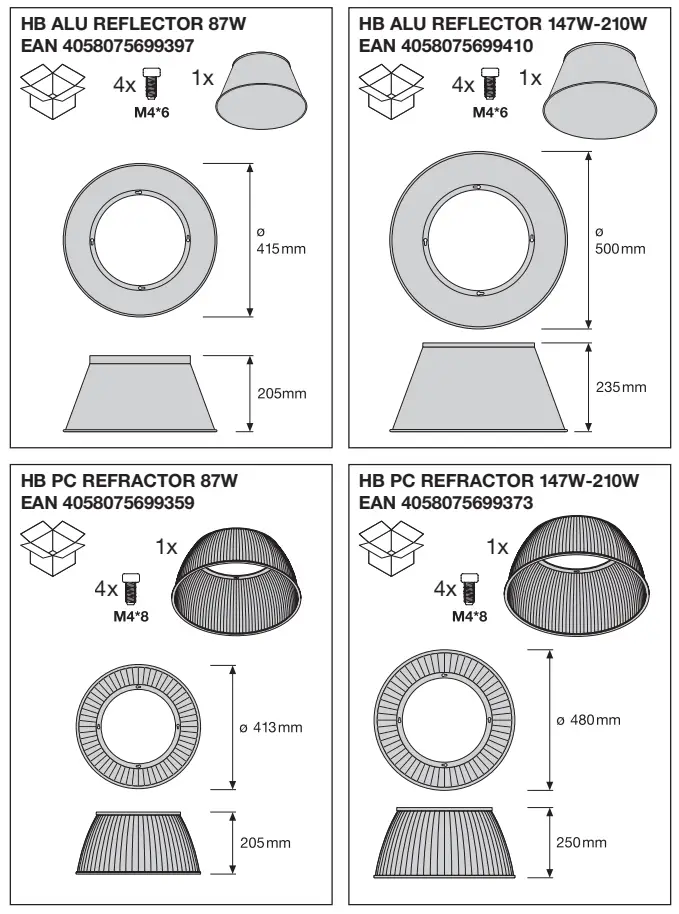

PARTS
| EAN | l x w x h [mm] | ||

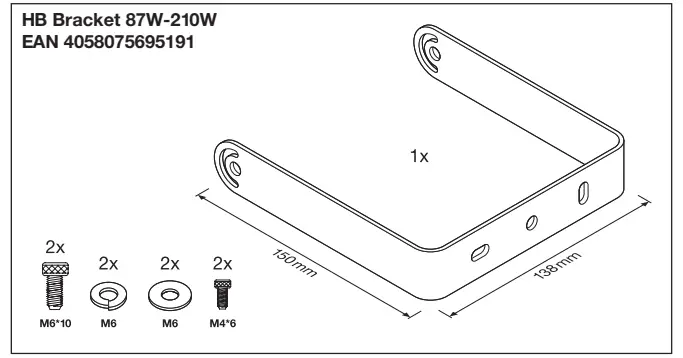

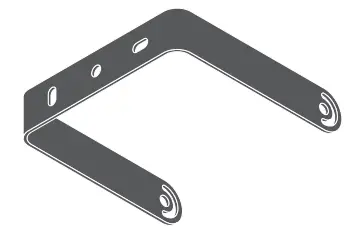

| HB BRACKET 87 147 190 210W | 4058075695191 | 138 x 35 x 150 | 0.3 kg |
| EAN | Ø x h [mm] | ||

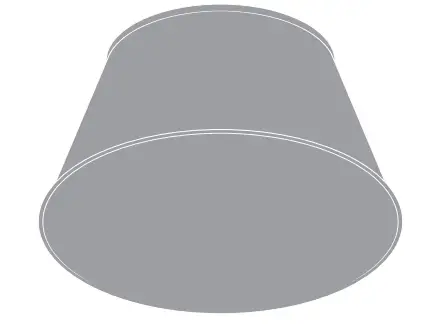

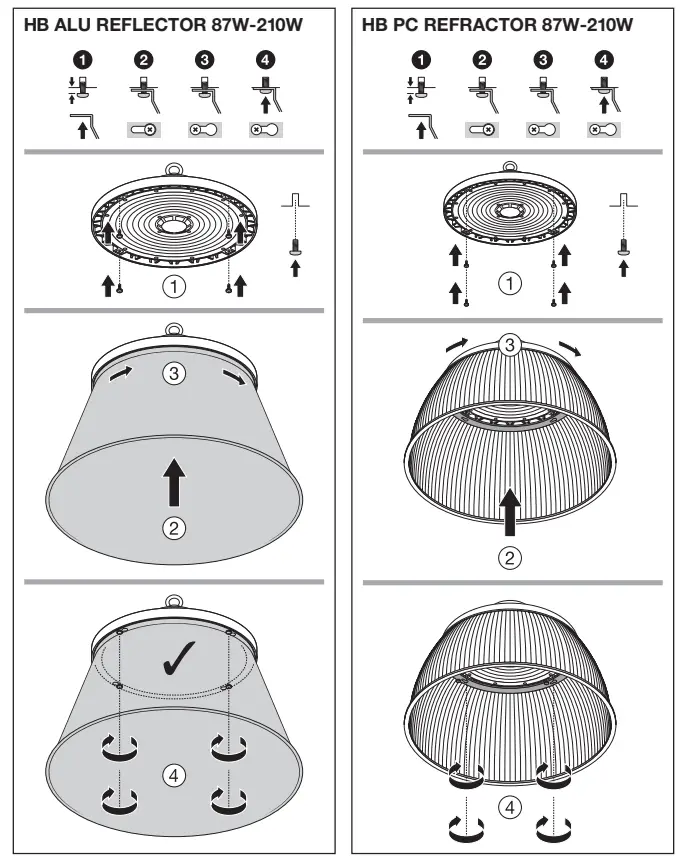

| HB ALU REFLECTOR 87W | 4058075699397 | 415 x 205 | 0.8 kg |
| HB ALU REFLECTOR 147 190 210W | 4058075699410 | 500 x 235 | 1.1 kg |
| EAN | Ø x h [mm] | ||

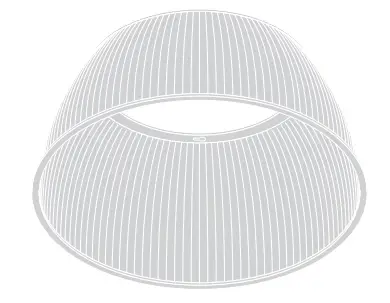

| HB PC REFRACTOR 87W | 4058075699359 | 413 x 205 | 0.7 kg |
| HB PC REFRACTOR 147 190 210W | 4058075699373 | 480 x 250 | 1.0 kg |
WHAT IS IN BOX
TOOL REQUIRED

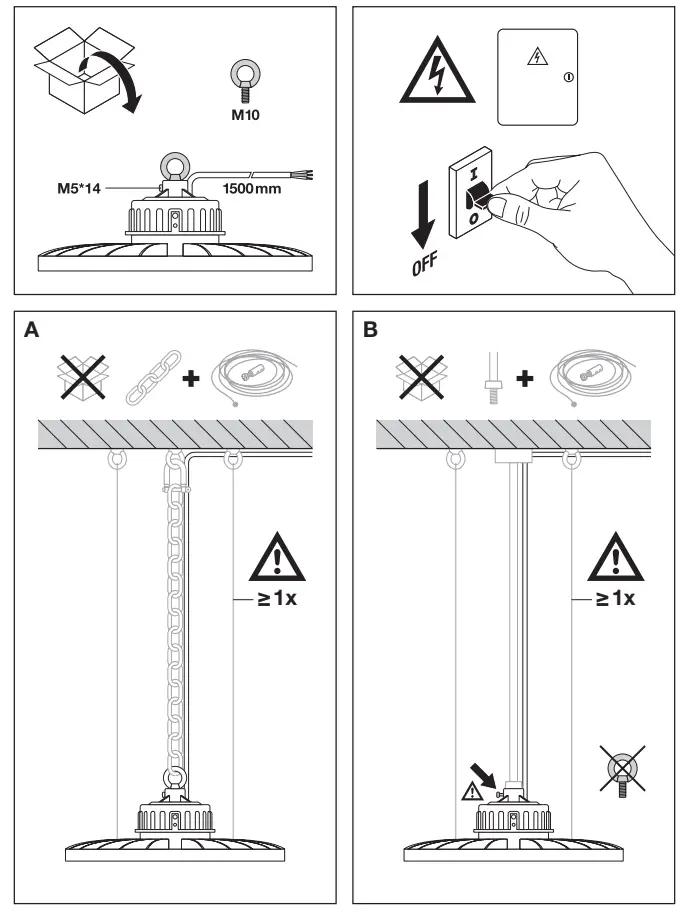

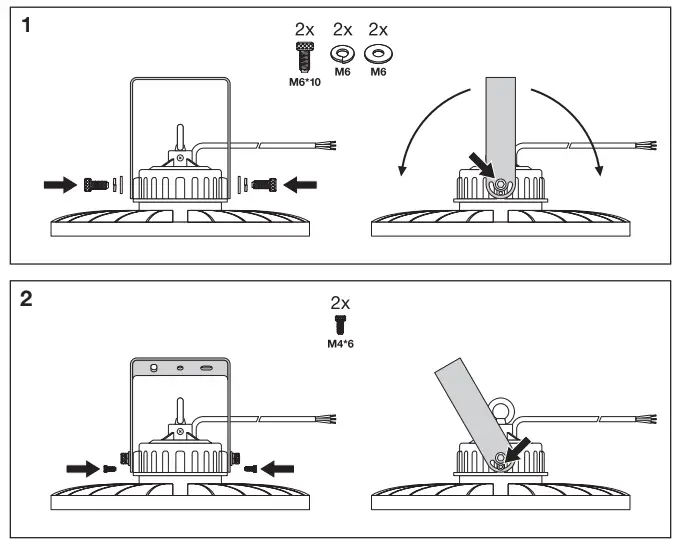

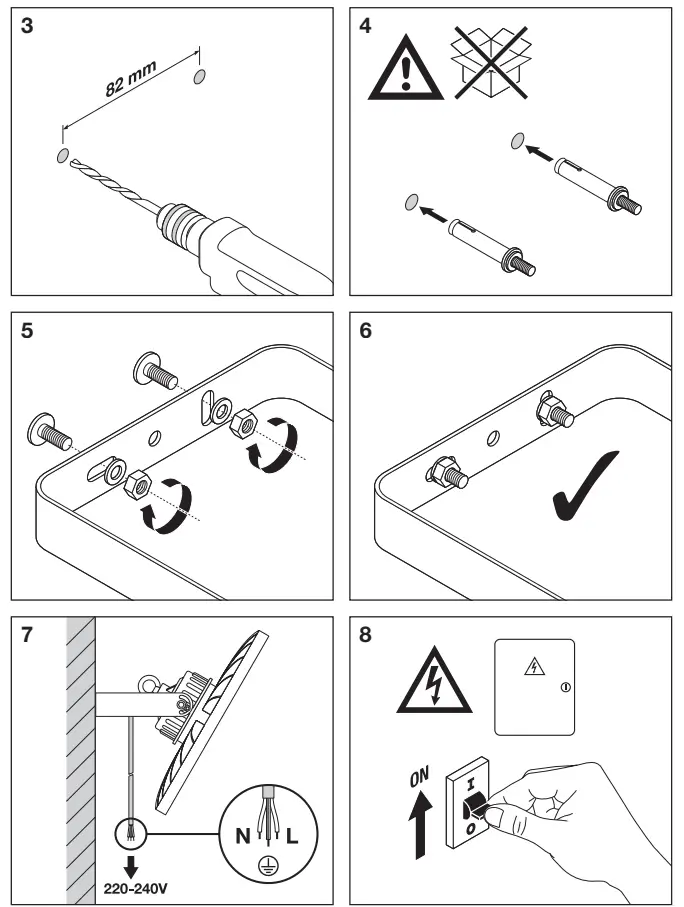

INSTRUCTION

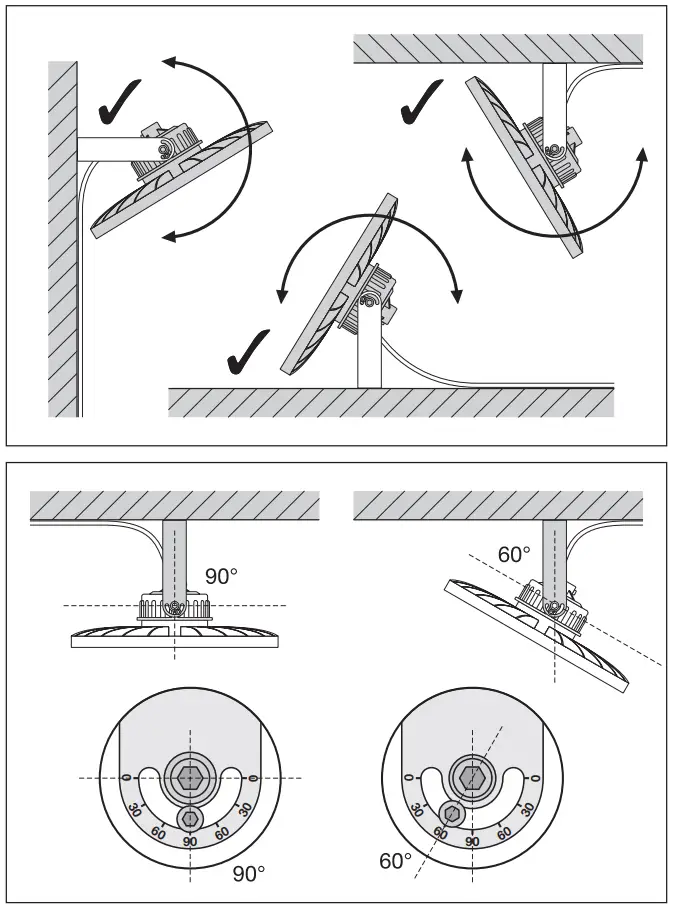

ADJUSTMENT
MODEL NUMBER
4058075699397
