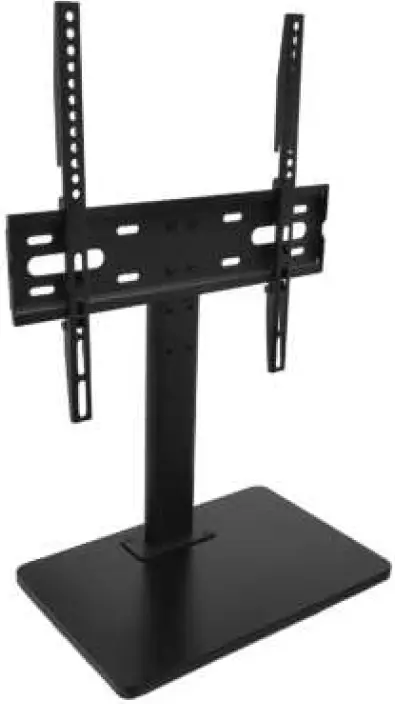

FORGING MOUNT HY4107 Wooden Base Universal TV Stand
Safety Caution
UNPACKING INSTRUCTIONS
- Carefully open the carton, remove contents and lay out on cardbard or other protective surface to avoid damage.
- Check to assure that all components were received undamaged. Do not use damaged or defective parts. lf you require replacement parts, contact customer service at [email protected]
- Carefully read all instructions before attempting installation.
IMPORTANT SAFETY INFORMATION
- Install and operate this product with care. Please read this instruction before beginning the installation, and carefully follow all instructions contained herein. Use proper tools during installation.
- If you do not understand the instructions or have any concerns or questions, please contact customer service at [email protected]
WARNING:
Exceeding the weight capacity can result in serious personal injury or damage to equipment!
It is the installer’s responsibility to make sure the combined weight of HY4107 and the display does not exceed 99 ibs(45kg).Use with heavier televisions may result in instability causing tip
over resulting in death or serious injury!
This product contains small items that could be a choking hazard if swallowed. Keep these items away from young children

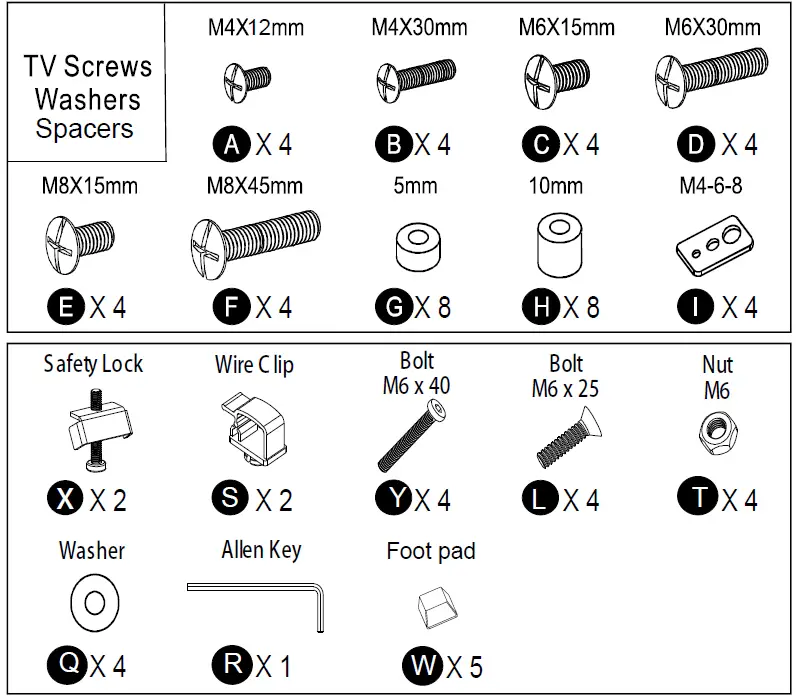

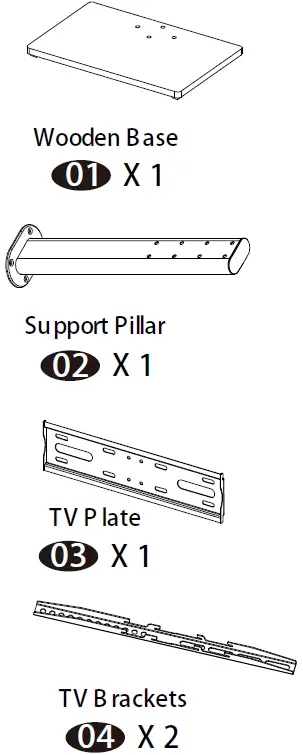

Supplied parts
Assemble the TV Stand

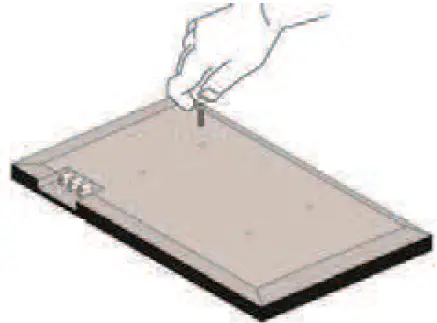

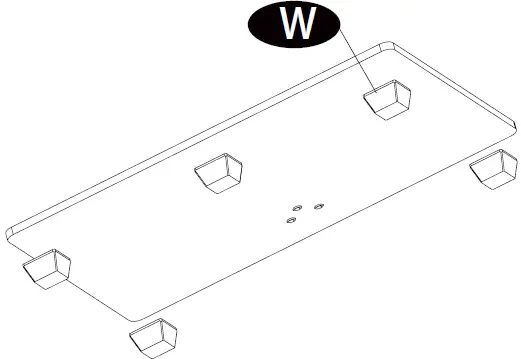

Place foot pads (Q)on the bottom of the wooden base at the corners

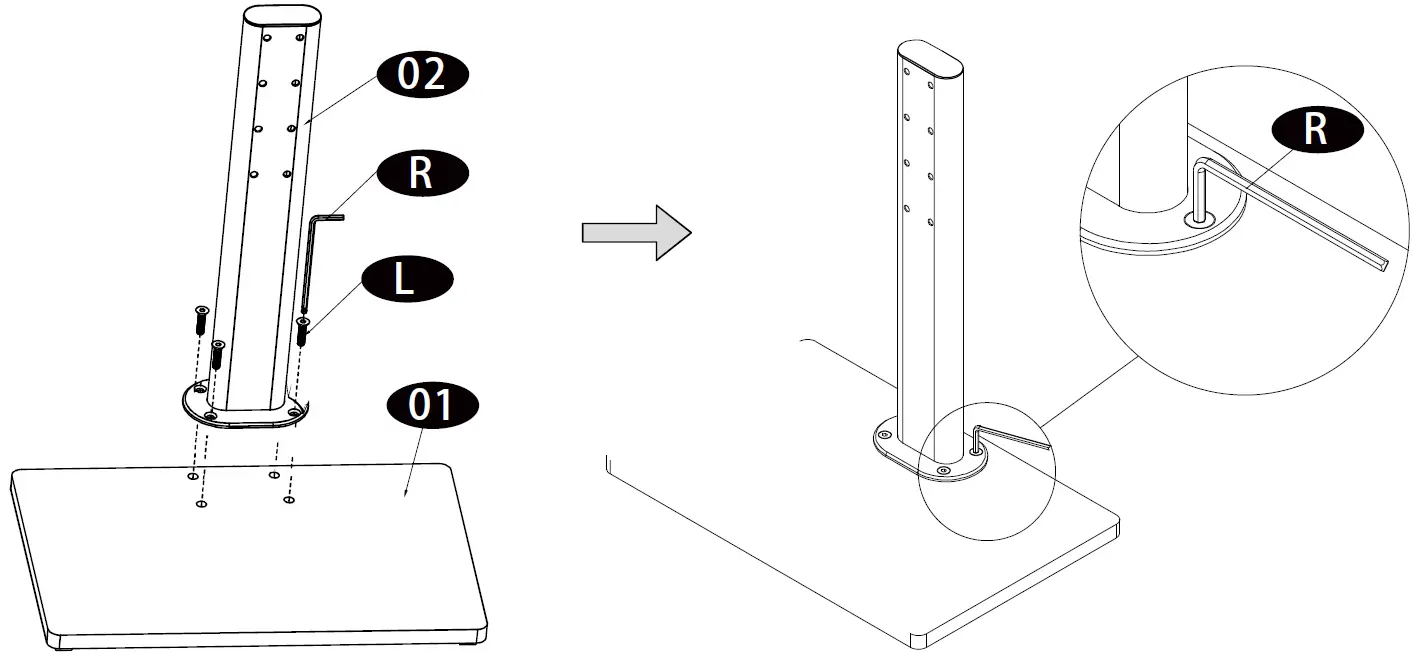

Attach the Support Pillar to the W ooden Base

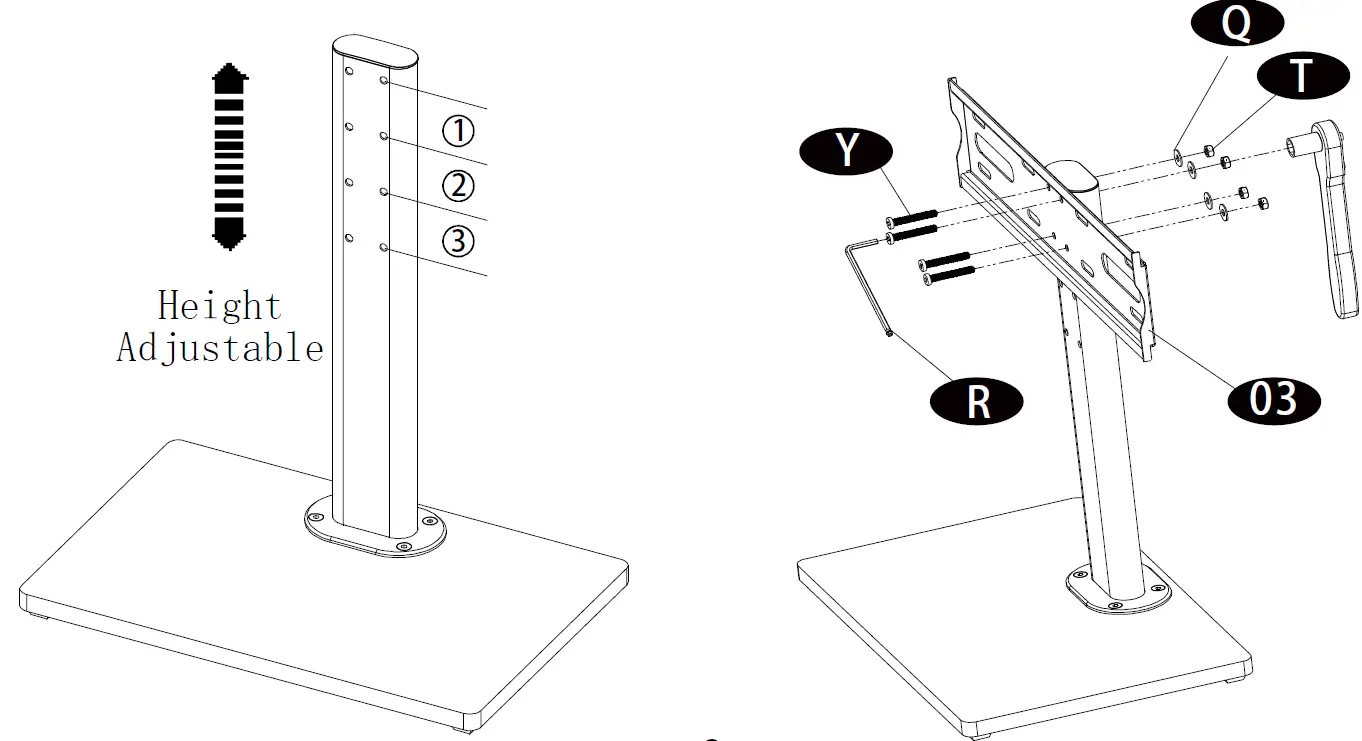

Attach the TV Plate to Support Pillar
Mounting the TV Brackets(04) to your TV

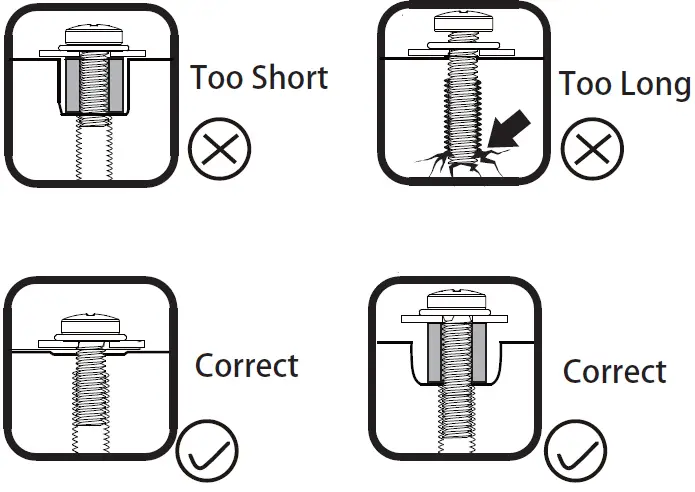

Check TV screws
Please select the proper screw length for your TV by hand tightening to check your flat panel thread depth.
- When attaching brackets to the flat screen, be careful not to over tighten screws and be sure that screws do not bottom out in the mounting holes

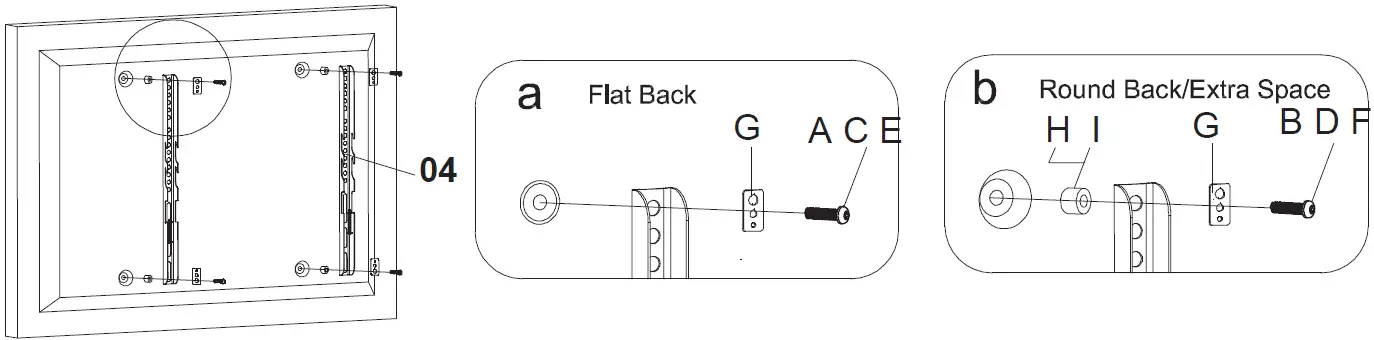

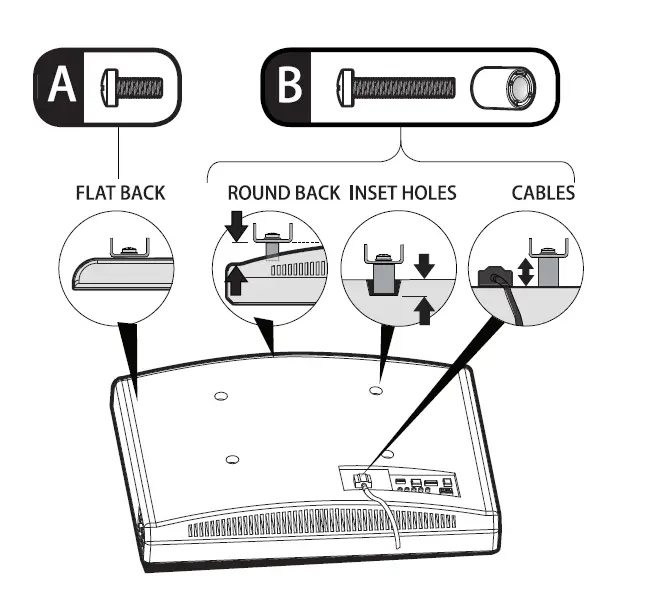

If your TV has a flat back ,AND you want your TV closer to the wall, user the shorter screws (A)
Use the spacers and longer screws (B) to accommodate:
- Round/irregular back TVs
- TVs with inset mounting holes.
- Extra spaces needed for cables.
First, make sure the diameter of the bolt(A-F) fits your TV. Then, please see the diagram above. You will need to thread the bolt into the TV using the correct washer (G) and spacer (Hor I) if necessary with a screwdriver(Not included). Please make sure the monitor brackets(04) are vertically centered and level with each other.

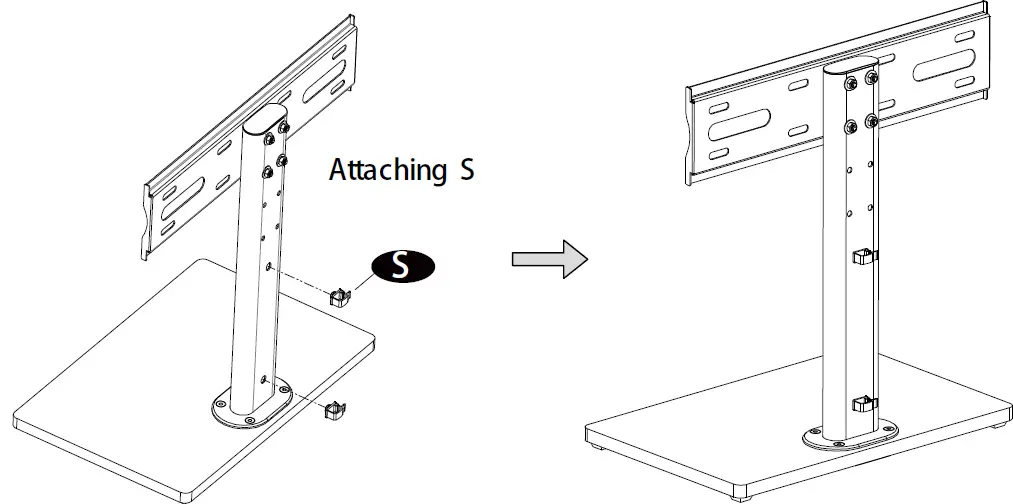

cable management (Attaching wire clips)

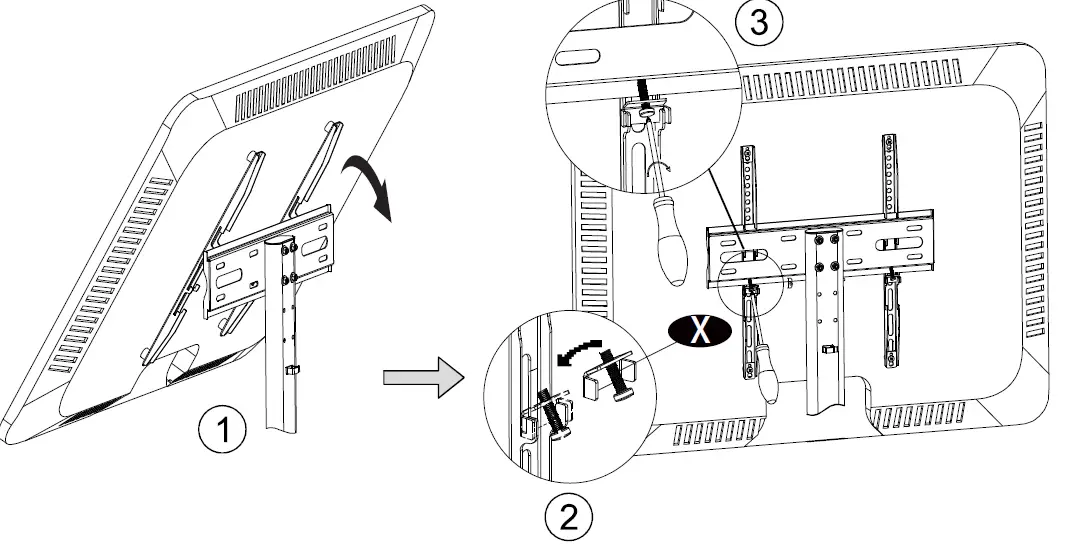

Hang TV to the TV Plate
Insert the Safety Lock
in the bottom of the bracket and then tighten the screws.

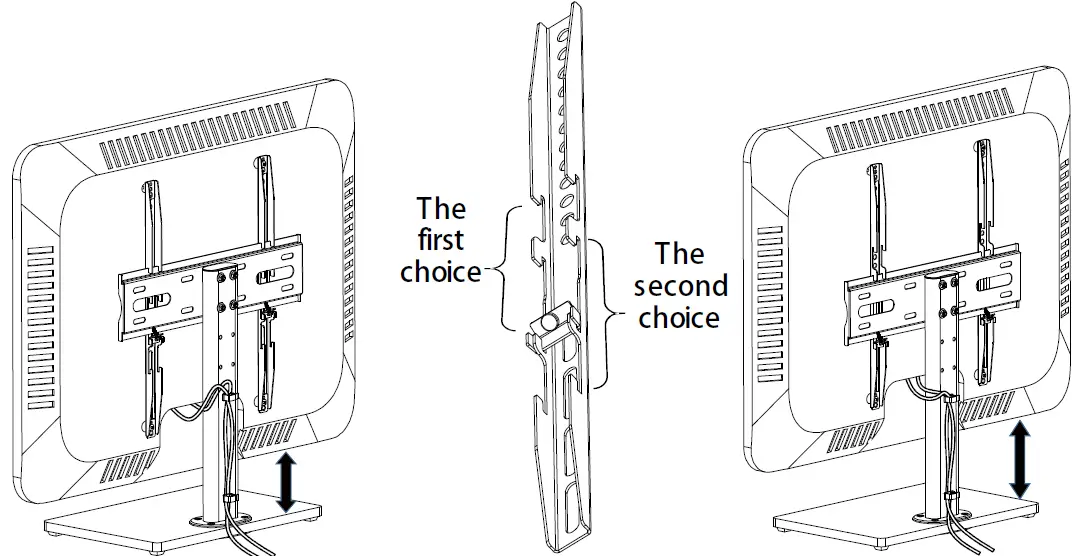

Height Adjustable of the TV Brackets
If you find your TV set is too close to the base, please take off the TV from the stand. Then, change to the second choice to allow more space between TV and the wooden base (01).
