RD625 Digital Wall Mounted Repeater
Owner’s Manual

Preface
Thanks for your favor in our product. To derive optimum performance from the product, please read this manual and the
Safety Information Booklet carefully before use.
This manual is applicable to the following product:
RD62X Digital Wall-mounted Repeater(X may represent 2, 5, 6, or 8)

Instructional Icons

Caution: Indicates situations that could cause damage to your product or bodily injury.
Note: Indicates tips that can help you make better use of your product.

Term Explanation

Voltage Standing Wave Ratio (VSWR)
Voltage Standing Wave Ratio (VSWR) is a value that measures how well a load is impedance-matched to a source.

Copyright Information

Hytera is the trademark or registered trademark of Hytera Communications Co., Ltd. (the Company) in PRC and/or other countries or areas. The Company retains the ownership of its trademarks and product names. All other trademarks and/or product names that may be used in this manual are properties of their respective owners.
The product described in this manual may include the Company’s computer programs stored in memory or other media. Laws in PRC and/or other countries or areas protect the exclusive rights of the Company with respect to its computer programs. The purchase of this product shall not be deemed to grant, either directly or by implication, any rights to the purchaser regarding the Company’s computer programs. Any of the Company’s computer programs may not be copied, modified, distributed, decompiled, or reverse-engineered in any manner without the prior written consent of the Company.
The AMBE+2 voice coding technology embodied in this product is protected by intellectual property rights including patent rights, copyrights, and trade secrets of TM Digital Voice Systems, Inc. This voice coding technology is licensed solely for use within this product. The user of this technology is explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the Object Code or in any other way convert the Object Code into a human-readable format.
U.S. P a t e n t N o: #6,912,495 B2, #6,199,037 B1, #5,870,405, #5,826,222, #5,754,974, #5,701,390, #5,715,365, #5,649,050, #5,630,011, #5,581,656, #5,517,511, #5,491,772, #5,247,579, #5,226,084 and #5,195,166. Disclaimer The Company endeavors to achieve the accuracy and completeness of this manual, but no warranty of accuracy or reliability is given. All the specifications and designs are subject to change without notice due to continuous technology development. No part of this manual may be copied, modified, translated, or distributed in any manner without our express written permission of us.
We do not guarantee, for any particular purpose, the accuracy, validity, timeliness, legitimacy or completeness of the Third Party Products and contents involved in this manual. If you have any suggestions or would like to learn more details, please visit our website at: http://www.hytera.com.

RF Radiation Information

This product must be restricted to operations in Occupational/Controlled RF exposure Environments. Users must be fully aware of the hazards of the exposure and able to exercise control over their RF exposure to qualify for the higher exposure limits.

RF Radiation Profile

Radio Frequency (RF) is a frequency of electromagnetic radiation in the range at which radio signals are t r a n s m i t t e d. R F t e c h n o l o g y i s w i d e l y u s e d i n communication, medicine, food processing, and other fields. It may generate radiation during use.

RF Radiation Safety

In order to ensure user health, experts from relevant industries including science, engineering, medicine, and health work with international organizations to develop standards for safe exposure to RF radiation. These standards consist of:

• United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J;
• American National Standards Institute (ANSI)/ Institute of Electrical and Electronics Engineers (IEEE) C95. 1-1992;
• Institute of Electrical and Electronics Engineers (IEEE) C95.1-1999;
• International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998.

FCC Regulations

Federal Communication Commission (FCC) requires that all radio communication products should meet the requirements set forth in the above standards before they can be marketed in the U.S, and the manufacturer shall post a RF label on the product to inform users of operational instructions, so as to enhance their occupational health against exposure to RF energy.

EU Regulatory Conformance

As certified by the qualified laboratory, the product is in compliance with the essential requirements and other relevant provisions of the Directive 1999/5/EC. Please note that the above information is applicable to EU countries only.

Items in the Package

Please unpack carefully and check that all items listed below are received. If any item is missing or damaged please contact your dealer.

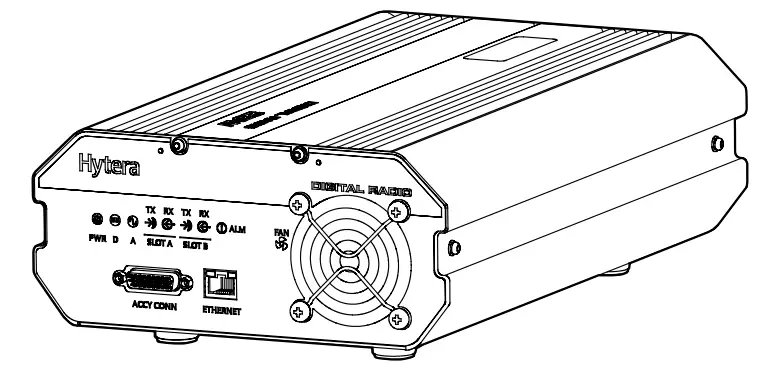

1. Repeater

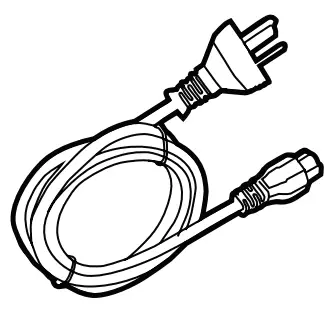

2. AC Power Cord
3. Documentation Kit

Product Overview

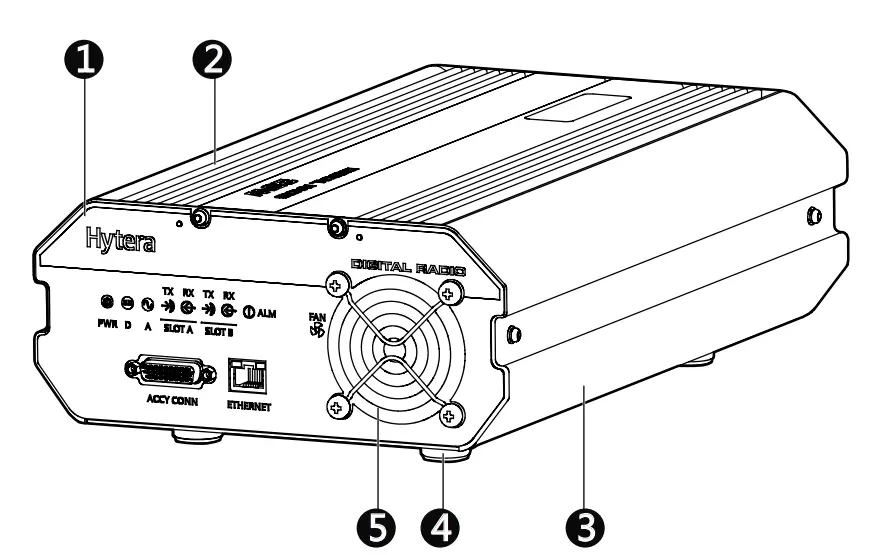

Parts

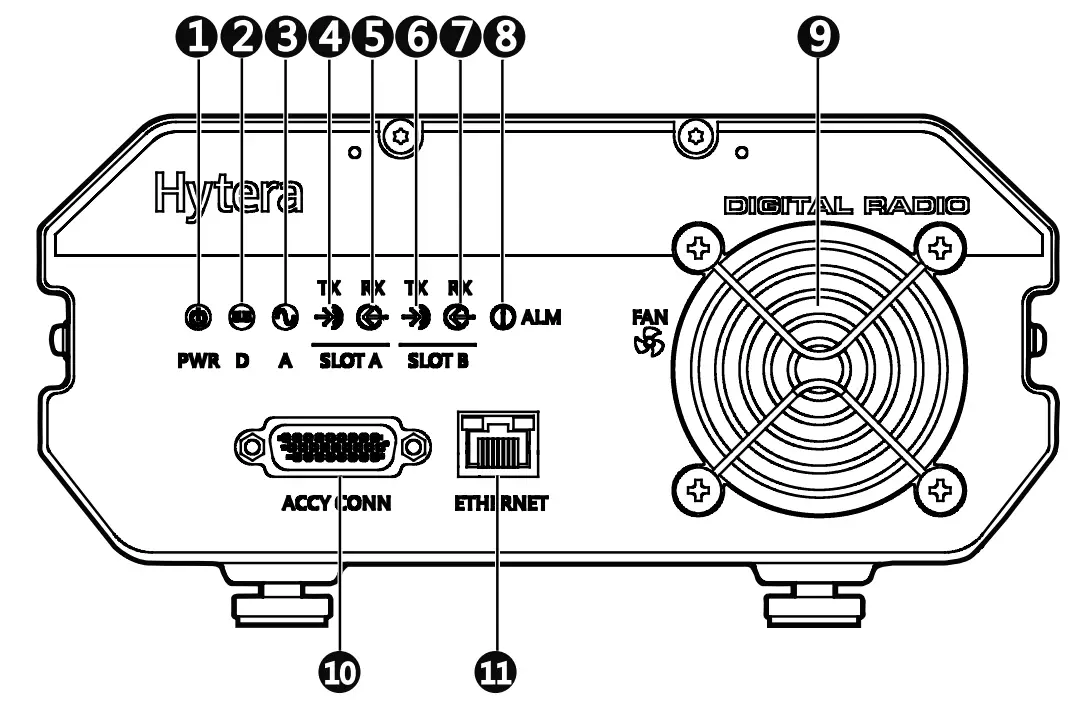

Front Panel

Note: If the repeater is manufactured without an internal duplexer, then part 8 will be an external duplexer RX port; if it is manufactured with an internal duplexer, then there will be no connection inside part 8.

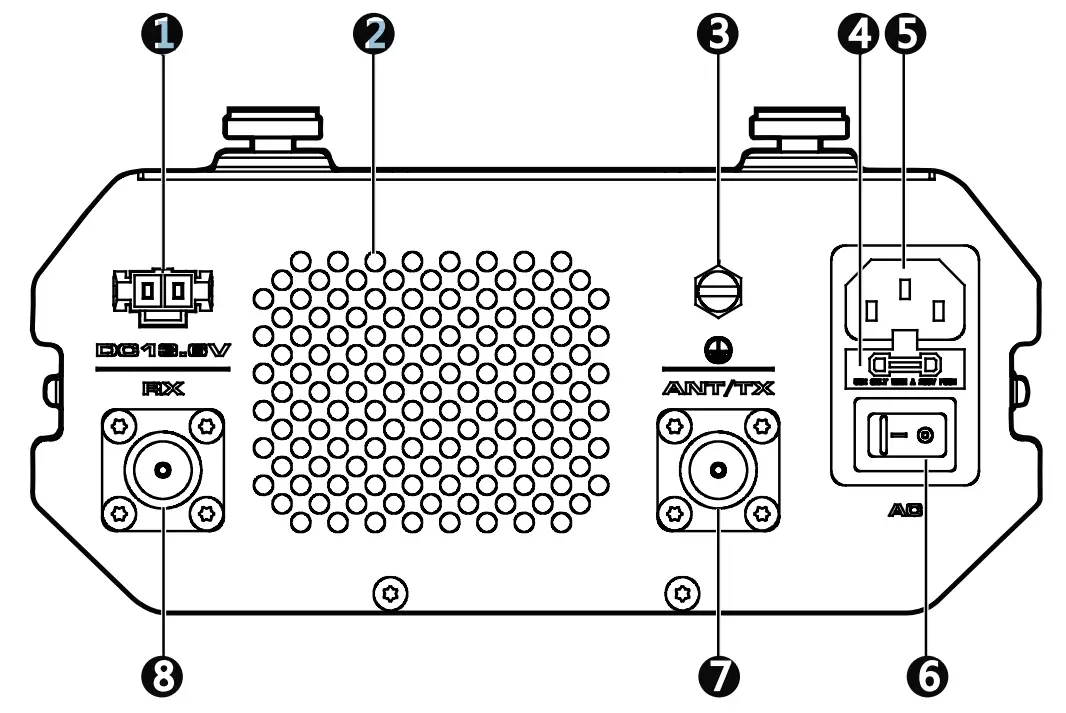

Rear Panel

Before Use

Instructions
To ensure optimum performance and reliability of the repeater, please read the following instructions carefully.
Operation Environment
The repeater must be installed in a dry and well-ventilated place with an ambient temperature of -30 ℃ to+60 ℃ and relative humidity of not more than 95%.
Voltage Check
Check whether the input voltage is within the operating voltage of the repeater (DC power supply: 13.6V±15%; AC power supply: 90V to 264V).
Wall-mount Bracket Installation
(Optional)
If you need to install the repeater on the wall, please contact your dealer to purchase a wall-mount bracket.

Installation Tools
An electric drill and a T10 Torx screwdriver.
Installation Procedures

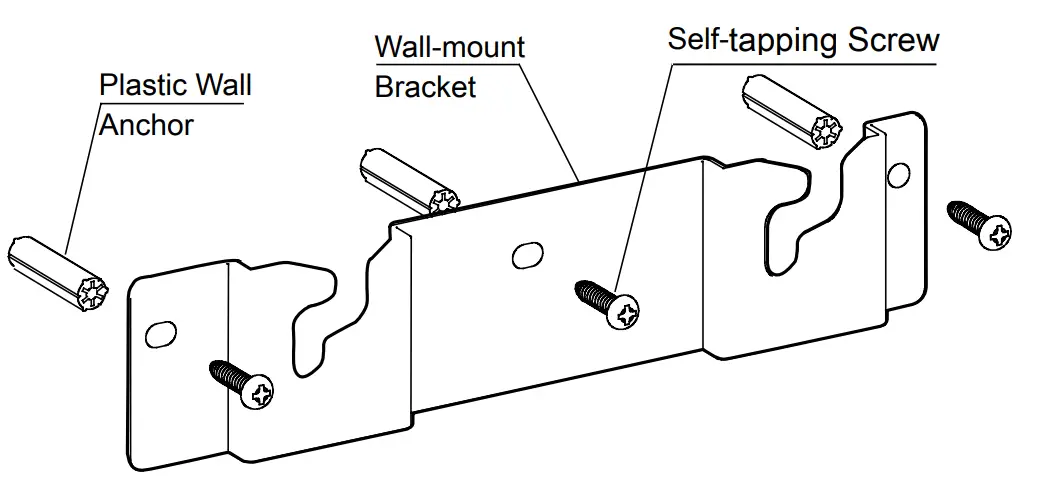

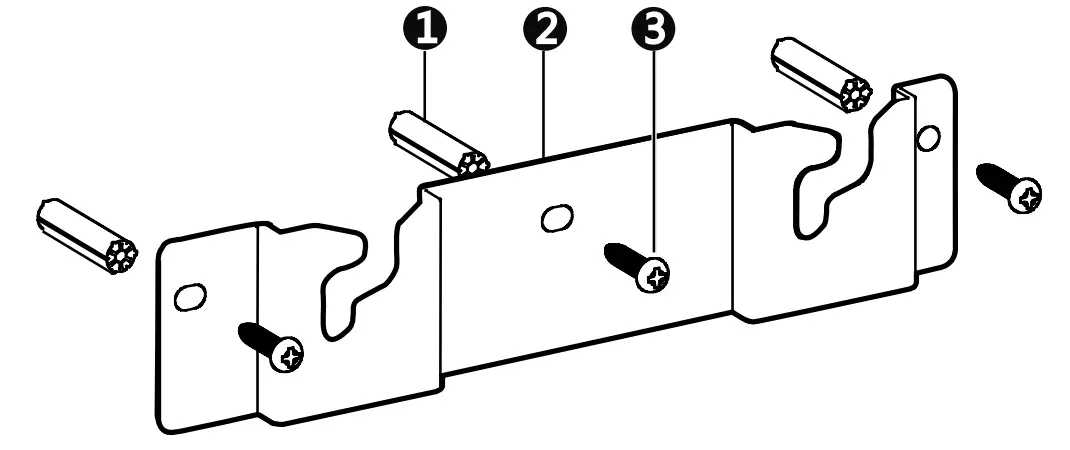

A. Install the wall-mount bracket.

1. Drill three holes into the wall, with each hole aligned with those of the wall-mount bracket.
2. Put the plastic wall anchor into the drilled holes. Skip this step if the wall is not a concrete wall.

3. Use three ST4X16 self-tapping screws to fasten the bracket on the wall.

Note: Make sure the wall can support the repeater’s weight before drilling.
B. Install the repeater on the bracket.

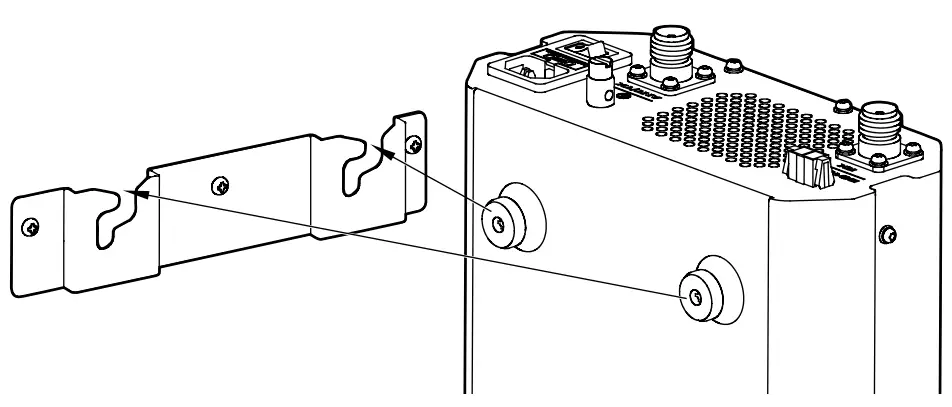

1. Align the screws on the upper side of the repeater with the notches of the bracket and mount the repeater onto the bracket, as shown in the figure below;
2. Move the repeater side to side slightly to ensure the screws fit into the bottom of the notch.

Product Check
Check whether the repeater works properly by observing the seven LED indicators in the front panel after the repeater is powered on via the AC Power Switch.

Status Indication

The LED indicators on the front panel indicate the following repeating status:

Alarm Information

The repeater will have real-time detection of its operation status automatically. When it is operating abnormally, the alarm LED indicator on the front panel will glow red until all alarms are eliminated. When an alarm event occurs, you can diagnose and solve the problem via the RDAC application provided by us or contact your local dealer for technical support. Alarm types and causes areas listed below:

Troubleshooting

If the above solutions cannot fix the problems, or you have other questions, please contact Hytera or the dealer for more technical support.

Care and Cleaning

To guarantee optimal performance as well as the long service life of the product, please follow the tips below.
Product Care

• Keep the product in good environmental conditions to ensure reliability.
• Do not place other equipment on top of the product to ensure optimal heat dissipation.
• Do not pierce or scrape the product.
• Keep the product far away from substances that can corrode the circuit.
• Do not place the product in corrosive agents, solutions, or water.
  Product Cleaning
  Caution: Be sure to turn off the product before cleaning.
• Remove the dust and fine particles on the product surface with a clean and dry lint-free cloth or a brush regularly.
• Use a non-woven fabric with a neutral cleaner to clean the connectors. Do not use chemical preparations such as stain removers, alcohol, sprays or oil preparations. Make sure the product is completely dry before use.

Optional Accessories

The following items are the main optional accessories for the repeater. For more information of other accessories, please consult your local dealer.
Caution: Use the accessories specified by Hytera only. If not, the Company shall not be liable for any loss or damage arising out of the use of unauthorized accessories.
