QUICK REFERENCE GUIDE
HR106X
DIGITAL REPEATER

Product Overview

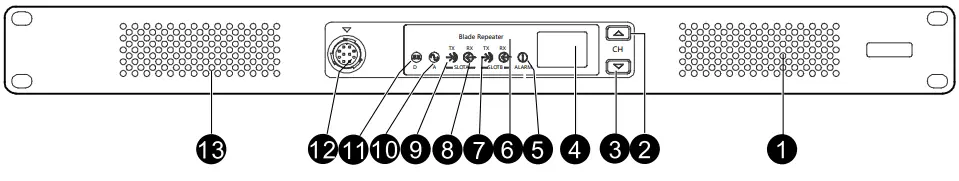

Front PanelHytera HR106X Digital Repeater - Front Panel

No.Part NameNo.Part Name
1Air Inlet for PA8Timeslot A RX Indicator
2Volume/Channel + Key9Timeslot A TX Indicator
3Volume/Channel – Key10Analog Mode Indicator
4Seven-segment Display11Digital Mode Indicator
5Alarm Indicator12Audio/Programming Interface
6Timeslot B RX Indicator13Air Inlet for Power Supply
7Timeslot B TX Indicator//

Rear Panel

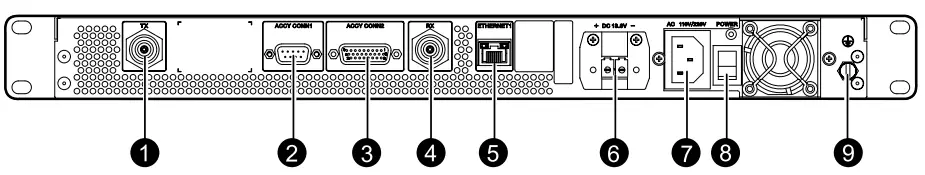

Basic VersionHytera HR106X Digital Repeater - Rear Panel

No._                       Part NameNo.Part Name
1TX Antenna Connector6DC Power Inlet
2Monitor/Tuning Interface7AC Power Inlet
3Accessory Connector8AC Power Switch
4RX Antenna Connector9Ground Screw
5Ethernet Interface//


Advanced Version

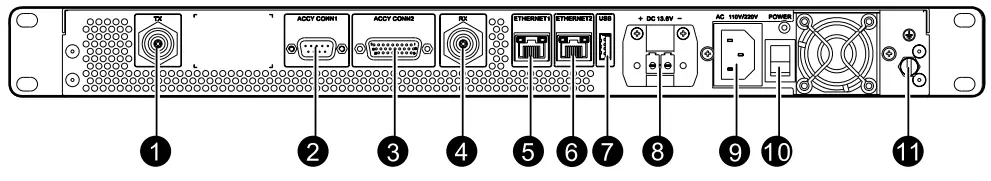

Hytera HR106X Digital Repeater - Advanced Version

No.Part NameNo.Part Name
1TX Antenna Connector7USB Connector
2Monitor/Tuning Interface8DC Power Inlet
3Accessory Connector9AC Power Inlet
4RX Antenna Connector10AC Power Switch
5Ethernet Interface 111Ground Screw
6Ethernet Interface 2//

Hytera HR106X Digital Repeater - ICONNOTE
In routing mode, Ethernet interface 1 and Ethernet interface 2 must serve as LAN port and WAN port respectively.

Internal Parts

Basic VersionHytera HR106X Digital Repeater - Basic Version

No.Part NameNo.Part Name
1PA Module5Wind Scooper
2Main Board6Fan
3Network Board7Control Panel
4Power Supply Module8Float Charging Board

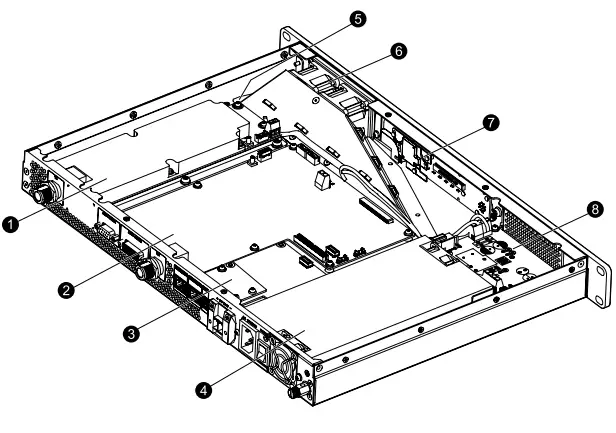

Advanced VersionHytera HR106X Digital Repeater - Advanced Version 1

No.Part NameNo.Part Name
1PA Module5Wind Scooper
2Main Board6Fan
3Coprocessor7Control Panel
4Power Supply Module8Float Charging Board

Installation

To ensure optimum performance and reliability of the repeater, read the following instructions carefully.

Installation Requirements

Environmental Conditions
The repeater must be installed in a dry and well-ventilated place. The operating temperature ranges from –30°C to +60°C and the relative humidity is 95%.
Installation Site
The repeater can be installed in a rack, bracket, and cabinet, or on a desk.
NOTE
For more information, refer to the Safety Information Booklet.

Pre-installation Tasks

Preparing the Tools

  • Phillips screwdriver
  • T-10 Torx screwdriver
  • Spanner
  • Anti-static gloves
  • Multimeter
    Checking the Power Supply
    Before you install the repeater, make sure that the power supply meets the following requirements:
  • DC power voltage: 13.6±15% V
  • AC power voltage: 100–240 V

Installation Procedure

To install the repeater, do as follows:

  1. Wear anti-static gloves.
  2. Place the repeater in a proper location.
    NOTE
    If the repeater is installed in outdoor environments with frequent thunderstorms, such as the top of mountains or buildings, you must install an external lightning protection module (optional) on the network interface.
  3. Connect the antenna, feed line, power cord, and ground cable to the repeater.

NOTE

  • You must purchase the antenna and feed lines separately.
  • You must prepare a ground cable.
    4. Ground the repeater through the ground screw located on the rear panel.

Post-installation Check

To check whether the repeater works properly, do as follows:

  1. Turn the repeater on.
  2. Observe the LED indicators and the display in the front panel.
  • If the repeater works properly, the power supply indicator on the float charging board glows yellow or blue, and the display shows the current channel.
  • If not, the power supply indicator glows red, and the display shows the alarm code.
    NOTE
    For details, see Checking the Status.

Basic Operations

Turning On or Off the Repeater

  • If the repeater is connected to a DC power supply, press the power switch on the DC power supply to turn on or off the repeater.
    After turn-on, if the power supply indicator turns red,
    the repeater goes into locked status. You must switch off the DC power supply for four seconds, and then switch on the power supply again.
  • If the repeater is connected to an AC power supply, press the AC Power Switch in the rear panel to turn on or of the repeater.
    After turn-on, the power supply indicator turns yellow.

Changing the Channel

Press the Volume/Channel + or Volume/Channel – key to \change the channel.
The current channel number appears on the display of the repeater.

Adjusting the Volume

  1. Long press the Volume/Channel + key for five seconds to switch the repeater from channel mode to volume mode.
  2. Press the Volume/Channel + or Volume/Channel – key to increase or decrease the volume.
    If you do not have any operation for greater than five seconds or if you long-press the Volume/Channel + key again within five seconds, the repeater switches to channel mode.

Checking the Status

Repeater

IndicatorDescriptionRepeater Status
Digital ModeBlueThe repeater is operating in digital mode.
Analog ModeYellowThe repeater is operating in analog mode.
AlarmRedThe repeater is not working properly, and the display shows the alarm code.
Timeslot A TXRed
  • Analog mode: The repeater is transmitting.
  • Digital mode: The repeater is transmitting on timeslot A.
Timeslot A RXGreen
  • Analog mode: The repeater is receiving.
  • Digital mode: The repeater is receiving on timeslot A.
Timeslot B TXRedDigital mode: The repeater is transmitting on timeslot B.
Timeslot B RXGreenDigital mode: The repeater is receiving on timeslot B.

Network Interface

IndicatorDescriptionRepeater Status
Ethernet InterfaceLED IFlashingThe network interface card is transmitting data.
LED 2GlowingThe data transmission rate is 1000 Mbps/100 Mbps.
OffThe data transmission rate is 10 Mbps.

Power Supply

IndicatorDescriptionRepeater Status
Power Supply (Visible through the Air  Inlet for Power Supply)YellowThe repeater is supplied by AC power.
BlueThe repeater is supplied by a DC power.
RedThe repeater cannot be turned on.

Hytera HR106X Digital Repeater - QR CODE

https://www.hytera.com/ziyuan?siteId=1&id=75340&type=2

For details on more features and operations, please visit our website at: http://www.hytera.com, or scan the QR code to download the User Manual.
