User Manual

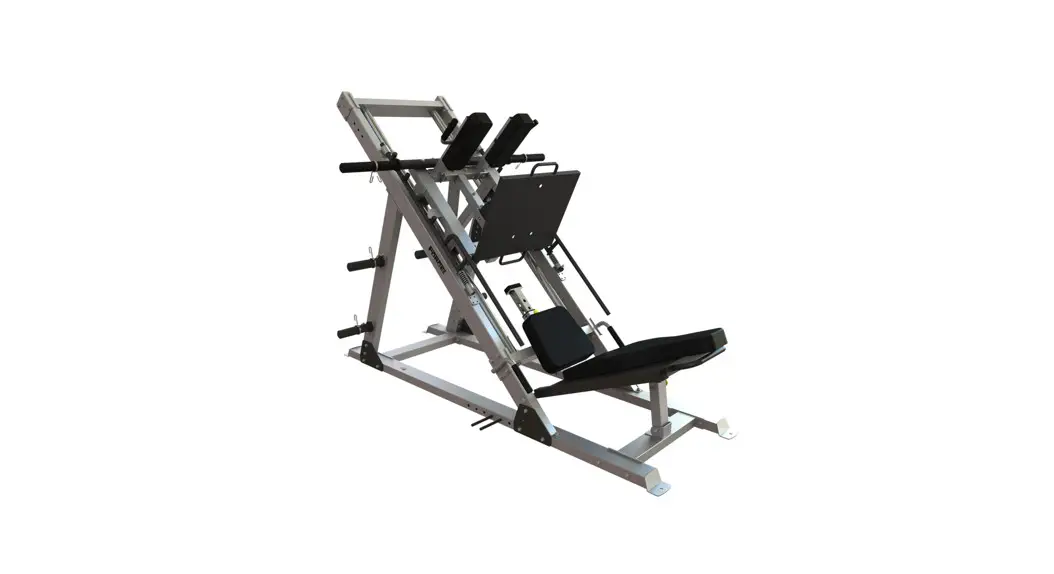

F-MLPHS
ASSEMBLY MANUAL
BEFORE YOU START
Read all instructions in this manual before assembling or using this equipment.
Remove all parts from the packaging and separate and count each various component to ensure everything has been correctly provided.
Follow the instructions and consult both the individual assembly pages and the overall expanded views of the equipment.
It is the owner’s responsibility to ensure that all users of this unit have read the owner’s manual and are familiar with the safety precautions.
We recommended you keep these Instructions.
SAFETY PRECAUTIONS
- Highly recommended for two or more people to assemble the equipment
- Assemble equipment on a flat surface
- Consider placing a mat under equipment to protect your floor
- Only tighten nuts and bolts by hand until the whole equipment is assembled
- Ensure all parts are in working order prior to use
- Do not use equipment outdoors or around water
- Keep hair, fingers, and clothing away from moving parts
- Only use attachments recommended by the manufacturer
- Never operate if parts are not functioning correctly
- Always stretch prior to using equipment
- Stop immediately if you experience any pain, dizziness, or nausea.
- Before starting any exercise program consult your doctor
IMPORTANT ASSEMBLY INFORMATION
NOTE: It is strongly recommended that this equipment is assembled by two or more people to avoid possible injury.

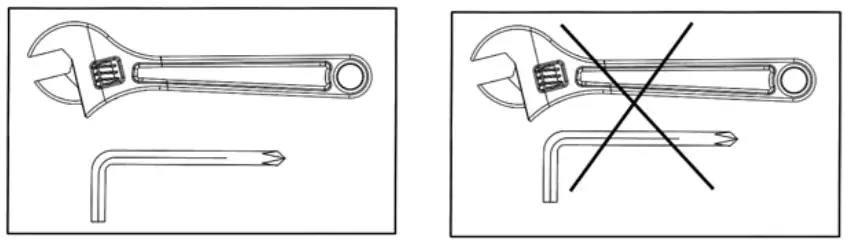

FASTENING NUTS AND BOLTS
- Only tighten all nuts and bolts after all components have been fully assembled.
- Do not overtighten any component with pivoting function.
- Make sure all pivoting components are able to move freely.
Place all parts in a cleared area and remove the packing materials. Do not dispose of the packing materials until you complete all assembly steps.
PLEASE NOTE: Descriptions of pieces as LEFT and RIGHT are from the point of view of standing behind the equipment facing towards the front.

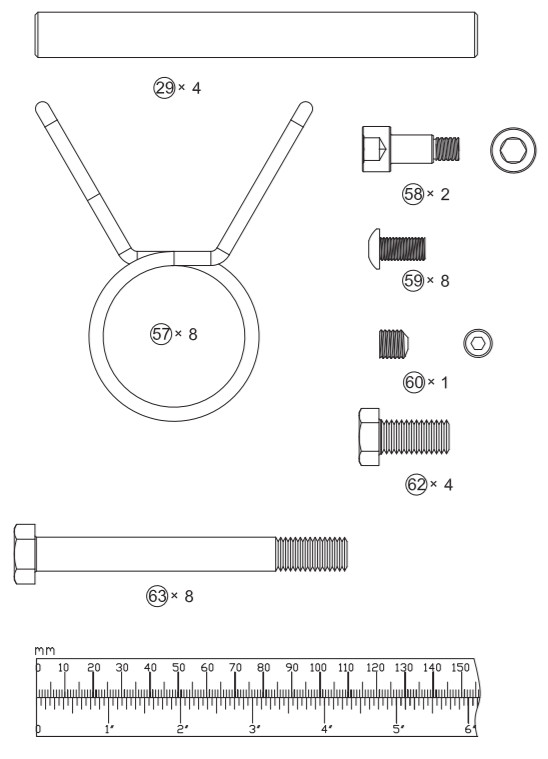

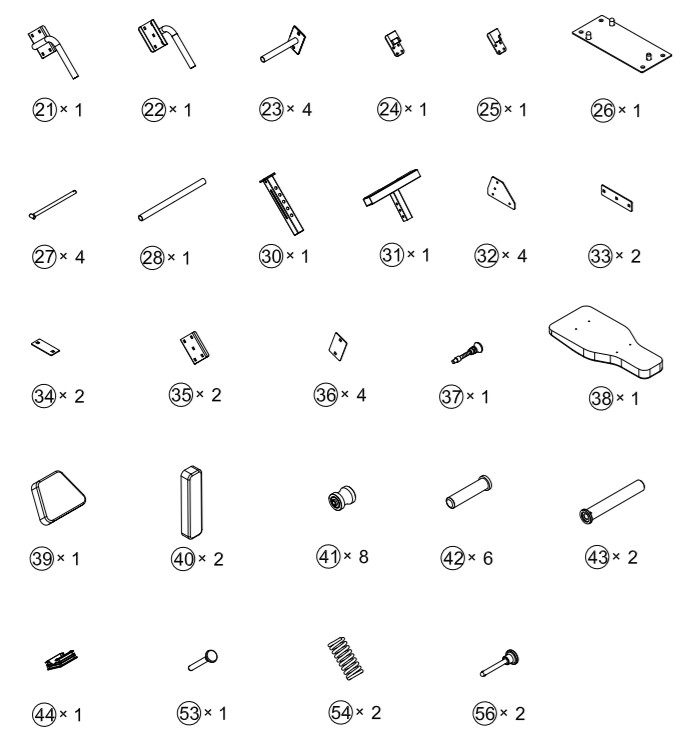

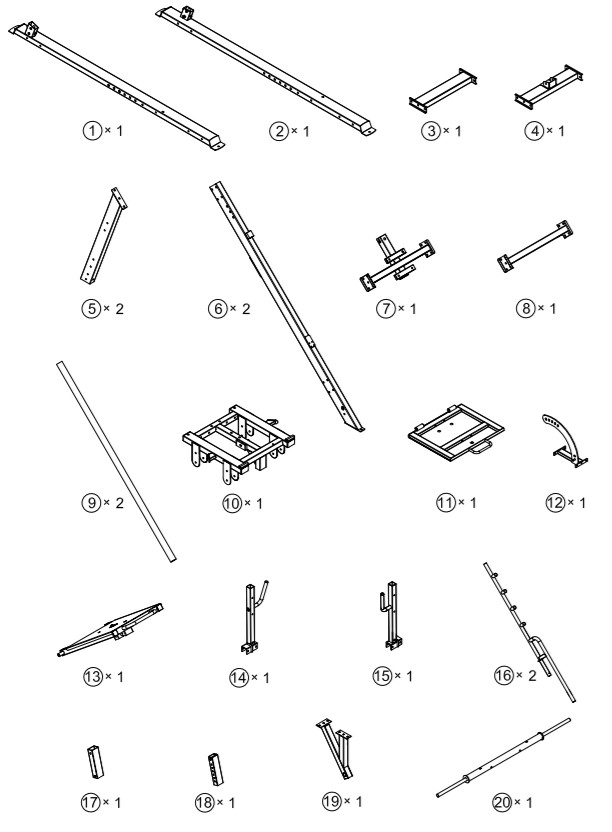

PARTS LIST
NOTE: SOME PARTS MAY COME PRE-ASSEMBLED, IN WHICH CASE CONTINUE ONTO THE NEXT
REQUIRED STEP OF ASSEMBLY
| KEY NO. | PART DESCRIPTION | SPEC | QTY |
| 1 | Left Stabilizer | 1 | |
| 2 | Right Stabilizer | 1 | |
| 3 | Front Connecting Frame | 1 | |
| 4 | Rear Connecting Frame | 1 | |
| 5 | Support Frame | 2 | |
| 6 | Frame | 2 | |
| 7 | Lower Crossmember | 1 | |
| 8 | Upper Crossmember | 1 | |
| 9 | Guide Rod | 2 | |
| 10 | Sliding Frame | 1 | |
| 11 | Upper Foot Support | 1 | |
| 12 | Upper Adjuster | 1 | |
| 13 | Lower Adjuster | 1 | |
| 14 | Left Shoulder Pad Mount | 1 | |
| 15 | Right Shoulder Pad Mount | 1 | |
| 16 | Lock Out | 2 | |
| 17 | Adjuster-Outside | 1 | |
| 18 | Adjuster-Inside | 1 | |
| 19 | Lower Weight Carriage | 1 | |
| 20 | Upper Weight Carriage | 1 | |
| 21 | Left Hand Stand | 1 | |
| 22 | Right Hand Stand | 1 | |
| 23 | Weights Stow Bracket | 4 | |
| 24 | Lock Out Left | 1 | |
| 25 | Lock Out Right | 1 | |
| 26 | Backrest Pad Mount | 1 | |
| 27 | Weights Post | 4 | |
| 28 | Barbell rod | 1 | |
| 29 | Aide | 4 | |
| 30 | Safety Support | 1 | |
| 31 | Foot Support | 1 | |
| 32 | Bracket | 240x158x5 | 4 |
| 33 | Bracket | 180x50x4 | 2 |
| 34 | Bracket | 120x50x3 | 2 |
| 35 | Bracket | 120x101x4 | 2 |
| 36 | Bracket | 120x70x3 | 4 |
| 37 | Moving Lock Pin | 1 | |
| 38 | Backrest Pad | 800x360x70 | 1 |
| 39 | Seat Pad | 380x270x70 | 1 |
| 40 | Shoulder Pad | 500x120x70 | 2 |
| 41 | Rollers | 8 | |
| 42 | Olympic Sleeve | 050×210 | 6 |
| 43 | Weight Bar Olympic Sleeve | (D50 x 335 | 2 |
| 44 | End Cap | E50 | 2 |
| 45 | End Cap | ❑45 | 7 |
| 46 | End Cap | 025 | 18 |
| 47 | End Cap | :=150×100 | 2 |
| 48 | End Cap | 760 | 1 |
| 49 | End Cap | L– 70×50 | 3 |
| 50 | End Cap | ‘_:40×20 | 4 |
| 51 | Sliding Sleeve | .60x_750 | 1 |
| 52 | Bumper | 100x50x25 | 1 |
| 53 | Lock Pin | 016 | 1 |
| 54 | Spring | 043x027x08x80 | 2 |
| 55 | Grip | 023×150 | 4 |
| 56 | Magnetic Pin | 2 | |
| 57 | Spring Clip | (D49 | 8 |
| 58 | Hexagon socket button head screws | M8x25 | 2 |
| 59 | Allen Bolt | M8x16 | 8 |
| 60 | Allen Screw | M10x10 | 1 |
| 61 | Allen Bolt | M10x25 | 2 |
| 62 | Hex Bolt | M12x25 | 4 |
| 63 | Hex Bolt | M12x110 | 8 |

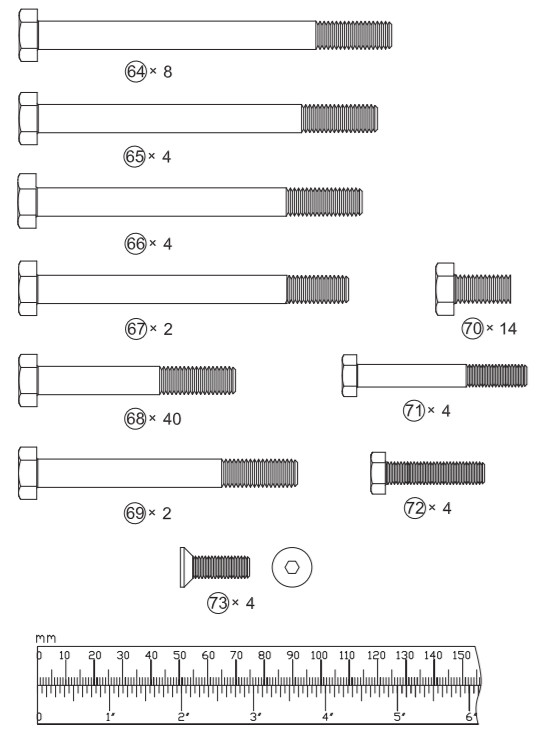

| 64 | Hex Bolt | M10x125 | 8 |
| 65 | Hex Bolt | M10x120 | 4 |
| 66 | Hex Bolt | M10x115 | 4 |
| 67 | Hex Bolt | M10x110 | 2 |
| 68 | Hex Bolt | M10x70 | 40 |
| 69 | Hex Bolt | M10x95 | 2 |
| 70 | Hex Bolt | M10x20 | 14 |
| 71 | Hex Bolt | M8x60 | 4 |
| 72 | Hex Bolt | M8x35 | 4 |
| 73 | Socket countersunk head screw | M8x20 | 4 |
| 74 | Carriage Bolts | M10x70 | 2 |

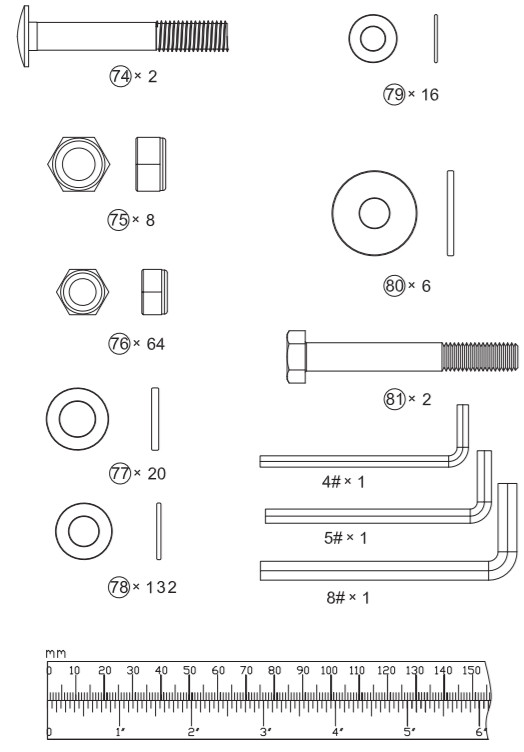

| 75 | Aircraft Nut | M12 | 8 |
| 76 | Aircraft Nut | M10 | 64 |
| 77 | Washer | 12 | 20 |
| 78 | Washer | 10 | 134 |
| 79 | Washer | 8 | 16 |
| 80 | Larger Washer | 010x030x2 | 6 |
| 81 | Hex Bolt | M10x75 | 2 |
| Allen Wrench | 8# | 1 | |
| Allen Wrench | 5# | 1 | |
| Allen Wrench | 4# | 1 |

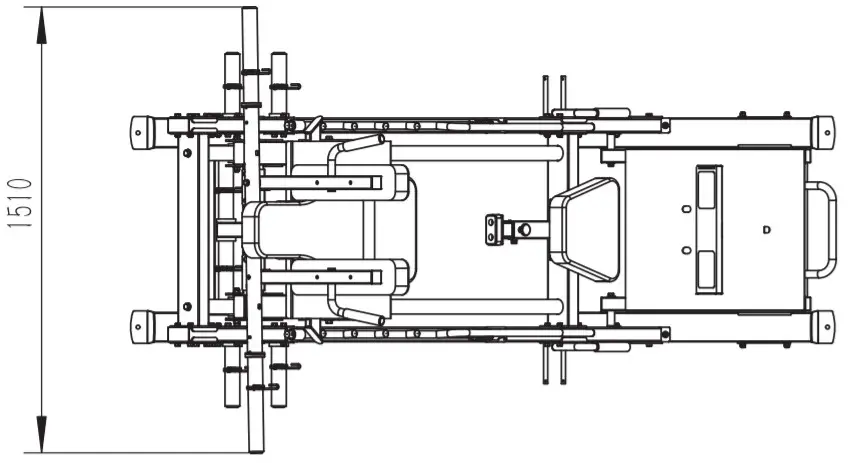

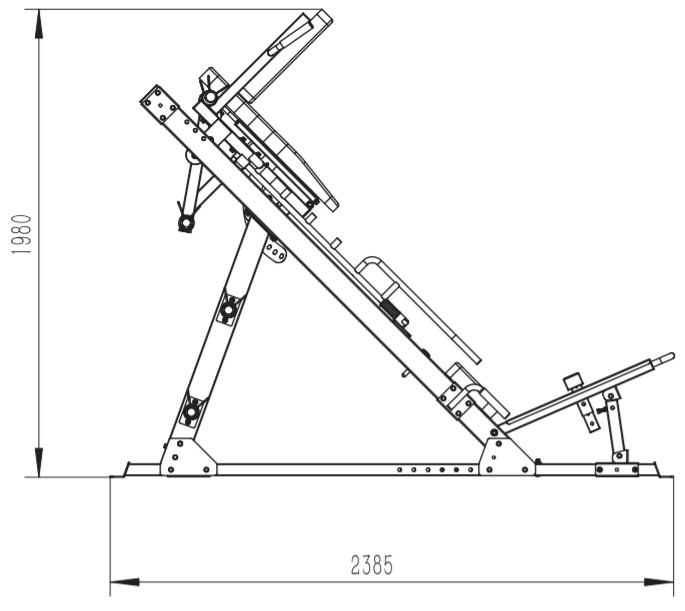

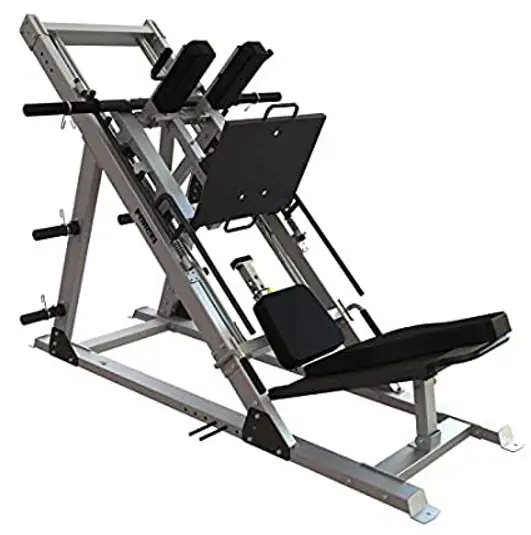

Assembled Dimension: 2385mm x 1510mm x 1980mm
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |

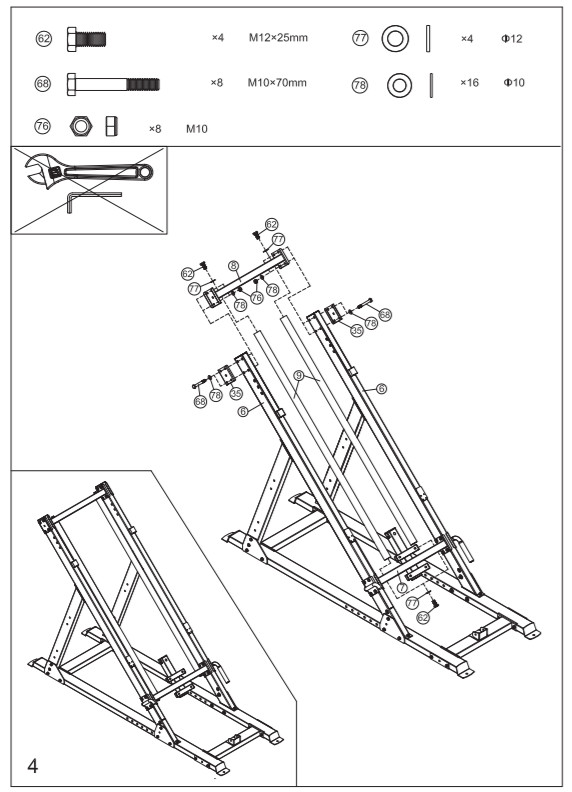

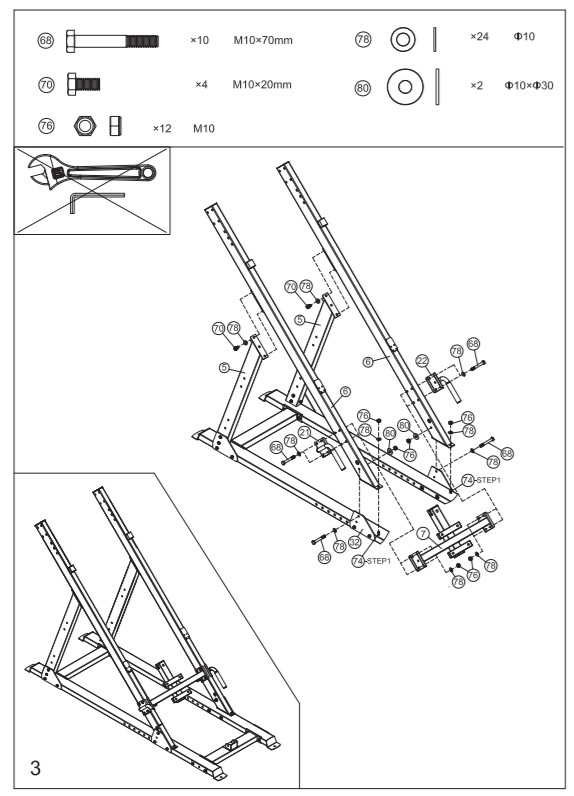

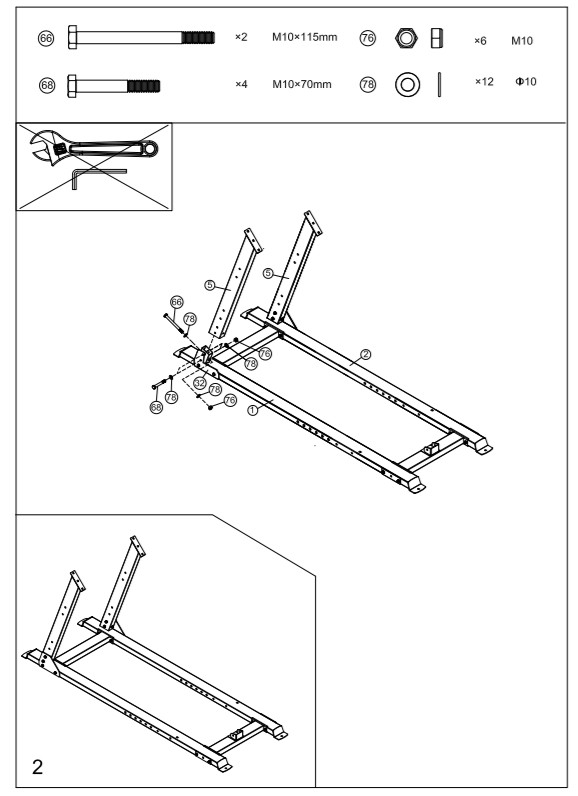

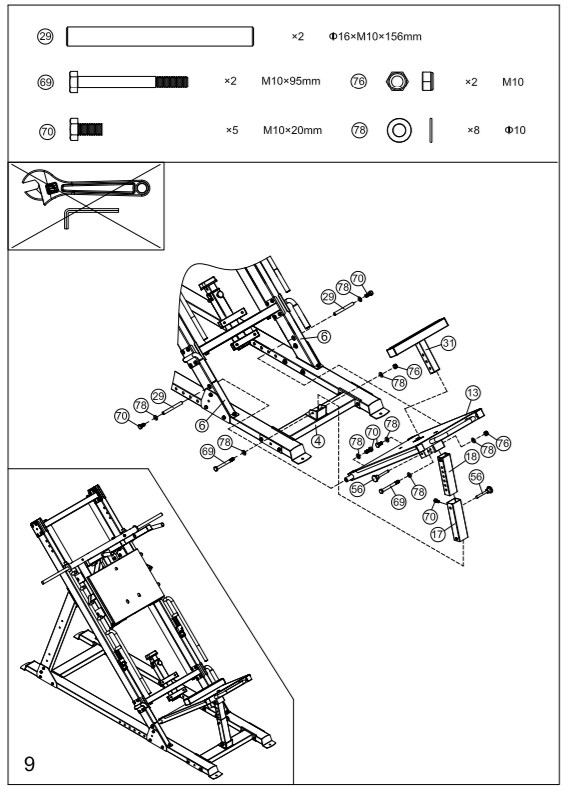

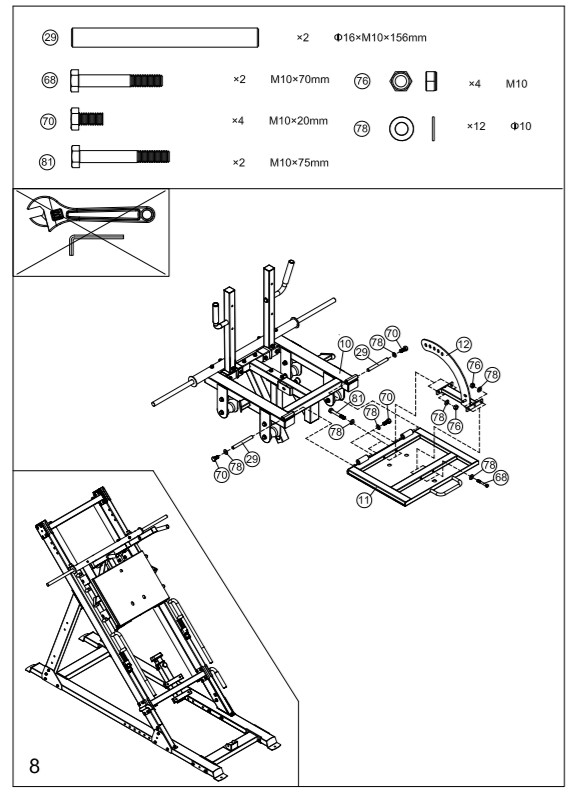

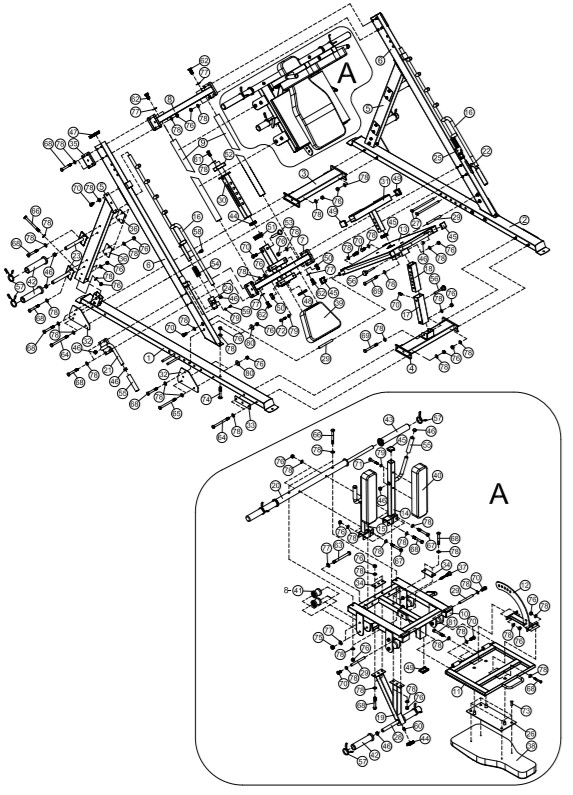

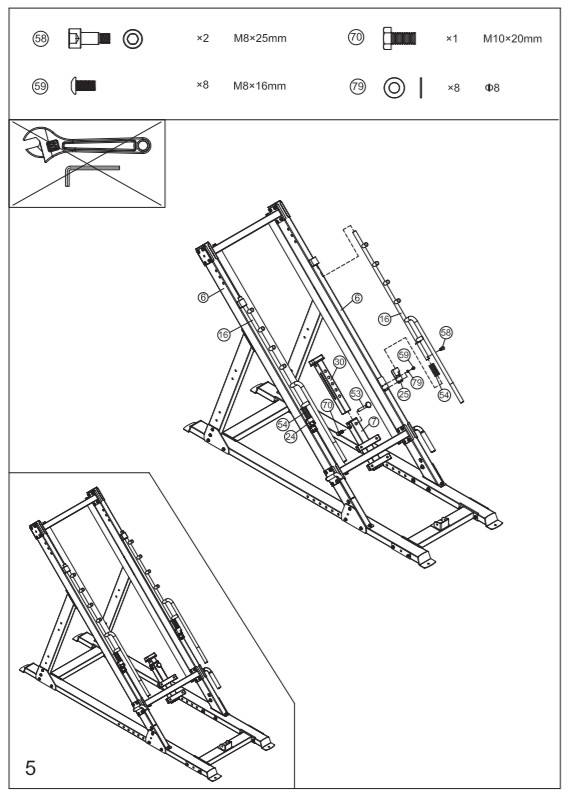

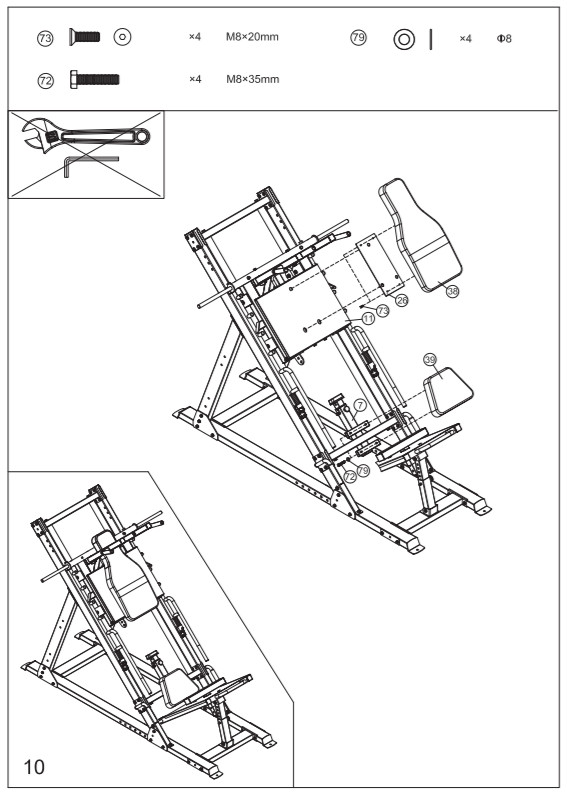

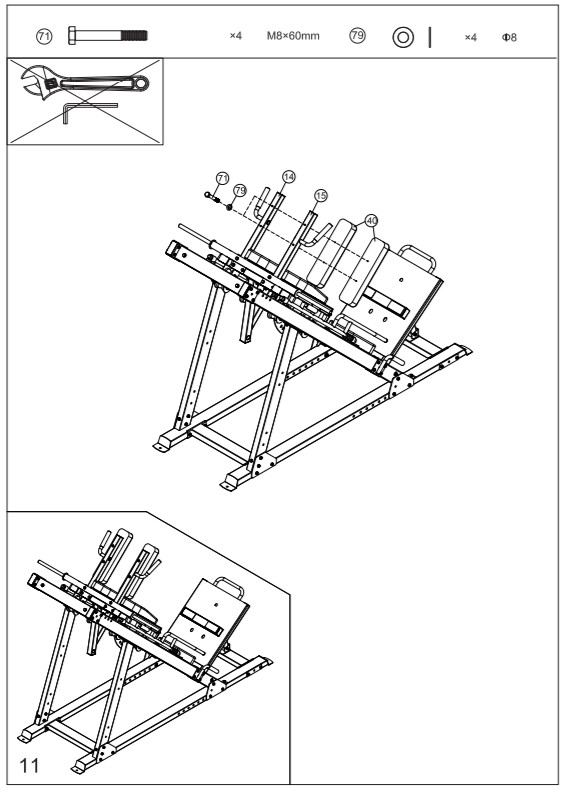

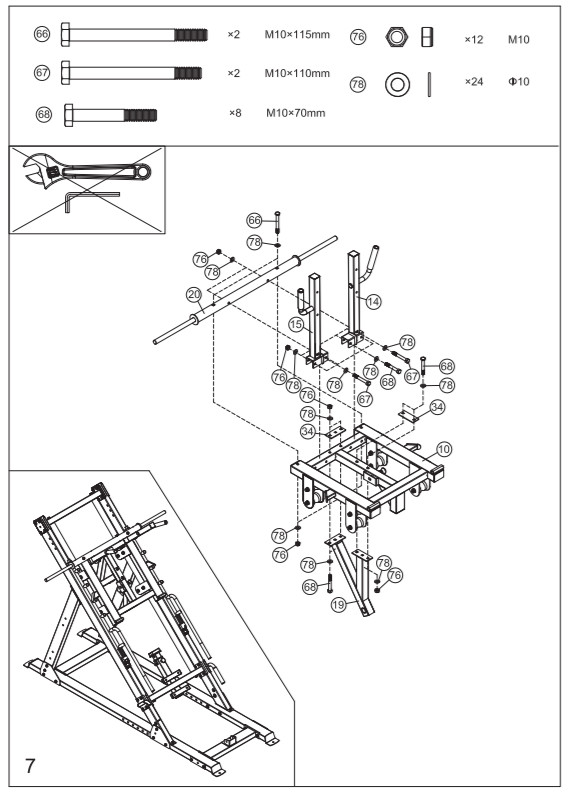

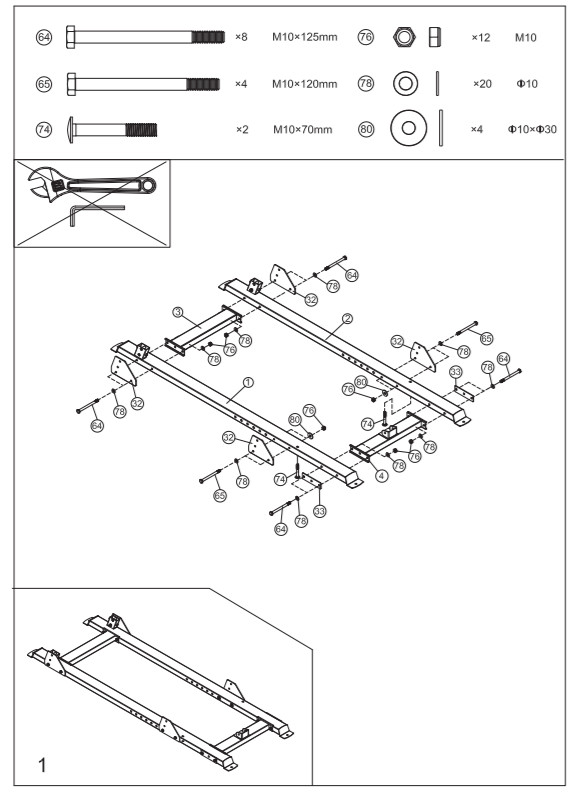

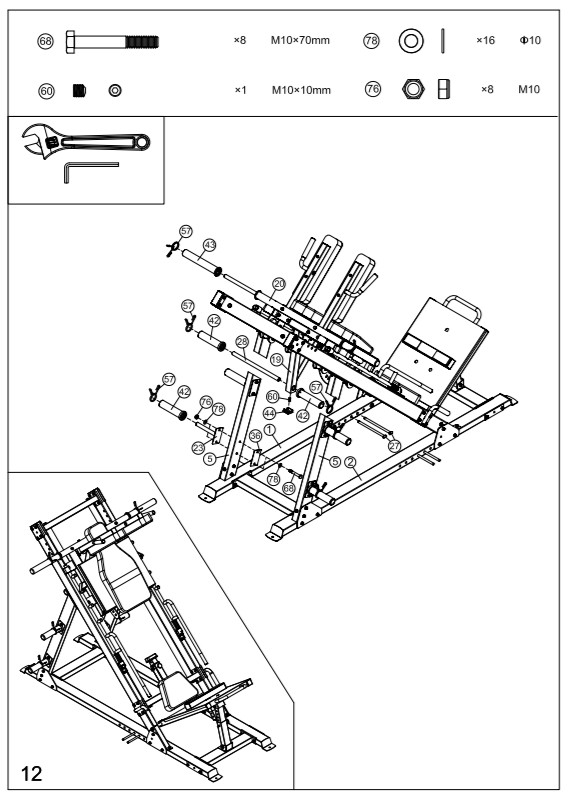

EXPLODED DIAGRAM
PACKAGE LIST
| BOX 1: | BOX 3: | ||
| 1 | Part 1 | 1 | Part 3 |
| 1 | Part 2 | 1 | Part 4 |
| 2 | Part 5 | 1 | Part 12 |
| 2 | Part 6 | 1 | Part 13 |
| 2 | Part 43 | 1 | Part 14 |
| BOX 2: | 1 | Part 15 | |
| 1 | Part 7 | 1 | Part 19 |
| 1 | Part 8 | 1 | Part 21 |
| 1 | Part 10 | 1 | Part 22 |
| 1 | Part 11 | 1 | Part 26 |
| 4 | Part 23 | 1 | Part 28 |
| 2 | Part 33 | 1 | Part 31 |
| 2 | Part 34 | 1 | Part 37 |
| 2 | Part 35 | 1 | Part 38 |
| 4 | Part 36 | 8 | Part 41 |
| 1 | Part 39 | 1 | Part 44 |
| 2 | Part 40 | 1 | Part 53 |
| 6 | Part 42 | 1 | Part 54 |
| Parts bag 8-1 | 2 | Part 56 | |
| Parts bag 8-2 | BOX 4: | ||
| Parts bag 8-3 | 2 | Part 9 | |
| Parts bag 8-4 | 2 | Part 16 | |
| Parts bag 8-5 | 1 | Part 17 | |
| Parts bag 8-6 | 1 | Part 18 | |
| Parts bag 8-7 | 1 | Part 20 | |
| Parts bag 8-8 | 1 | Part 24 | |
| 1 | Part 25 | ||
| 4 | Part 27 | ||
| 1 | Part 30 | ||
| 4 | Part 32 | ||
