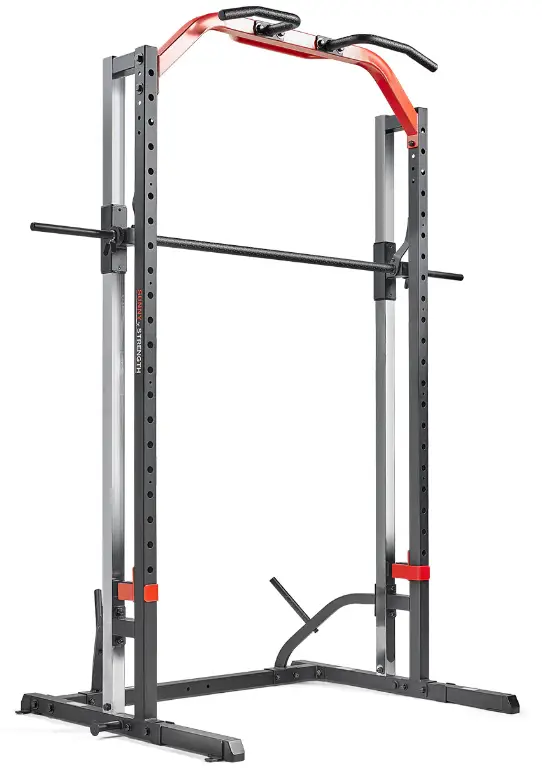

SUNNY HEALTH FITNESS SF-XF920020 Essential Series Smith Machine Squat Rack

IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: [email protected] or 1- 877 – 90SUNNY (877-907-8669).

IMPORTANT SAFETY INFORMATION

We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions.

1. Before starting any exercise program, you should consult your physician to determine if you have any medical or physical conditions that could put your health and safety at risk or prevent you from using the equipment properly. Your physician’s advice is essential if you are taking medication that affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If you do experience any of these conditions, you should consult your physician before continuing with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To ensure safety, the equipment should have at least 2 feet (60 CM) of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of the equipment can only be maintained if it is regularly examined for damage and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while assembling or checking the equipment, or if you hear any unusual noises coming from the equipment during exercise, discontinue use of the equipment immediately and do not use until the problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 1000 pounds (455KG).
10. The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving are required.
12. Your product is intended for use in cool and dry conditions. You should avoid storage in extreme cold, hot or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only; it is not intended for commercial use.

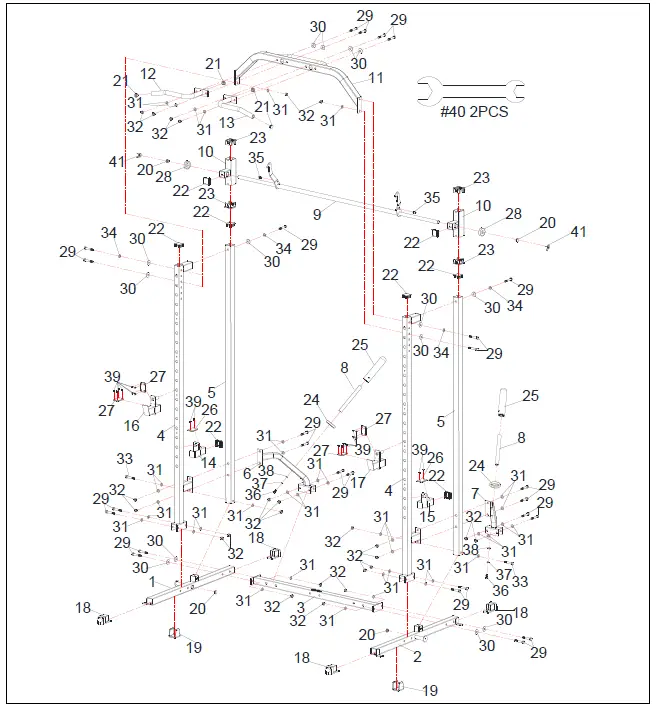

EXPLODED DIAGRAM

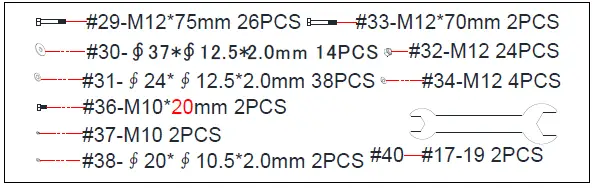

HARDWARE PACKAGE

PARTS LIST

Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:

• The model number (found on cover of manual)
• The product name (found on cover of manual)
• The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the frontof the manual)

Please contact us at [email protected] or 1- 877 – 90SUNNY (877-907-8669).

ASSEMBLY INSTRUCTIONS

We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at [email protected] or 1-877-90SUNNY (877-907-8669).

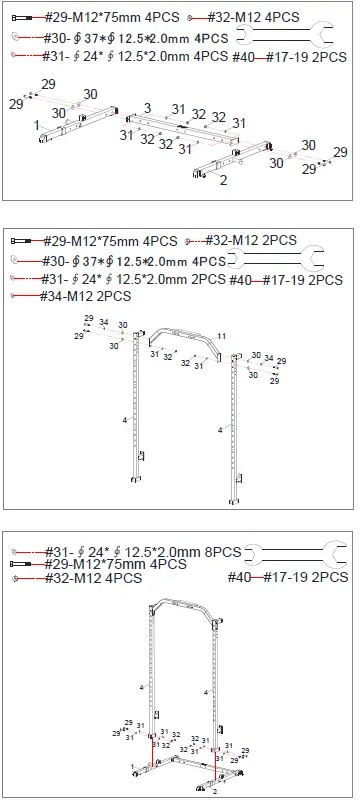

1. STEP 1: Attach the Right & Left Base Frame (No. 1 & No. 2) to the Rear Cross Tube (No. 3) using 4 Hex Bolts (No. 29), 4 Big Flat Washers (No. 30), 4 Flat Washers (No. 31) and 4 Lock Nuts (No. 32). Secure with 2 Wrenches (No. 40). Do not tighten the 4 Hex Bolts (No. 29) during this step.
2. STEP 2: Attach the Upper Frame (No. 11) onto 2 Front Upright Frames (No. 4) using 4 Hex Bolts (No. 29), 4 Big Flat Washers (No. 30), 2 Flat Washers (No. 31), 2 Spring Washers (No. 34) and 2 Lock Nuts (No. 32). Secure with 2 Wrenches (No. 40). Do not tighten the 4 Hex Bolts (No. 29) during this step.
   There are 4 height installation options for the Upper Frame (No. 11), make sure the two sides of Upper Frame (No. 11) are the same height when installing.
3. STEP 3: NOTE: It is highly recommended that you have assistance during the assembly. Attach 2 Front Upright Frames (No. 4) to the Right & Left Base Frames (No. 1 & No. 2) using 4 Hex Bolts (No. 29), 8 Flat Washers (No. 31) and 4 Lock Nuts (No. 32). Tighten and secure with 2 Wrenches (No. 40). Now you can tighten all the Hex Bolts (No. 29) from STEP 1 & STEP 2. We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at [email protected] or 1-877-90SUNNY (877-907-8669).

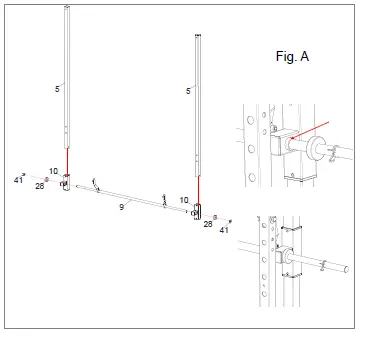

4. STEP 4: NOTE: It is highly recommended that you have assistance during the assembly. Before assembly, please make sure the bump on 2 Sliding Tubes (No. 10) showed on Fig A are facing outside of the rack. Attach 2 Sliding Tubes (No. 10) to the Weightlifting Barbell Bar (No. 9). Slide the assembled Weightlifting Barbell Bar (No. 9) on to the 2 Rear Upright Frames (No. 5) together. Insert 2 Bumpers (No. 28) to each post of the Weightlifting Barbell Bar (No. 9) and push the Bumpers (No. 28) to the base of the 2 Sliding Tubes (No. 10). Please make sure the groove side of 2 Bumpers (No. 28) is facing the bump on 2 Sliding Tubes (No. 10). Slide 2 Spring Clips (No. 41) on to each post of the Weightlifting Barbell Bar (No. 9) respectively

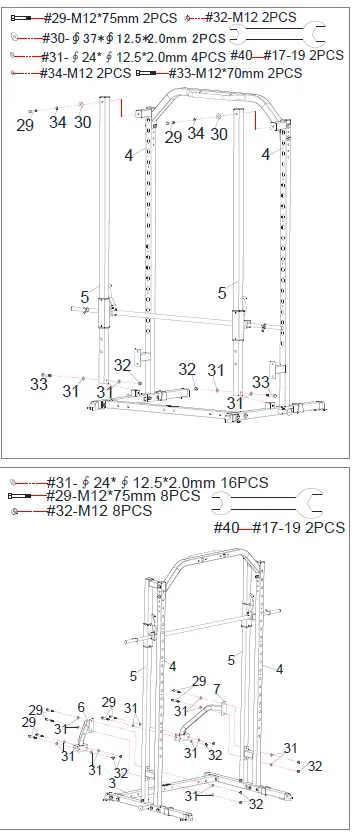

5. STEP 5: NOTE: It is highly recommended that you have assistance during the assembly. Attach the assembled 2 Rear Upright Frames (No. 5) to the 2 Front Upright Frames (No. 4) respectively using 2 Hex Bolts (No. 33), 2 Hex Bolts (No. 29), 4 Flat Washers (No. 31), 2 Big Flat Washers (No. 30), 2 Spring Washers (No. 34) and 2 Lock Nuts (No. 32). Tighten and secure with 2 Wrenches (No. 40).
6. STEP 6: Attach Right & Left Support Frames (No. 6 & 7) to 2 Rear Upright Frames (No. 5) and the Rear Cross Tube (No. 3) using 8 Hex Bolts (No. 29), 16 Flat Washers (No. 31), and 8 Lock Nuts (No. 32). Tighten and secure with 2 Wrenches (No. 40).

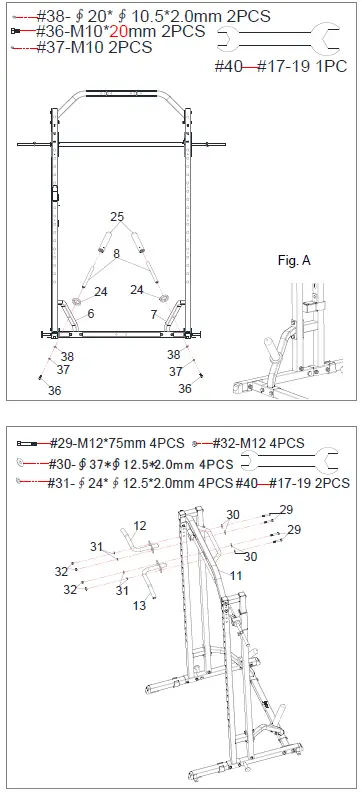

7. STEP 7: Attach 2 assembled Weight Plate Holder Sleeves (No. 25) to the Right & Left Support Frames (No. 6 & 7) using 2 Hex Bolts (No. 36), 2 Spring Washers (No. 37) and 2 Flat Washers (No. 38). Tighten and secure with 1 Wrench (No. 40).
   Insert 2 Bumpers (No. 24) to the base of the 2 Weight Plate Holder Sleeves (No. 25) as shown in Fig. A.
8. STEP 8: Attach Right & Left Handlebars (No. 12 & 13) to the Upper Frame (No. 11) using 4 Hex Bolts (No. 29), 4 Big Flat Washers (No. 30), 4 Flat Washers (No. 31) and 4 Lock Nuts (No. 32). Tighten and secure with 2 Wrenches (No. 40).

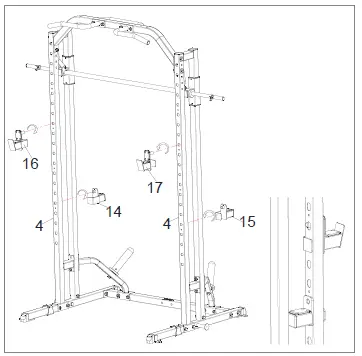

9. STEP 9: Insert the Right Hook (No. 16) and the Right Safety Catch (No. 14) into the Front Upright Frame (No. 4) on the right. Turn Right Hook (No. 16) and Right Safety Catch (No. 14) as the arrow showed on the left picture to tighten. Insert the Left Hook (No. 17) and the Left Safety Catch (No. 15) into the Front Upright Frame (No. 4) on the left. Turn Left Hook (No. 17) and Left Safety Catch (No. 15) as the arrow showed on the left picture to tighten. Place them at the same level on the left and right side of the cage and at a comfortable height that will assist you during your workout.
10. STEP 10: WARNING: Please ensure sufficient weights are on the rack or the rack is bolted to the ground before using the resistance bands.
    NOTE: ∮13 Wood Screws and Expansion Bolts are not included. If the ground is made of wood material, secure the 4 Connecting Pieces (No. A) on Right & Left Base Frames (No. 1 & No. 2) to the ground using 4 ∮13 Wood Screws to bolt the rack. If the ground is cement ground, please mark the holes on the 4 Connecting Pieces (No. A), then remove the rack, drill the holes and install 4 Expansion Bolts into the ground. Move the rack back, align the holes with 4 Connecting Pieces (No. A) to the 4 Expansion Bolts and tighten them to bolt the rack. The assembly is complete!

MAINTENANCE INSTRUCTIONS

DAILY MAINTENANCE
Inspect and tighten all parts regularly. (Nuts, Bolts, Rubber Pads, Steel Brackets, etc.) Replace any worn or torn parts immediately. Check and ensure the equipment is levelled at all time. Check and tighten all adjustment pins/knobs regularly.

WEEKLY MAINTENANCE
Use damp cloth on plastic parts only, use dry cloth on metal frames. Inspect the metal frame structure of the equipment.

WARNING: Please ensure sufficient weights are on the rack and the rack is bolted to the ground before using the resistance bands
