5G NR/4G LTE CPE
Quick Sales Guide

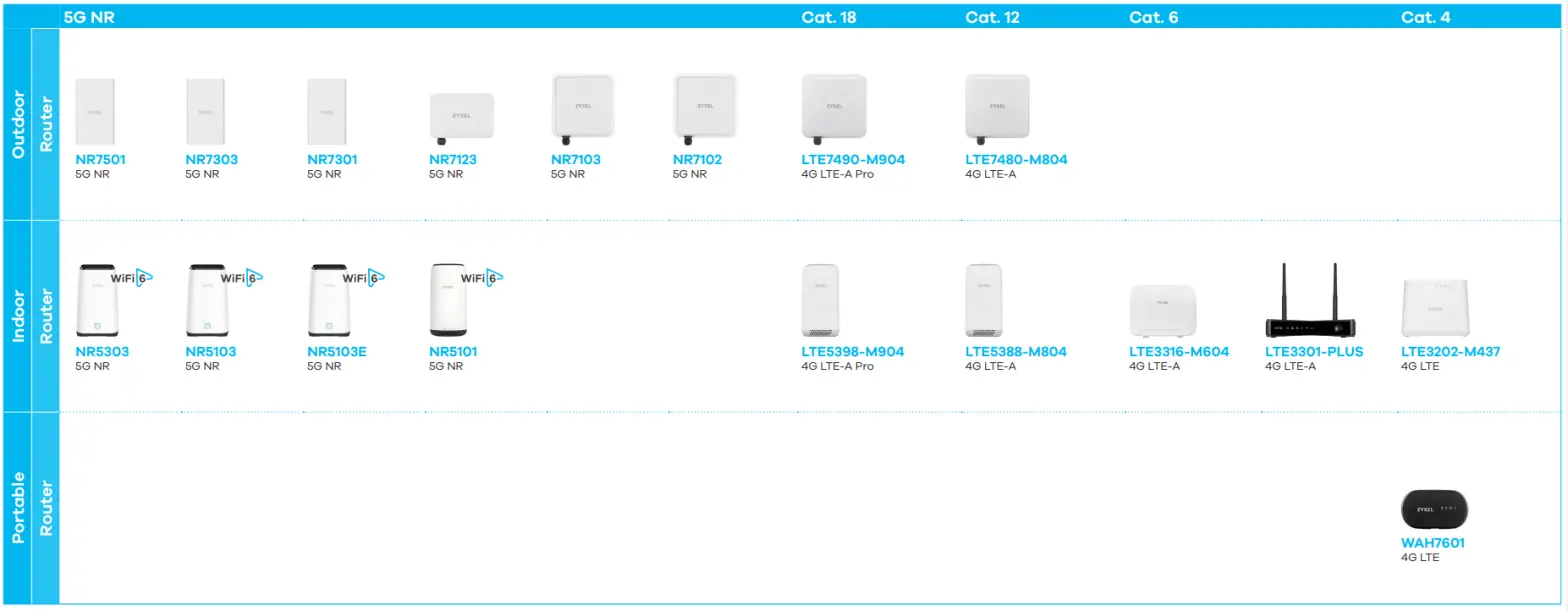

Mobile broadband product portfolio
Key features
| Category Outdoor CPE | Cat. 5G NR | Model | Key features |
NR7501 | • 3GPP Release 16 5G NR, up to 6 Gbps/450 Mbps* (DL/UL) with the support of NSA & SA mode • Supports Sub-6 GHz & mmWave • Supports FR1-FR2 aggregation, FR1-FR1 aggregation • Built-in 4×4 MIMO, high-gain 4G/5G antennas of up to 7 dBi per element • Standard 802.3af/at 2.5G PoE • Remote management via TR-069 (TR-181 and TR-143 speed test) and web GUI • IP67 hardened enclosure with industrial grade components • Zyxel Air app (iOS and Android) | ||
| NR7303 | • 3GPP Release 15 5G NR, up to 4.67 Gbps/2.5 Gbps* (DL/UL) with the support of NSA & SA mode • Supports FR1 NR 2CC • Built-in 4×4 MIMO, high-gain 4G/5G antennas of up to 7 dBi per element • Standard 802.3af/at 2.5G PoE • Remote management via TR-069 (TR-181 and TR-143 speed test) and web GUI • IP67 hardened enclosure with industrial grade components • Zyxel Air app (iOS and Android) | ||
| NR7301 | • 3GPP Release 16 5G NR, up to 3.3 Gbps/600 Mbps* (DL/UL) with the support ofNSA & SA mode • Supports FR1 NR 2CC • Built-in 4×4 MIMO, high-gain 4G/5G antennas of up to 7 dBi per element • Standard 802.3af/at 2.5G PoE • Remote management via TR-069 (TR-181 and TR-143 speed test) and web GUI • IP67 hardened enclosure with industrial grade components • Zyxel Air app (iOS and Android) | ||
NR7123 | • 3GPP Release 15 5G NR, up to 4.67 Gbps/2.5 Gbps* (DL/UL) with the support of NSA & SA mode • Standard 802.3af/at 2.5G PoE • Multiple APNs with VLAN mapping • Bridge and router modes, IPv4/IPv6 dual stack • Remote management via TR-069 (TR-181 and TR-143 speed test) and web GUI • IP65 hardened enclosure with industrial grade • Zyxel Air app (iOS and Android) | ||
| NR7103 | • 3GPP Release 15 5G NR, up to 4.67 Gbps/2.5 Gbps* (DL/UL) with the support of NSA & SA mode • Standard 802.3af/at 2.5G PoE • Multiple APNs with VLAN mapping • Bridge and router modes, IPv4/IPv6 dual-stack • Remote management via TR-069 (TR-181 and TR-143 speed test) and web GUI • IP68 hardened enclosure with industrial-grade components • Zyxel Air app (iOS and Android) | ||
| NR7102 | • 3GPP Release 15 5G NR, up to 5 Gbps/650 Mbps* (DL/UL) with the support of NSA & SA mode • Standard 802.3af/at 2.5G PoE • Multiple APNs with VLAN mapping • Bridge and router modes, IPv4/IPv6 dual stack • Remote management via TR-069 (TR-181 and TR-143 speed test) and web GUI • IP68 hardened enclosure with industrial grade components • Zyxel Air app (iOS and Android) | ||
| Cat. 18 | LTE7490-M904 | • 3GPP Release 12 Cat. 18, up to 1.2 Gbps/150 Mbps* (DL/UL) • Built-in 4×4 MIMO, high-gain antennas of up to 7 dBi per element • Remote management via TR-069 (TR-181 and TR-143 speed test) and web GUI • IP68 hardened enclosure with industrial grade components • Zyxel Air app (iOS and Android) | |
| Cat. 12 | LTE7480-M804 | • 3GPP Release 12 Cat. 12, up to 600/150 Mbps* (DL/UL) • Built-in 4×4 MIMO, directional high-gain antennas of up to 7 dBi per element • Remote management via TR-069 (with TR-143 speed test), HTTP/web GUI • IP68 hardened enclosure with industrial-grade components • Zyxel Air app (iOS and Android) |
*The maximum data rate is a theoretical value. The actual data rate depends on the operator.
| Category | Cat. | Model | Key features |
| Indoor CPE | 5G NR | NR5301 | • 3GPP Release 16 5G NR, up to 3.3 Gbps/600 Mbps* (DL/UL) with the support of NSA & SA mode • Supports FR1 NR 2CC • WiFi 6 (11ax) 4×4+4×4 • Built-in 4×4 MIMO, high-performance antennas • Remote management via TR-069/TR-181/TR-143/web GUI • Zyxel Air app (iOS and Android) |
| NR5103 | • 3GPP Release 15 5G NR, up to 4.67 Gbps/2.5 Gbps* (DL/UL) with the support of NSA & SA mode • Supports FR1 NR 2CC • WiFi 6 (11ax) 4×4+4×4 for superior performance and coverage • Built-in 4×4 MIMO, high-performance 4G/5G antennas • Remote management via TR-069 (TR-181 and TR-143 speed test) and web GUI • Certified with EasyMesh R2 • Zyxel Air app (iOS and Android) | ||
| NR5103E | • 3GPP Release 15 5G NR, up to 4.67 Gbps/2.5 Gbps* (DL/UL) with the support of NSA & SA mode • Supports FR1 NR 2CC • WiFi 6 (11ax) 2×2+2×2 for superior performance and coverage • Built-in 4×4 MIMO, high-performance 4G/5G antennas • Remote management via TR-069 (TR-181 and TR-143 speed test) and web GUI • Zyxel Air app (iOS and Android) | ||
| NR5101 | • 3GPP Release 15 5G NR, up to 5.0 Gbps/650 Mbps* (DL/UL) with the support of NSA & SA mode • WiFi 6 (11ax) 2×2+2×2 for superior performance and coverage • Built-in 4×4 MIMO, high-performance 4G/5G antennas • Remote management via TR-069 (TR-181 and TR-143 speed test), HTTP/web GUI • Supports VoIP/VoLTE (optional feature) • Zyxel Air app (iOS and Android) | ||
LTE5398-M904  | • 3GPP Release 12 Cat. 18, up to 1.2 Gbps/150 Mbps* (DL/UL) • AC2050 dual-band WiFi AP • Built-in LTE 4×4 MIMO high-performance antennas • Dual-WAN Failover (mobile & Ethernet WAN) • Remote management via TR-069 (TR-181 and TR-143 speed test), HTTP/web GUI • Supports VoIP/VoLTE (optional feature) • Zyxel Air app (iOS and Android) | ||
| Cat. 18 | LTE5388-M804 | • 3GPP Release 12 Cat. 12, up to 600/150 Mbps* (DL/UL) • AC2050 dual-band WiFi AP • Built-in LTE 4×4 MIMO high-performance antennas • Dual-WAN Failover (mobile & Ethernet WAN) • Remote management via TR-069 (TR-181 and TR-143 speed test) and web GUI • Supports VoIP/VoLTE (optional feature) • Zyxel Air app (iOS and Android) | |
| Cat. 12 | LTE3301-PLUS  | • 3GPP Release 10 Cat. 6, up to 300/50 Mbps* (DL/UL) • AC1200 dual-band concurrent links • Supports seamless switching between 4G and 3G • Multiple-band supported for different countries • Bridge and router modes • Dual-WAN Failover (mobile & Ethernet WAN) • Zyxel Air app (iOS and Android) | |
| Cat. 6 | LTE3316-M604  | • 3GPP Release 10 Cat. 6, up to 300/50 Mbps* (DL/UL) • AC1200 dual-band concurrent links • Dual-WAN Failover (mobile & Ethernet WAN) • Remote management via TR-069 (TR-181 and TR-143 speed test) and web GUI • Supports VoIP/VoLTE (optional feature) • Zyxel Air app (iOS and Android) | |
| Cat. 4 | LTE3202-M437  | • 3GPP Release 9 Cat. 4, up to 150/50 Mbps* (DL/UL) • N300 WiFi with multiple simultaneous SSIDs • Seamless switching between 4G and 3G • Remote management via TR-069 (TR-181 and TR-143 speed test) and web GUI • Zyxel Air app (iOS and Android) | |
| LTE portable devices | Cat. 4 | WAH7601 | • 3GPP Release 9 Cat. 4, up to 150/50 Mbps* (DL/UL) • N300 WiFi with multiple simultaneous SSID • Supports up to 10 WiFi-connected clients • Up to 8 working hours • Micro SD card slot (32 GB max.) • Zyxel Air app (iOS and Android) |
Frequency band comparison
Outdoor CPE
| _ Product name | 56 NR | Cat.18 | Cat.12 | |||||
| NR7501 G NR Outdoor Router | NR7303 | NR7301 IINR7123 | NR7103 | NR7102 | -7E7490-M904 | LTE7480-M804 4G L7E A Outdoor Router | ||
| SG NR Outdoor Router | SG NR Outdoor Router | SG NR Outdoor Router | SG NR Outdoor Router | NR Outdoor Router | 4G LTE-A Pro Outdoor Router | |||
| Ingress Protection Rating | 1P67 | 1P67 | 1P67 | IP65 | 1P68 | IP68 | IP68 | 1P68 |
| FDD | n1, n3, nS, n7, na, n20, n28 | n1, n3, nS, n7, na, n20, n28 | n1, n3, nS, n7, nS, n20, n28 | n1, n3, nS, n7, nS, n20, n28 | n1, n3, nS, n7, na, n20, n28 | n1, n3, nS, n7, n8, n20, n28 | – | – |
| 56 NR TDD | n38, MO, Ml, n77, n78, n257, n258, n260, n261 | n38, MO, n41, n77, n78 | n38, n40, Ml, n77, n78 | n38, MO, n41, n77, n78 | n38, MO, Ml, n77, n78 | n38, n40, n41, n77, n73 | – | – |
| FDD 4G LTE | B1, B3, BS, 97, 88, 820, B28, B32 | B1, 83, BS, 137, B8, 820, B28, B32 | 131, 133, BS, 137, 88, 1320, 828, B32 | 81, 133, BS, 87, 88,820,828,832 828, | 131, 133, BS, B7, 88,820,828 | 131, 133, B5, B7, 138, 820,1328 | BI, 33, B5, B7, 138, e20,1323 | B1,133, BS, B7, 88,820,828 |
| TDD | B38, 840,1341, 842,1343 | 838,840,841,042,043 | 1338, 1340, 1341, 842, B43 | 934, B38, 339, 1340, B41,1342, 842,843 | 838,1340 841 842, B43 | 338, 1340, 1341, 1342, 843 | 1338, 1340, B41 | 838,840 941 |
| DL CA | 56 NR:2xCA 4G LTE SxCA | SG NR:2xCA 4G LTE SxCA | SG NR: 2xCA 4G LTE SxCA | SG Nit 2XCA 4G LTE SxCA | SG NR: 2xCA 4G LTE SxCA | EG NR: EN-DC 4G LTE: 7xCA | DL 2xCA intro-band and Inter-band DL 3xCk intro-band and inter-band DL 4xCA: Intro-band and inter-band DL SxCA Intra-band and inter-band within 4 bands | DL 2xCA intro-band and inter-band DL 3xCA: intro-band and inter-band |
| UL CA | SG NR:2×2 UL MIMO 4G LTE 2xCA | SG NR:2×2 UL MIMO 4G LTE 2xCA | SG NR2x2 UL MIMO 4G LIE 2xCA | SG NR 2×2 UL MIMO 4G LTE 2xCA | SG NR2x2 UL MIMO 4G LTE 2xCA | SG NR:2×2 UL MIMO 4G LTE: ZACA | 2xCA: intra- band contiguous | 2xCk antra -band contiguous |
| MIMO | SG NR UL: 2×2 MIMO on n41/n77/n78 SG NR DL: 4×4 MIMO on n1/n3/n7/ n38/n40/n41/n77/n78/ n257/n258/n260/n261 4G LTE DL 4×4 MIMO on 81/133/137/ 1338/1340/841/842 | SG NR UL: 2×2 MIMO on n41/n77/n78 SG NR DL: 4×4 MIMO on n1/n3/n7/ n38/n40/n41/n77/n78 4G LTE DL 4×4 MIMO on 131/133/87/ 1332/1338/1340/1341/342 | SG NR UL: 2×2 MIMO on n41/n77/n78 SG NR DL 4×4 MIMO on n1/n3/n7/ n38/n40/n41 /n77/n78 4G LTE DL: 4×4 MIMO on 81/133/137/ 838/840/841/842 | SG NR UL 2×2 MIMO on n41 /n77/n78 SG NR DL 4×4 MIMO on ni/n3/n7/n38/ n40/n41/n77 /n78 4G LTE DL 4×4 MIMO on 131/133/87/1332/ 838/1340/1301342 | SG NR UL: 2×2 MIMO on n41/n77/n78 SG NR DL 4×4 MIMO on n1/n3/n7/n38/ n40/n41/n77/n78 4G LTE DL 4×4 MIMO on 81/133/87/1332/ 838/840/841/842 | SG NR UL: 2×2 MIMO on n41/n77/n78 SG NR DL: 4×4 MIMO on n1/n3/n7 /n20/n28/ n38/n40/n41 /n77/n78 4G LTE DL 4×4 MIMO on 131/133/87/940/8411 842/1343 | DL MIMO: B1/3/7 | IX MIMO: 81/3/7 |
| Modulation (OL/UL) | 256-QAM/256-QAM | 256-QAM/266-QAM | 256-QAM /256-QAM | 256-QAM /256-QAM | 256-QAM/256-QAM | 256-QAM/256-QAM | 256-DAM/64-QAM | 256-QAM/64-QAM |
| 80211n 2×2 | Yes’ | Yes’ | Yes’ | Yes’ | Yes’ | Yes* | Yes’ | Yes’ |
| 80211ac 232 | – | – | – | |||||
| Si 80211oa 434 | – | – | – | |||||
| 802-11ax 2×2 | – | – | ||||||
| Number of users | – | – | – | |||||
| FE LAN | – | – | ||||||
| Ethernet ObE LAN | x1 (2SGbE PoE) | x1 (25GbE POE) | xt (25GbE POE) | xl (2SGbE PoE) | x1 (2SGbE PoE) | xl (25GbE PoE) | xl (1GbE POE) | x1 (1GbE PoE) |
| GbE WAN | – | – | ||||||
| VoP Phone | – | – | – | – | ||||
| Vo30NoLTE | – | – | – | – | – | |||
| Micro/Mini Slot SIM slot | Micro SIM | Micro SIM | Micro SIM | Micro SIM | Micro SIM | Micro SIM | Micro SIM | Micro SIM |
| Power DC Input | PoE 48 V | !ME 48 V | PoE 48 V | PoE 48 V | PoE 48 V | PoE 43 V | PoE 48 V | PoE 48 V |
| Model | 5G NR | Cat. 18 | Cat. 12 | Cat. 6 | Cat. 4 | |||||
| NR5301 | NR5103 | NR5103E | NR5101 | LTE5398-M904 | LTE5388-M804 | LTE3301 -PLUS | LTE 3316-M604 | LTE3202-M437 | ||
| Product name | 5G NR Indoor Router | 5G NR Indoor Router | 5G NR Indoor Router | 5G NR Indoor Router | 4G LTE-A Pro Indoor Router | 4G LTE-A Indoor Router | 4G LTE-A Indoor Router | 4G LTE-A Indoor Router | 4G LTE Indoor Router | |
| 5G NR | FDD | n1, n2, n5, n7, n8, n20, n28 | n1, n2, n5, n7, n8, n20, n28 | n1, n3, n7, n8, n20, n28 | n1, n3, n5, n7, n8, n20, n28 | – | – | – | – | – |
| TDD | n38, n40, n41, n77, n78 | n38, n40, n41, n77, n78 | n38, n40, n41, n77, n78 | n38, n40, n41, n77, n78 | – | – | – | – | – | |
| FDD | B1, B3, B5, B7, B8, B28 | B1, B3, B5, B7, B8, B28 | B1, B3, B5, B7, B8, B20, B28, B32 | B1, B3, B5, B7, B8, B20, B28 | B1, B3, B5, B7, B8, B20, B28 | B1, B3, B5, B7, B8, B20, B28 | B1, B3, B5, B7, B8, B20, B28 | B1, B3, B5, B7, B8, B20, B28 | B1, B3, B5, B7, B8, B20, B28 (28a) | |
| 4G LTE | ||||||||||
| TDD | B38, B40, B41, B42 | B38, B40, B41, B42 | B34, B38, B39, B40, B41, B42, B43 | B32, B38, B39, B40, B41, B42 | B38, B40, B41 | B38, B40, B41 | B38, B40, B41 | B38, B40, B41 | B38, B40, B41 | |
| 5G NR: 2xCA 4G LTE: 5xCA | 5G NR: 2xCA 4G LTE: 5xCA | 5G NR: 2xCA 4G LTE: 5xCA | 5G NR: EN-DC 4G LTE: 7xCA | 2xCA: intra-band and inter-band 3xCA: intra intra-band and inter-band 5xCA: intra-band and inter-band within 4 bands | 2xCA: intra-band and inter-band 3xCA: intra-band and inter-band | B1+B1/B5/ B8/B20 /B28 B3+B3/B5/ B7/B8/ B20/B28 B7+B5/B7 /B8/B20 /B28 B38+B38; B40+B40; B41+B41 | B1+B1 /B5/B8 /B20/B28 B3+B3 /B5/B7/ B8/B20/ B28 B7+B5/ B7/B8/ B20/B28 B38+B38; B40+B40; B41+B41 | – | ||
| DL CA | ||||||||||
| UL CA | 5G NR: 2×2 UL MIMO4G LTE: 2xCA | 5G NR: 2×2 UL MIMO4G LTE: 2xCA | 5G NR: 2×2 UL MIMO4G LTE: 2xCA | 5G NR: 2×2 UL MIMO 4G LTE 2xCA | 2xCA: intra- band contiguous | 2xCA: intra- band contiguous | – | – | – | |
| 5G NR UL: 2×2 MIMO on n41/n77/n78 5G NR DL: 4×4 MIMO on n1/n3/n7/ n38/n40/n41/n77/n78 4G LTE DL: 4×4 MIMO on B1/B3/B7/ B32/B38/ | 5G NR UL: 2×2 MIMO on n41/n77/n78 5G NR DL: 4×4 MIMO on n1/n3/n7/ n38/n40/n41/n77/n78 4G LTE DL: 4×4 MIMO on B1/B3/B7/ B32/B38/ | 5G NR UL: 2×2 MIMO on n41/n77/n78 5G NR DL: 4×4 MIMO on n1/n3/n7/ n38/n40/n41/n77/n78 4G LTE DL: 4×4 MIMO on B1/B3/B7/ B32/B38/ | 5G NR UL: 2×2 MIMO on n41/n77/n78 5G NR DL: 4×4 MIMO on n1/n3/n7/n38/ n40/n41/ 4G LTE DL: 4×4 MIMO on B1/B3/ | Yes | Yes | DL 2×2 MIMO | – | – | ||
| MIMO | ||||||||||
| Modulation (DL/UL) | 256-QAM/256-QAM | 256-QAM/ 256-QAM | 256-QAM/ 256-QAM | 256-QAM/ 256-QAM | 256-QAM/64-QAM | 256-QAM/64-QAM | 64-QAM/ 16-QAM | 64-QAM/16-QAM | 64-QAM/16-QAM | |
| 802.11n 2×2 | – | – | – | – | Yes | Yes | Yes | Yes | Yes | |
| 802.11ac 2×2 | – | – | – | – | – | – | Yes | Yes | Yes | |
| WiFi | 802.11ac 4×4 | – | – | – | – | Yes | Yes | – | – | – |
| 802.11ax 2×2 | – | – | Yes | Yes | – | – | – | – | – | |
| 802.11ax 4×4 | Yes | Yes | – | – | – | – | – | – | – | |
| Number of users | up to 64 | up to 64 | up to 64 | up to 32 | up to 32 | up to 32 | up to 32 | up to 32 | up to 16 | |
| FE LAN | – | – | – | – | – | – | – | x4 | ||
| Ethernet | GbE LAN | x2 (2.5GbE) | x2 (2.5GbE) | x2 (2.5GbE) | x2 (1GbE) | x2 (1GbE) | x2 (1GbE) | x4 (1GbE) | x4 (1GbE) | – |
| GbE WAN | x1 (reuse LAN 1) | x1 (reuse LAN 1) | x1 (reuse LAN 1) | x1 (reuse LAN 1) | x1 (reuse LAN 1) | x1 (reuse LAN 1) | x1 (reuse LAN 1) | x1 (reuse LAN 1) | – | |
| Phone | VoIP | x1 (optional) | x1 (optional) | x1 (optional) | x1 (optional) | x1 (optional) | x1 (optional) | – | – | – |
| VoLTE | x1 (optional) | x1 (optional) | x1 (optional) | x1 (optional) | x1 (optional) | x1 (optional) | – | x1 (optional) | – | |
| SIM slot | Micro/Mini SIM slot | Micro SIM | Micro SIM | Micro SIM | Micro SIM | Micro SIM | Micro SIM | Micro SIM | Micro SIM | Micro SIM |
| Power | DC input | DC 12 V | DC 12 V | DC 12 V | DC 12 V | DC 12 V | DC 12 V | DC 12 V | DC 12 V | DC 12 V |
| * WiFi AP is used for management purpose only. | ||||||||||
| Model | Cat. 4 | |
| WAH7601 | ||
| Product name | 4G LTE Portable Router | |
| 5G NR | FDD | – |
| TDD | – | |
| 4G LTE | FDD | B1, B3, B7, B8, B20 |
| TDD | B38, B40 | |
| DL CA | – | |
| 802.11n 1×1 | – | |
| 802.11n 2×2 | Yes | |
| WiFi | 802.11ac 2×2 | – |
| 802.11ax 2×2 | – | |
| Number of users | up to 10 | |
| Battery capacity | 2000 mAh |
