5G NR/4G LTE CPE
Quick Sales Guide

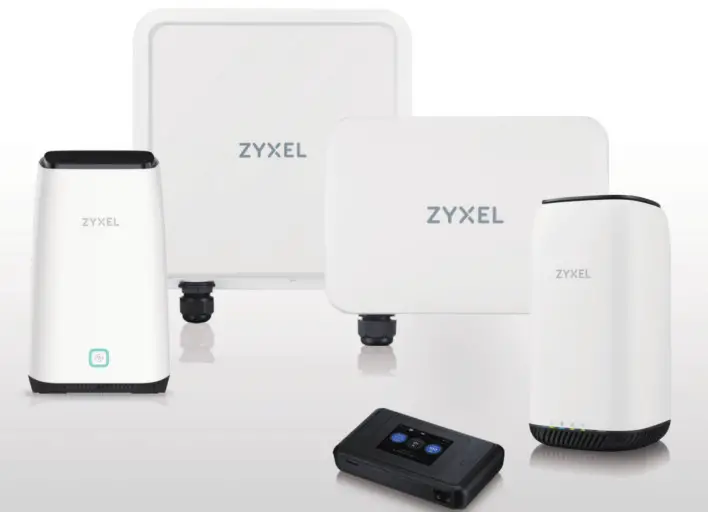

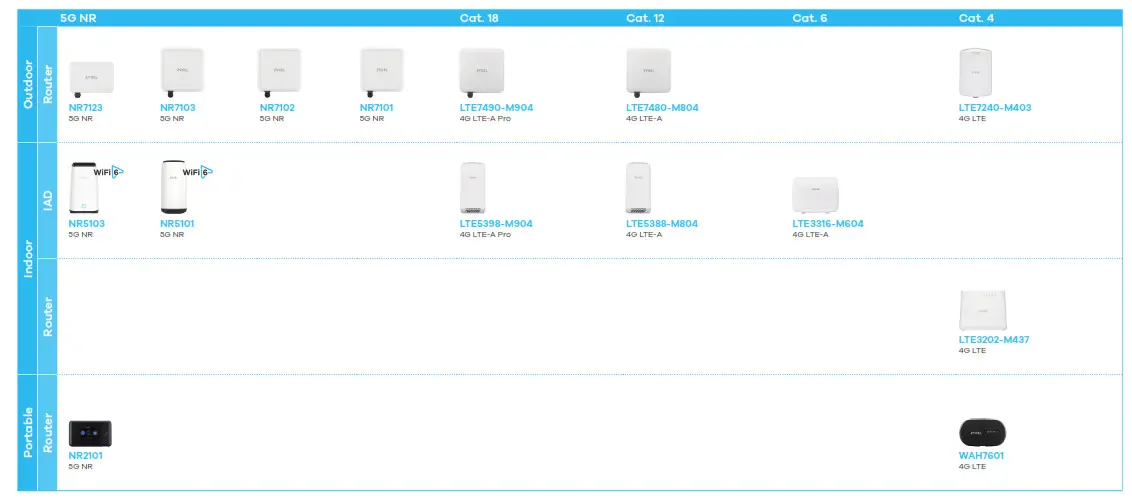

Mobile broadband product portfolio

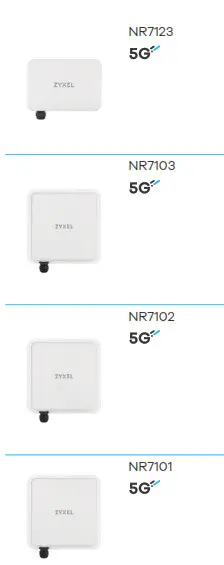

Key features
| Category | Cat. | Model | Key features |
| Outdoor CPE | 5G NR | ||
 | • 3GPP Release 15 5G NR, up to 4.67 Gbps/2.5 Gbps* (DL/UL) with the support of NSA & SA mode • Standard 802.3af/at 2.5 Gbps PoE • Multiple APNs with VLAN mapping • Bridge and router modes, IPv4/IPv6 dual-stack • Remote management via TR-069 (TR-181 and TR-143 speed test) and web GUI • IP65 hardened enclosure with industrial-grade | ||
| • 3GPP Release 15 5G NR, up to 4.67 Gbps/2.5 Gbps* (DL/UL) with the support of NSA & SA mode • Standard 802.3af/at 2.5 Gbps PoE • Multiple APNs with VLAN mapping • Bridge and router modes, IPv4/IPv6 dual-stack • Remote management via TR-069 (TR-181 and TR-143 speed test) and web GUI • IP68 hardened enclosure with industrial-grade components | |||
| • 3GPP Release 15 5G NR, up to 5 Gbps/650 Mbps* (DL/UL) with the support of NSA & SA mode • Standard 802.3af/at 2.5 Gbps PoE • Multiple APNs with VLAN mapping • Bridge and router modes, IPv4/IPv6 dual-stack • Remote management via TR-069 (TR-181 and TR-143 speed test) and web GUI • IP68 hardened enclosure with industrial-grade components | |||
| • 3GPP Release 15 5G NR, up to 5.0 Gbps/650 Mbps* (DL/UL) with the support of NSA & SA mode • Bridge and router modes, IPv4/IPv6 dual-stack • Remote management via TR-069 (TR-181 and TR-143 speed test) and web GUI • IP68 hardened enclosure with industrial-grade components | |||
 | • 3GPP Release 13 Cat. 18, up to 1.2 Gbps/150 Mbps* (DL/UL) • Built-in 4×4 MIMO, high-gain antennas of up to 7 dBi per element • Remote management via TR-069 (TR-181 and TR-143 speed test) and web GUI • IP68 hardened enclosure with industrial-grade components |
| • 3GPP Release 12 Cat. 12, up to 600/150 Mbps* (DL/UL) • Built-in 4×4 MIMO, directional high-gain antennas of up to 7 dBi per element • Remote management via TR-069 (with TR-143 speed test), HTTP/web GUI • IP68 hardened enclosure with industrial-grade components | |
| • 3GPP Release 9 Cat. 4, up to 150/50 Mbps* (DL/UL) • Two built-in high-gain antennas up to 7 dBi per element • Remote management via TR-069 (TR-181 and TR-143 speed test) and web GUI • IP56 hardened enclosure with industrial-grade components |
| • 3GPP Release 15 5G NR, up to 4.67 Gbps/2.5 Gbps* (DL/UL) with the support of NSA & SA mode • Supports FR1 NR 2xCC with total 200MHz BW • WiFi 6 (11ax) 4×4+4×4 for superior performance and coverage • Remote management via TR-069 (TR-181 and TR-143 speed test) and web GUI • Zyxel mobile app (iOS and Android) |
| • 3GPP Release 15 5G NR, up to 5 Gbps/650 Mbps* (DL/UL) with the support of NSA & SA mode • WiFi 6 (11ax) 2×2+2×2 for superior performance and coverage • Remote management via TR-069 (TR-181 and TR-143 speed test), HTTP/web GUI • Supports VoIP/VoLTE (optional feature) | |
| • 3GPP Release 12 Cat. 18, up to 1.2 Gbps/150 Mbps* (DL/UL) • AC2050 dual-band WiFi AP • Built-in LTE 4×4 MIMO high-performance antennas • Dual-WAN Failover (mobile & Ethernet WAN) • Remote management via TR-069 (TR-181 and TR-143 speed test), HTTP/web GUI • Supports VoIP/VoLTE (optional feature) | |
| • 3GPP Release 11 Cat. 12, up to 600/150 Mbps* (DL/UL) • AC2050 dual-band WiFi AP • Built-in LTE 4×4 MIMO high-performance antennas • Dual WAN Failover (mobile & Ethernet WAN) • Remote management via TR-069 (TR-181 and TR-143 speed test) and web GUI |
| • 3GPP Release 10 Cat. 6, up to 300/50 Mbps* (DL/UL) • AC1200 dual-band concurrent links • Four GbE LAN ports (1 x WAN/LAN & 3 x LANs) • Dual WAN Failover (mobile & Ethernet WAN) • Remote management via TR-069 (TR-181 and TR-143 speed test) and web GUI |
| • 3GPP Release 9 Cat. 4, up to 150/50 Mbps* (DL/UL) • N300 WiFi with multiple simultaneous SSID • Seamless switching between 4G and 3G • Bridge and router modes, IPv4/IPv6 dual-stack • Remote management via TR-069 (TR-181 and TR-143 speed test) and web GUI |
| Product categories | Cat. | Model | Key features |
| 5G Portable Device | 5G NR | ||
| LTE Portable Devices Cat. 4 |   | • 3GPP Release 15 5G NR, up to 5.0 Gbps/650 Mbps* (DL/UL) with the support of NSA & SA mode • WiFi 6 (11ax) for superior performance and coverage • USB 3.1 type C gen 2 port & one GbE LAN • Up to 10 hours working time with 2.4” touch screen | |
| • 3GPP Release 9 Cat. 4, up to 150/50 Mbps* (DL/UL) • N300 WiFi with multiple simultaneous SSID • Supports up to 10 WiFi-connected clients • Up to 8 working hours • Micro SD card slot (32 GB max.) | |||
Frequency band comparison
Outdoor CPE
| Model | 5G NR | Cat. 18 | Cat. 12 | Cat. 4 | ||||
| NR7123 | NR7103 | NR7102 | NR7101 | LTE7490-M904 | LTE7480-M804 | LTE7240-M403 | ||
| Product name | 5G New Radio Outdoor Router | 5G New Radio Outdoor Router | 5G New Radio Outdoor Router | 5G NR Outdoor Router | 4G LTE-A Pro Outdoor Router | 4G LTE-A Outdoor Router | LTE Outdoor Router | |
| Ingress Protection Rating | IP65 | IP68 | IP68 | IP68 | IP68 | IP68 | IP56 | |
| 5G NR | FDD | n1, n3, n5, n7, n8, n20, n28 | n1, n3, n5, n7, n8, n20, n28 | n1, n3, n5, n7, n8, n20, n28 | n1, n3, n5, n7, n8, n20, n28 | – | – | – |
| TDD | n38, n40, n41, n77, n78 | n38, n40, n41, n77, n78 | n38, n40, n41, n77, n78 | n38, n40, n41, n77, n78 | – | – | – | |
| 4G LTE | FDD | B1, B3, B5, B7, B8, B20, B28 | B1, B3, B5, B7, B8, B20, B28 | B1, B3, B5, B7, B8, B20, B28 | B1, B3, B5, B7, B8, B20, B28 | B1, B3, B5, B7, B8, B20, B28 | B1, B3, B5, B7, B8, B20, B28 | B1, B3, B5, B7, B8, B20 |
| TDD | B38, B40, B41, B42, B43 | B38, B40, B41, B42, B43 | B38, B40, B41, B42, B43 | B38, B40, B41, B42, B43 | B38, B40, B41 | B38, B40, B41 | B38, B40, B41 | |
| DL CA | 5G NR: 2xCA 4G LTE: 5xCA | 5G NR: 2xCA 4G LTE: 5xCA | 5G NR: EN-DC 4G LTE: 7xCA | 5G NR: EN-DC intra-band and inter-band DL 3xCA: intra-band and inter-band DL 4xCA: intra-band and inter-band DL 5xCA: intra-band and inter-band within 4 bands | DL 2xCA: DL 2xCA: intra-band and inter-band DL 3xCA: intra-band and inter-band | DL 2xCA: intra-band and inter-band DL 3xCA: intra-band and inter-band | – | |
| UL CA | 5G NR: 2×2 UL MIMO 4G LTE: 2xCA: intra-band contiguous | 5G NR: 2×2 UL MIMO 4G LTE: 2xCA: intra-band contiguous | 5G NR: 2×2 UL MIMO 4G LTE: 2xCA: intra-band contiguous | 5G NR: 2×2 UL MIMO 4G LTE: 2xCA: intra-band contiguous | 2xCA: intra-band contiguous | 2xCA: intra-band contiguous | – | |
| MIMO | 5G NR UL: 2×2 MIMO on n41/n77/n78 5G NR DL: 4×4 MIMO on n1/n3/n7/n38/ n40/n41/n77/n78 4G LTE DL: 4×4 MIMO on B1/B3/B7/B32/ B38/B40/B41/B42 | 5G NR UL: 2×2 MIMO on n41/n77/n78 5G NR DL: 4×4 MIMO on n1/n3/n7/n38/ n40/n41/n77/n78 4G LTE DL: 4×4 MIMO on B1/B3/B7/B32/ B38/B40/B41/B42 | 5G NR UL: 2×2 MIMO on n41/n77/n78 5G NR DL: 4×4 MIMO on n1/n3/n7/n38/ n40/n41/n77/n78 4G LTE DL: 4×4 MIMO on B1/B3/B7/B32/ B38/B40/B41/B42 | 5G NR UL: 2×2 MIMO on n41/n77/n78 5G NR DL: 4×4 MIMO on n1/n3/n7/n38/n40/ n41/n77/n78 4G LTE DL: 4×4 MIMO on B1/B3/B7/B32/B38/ B40/B41/B42/B43 | DL MIMO: B1/3/7 | DL MIMO: B1/3/7 | – | |
| Modulation (DL/UL) | 256-QAM/256-QAM | 256-QAM/256-QAM | 256-QAM/256-QAM | 256-QAM/256-QAM | 256-QAM/64-QAM | 256-QAM/64-QAM | 64-QAM/16-QAM | |
| WiFi | 802.11n 2×2 | Yes* | Yes* | Yes* | Yes* | Yes* | Yes* | Yes* |
| 802.11ac 2×2 | – | – | – | – | – | – | – | |
| 802.11ac 4×4 | – | – | – | – | – | – | – | |
| 802.11ax 2×2 | – | – | – | – | – | – | – | |
| Number of users | – | – | – | – | – | – | – | |
| Ethernet | FE LAN | – | – | – | – | – | – | – |
| GbE LAN | x1 (2.5G PoE) | x1 (2.5G PoE) | x1 (2.5G PoE) | x1 (PoE) | x1 (PoE) | x1 (PoE) | x1 (Passive PoE) | |
| GbE WAN | – | – | – | – | – | – | – | |
| Phone | VoIP | – | – | – | – | – | – | – |
| Vo3G/VoLTE | – | – | – | – | – | – | – | |
| SIM slot | Micro/Mini SIM slot | Micro SIM | Micro SIM | Micro SIM | Micro SIM x2 | Micro SIM | Micro SIM | Micro SIM |
| Power | DC input | PoE 48 V | PoE 48 V | PoE 48 V | PoE 48 V | PoE 48 V | PoE 48 V | PoE 15 V |
Indoor CPE
| Model | 5G NR | Cat. 18 | Cat. 12 | Cat. 6 | Cat. 4 | |||
| NR5103 | NR5101 | LTE5398-M904 | LTE5388-M804 | LTE3316-M604 | LTE3202-M437 | |||
| Product name | 5G NR Indoor CPE | 5G NR Indoor CPE | 4G LTE-A Pro Indoor IAD | 4G LTE-A Indoor IAD | 4G LTE-A Indoor IAD | LTE Indoor Router | ||
| 5G NR | FDD | n1, n2, n5, n7, n8, n20, n28 | n1, n3, n5, n7, n8, n20, n28 | – | – | – | – | |
| TDD | n38, n40, n41, n77, n78 | n38, n40, n41, n77, n78 | – | – | – | – | ||
| 4G LTE | FDD | B1, B3, B5, B7, B8, B28 | B1, B3, B5, B7, B8, B20, B28 | B1, B3, B5, B7, B8, B20, B28 | B1, B3, B5, B7, B8, B20, B28 | B1, B3, B5, B7, B8, B20, B28 | B1, B3, B5, B7, B8, B20, B28 (28a) | |
| TDD | B38, B40, B41, B42 | B38, B40, B41, B42, B43 | B38, B40, B41 | B38, B40, B41 | B38, B40, B41 | B38, B40, B41 | ||
| DL CA | 5G NR: 2xCA 4G LTE: 5xCA | 5G NR: EN-DC 4G LTE: 7xCA | 2xCA: intra-band and inter-band 3xCA: intra-band and inter-band 4xCA: intra-band and inter-band 5xCA: intra-band and inter-band within 4 bands | 2xCA: intra-band and inter-band 3xCA: intra-band and inter-band | B1+B1/B5/B8/ B20/B28 B3+B3/B5/B7/B8/B20/B28 B7+B5/B7/B8/B20/B28 B38+B38; B40+B40; B41+B41 | – | ||
| UL CA | 5G NR: 2×2 UL MIMO 4G LTE: 2xCA: intra-band contiguous | 5G NR: 2×2 UL MIMO 4G LTE 2xCA: intra-band contiguous | 2xCA: intra-band contiguous | 2xCA: intra-band contiguous | – | – | ||
| MIMO | 5G NR UL: 2×2 MIMO on n41/n77/n78 5G NR DL: 4×4 MIMO on n1/n3/n7/n38/ n40/n41/n77/n78 4G LTE DL: 4×4 MIMO on B1/B3/B7/B32/ B38/B40/B41/B42 | 5G NR UL: 2×2 MIMO on n41/n77/n78 5G NR DL: 4×4 MIMO on n1/n3/n7/n38/n40/n41/ n77/n78 4G LTE DL: 4×4 MIMO on B1/B3/B7/B32/B38/B40/ B41/B42/B43 | Yes | Yes | – | – | ||
| Modulation (DL/UL) | 256-QAM/256-QAM | 256-QAM/256-QAM | 256-QAM/64-QAM | 256-QAM/64-QAM | 64-QAM/16-QAM | 64-QAM/16-QAM | ||
| WiFi | 802.11n 2×2 | – | – | Yes | Yes | Yes | Yes | |
| 802.11ac 2×2 | – | – | – | – | Yes | Yes | ||
| 802.11ac 4×4 | – | – | Yes | Yes | – | – | ||
| 802.11ax 2×2 | – | Yes | – | – | – | – | ||
| 802.11ax 4×4 | Yes | – | – | – | – | – | ||
| Number of users | up to 64 | up to 32 | up to 32 | up to 32 | up to 32 | up to 16 | ||
| Ethernet | FE LAN | – | – | – | – | – | x4 | |
| GbE LAN | x2 (2.5G) | x2 | x2 | x2 | x4 | – | ||
| GbE WAN | x1 (reuse LAN 1) | x1 (reuse LAN 1) | x1 (reuse LAN 1) | x1 (reuse LAN 1) | x1 (reuse LAN 1) | – | ||
| Phone | VoIP | x1 (optional) | x1 (optional) | x1 (optional) | x1 (optional) | – | – | |
| VoLTE | x1 (optional) | x1 (optional) | x1 (optional) | x1 (optional) | x1 (optional) | – | ||
| SIM slot | Micro/Mini SIM slot | Micro SIM | Micro SIM | Micro SIM | Micro SIM | Micro SIM | Micro SIM | |
| Power | DC input | DC 12 V | DC 12 V | DC 12 V | DC 12 V | DC 12 V | DC 12 V | |
Portable CPE
| Model | 5G NR | Cat. 4 | |
| Product name | NR2101 | WAH7601 | |
| 5G NR Portable Router | 4G LTE Portable Router | ||
| 5G NR | FDD | n1, n3, n7, n8, n20, n28 | – |
| TDD | n41, n77, n78 | – | |
| 4G LTE | FDD | B1, B2, B3, B5, B7, B8, B20, B28 | B1, B3, B7, B8, B20 |
| TDD | B38, B40, B41, B42, B43 | B38, B40 | |
| DL CA | 5G NR: EN-DC | – | |
| WiFi | 802.11n 1×1 | – | – |
| 802.11n 2×2 | – | Yes | |
| 802.11ac 2×2 | – | – | |
| 802.11ax 2×2 | Yes | – | |
| Number of users | up to 10 | up to 10 | |
| Battery capacity | 5300 mAh | 2000 mAh | |
