Fair-play Bb-1676-4 Basketball Scoreboard Instructions

FAIR-PLAY BB-1676-4 Basketball Scoreboard

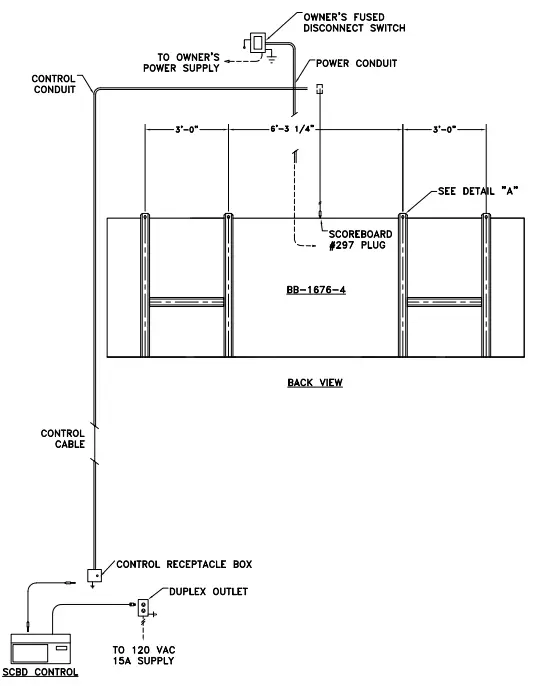

DIMENSIONS

NOTES

• POWER WIRES SHOULD BE ROUTED IN SEPARATE CONDUIT FROM CONTROL CABLE.
• SUGGEST 1/2″ CONDUIT FOR CONTROL.
• VENTILATION- THE SCOREBOARD BACK INCORPORATES FANS FOR AIR CIRCULATION. INSTALL SCOREBOARD SO AIR FLOW IS NOT RESTRICTED.
• ATTACHMENT TO WALL- USE 3/8″ TOGGLE BOLT WITH WASHER FOR TILE WALL, OR 3/8″ EXPANSION BOLT WITH WASHER FOR MASONRY WALL.
• FAIR-PLAY ASSUMES NO RESPONSIBILITIES FOR INSTALLATIONS DONE BY OTHERS.

MOUNTING  BRACKET
