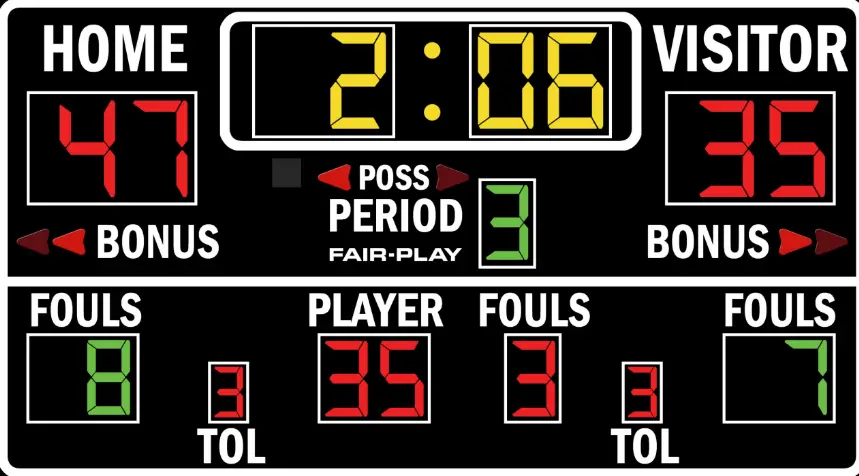

FAIR-PLAY BB-1696-4 Basketball Scoreboard

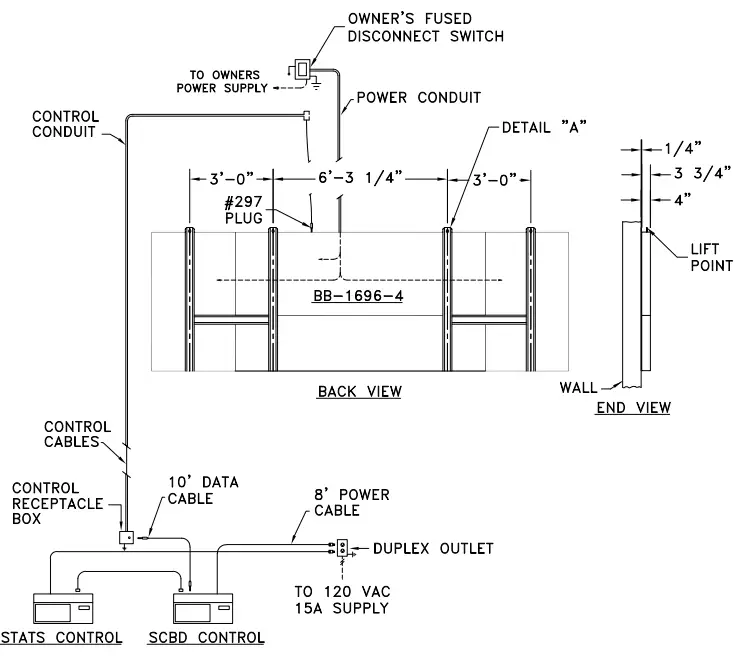

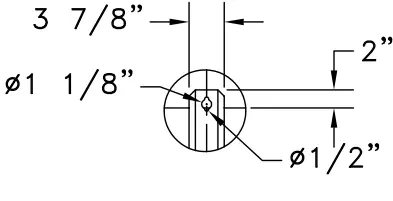

Diagram
NOTES:
POWER WIRES SHOULD BE ROUTED IN SEPARATE CONDUIT FROM CONTROL CABLE. SUGGET 1/2″ CONDUIT FOR POWER AND CONTROL.
VENTILATION
INSTALL PRODUCT so THAT AIR FLOW IS NOT RESTRICTED. CUSTOMER’S STRUCTURE MUST ALLOW FOR THE FREE FLOW OF OUTSIDE AMBIENT AIR TO THE PRODUCT, WITHOUT RECIRCULATION OF AIR. WARRANTY WILL BE VOID IF COMPONENTS FAIL DUE TO AIR FLOW RESTRICTIONS.
ATTACHMENT TO WALL
- USE 3/8″ TOGGLE BOLT WITH WASHER
- FOR TILE WALL, OR 3/8″ EXPANSION BOLT WITH WASHER FOR MASONRY WALL.
- FAIR-PLAY ASSUMES NO RESPONSIBILITIES FOR INSTALLATIONS DONE BY OTHERS.
