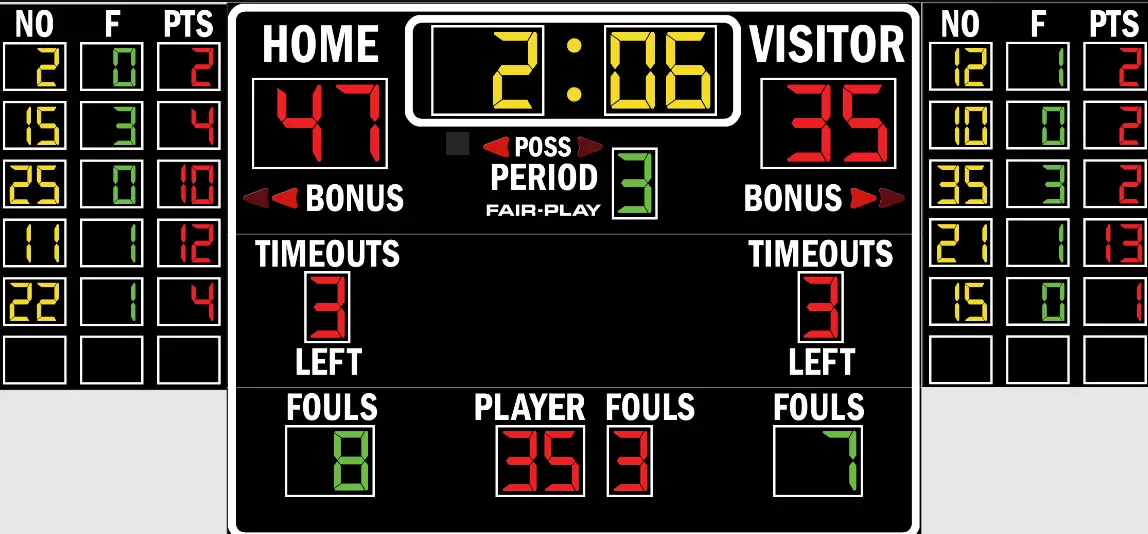

FAIR-PLAY BB-1646-4 Basketball Scoreboard
Instruction

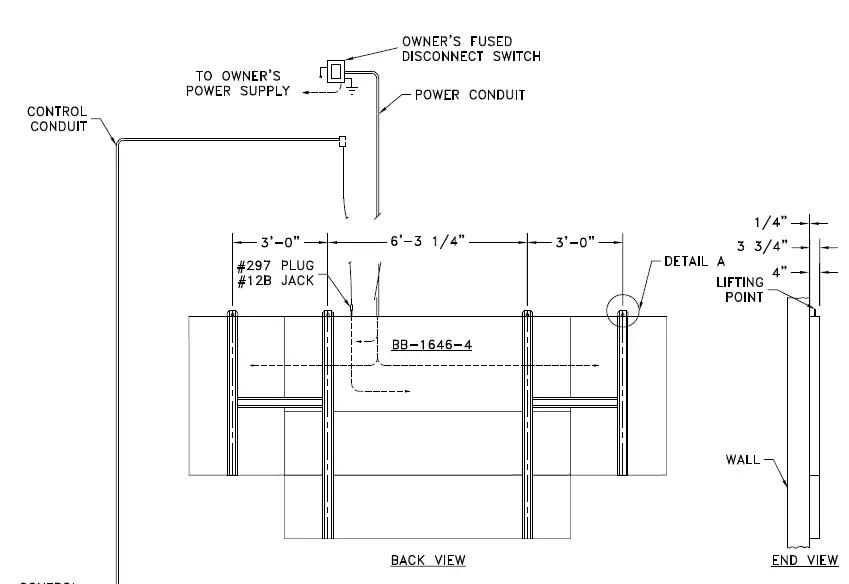

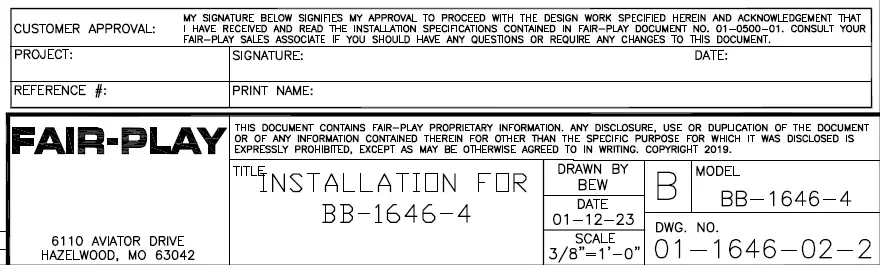

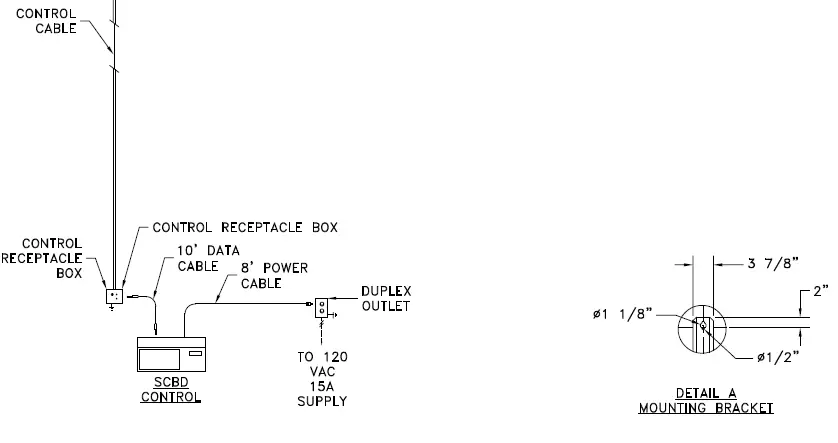

NOTES: POWER WIRES SHOULD BE RUTED IN SEPARATE CONDUIT FROM CONTROL CABLE. SUGGEST 1/2″ CONDUIT FOR CONTROL VENTILATION- THE SCOREBOARD BACK INCORPORATES FANS FOR AIR CIRCULATION. INSTALL SCOREBOARD S0 AIR FLOW IS NOT RESTRICTED. ATTACHMENT TO WALL- USE 3/8″ TOGGLE BOLT WITH WASHER FOR TILE WALL, OR 3/8 EXPANSION BOLT WITH WASHER FOR MASONRY WALL. FAIR-PLAY ASSUMES NO RESPONSIBILITIES FOR INSTALLATIONS DONE BY OTHERS. REFERENCE 01-0500-01 FOR INSTALLATION NOTES.
