GE current WWD2IW Wireless Wall Dimmer
WWD2-41W
Daintree® Networked
Wireless Wall Dimmer
BEFORE YOU BEGIN
Read these instructions completely and carefully.
Save these instructions for future use.
WARNING
RISK OF ELECTRIC SHOCK
- Disconnect power before service installation, or maintenance of the product.
RISK OF FIRE - Follow all relevant IEC or UL instructions and local building codes.
RISK OF INJURY - Wear safety glasses and gloves during installation and servicing.
FCC/ IC COMPLIANCE STATEMENTS
This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:
- This device may not cause interference.
- This device must accept any interference, including interference that may cause undesired operation of the device.
Prepare Electrical Wiring
Electrical Requirements
- In case of Digital bus miswiring, mains can be present on the device. Make sure all electricity is switched off before inspection.
Grounding Instructions
- The grounding and bonding of the overall system shall be done in accordance with National electric Code (NEC) Article 600 and local codes.
IMPORTANT
To ensure the product warranty is valid, please ensure all installation instructions and environmental conditions for storage and operation are complied with.
Installation to be performed by factory-trained or qualified personnel.
Save These Instructions
Use only in the manner intended by the manufacturer. If you have any questions, contact the manufacturer.

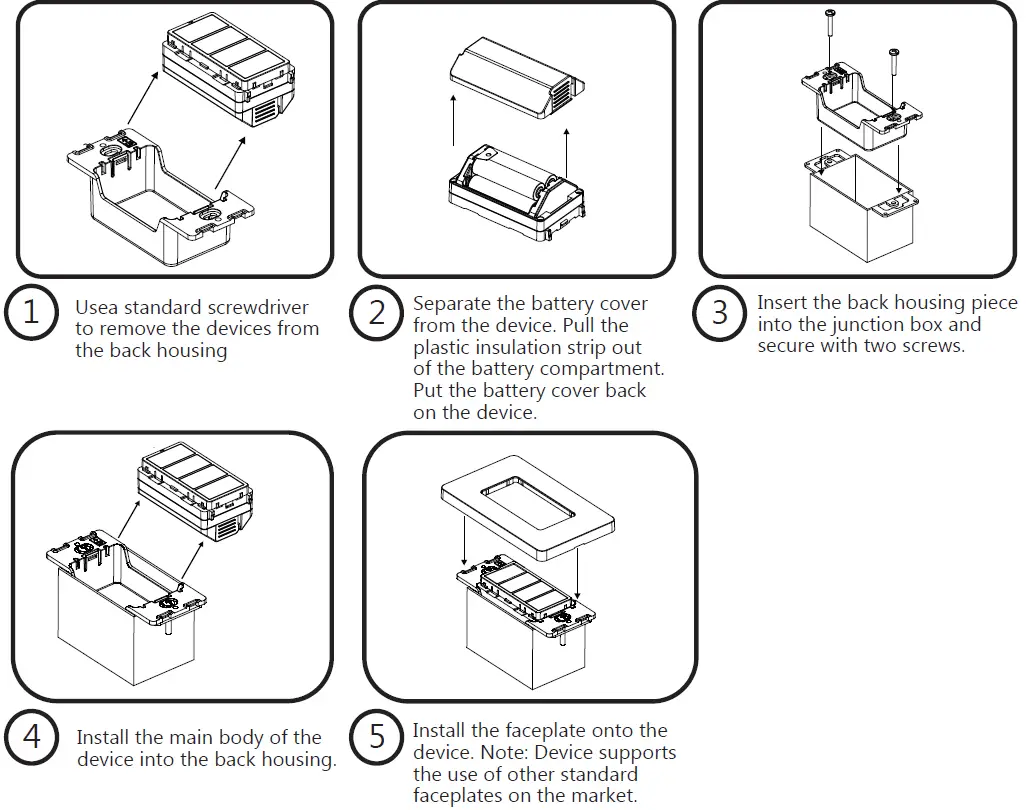

Installation

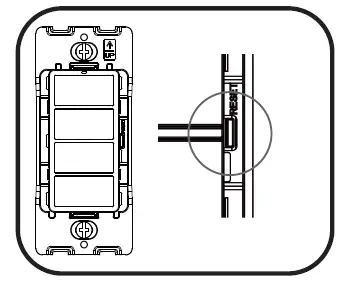

Network Reset
To reset the network of the device, remove the faceplate from the device. Then press and hold the reset button for 5 seconds. Install the faceplate back onto the device.
Press either dimming up or down button to enter the pairing mode to join the device to a network.

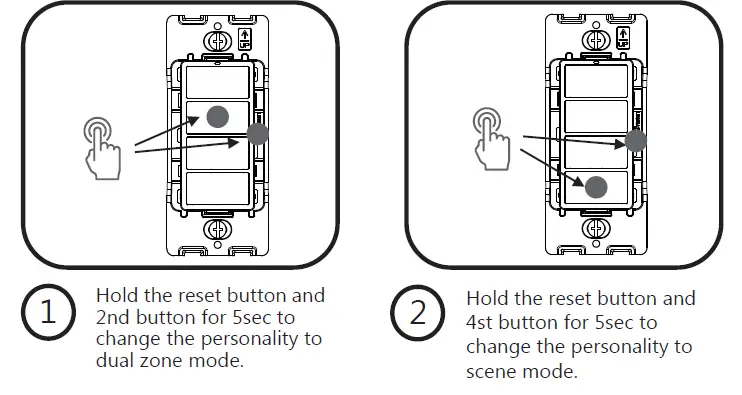

Personality Change

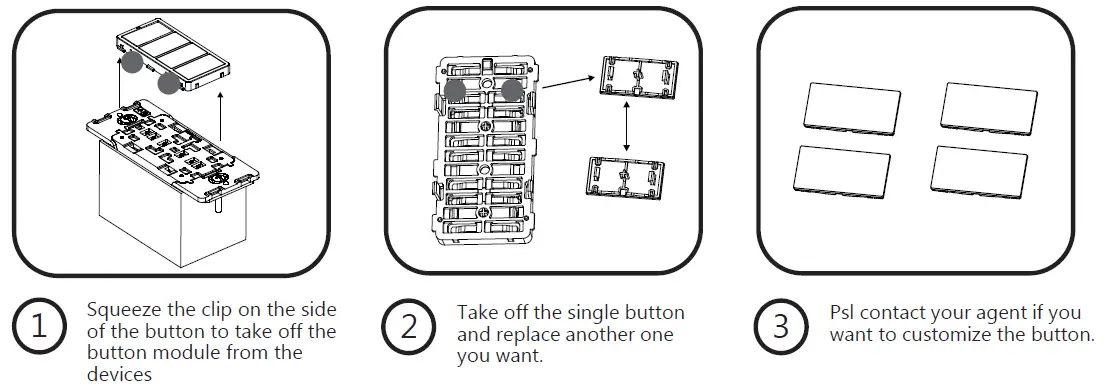

Button Change
Battery Replacement
Product Dimensions
Product Overview
Technical Data
Product Specifications
- Dimensions 114mm H x 70mm W x 36mm D
- Weight 130g
- Power Supply (4) AAA1.5V battery
- battery life 5yr (normal operation)
- Operating Environment -10°C to 40°C （Indoor Use Only)
- Status indicator Network joined/Button triggered
- Mounting Surface mounted, screw hole in backplate, cover could be removed
- Warranty 5 years
Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help
Supplier’s Declaration of Conformity 47 CFR § 2.1077 Compliance Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- this device must accept any interference received, including interference that may cause undesired operation.

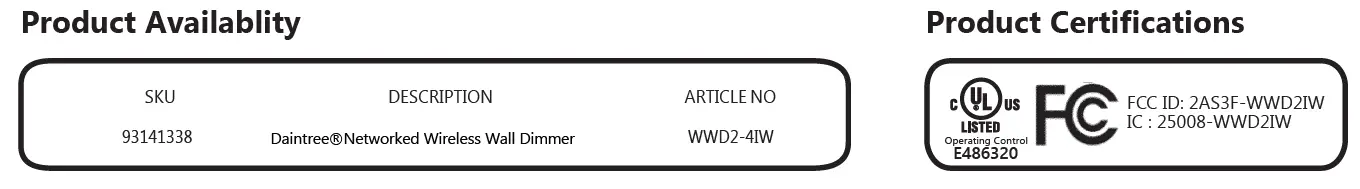

Porduct Name: Wireless Wall Dimmer
Model No: WWD2-4IW
Suppliers Name: Current Lighting Solutions, LLC
Suppliers Address (USA): 1975 Noble Road, East Cleveland, OH 44112 Suppliers phone number and/or internet contact information: 1-866-855-8629
www.gecurrent.com
© 2020 Current Lighting Solutions, LLC. All rights reserved. GE and the GE monogram are trademarks of the General Electric Company and are used under license. Information provided is subject to change without notice. All values are design or typical values when measured under laboratory conditions.
CTRL027 (Rev 07/05/20) Enovia – A-1025984
