Hoftronic 4406554 Wireless Wall Dimmer Rotary Design User Manual

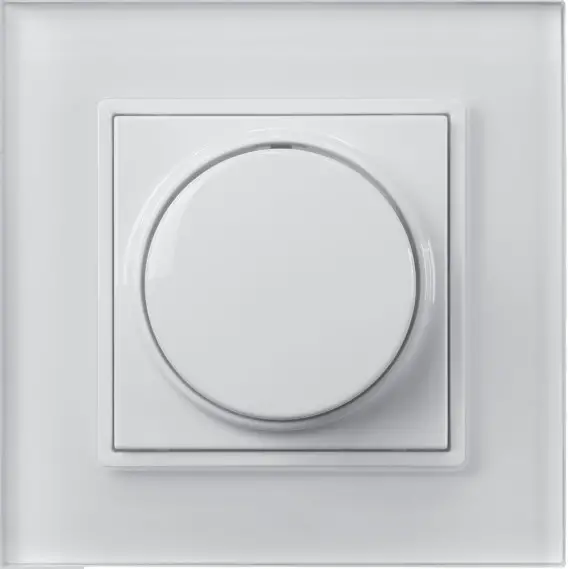

4406554 Wireless Wall Dimmer Rotary Design
User Manual

IMPORTANT SAFETY DETAILS

1. This device contains a button lithium battery that shall be stored and disposed properly
2. Don’t expose the device to moisture

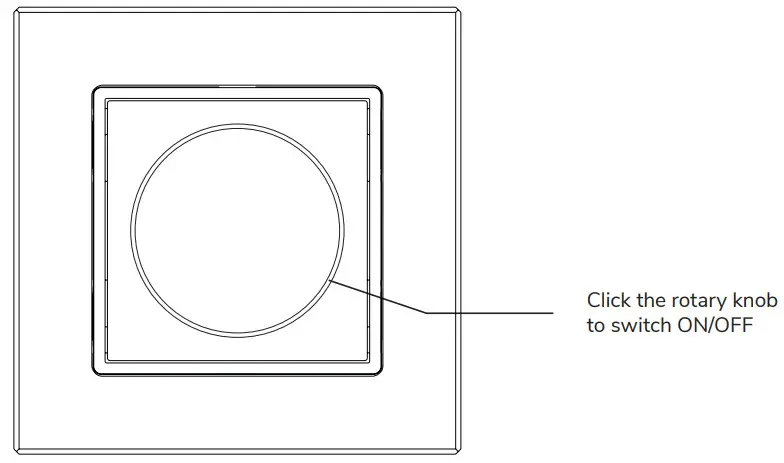

FUNCTION INTRODUCTION

For RGB color version
Double click the knob to switch between RGB mode and brightness mode.
Rotate the knob to change RGB color(RGB mode) or dim between 1% to 100%(brightness mode).
Each time when switched on, the controller will work under brightness mode and does not remember last mode..
For dual color version
Double click the knob to switch between dual color mode and brightness mode.
Rotate the knob to change color temperature(dual color mode) or dim between 1% to 100%(brightness mode).
Each time when switched on, the controller will work under brightness mode and does not remember last mode..
For Mono color version
Rotate the knob to dim between 1% to 100%.

PRODUCT DATA

• Control 1 zone
• Monochrome, dual color, RGB color versions
• Compatible with all universal series RF receivers
• 1 receiver can be paired by max 8 different remote controls.
• Waterproof grade: IP20

PAIR WITH RF RECEIVER

INSTALLATION

The key part of this controller is a universal, extremely rotary standard switch element that can be integrated in numerous frames by different manufactures as below list:

INTENDED USE/APPLICATION
Product designed for the use in households and for other similar general applications.
MOUNTING
Technical changes reserved. Read the manual before mounting. Mounting should be performed by an appropriately qualified person. Any activities to be done with disconnected power supply. Exercise particular caution. Product has a protective contact/terminal. Failure to connect the protective lead may lead to electric shock.

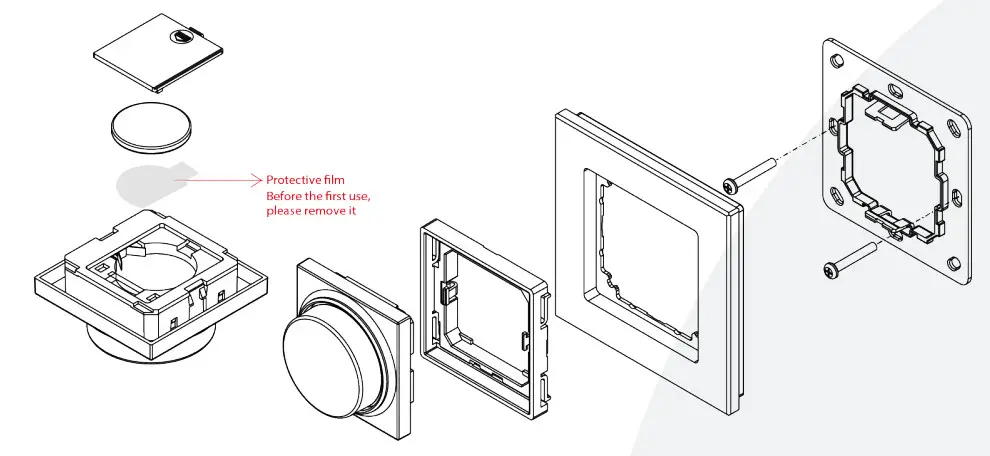

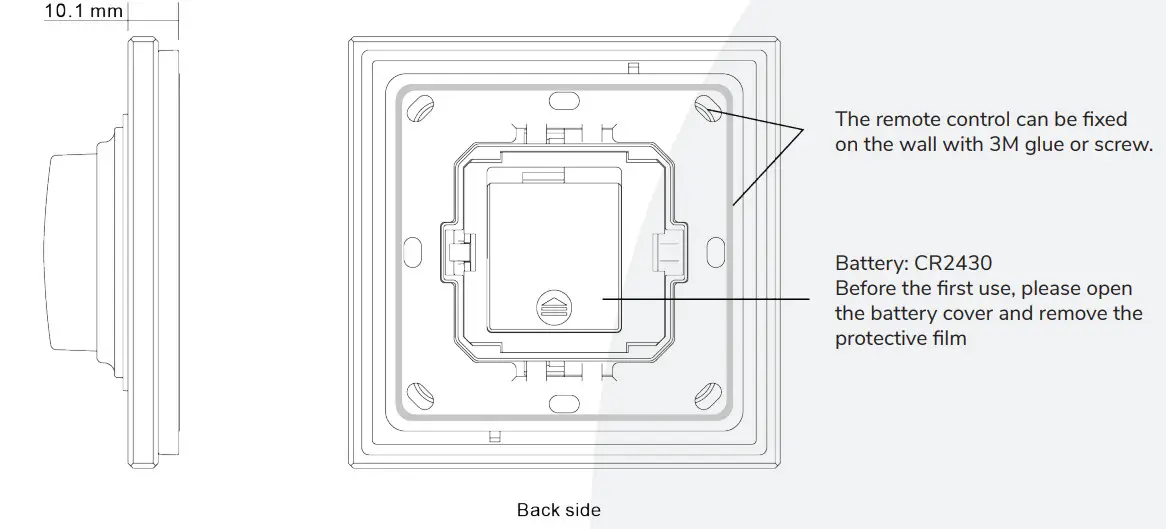

Mounting diagram: see pictures. Check for proper mechanical fastening and connection to electrical power prior to first use. The product can be connected to a supply  network which meets energy quality standards as prescribed by law. To maintain the proper IP protection level, the right diameter of the power cable should be selected for  the cable gland used in the product.
FUNCTIONAL CHARACTERISTICS
The product can only be used indoors
USAGE GUIDELINES / MAINTENANCE
Any maintenance work must be performed when the power supply is cut off and the product has cooled down. Clean only with soft and dry cloths. Do not use chemical detergents. Do not cover the product. Ensure free air access. Product may heat up to a higher temperature. Product can only be supplied by rated voltage or voltage within  the range provided. It’s forbidden to use the product with damaged protective cover. Product must not be used in unfavourable conditions, e.g. dust, water, moisture,  vibrations, explosive air atmosphere, fumes, or chemical fumes, etc. Nondemountable product.
Not suitable
for independent repairs.
ENVIRONMENTAL PROTECTION
Keep your environment clean. Segregation of post-packaging waste is recommended.
This labelling indicates the requirement to selectively collect waste electronic and electrical equipment. Products labelled in this way must not be disposed of in the same way  as other waste under the threat of a fine. These products may be harmful to the natural environment and health, and require a special form of recycling/neutralising. Products  labelled in this way should be returned to a collection facility for waste electrical and electronic goods. Information on collection centres is provided by local  authorities or sellers of such goods. Used items can also be returned to the seller when new product is purchased, in quantity no larger than the purchased item of the same  type. The above rules regard the EU area. In the case of other countries, regulations in force in a given country must be applied. Contacting the distributor of our products in  a given area is recommended.
COMMENTS / GUIDELINES
Failure to follow these instructions may result in e.g. fire, burns, electrical shock, physical injury and other material and non-material damage. For more information about  Hoftronic products visit www.hoftronic.com. Hoftronic shall not be responsible for any damage resulting from the failure to follow these instructions. Hoftronic reserves the  right to make changes in the manual – the current version can be downloaded at www.hoftronic.com.

DECLARATION OF CONFORMITY

DOCUMENTATION
This product has been manufactured and supplied in compliance with all relevant regulations and directives applicable to all member states of the European Union.
The product complies with all applicable regulations and rules in the country of sale.
Formal documentation such as the declaration of conformity, the safety data sheet and the product test report is available upon request.

CE DECLARATION
The product complies with the following
directives:
LVD: 2014/35/EU
EMC: 2014/30/EU
RoHS: 2011/65/EU
The complete Declaration of Conformity Document (DOC) is available upon request.

Imported by
HOF Trading B.V.
Fahrenheitstraat 11, 6003 DC Weert , The Netherlands
Made in P.R.C.
www.hoftronic.com
